Atlas Garage PRO7000ST 7,000 lb Super Tall 4-Post Lift

Atlas 7,000 lb. Capacity Super Tall 4 Post Lift

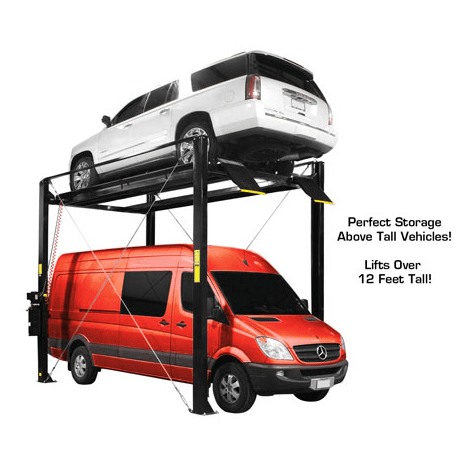

The Atlas® Garage PRO7000ST is the perfect lift for those car enthusiasts lucky enough to have extra tall ceilings and need to store regular height vehicles on top of extra tall vehicles. The PRO7000ST raises vehicles weighing up to 7,000 lbs. all the way to over 12 feet (144 inches) under the runway.

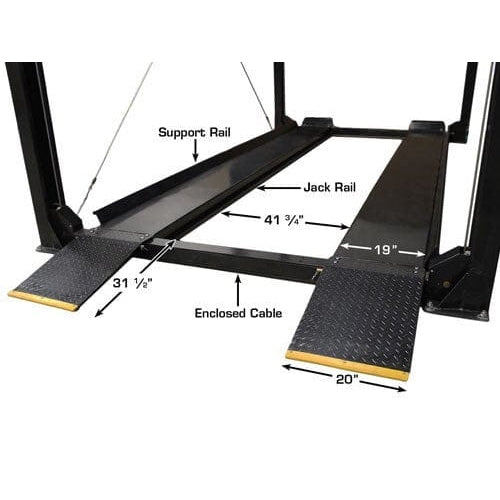

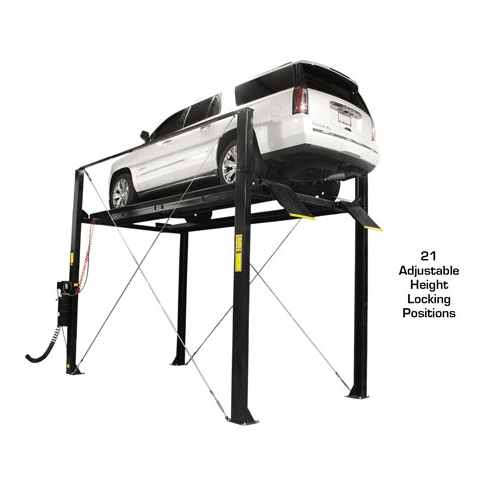

This super tall four post storage lift uses the same heavy duty runways as the Atlas® Garage PRO9000. The runways feature welded tracks which allow the use of a rolling bridge jack (such as the Atlas® RJ6BK). The extra tall lifting height gives customers the space needed to park much taller vehicles under the vehicle stored on top. There are a whopping 21 locking positions in the lock ladder, and the lock ladder may be adjusted during installation giving an almost infinite number of locking heights.

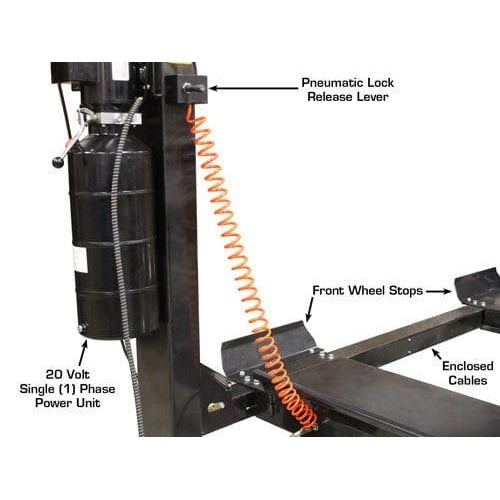

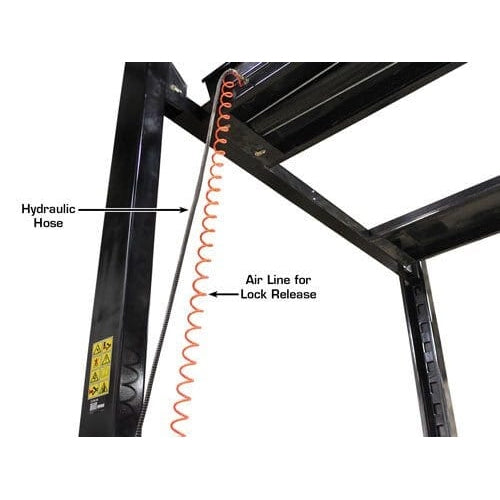

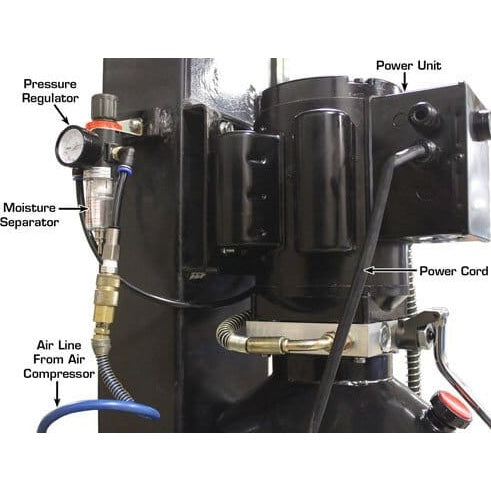

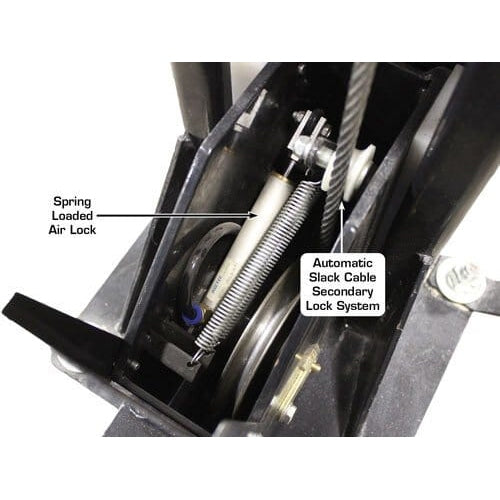

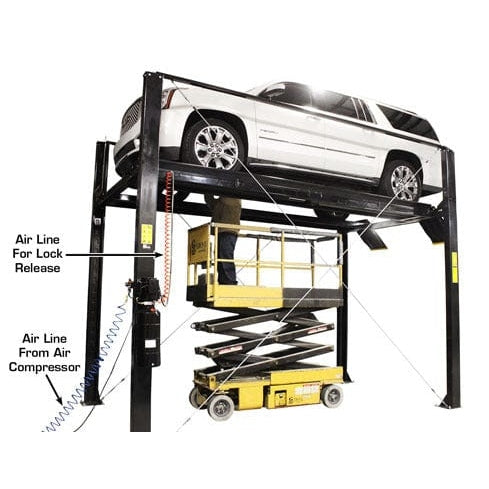

A single point release toggle (located next to the power unit) automatically unlocks all four spring loaded pneumatic locks. Compressed air is required to disengage the locks (air supply not included). The emergency slack cable secondary lock system is always “on standby” and will engage automatically if the cables are compromised or become too slack.
.embed-container { position: relative; padding-bottom: 56.25%; height: 0; overflow: hidden; max-width: 100%; } .embed-container iframe, .embed-container object, .embed-container embed { position: absolute; top: 0; left: 0; width: 100%; height: 100%; }

Features

7,000 lb. Capacity

Heavy Duty

“Super Tall” Lifting Height

Extra Wide & Extra Long

Diamond Plated Runways

Single Point Release, Pneumatic Locks (External Air Supply Required)

Lock Ladder Design

Double Lock Safety System

Steel Approach Ramps Included

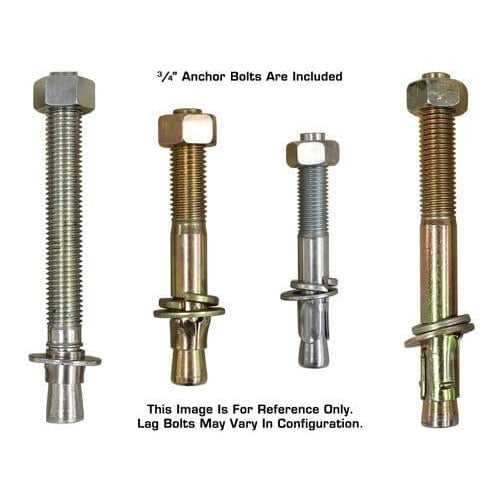

Mounting Hardware Included

Perfect for Storage or Working on Vehicles

220volt/1phase Electric Operation (Requires 30amp Breaker)

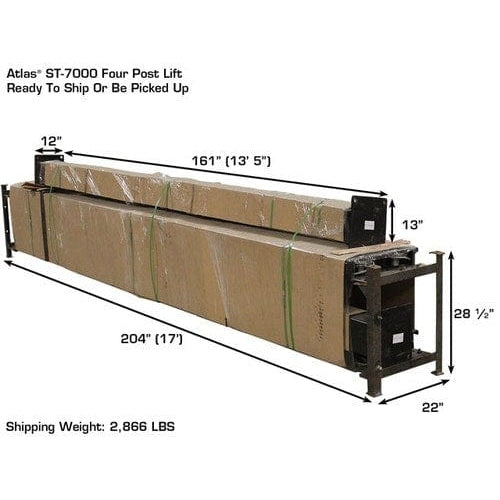

Shipping Weight: 2,866 lbs.

2 yr Structural – 1 yr Hydraulic Warranty – Parts Only

Specifications

Atlas® Garage PRO7000ST Specifications

Capacity
7,000 Lb.

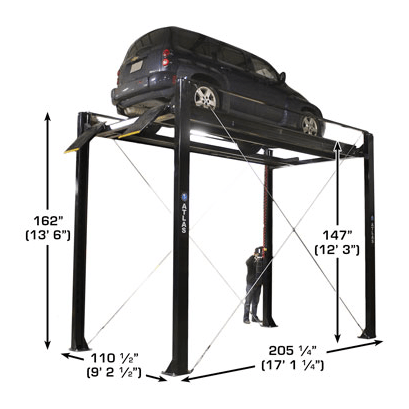

Lifting Height To Top Of Runway
147″ (12′ 3″)

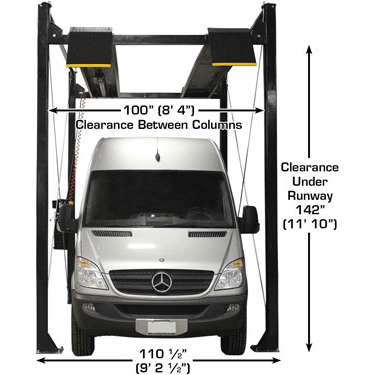

Clearance Under Runways
142″ (11′ 10″)

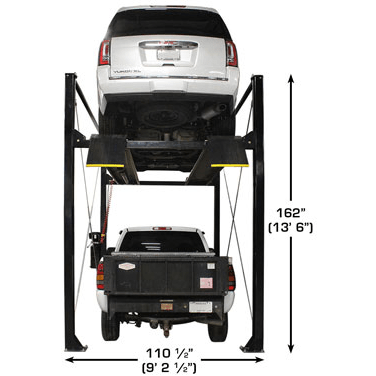

Height Of Columns
162″ (13′ 6″)

Overall Width (Without Motor)
110 1/2″ (9′ 2 1/2″)

Overall Width (With Motor)
123″ (10′ 3″)

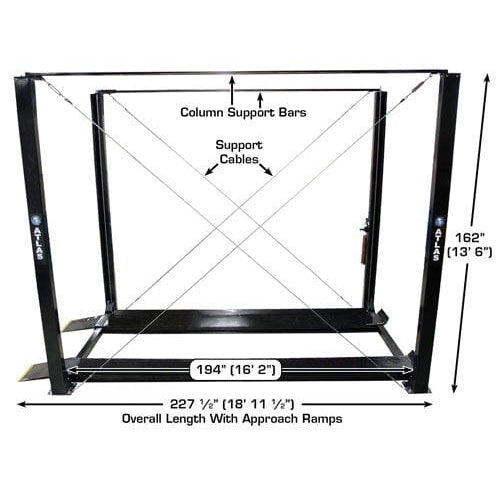

Overall Length With Approach Ramp
227 1/2″ (18’ 11 1/2”)

Approach Ramp
31″ (2′ 7″)

Runway Width
21″ (w/ Rails) or 20″ (Driving Surface)

Runway Length
194″ (16′ 2″)

Runway Thickness
4 3/4″

Width Between Runways
45″ (3′ 9″)

Width Between Runway Rails
41 3/4″ (3′ 5 3/4″)

Outside Runway To Outside Runway
83″ (6′ 11″)

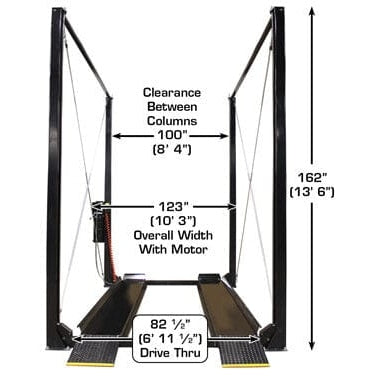

Clearance Between Columns
100″ (8′ 4″)

Length Between Columns
185″ (15′ 5″)

Maximum Wheel Base
182″ (15′ 2″)

Drive Thru (Outside Of Tire To Outside Of Tire)
82 1/2″ (6′ 10 1/2″)

Motor/Electrical Requirement
220 Volt, 1 phase, 30 AMP BREAKER REQUIRED

Shipping Weight
2,866 lb.

Locking Positions Under Runway(+/ 2″)

23″ (1′ 11″)

29″ (2′ 5″)

35″ (2′ 11″)

41″ (3′ 5″)

47″ (3′ 11″)

52″ (4′ 4″)

58″ (4′ 10″)

64″ (5′ 4″)

70″ (5′ 10″)

76″ (6′ 4″)

82″ (6′ 10″)

88″ (7′ 4″)

94″ (7′ 10″)

100″ (8′ 4″)

106″ (8′ 10″)

112″ (9′ 4″)

118″ (9′ 10″)

124″ (10′ 4″)

130″ (10′ 10″)

136″ (11′ 4″)

142″ (11′ 10″)

Documents
Atlas® PRO7000ST Manual
Atlas® Garage Pro Lifts Cylinder Bleeding Procedure (Do this immediately after installation)
