Atlas Garage PRO8000 8,000 lb 4-Post Lift

Atlas 8,000lb. Capacity Portable Hobbyist Lift

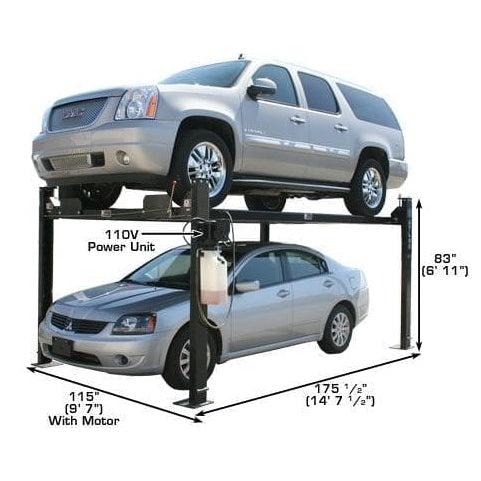

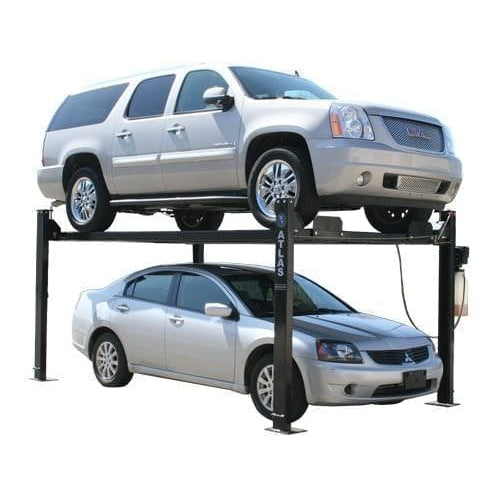

The Atlas® Garage PRO8000 is our most popular 4-post hobbyist lift. Perfect for the customer with too many cars and not enough space. The Garage PRO8000 allows the user to easily double their space by stacking most passenger cars.
The Atlas® Garage PRO series of 4-post lifts (8,000 lb. capacity) are designed and built for use by homeowners or restoration shops. These lifts are not designed for use in commercial repair shops where they would be raised and lowered several times per day. If you have questions about which lift would best work in your application please contact a salesperson..
The Atlas® Garage PRO8000 includes free plastic drip trays, a free steel jack tray, and a free caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes making the lift portable and allowing it to move between bays or even outside. All that makes the Garage PRO8000 one of the best valued 4-post lifts on the market.
Many customers who purchased this lift also purchased the Atlas® RJ35.
.embed-container { position: relative; padding-bottom: 56.25%; height: 0; overflow: hidden; max-width: 100%; } .embed-container iframe, .embed-container object, .embed-container embed { position: absolute; top: 0; left: 0; width: 100%; height: 100%; }

Features

8,000 lb. Capacity

Free Standing/Portable Design

Diamond Plated Runways

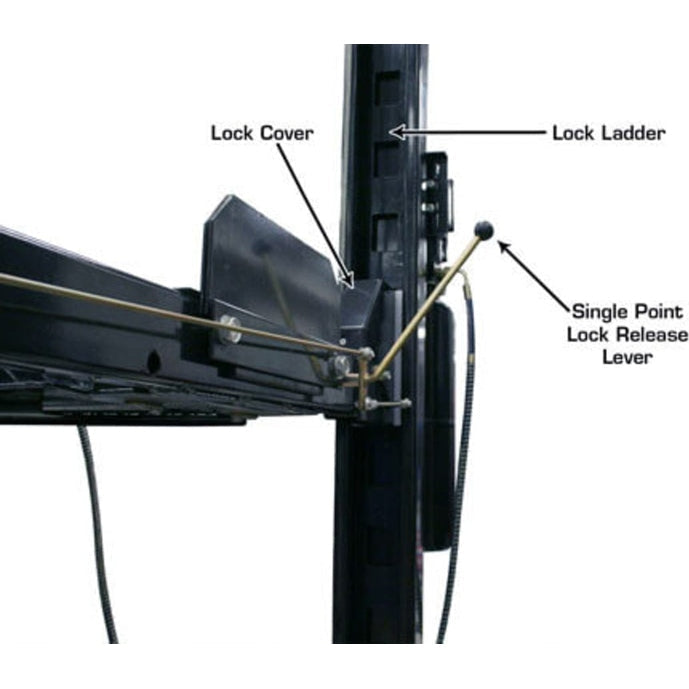

Single-Point Lock Release

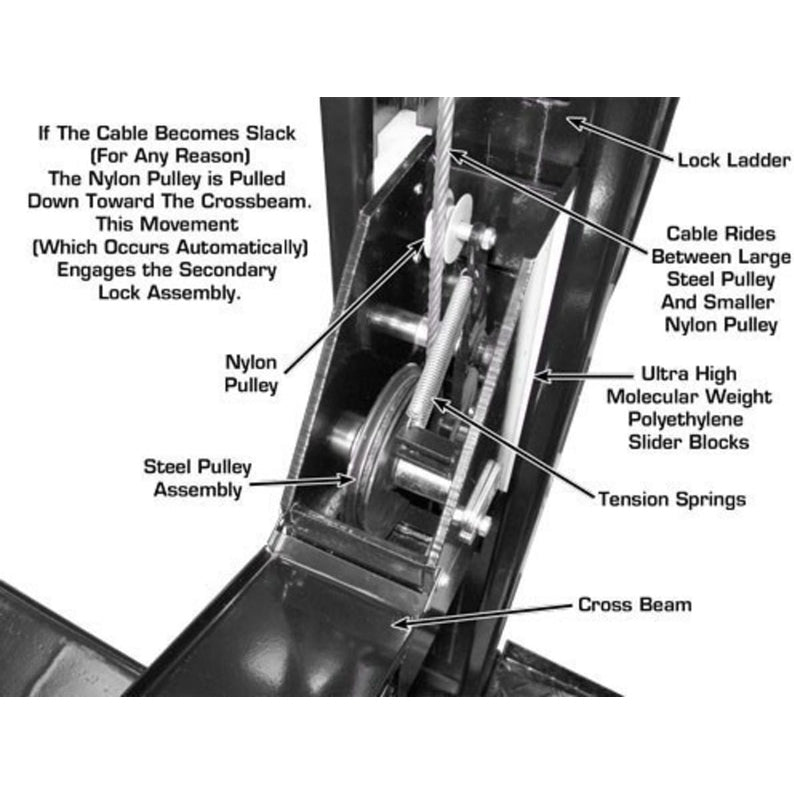

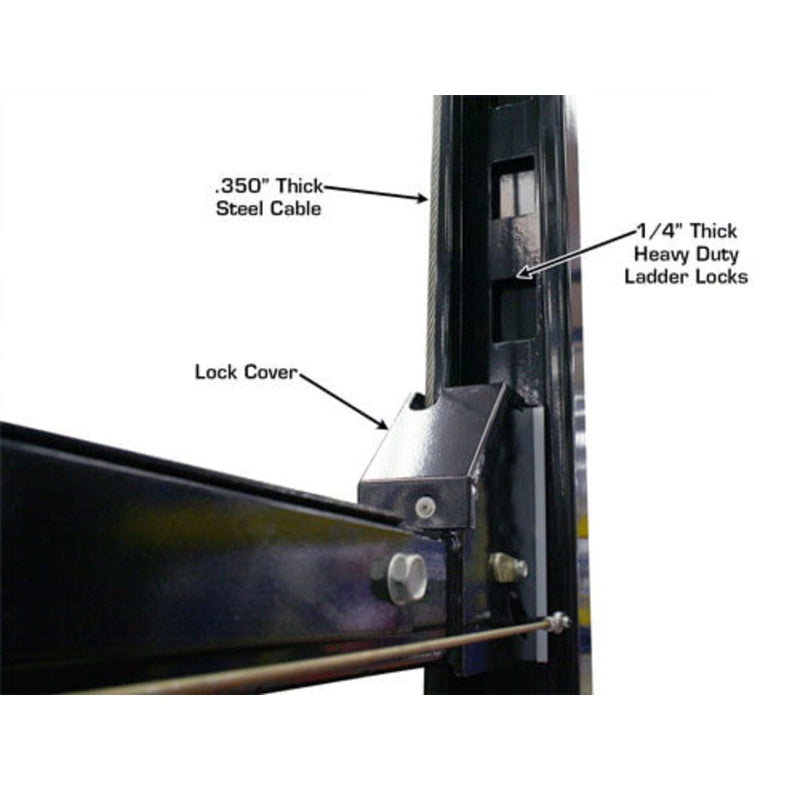

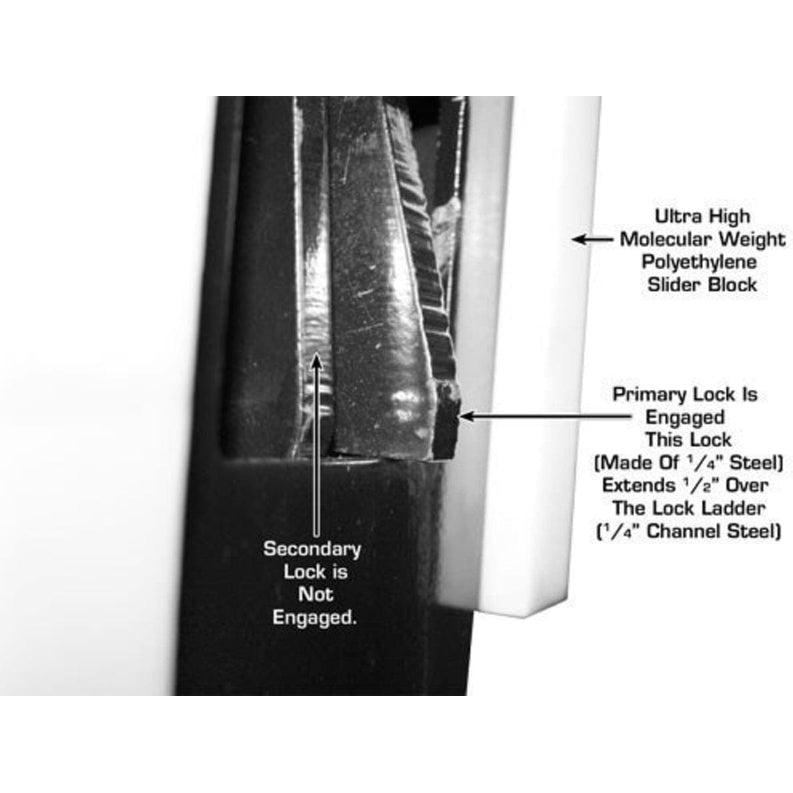

Lock Ladder Design

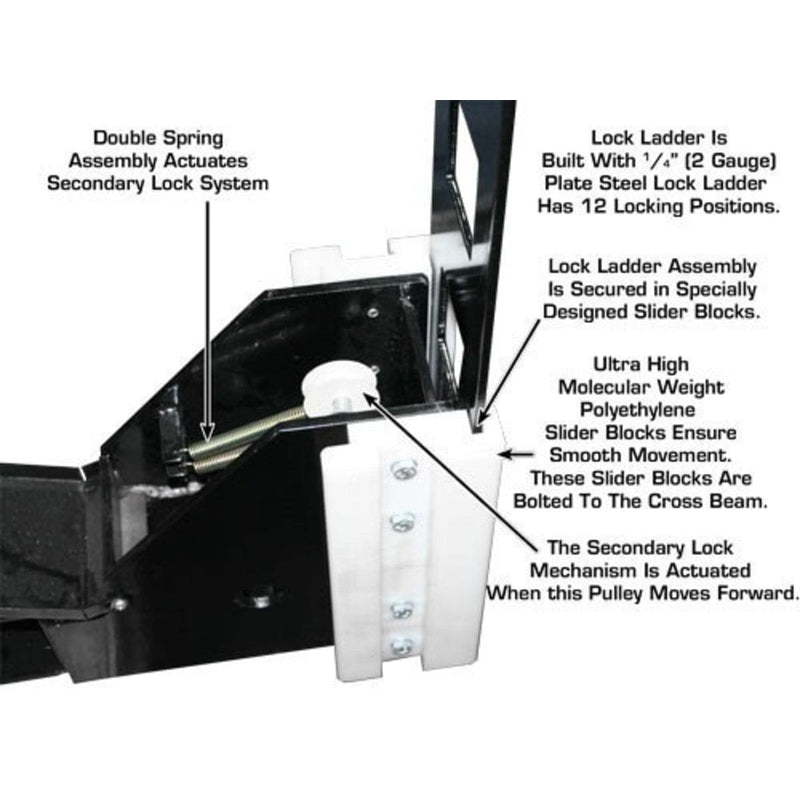

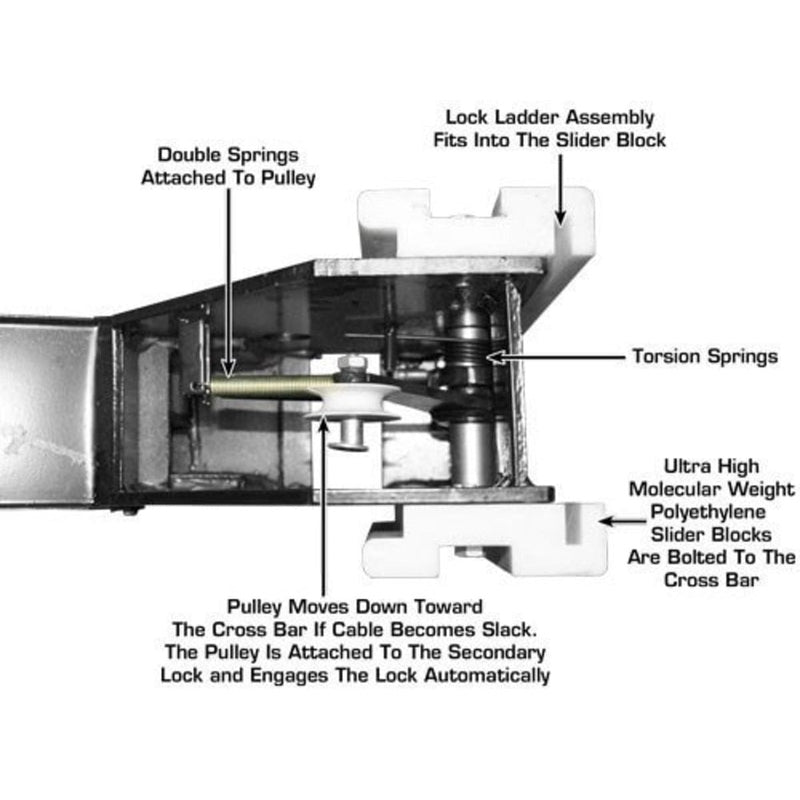

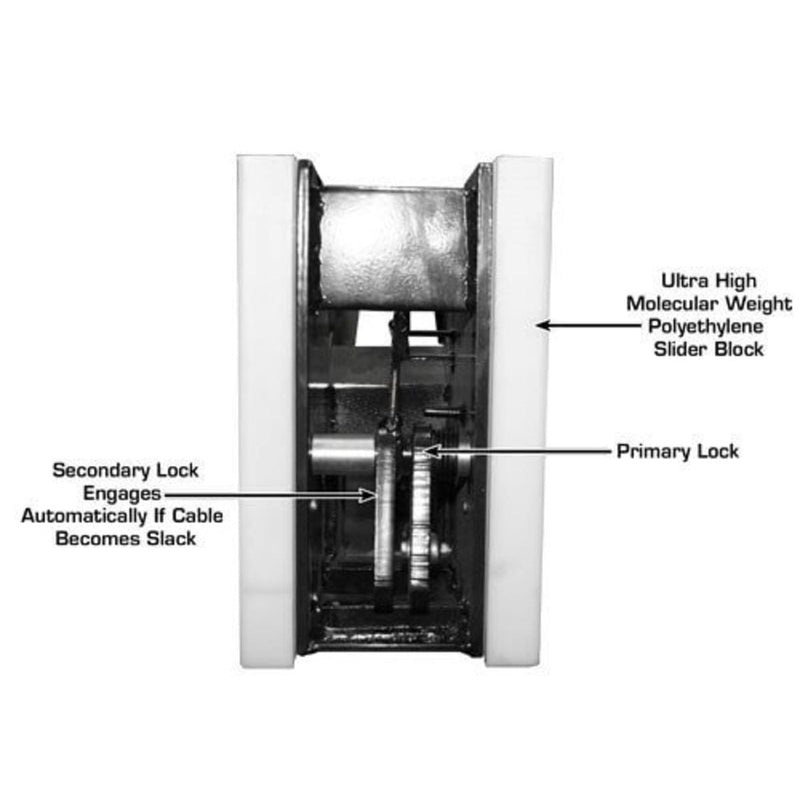

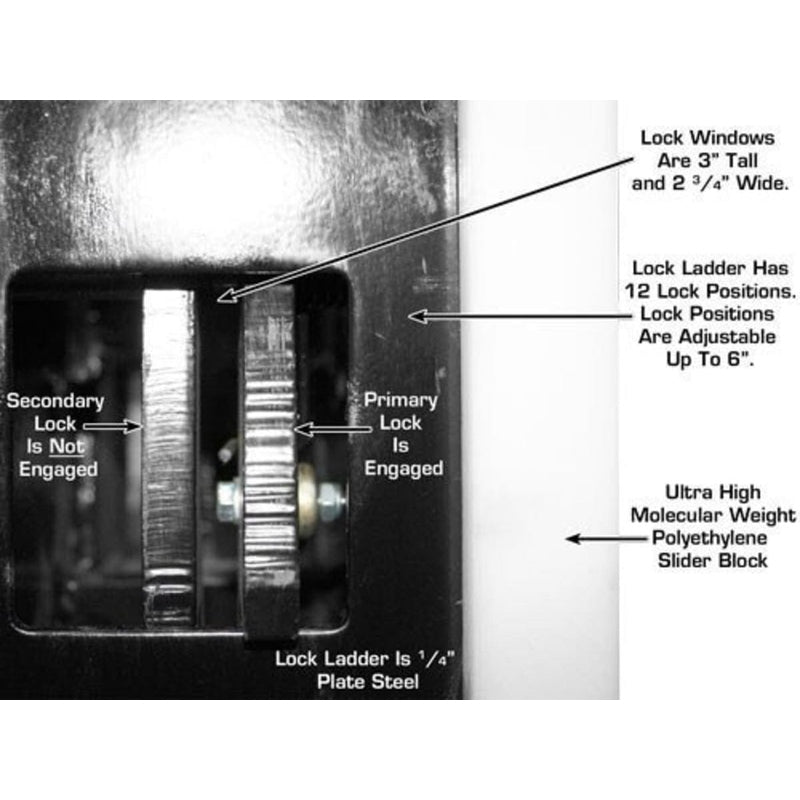

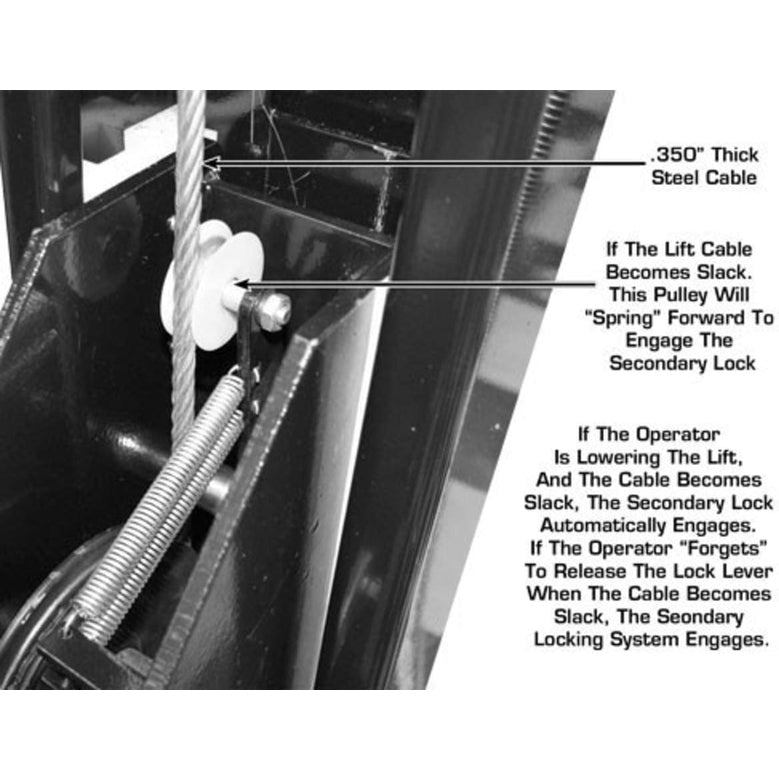

Double Lock Safety System

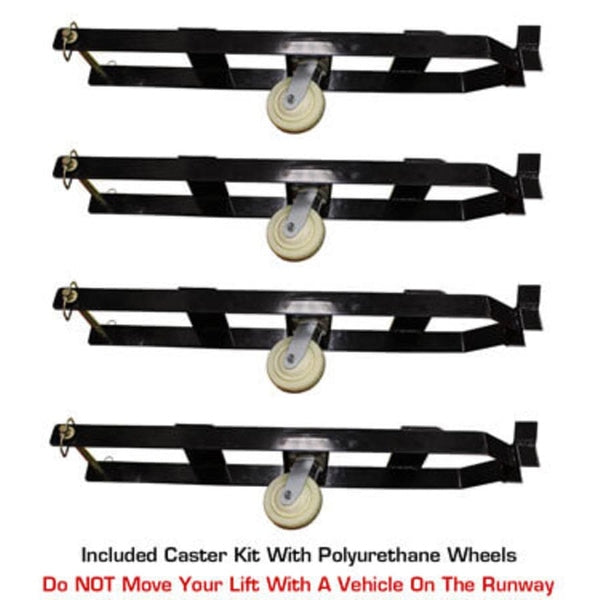

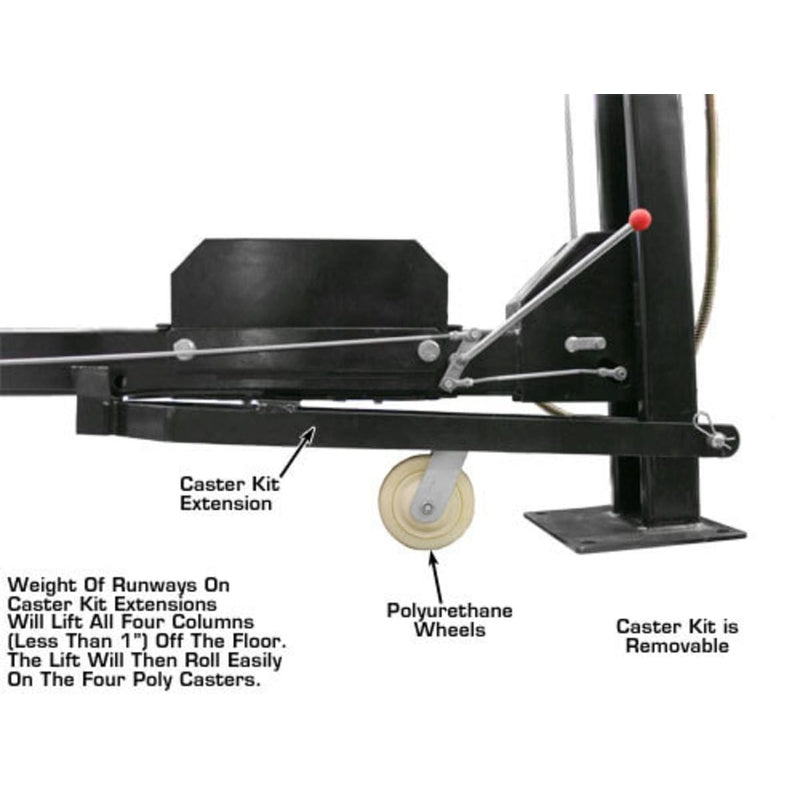

Caster Kit With Polyurethane Wheels Included

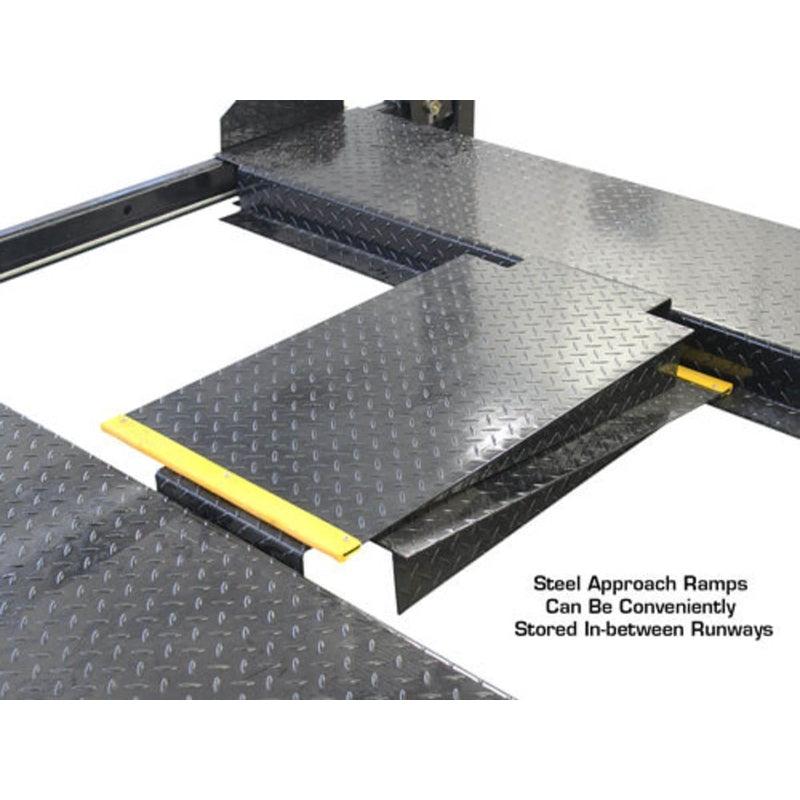

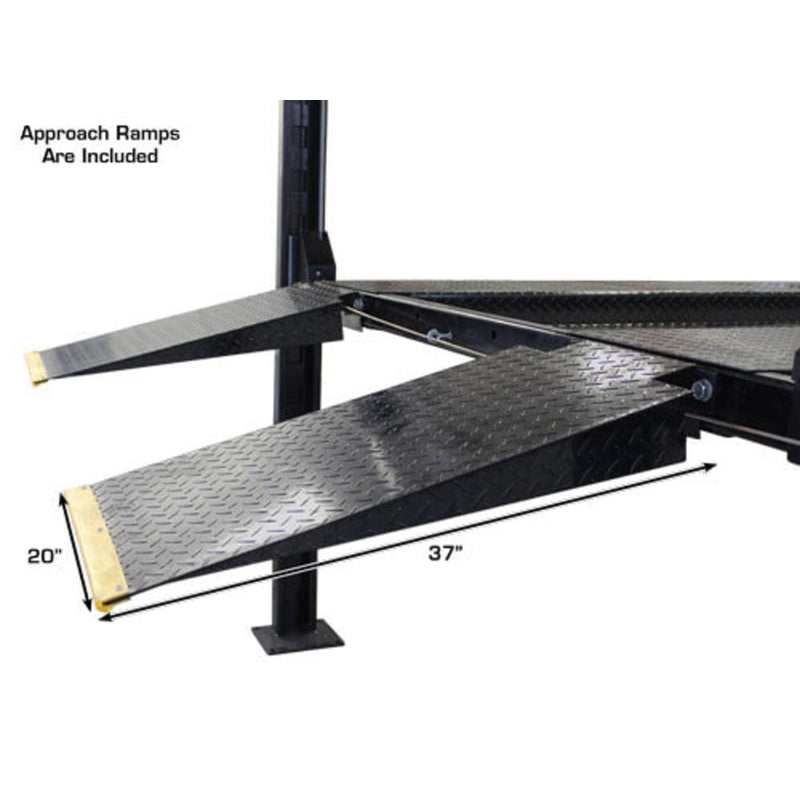

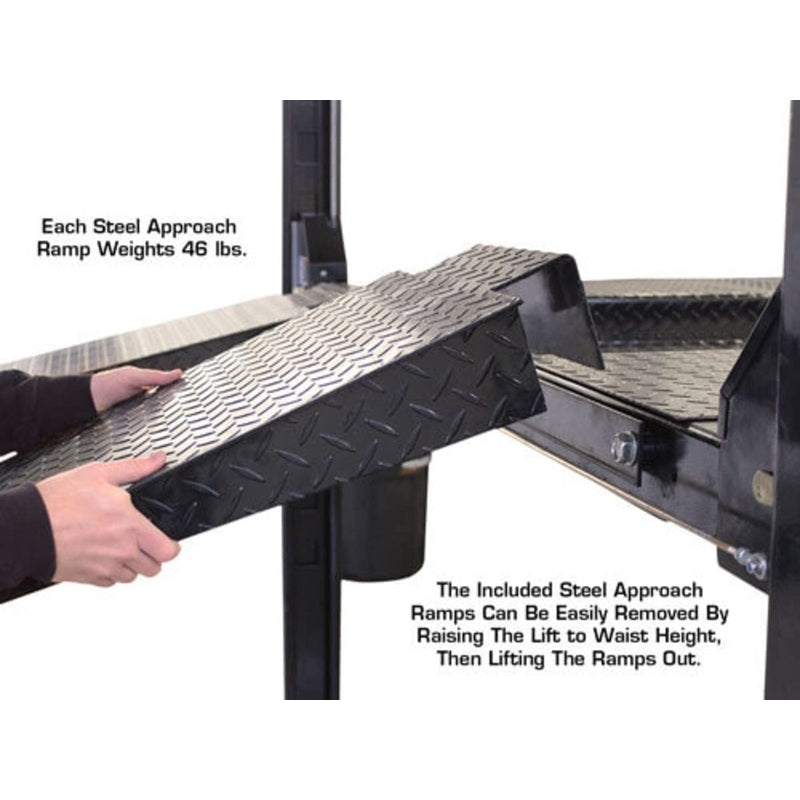

Steel Approach Ramps Included

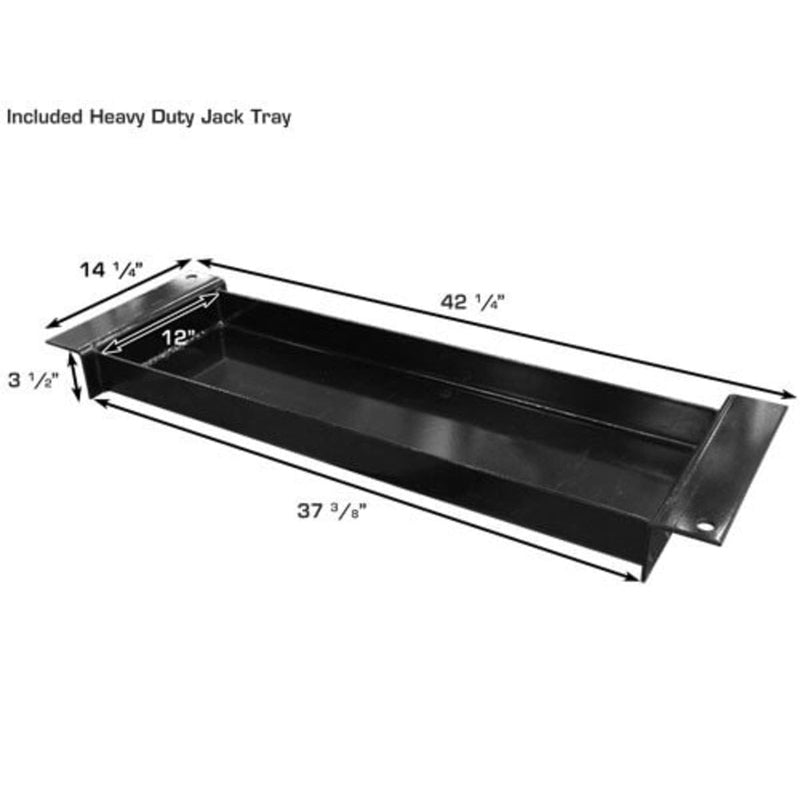

Steel Jack Tray Included

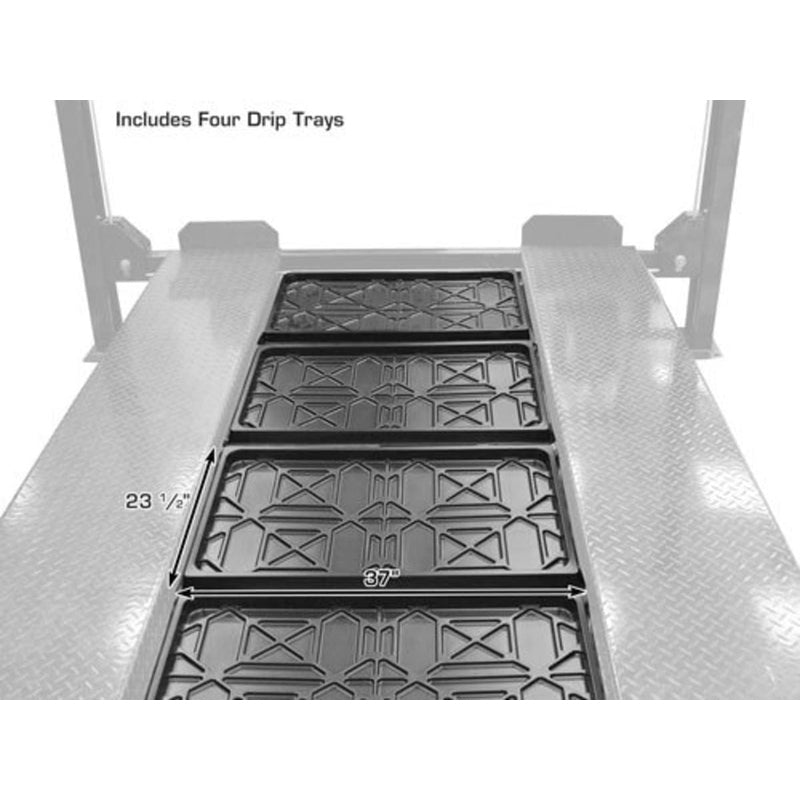

4 Plastic Drip Trays Included

4 Wheel Stops Included

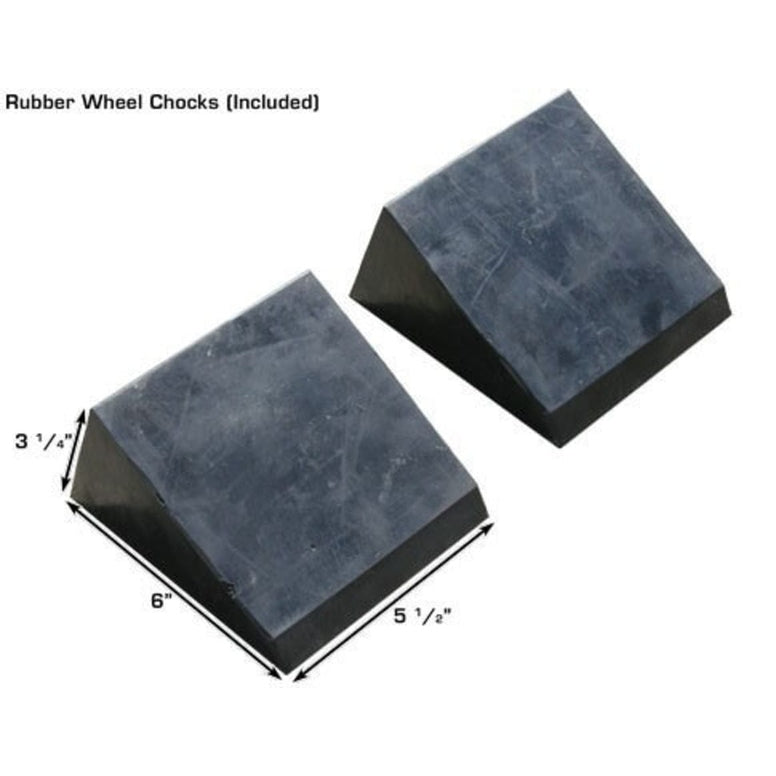

2 Rubber Wheel Chocks Included

Perfect For Storing Or Working On Vehicles

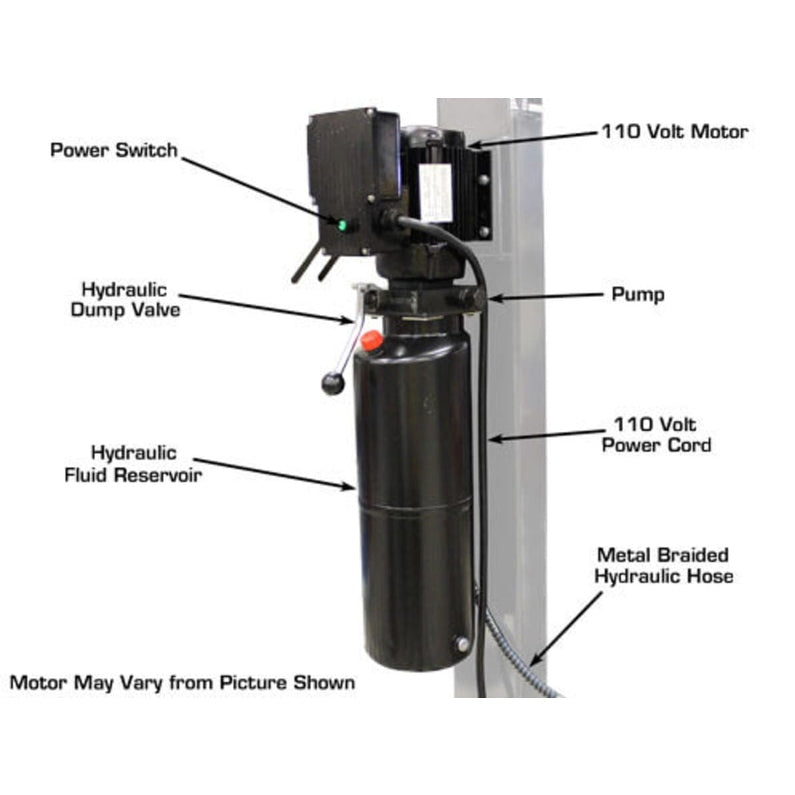

110volt Electric Operation (30 AMP BREAKER REQUIRED)

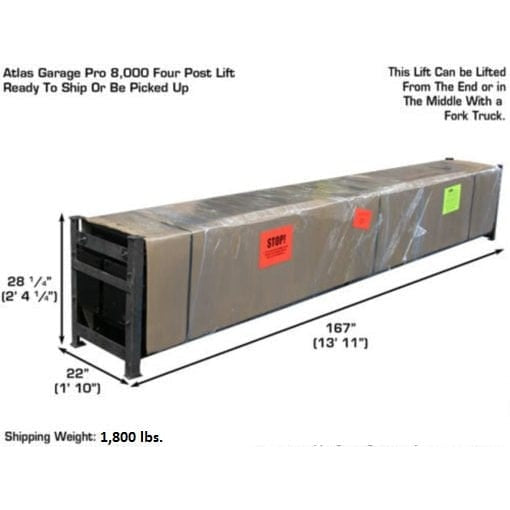

Shipping Weight 1,800 lbs.

2 yr Structural – 1 yr Hydraulic Warranty – Parts Only

Specifications

Atlas® Garage PRO8000 Specifications

Capacity
8,000 lb.

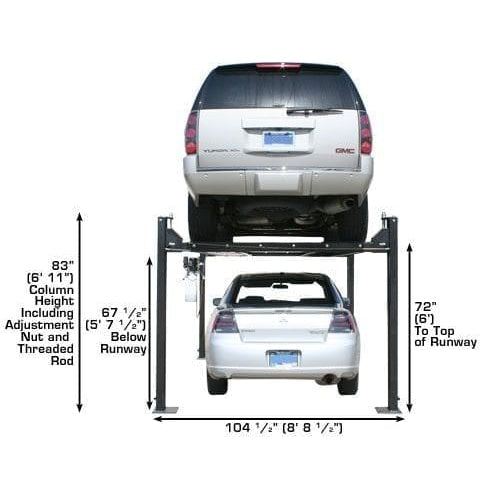

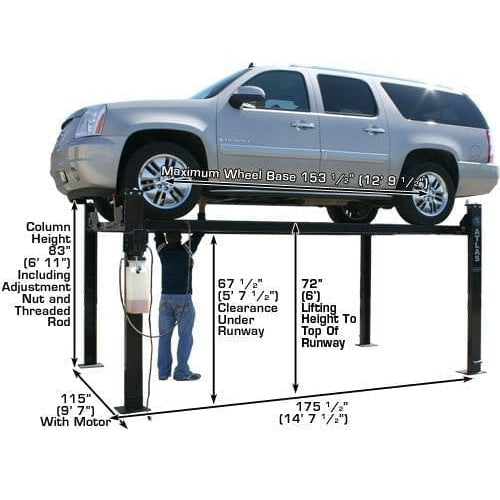

Lifting Height To Top Of Runway
72″ (6′)

Clearance Under Runways
67 (5′ 7″)

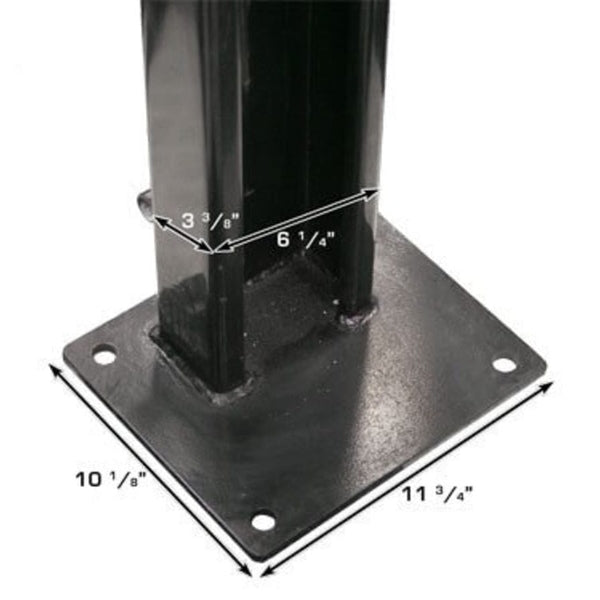

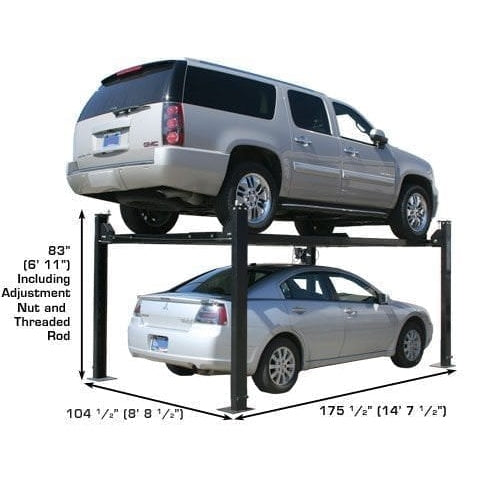

Height Of Columns
83″ (6′ 11″)

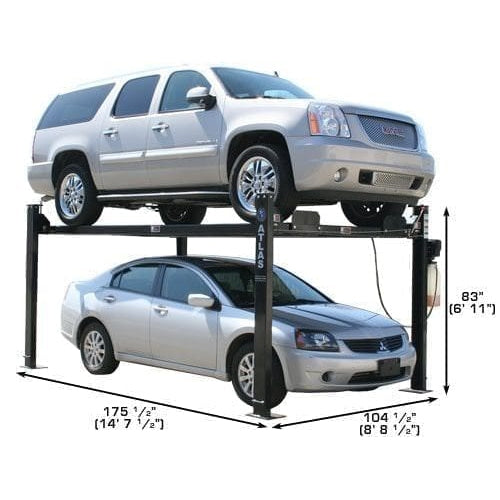

Overall Width (Without Motor)
104 1/2″ (8′ 8 1/2″)

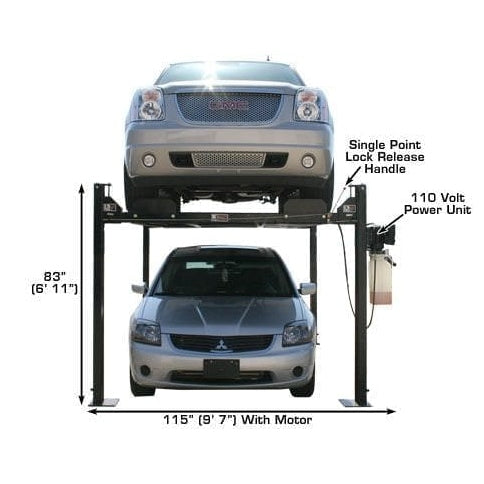

Overall Width (With Motor)
115″ (9′ 7″)

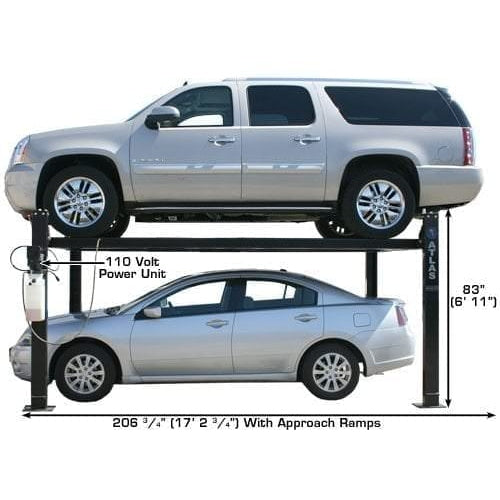

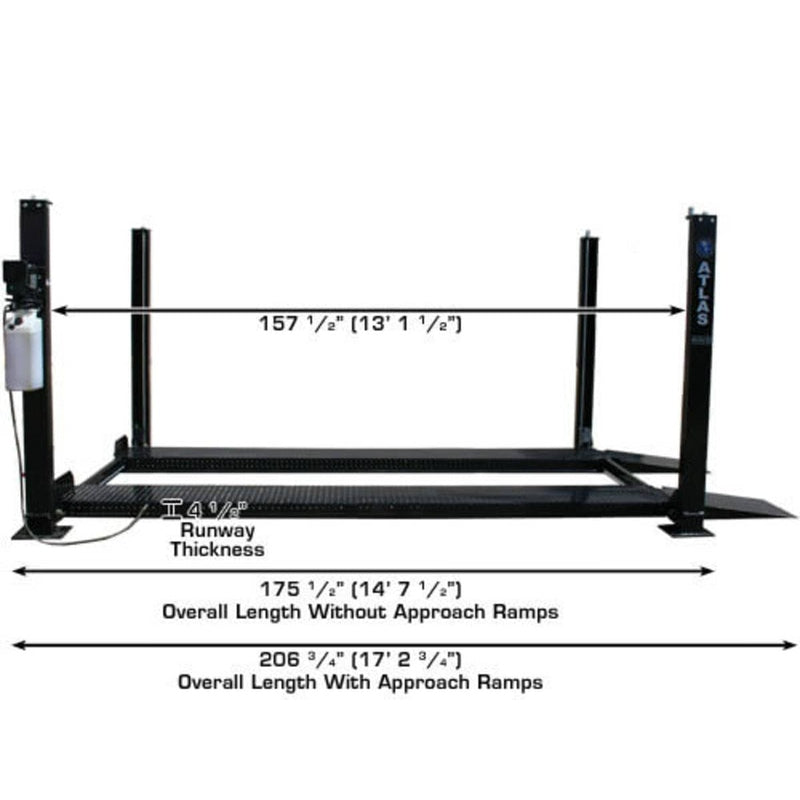

Overall Length With Approach Ramp
206 3/4″ (17′ 2 3/4″)

Approach Ramp
37″ (3′ 1″)

Runway Width
21 1/2″ (w/ Rails) or 18 3/4″ (Driving Surface)

Runway Length
165 3/4″ (13′ 9 3/4″)

Runway Thickness
4 1/2″

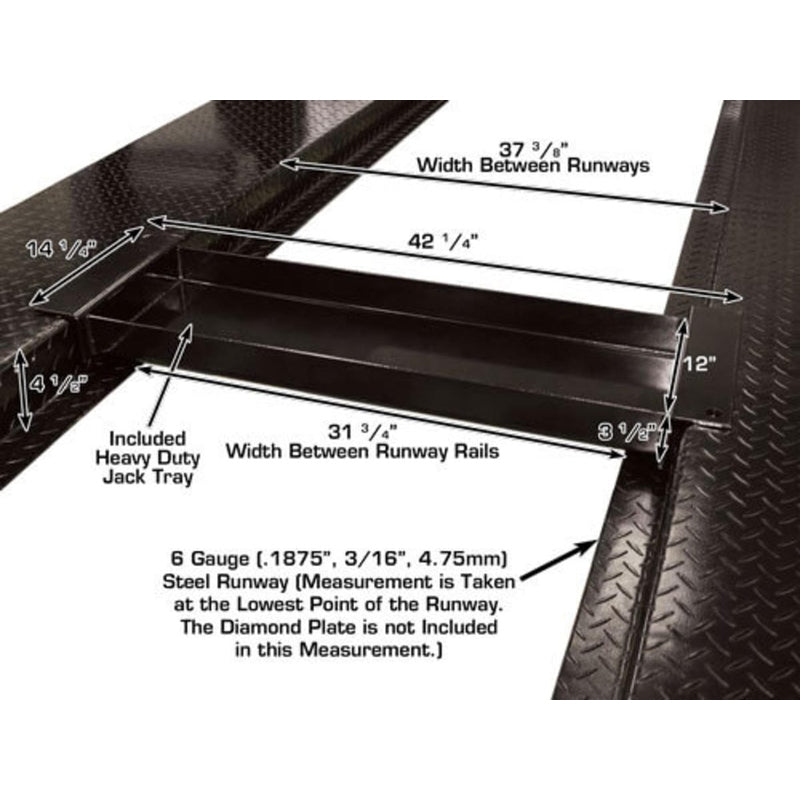

Width Between Runways
37″ (3′ 1″)

Width Between Runway Rails
31 1/2″ (2′ 7 1/2″)

Outside Runway To Outside Runway
74 5/8″ (6′ 2 5/8″)

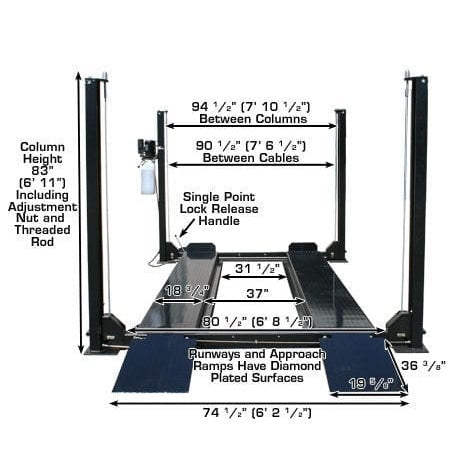

Clearance Between Columns
94 1/2″ (7′ 10 1/2″)

Length Between Columns
157 1/2″ (13′ 1 1/2″)

Maximum Wheel Base
153 1/2″ (12′ 9 1/2″)

Drive Thru (Outside Of Tire To Outside Of Tire)
80 1/2″ (6′ 8 1/2″)

Motor/Electrical Requirement
110 Volt, 30 AMP BREAKER REQUIRED

Shipping Weight
1,800 lb.

Documents
Atlas® Garage PRO8000 Manual
Atlas® Garage Pro Lifts Cylinder Bleeding Procedure (Do this immediately after installation)
