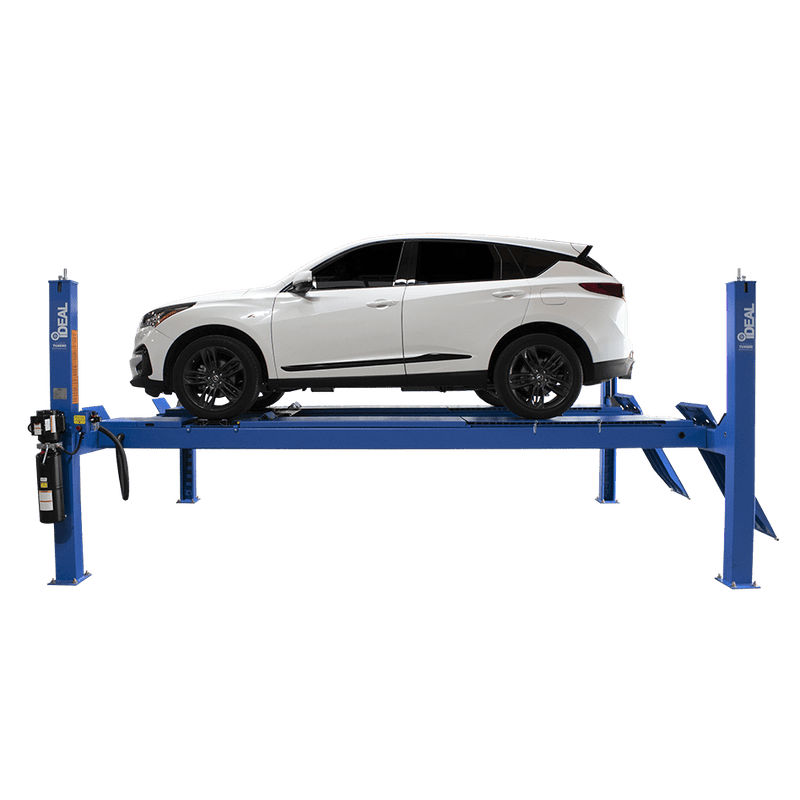

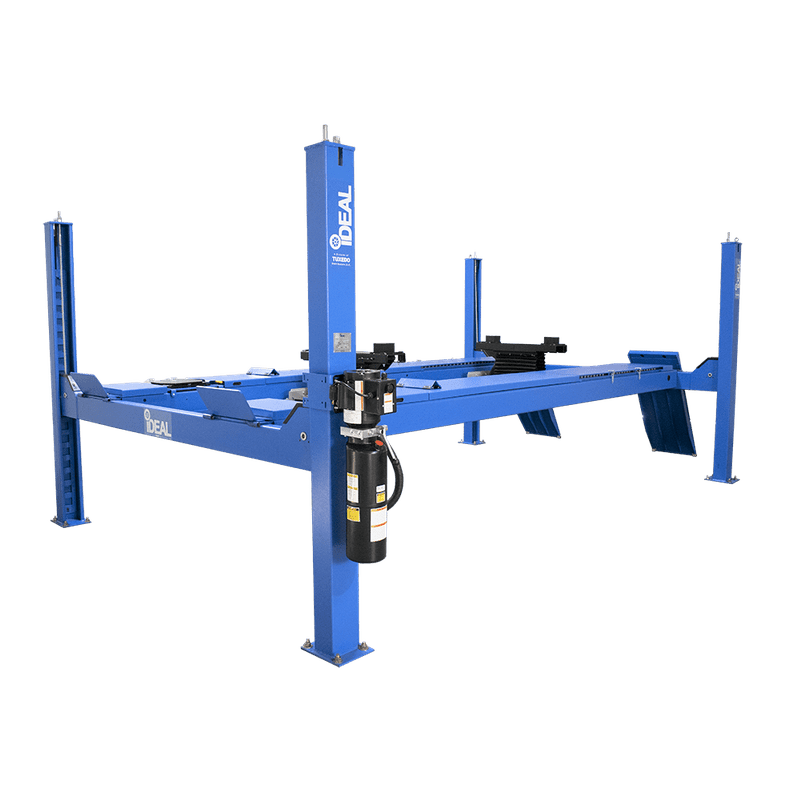

iDEAL FP14KAC-X 14K-4 Post Alignment Lift 182.5″ WB (Closed Front / Cable Pull)

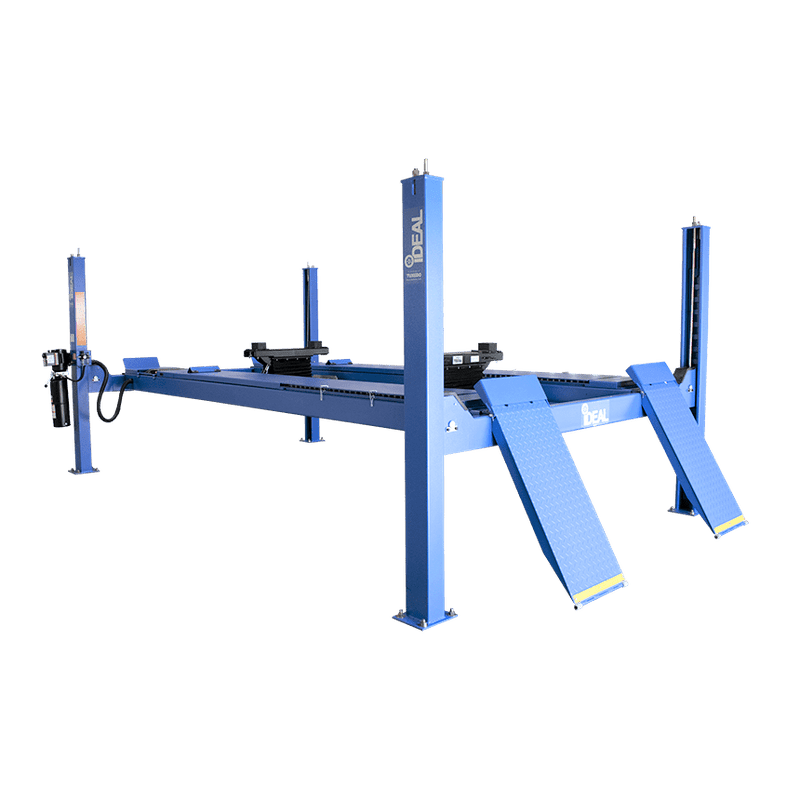

The iDEAL FP14KAC-X 14,000 lb. 4 Post Lift

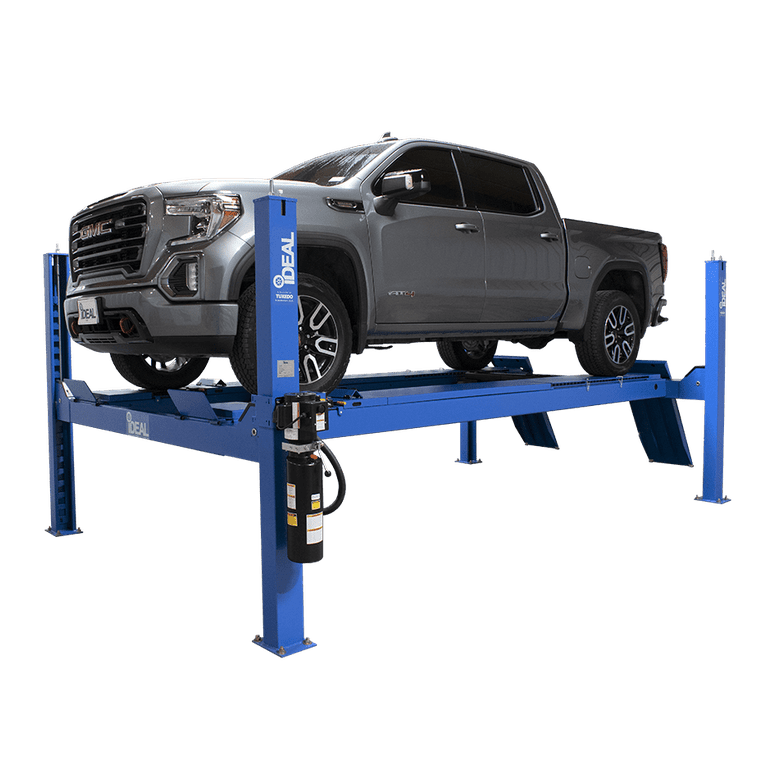

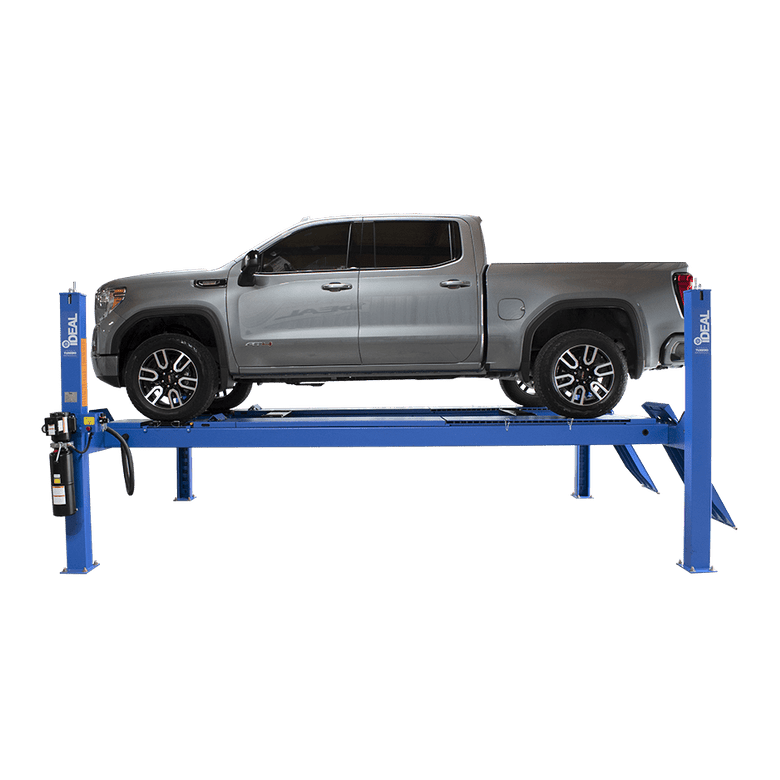

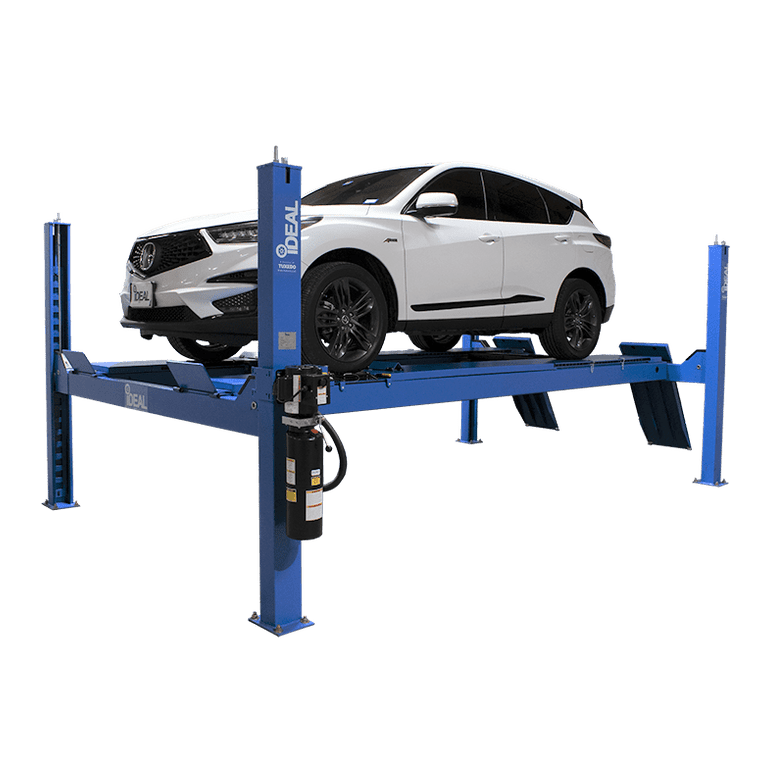

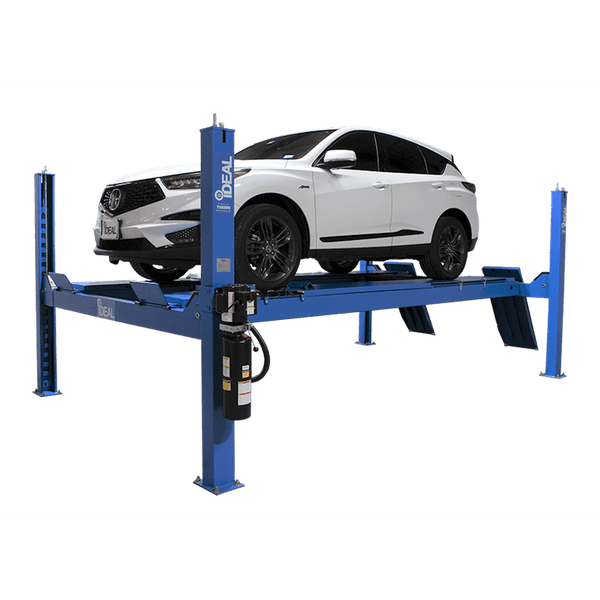

This lift is a high-performance closed-front, cable-pull vehicle lift designed for Cars, SUVs, Vans & Trucks.

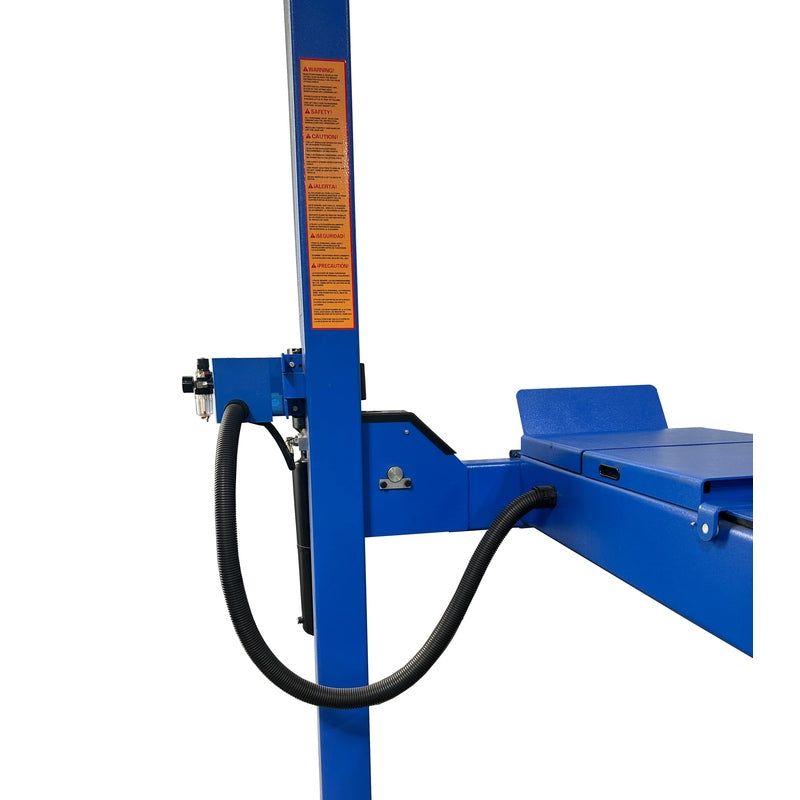

The FP14KAC-X Alignment Lift comes standard with full-width Rear Slip Plates, Turntables, Roll-Back Spacers & internal Air-Line Kit, while also applying the latest in design & safety features, such as narrow & wide runway mount positions, extended rise height, concealed hydraulic/mechanical cable lift system with slack cable safety devices and durable pulley & shaft design incorporating convenient grease fittings to the extended life of the lift.

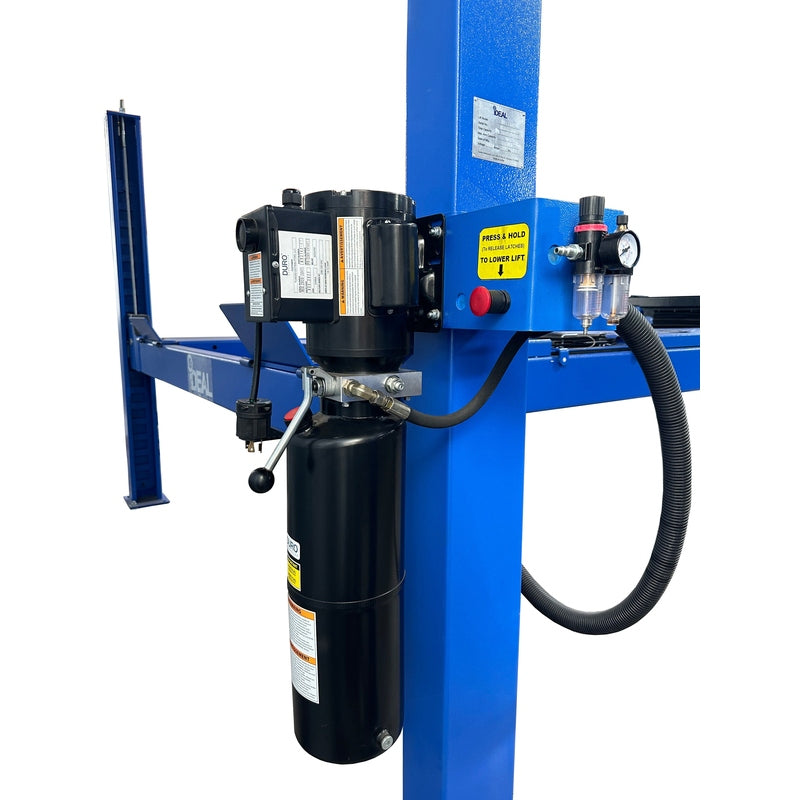

Easy lift operation is provided with a single-point pneumatic lock release & high-quality DURO power unit, while providing additional safety & protection with self-chocking ramps and included wheel stops. The iDEAL FP14KAC-X modular design also provides the flexibility to extend the runways for aligning or servicing longer vehicles!
The standard powder coat finish, 20 wide runways, adjustable lock stops for easy runway leveling, and optional power unit mount positions complete the package for a premium, high-quality alignment lift, all at an unmatched value!

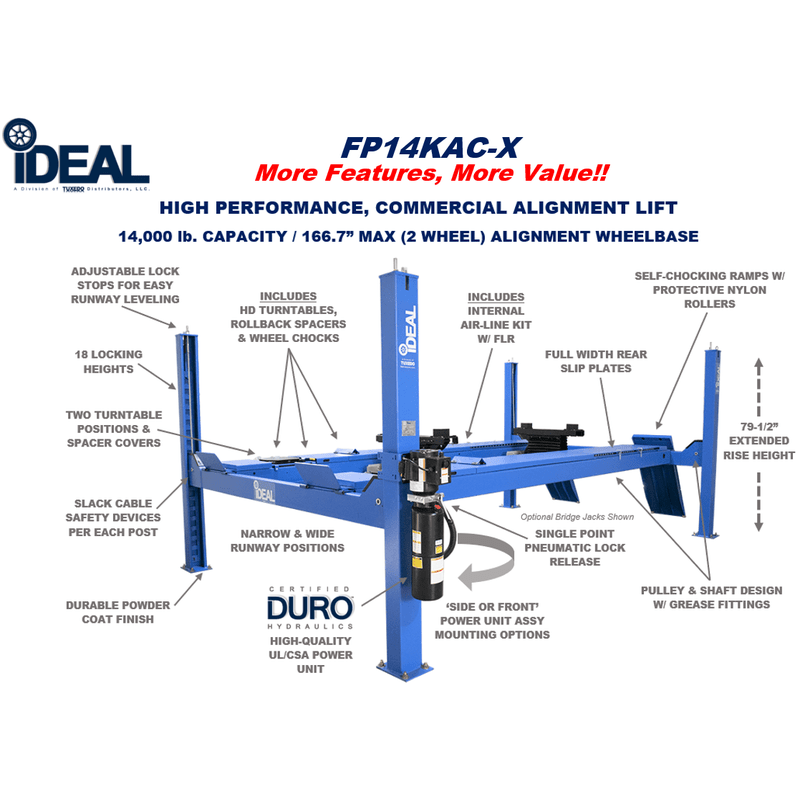

Features

14.000 LBS CAPACITY
HIGH-PERFORMANCE COMMERCIAL ALIGNMENT LIFT

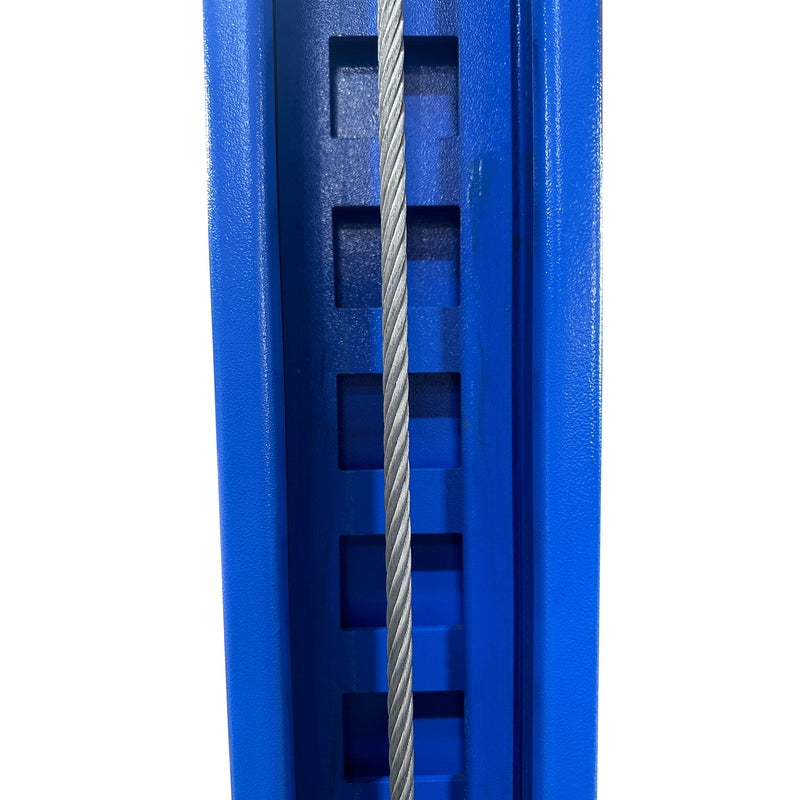

DURABLE, HIGH-QUALITY CABLE LIFT SYSTEM
EXTENDED RISE HEIGHT
BOLT-ON RUNWAY ALIGNMENT KIT
166.7″ MAX ALIGNMENT WHEELBASE (2 WHEEL)
157″ MAX ALIGNMENT WHEELBASE (4 WHEEL)
182.5″ MAX SERVICE WHEELBASE
18 LOCKING HEIGHT POSITIONS

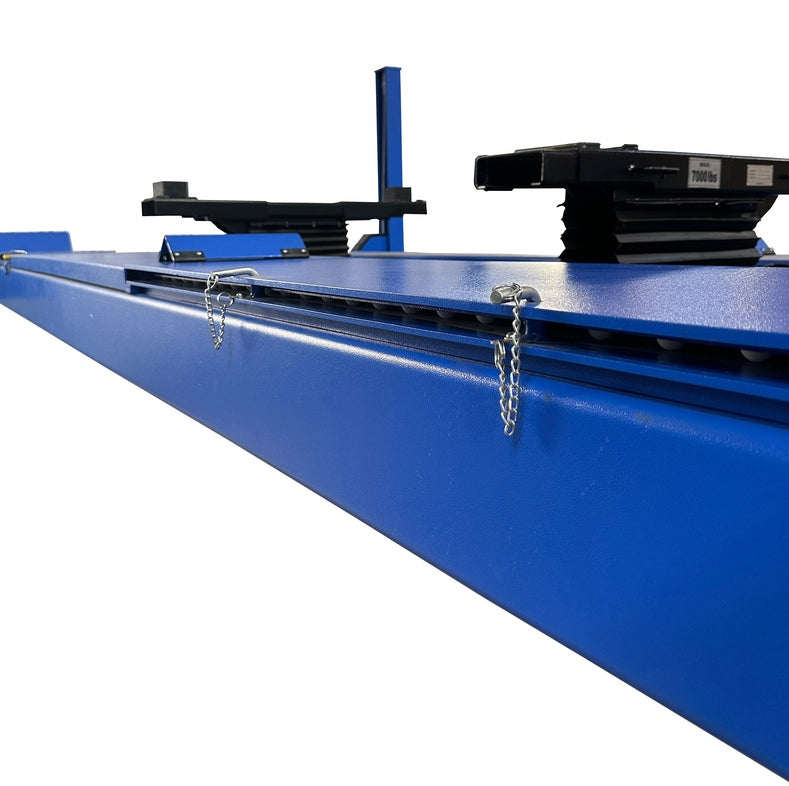

FULL WIDTH REAR WHEEL SLIP PLATES

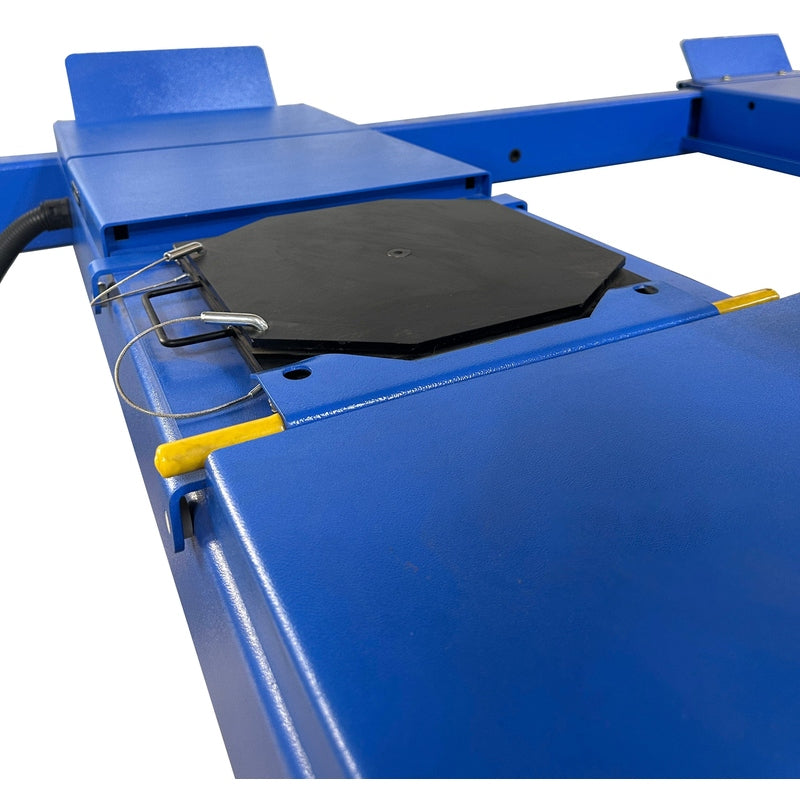

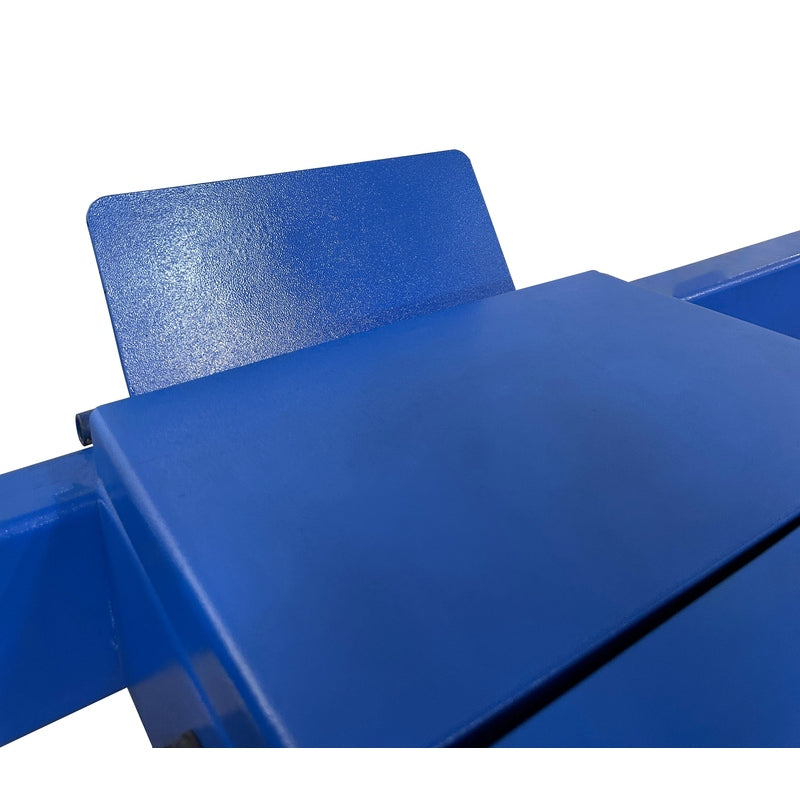

TWO TURNTABLE POSITIONS W/ SPACER COVERS
20* WIDE RUNWAYS
NARROW & WIDE RUNWAY MOUNTING POSITIONS

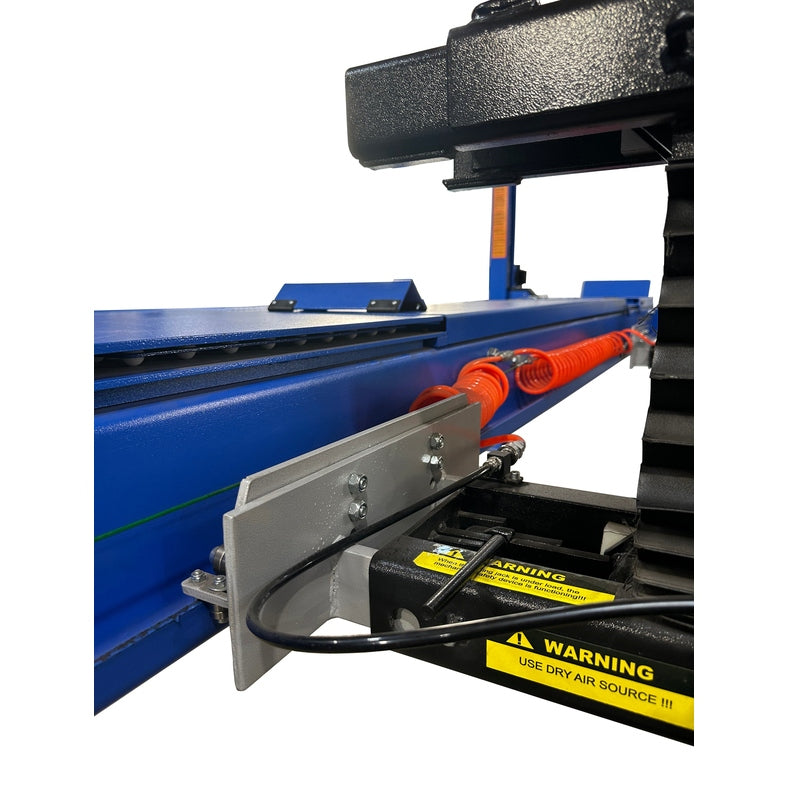

SINGLE POINT PNEUMATIC LOCK RELEASE
FULLY ADJUSTABLE LOCK STOPS FOR EASY LEVELING
SLACK CABLE SAFETY DEVICES

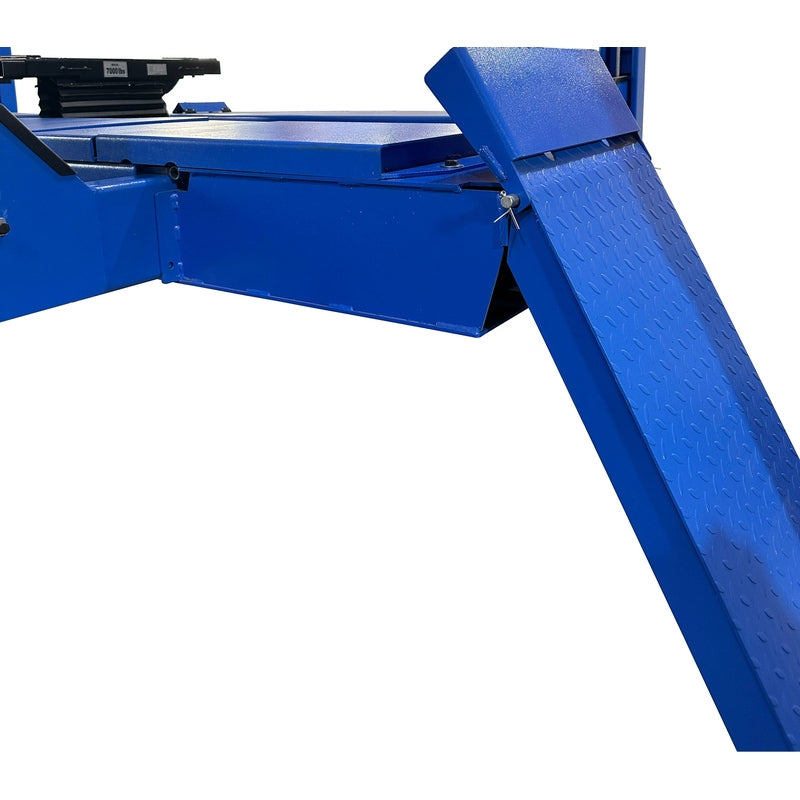

SELF-CHOCKING APPROACH RAMPS W/ NYLON ROLLERS

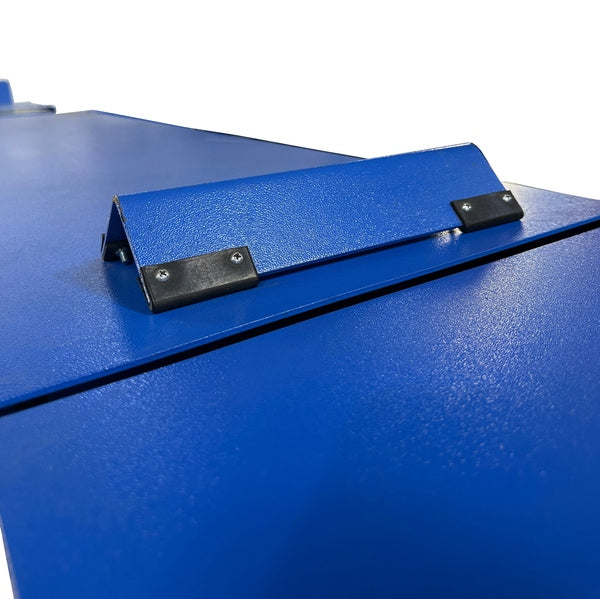

WHEEL CHOCKS (1PR)
DURABLE POWDER COAT FINISH

Specifications

Lift model
FP14KAC-X

Capacity
14000 lbs

Overall length w/ Ramp
252-1/2″

Overall width (without power unit)
131-7/8″

Overall width (with power unit)
142″

Overall height
92-1/2″

Max rise height
79-1/2″

Min height
9-7/8″

Width between posts
116-1/4″

Length between posts
196″

Width between runways
43″ or 46″

Width of runways
20″

Max wheelbase
182-1/2″

Max. align wheelbase (2 wheel)
166-3/4″

Min / Max. Align wheelbase (4 wheel)
103″ / 157″

Ramp length
44″

Max. Clearance under runway
69-5/8″

Drive-thru clearance
100″

Base plate
10-1/2″ x 9″

Power requirement
220V – 20 Amp 1 PH

Ship weight
3810 lbs

Min bay size
16 x 25

Manual
iDEAL FP14KAC-X 14,000 lb. 4 Post Commercial Alignment Lift Manual
