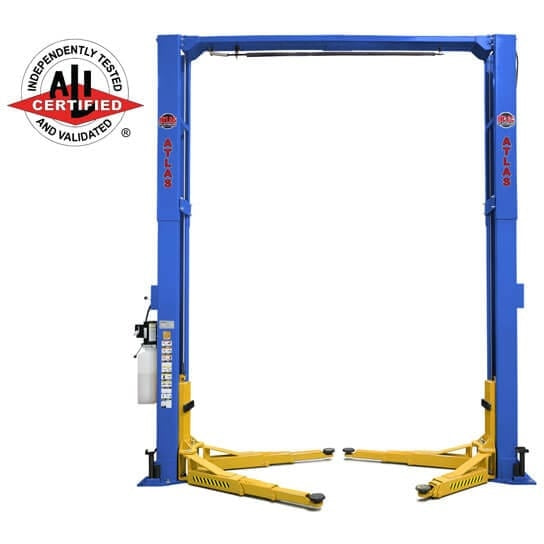

Atlas Platinum PVL12 ALI Certified 12,000 lb Overhead 2 Post Lift

Description
The Atlas® Platinum PVL12 is an ALI Certified two post commercial grade 12,000 lb. capacity Heavy-Duty lift designed with the professional shop in mind. The low pad height allows this lift to accommodate both long wheel base trucks and passenger cars. The extra distance between the columns accommodates wider vehicles or vehicles with wide rearview mirrors. The extra height is perfect for tall vans and box trucks.
The Platinum PVL12 is also ALI certified and backed by one of the industry’s best warranties for an added peace of mind.
The Atlas® Platinum PVL12 features a premium ALLY power unit which is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.
Features

ALI Certified Lift

12,000 lb. Capacity

Commercial Grade

Extra Tall & Extra Wide

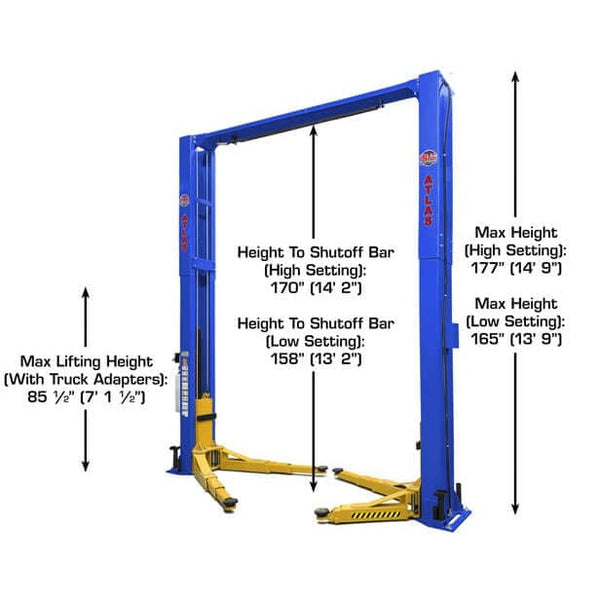

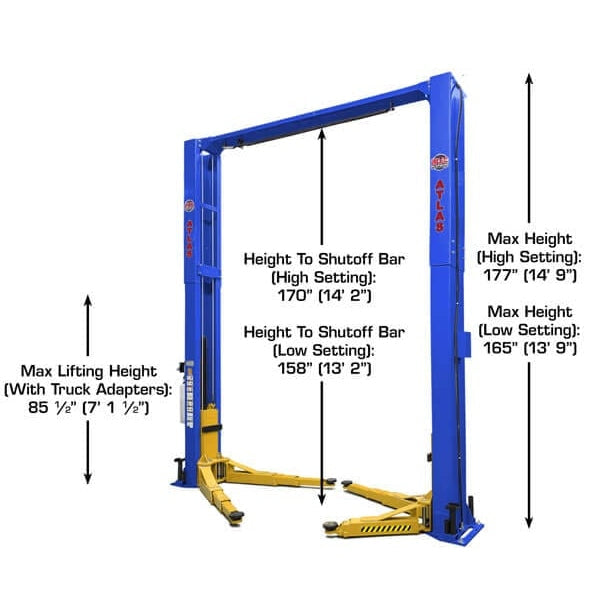

Adjustable Height 165″ (13′ 9″) or 177″ (14′ 9″)

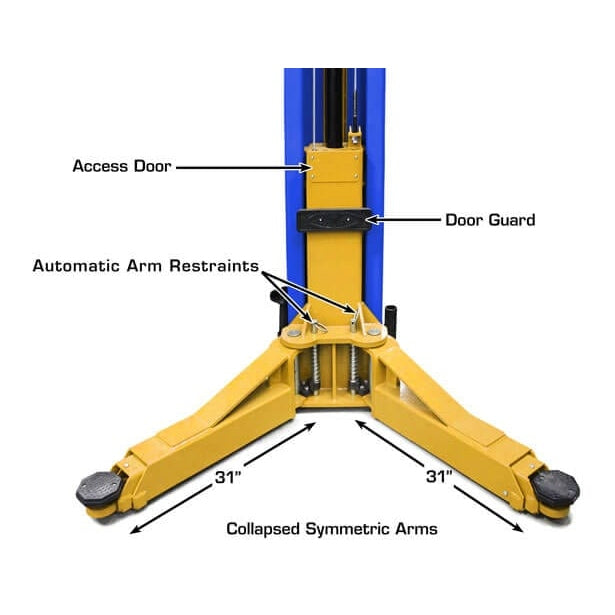

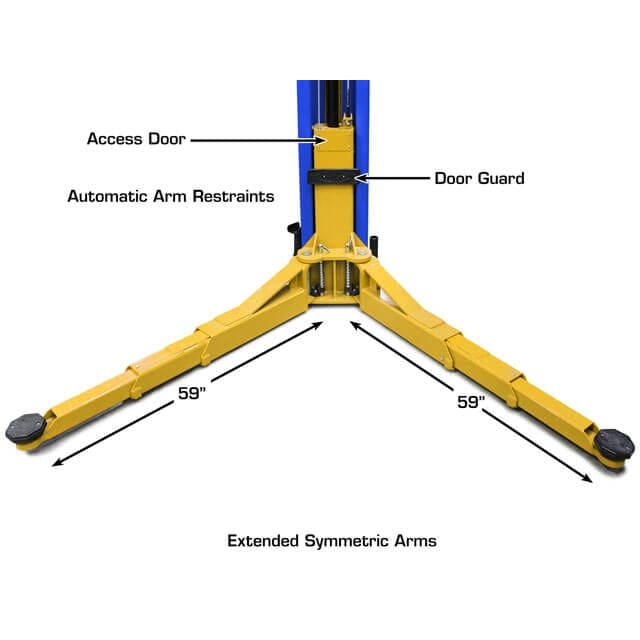

3-Stage Symmetric Arms

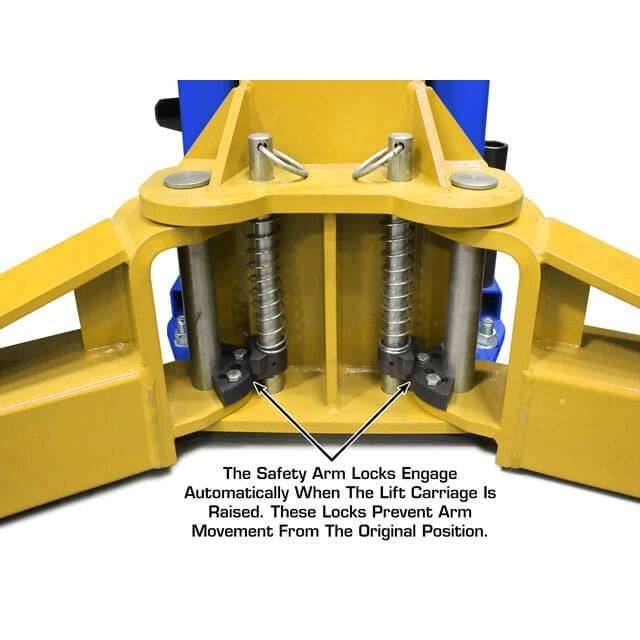

Automatic Arm Restraints

“Padded” Shut-Off Bar

Thick Rubber Door Guards on Carriage

Single Point Lock Releases

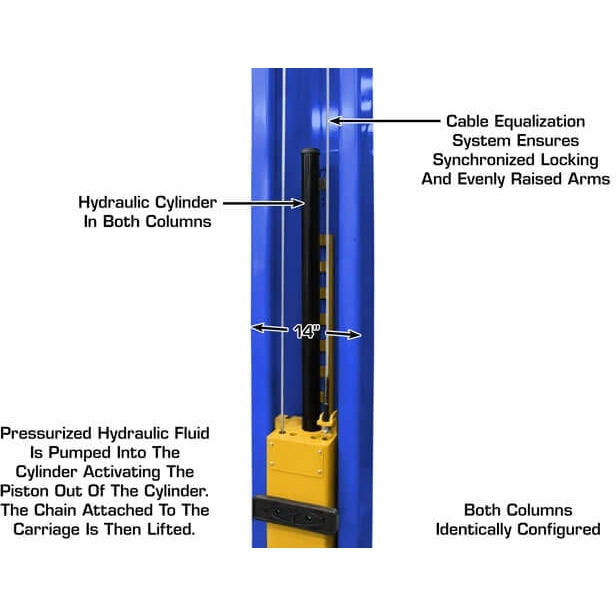

Direct-Drive Cylinders
Powder Coat Finish

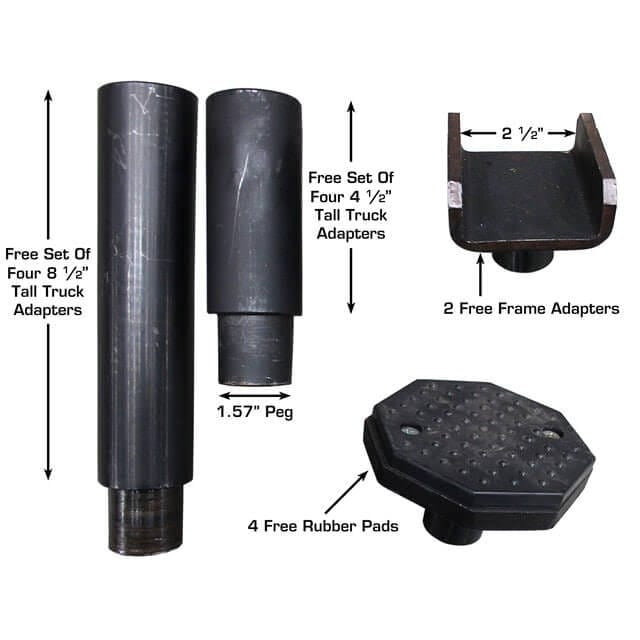

Free 8 Piece Truck Adapter Set

Mounting Hardware Included

Standard with Premium ALLY Powerunit

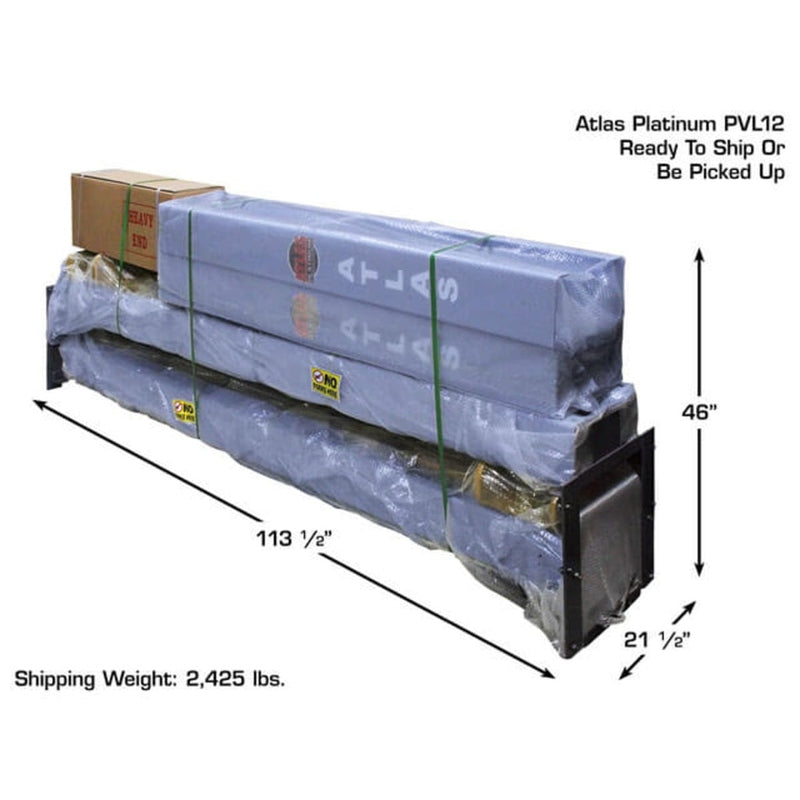

Shipping Weight: 2,425 lbs.

5 yr Structural – 2 yr Hydraulic – 2 yr Powerunit Warranty

Specifications

Atlas® Platinum PVL12 Specifications

Capacity
12,000 LB.

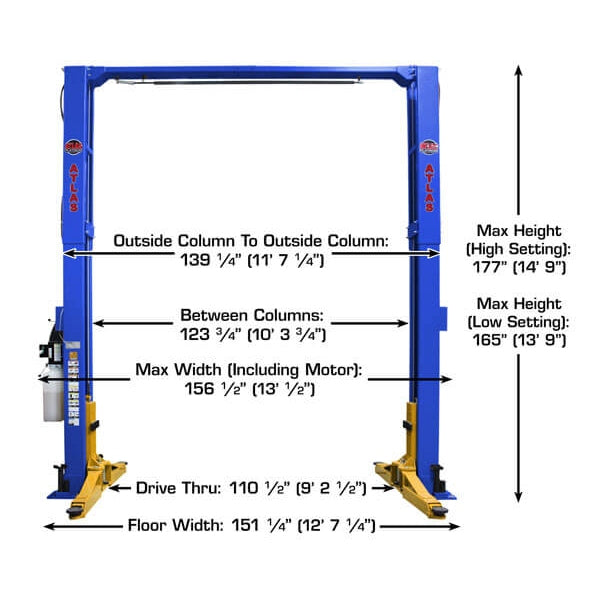

Overall Height
165″ (13’ 9”) or 177” (14’ 9”)

Overall Floor Width
150 3/8″ (12’ 6 3/8”)

Outside Column to Outside Column
139 1/8″ (11’ 7 1/8″)

Maximum Lift Height (Without Adapters)
73 5/8″

Maximum Lift Height (With Adapters)
85 1/2″

Minimum Arm Height
4 1/2″

Inside Column
122 5/8” (10’ 2 5/8”)

Drive Thru
109 5/8″ (9’ 1 5/8”)

Column Size
7 1/2″ x 14 1/2″

Column Thickness of Steel
6mm

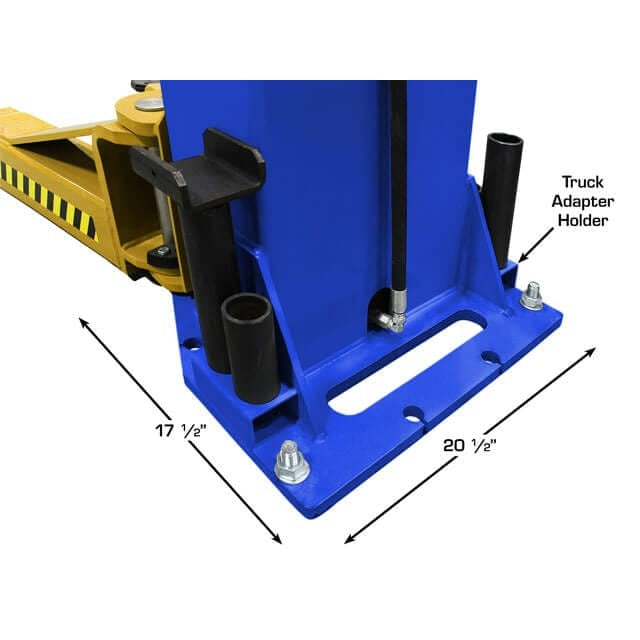

Base Of Lift
17 1/2″ x 20 1/2″

Motor/Electrical Requirement
220 volt single (1) phase.A 30 amp breaker is recommended

Oil Requirement
3-5 Gallons AW32/AW46 (NOT INCLUDED)

Shipping Weight
2,425 LBS.

Adapter Heights
4 Each 4.5”, 8.5”

Arm Hole/Adapter Peg Size
1.57”

Requires a minimum of 6″ of concrete with a 3000 psi. rating

Documents
Atlas® Platinum PVL12 Manual
ALLY AL3500 Power Unit Specs and Parts List
