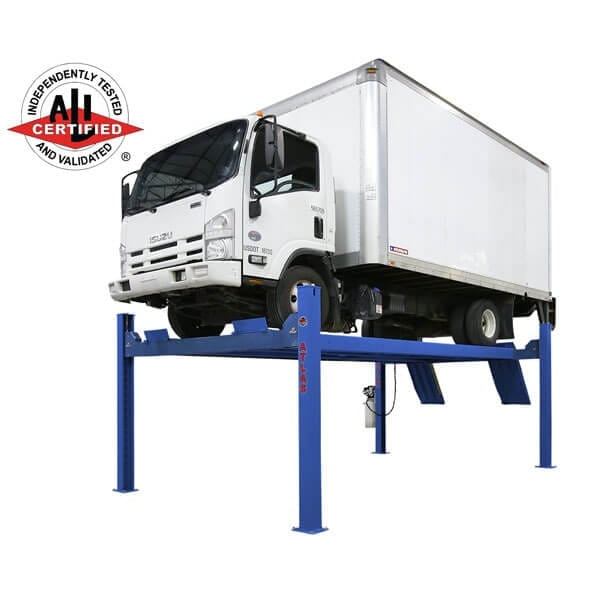

Atlas Platinum PVL14 4 ALI Certified 14,000 lb 4 Post Lift

Description
The Atlas® Platinum PVL14 is a four post commercial grade Heavy-Duty lift designed with the professional shop in mind. This lift can accommodate a variety of cars, vans, SUVs, trucks, and even some light & medium duty commercial vehicles.

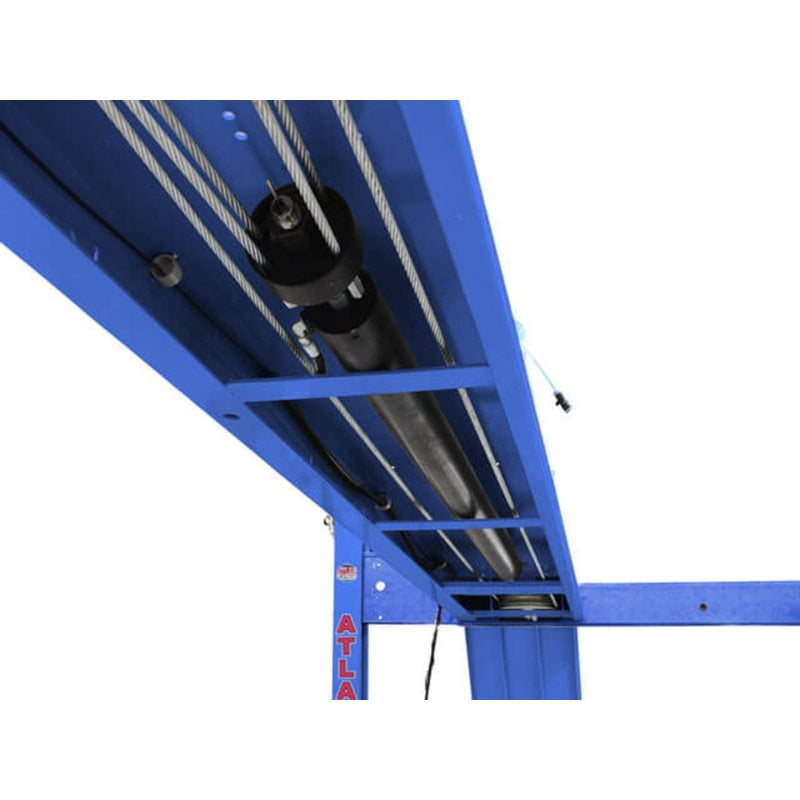

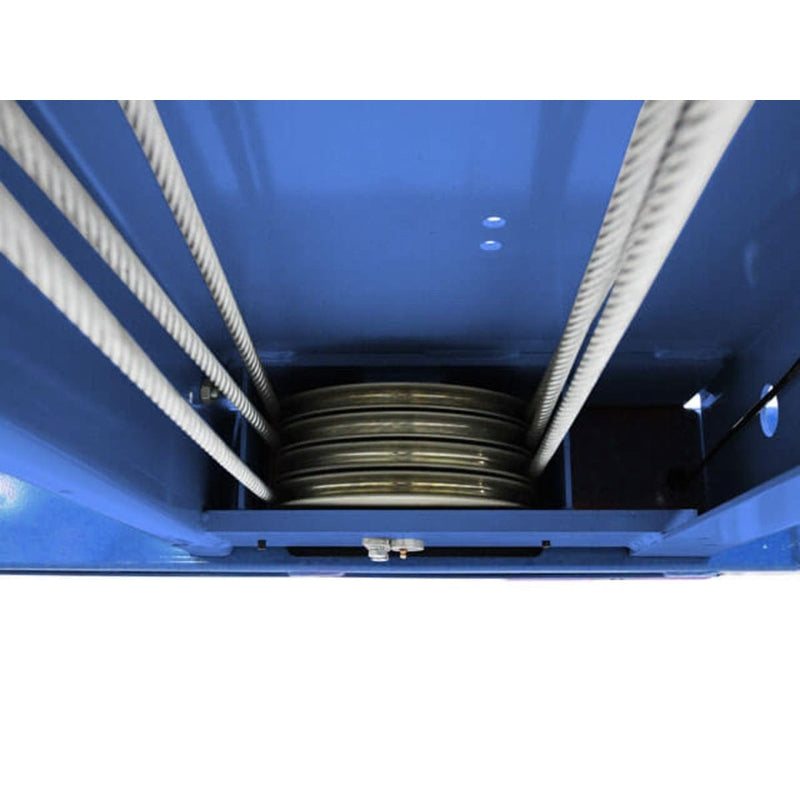

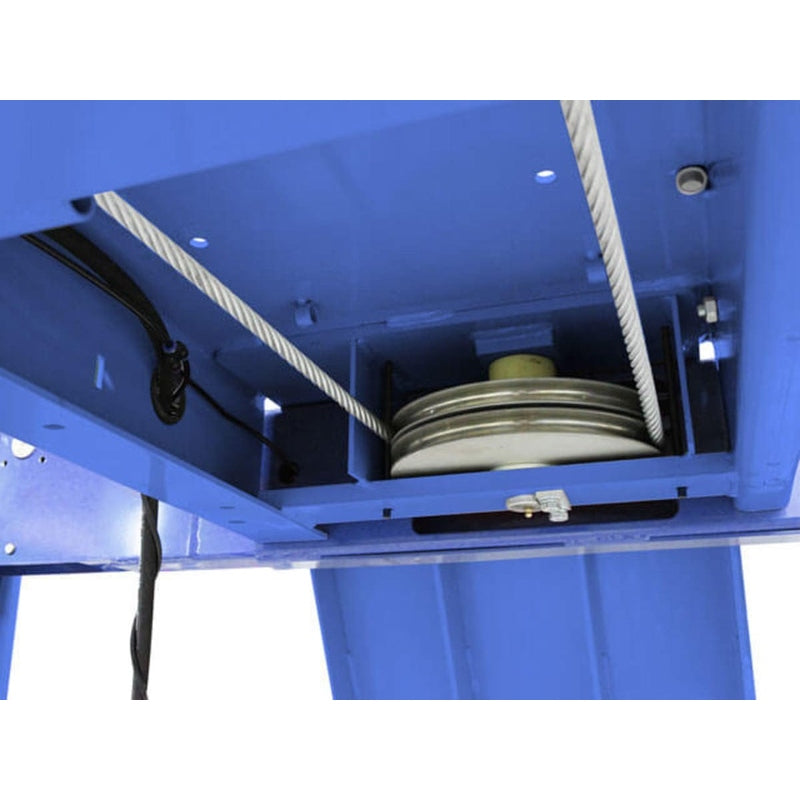

The Platinum PVL14 uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.
The Atlas® Platinum PVL14 features “tracks” between the runways to allow the use of a rolling bridge jack (recommended is the Atlas® Platinum RJ7000) on the lift. Rolling jacks sold separately.
The Atlas® Platinum PVL14 is also ALI certified and backed by one of the industry’s best warranties for an added peace of mind.

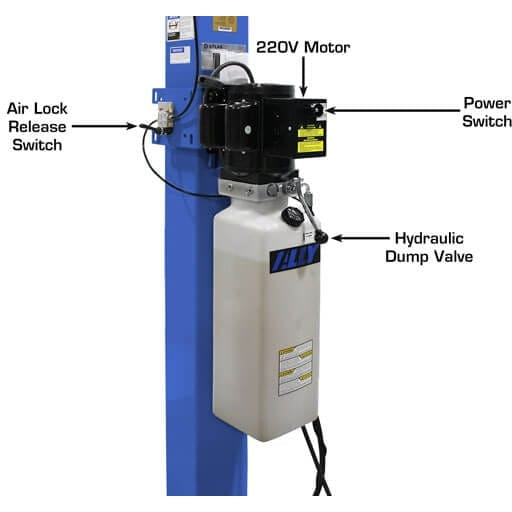

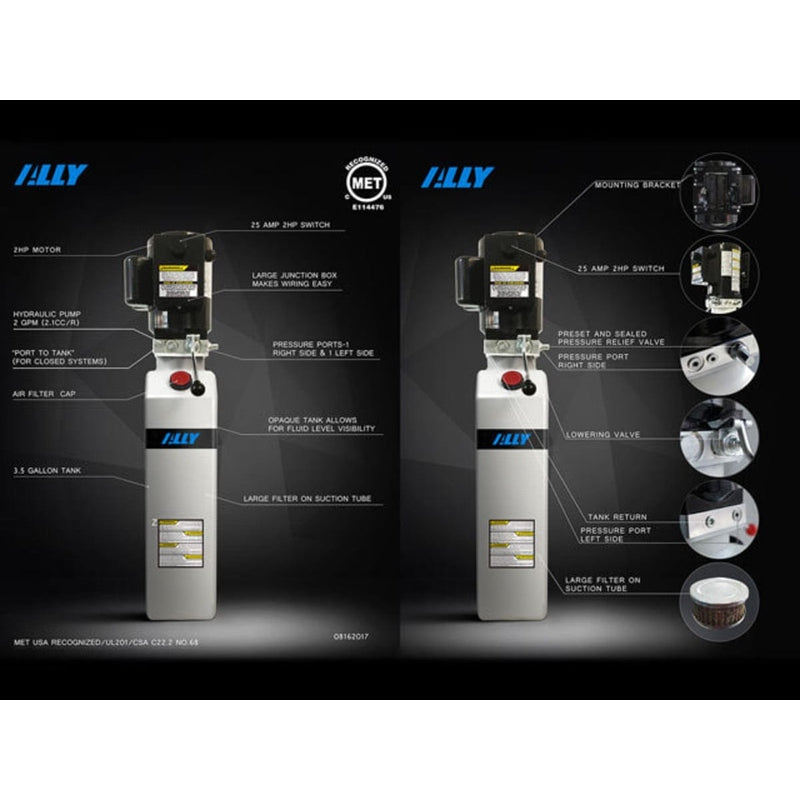

This product features an ALLY Hydraulic AL2650 power unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.
Features

ALI Certified Lift

14,000 lb. Capacity

Heavy Duty, Commercial Grade

Extra Tall, Extra Wide & Extra Long

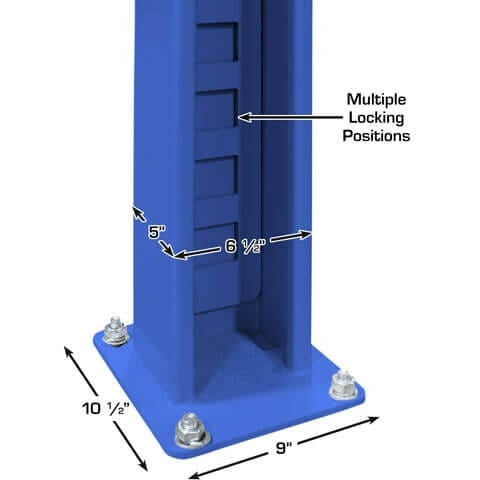

Adjustable Lock Ladder Design

Higher Quality Powder Coat Finish

Air Operated Single Point Lock Release (External Air Supply Required)

Lock Ladder Design

Double Lock Safety System

Powder Coat Finish

Steel Approach Ramps Included

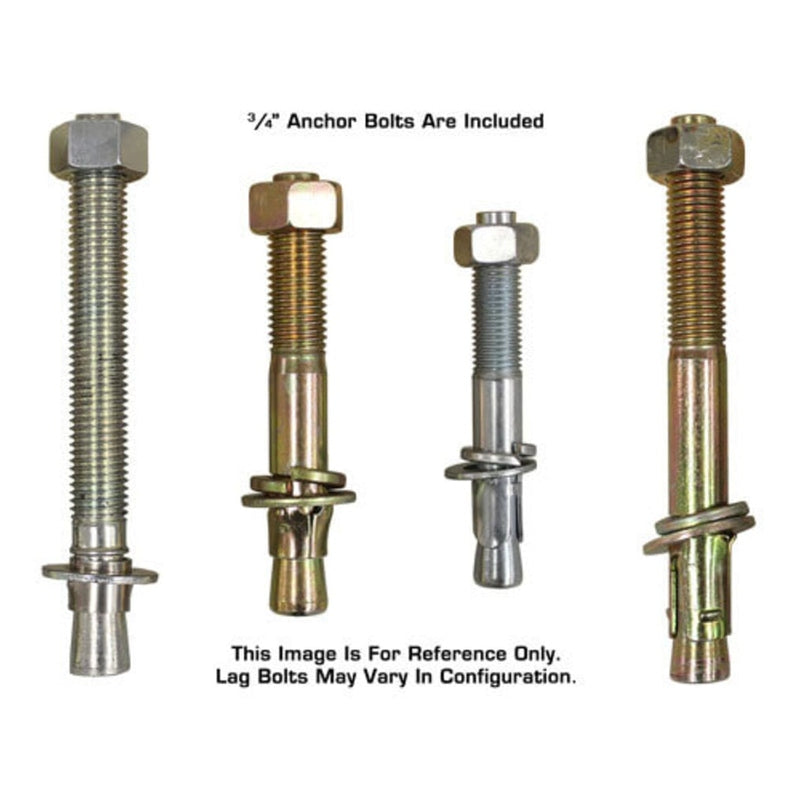

Mounting Hardware Included

Standard with Premium ALLY Powerunit

220volt/1phase Electric Operation (Requires a 30amp Breaker)

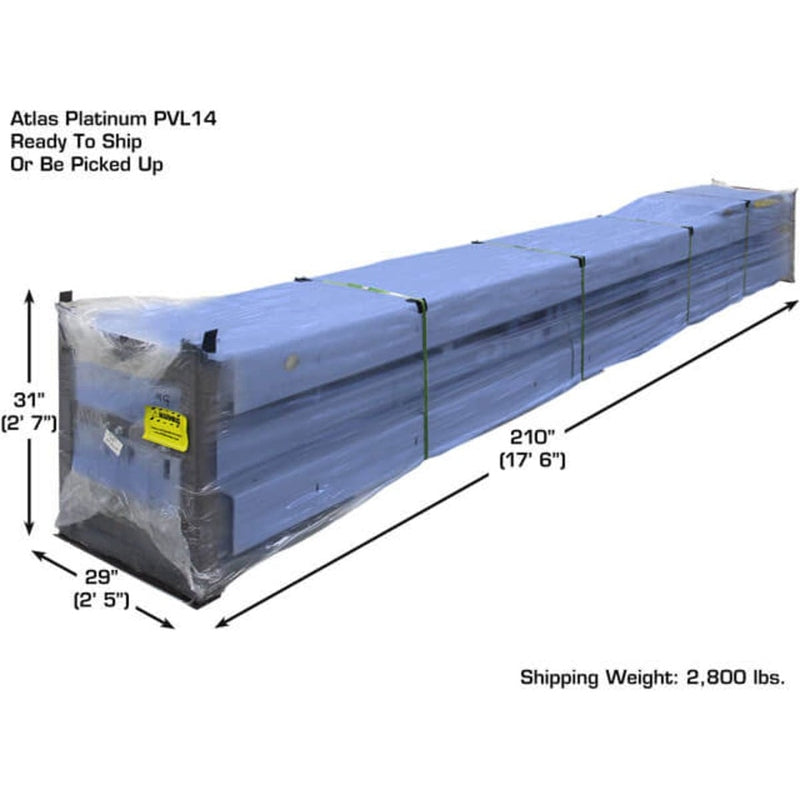

Shipping Weight: 2,800 lbs.

5 yr Structural – 2 yr Hydraulic – 2 yr Powerunit Warranty

Specifications

Atlas® Platinum PVL14 Specifications

Capacity
14,000 lb.

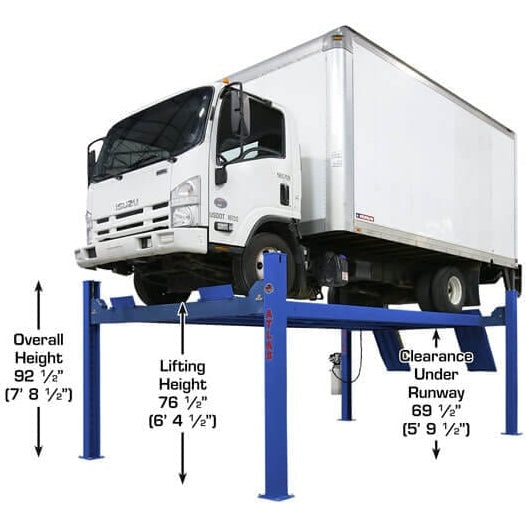

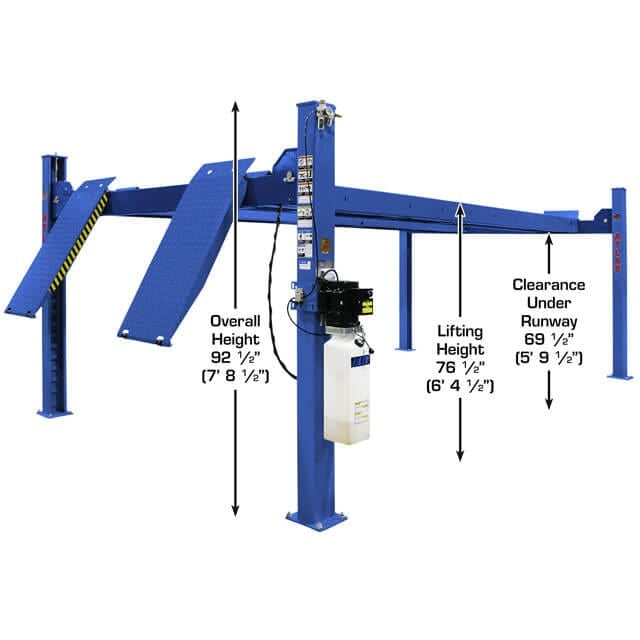

Lifting Height
76 1/2″ (6′ 4 1/2″)

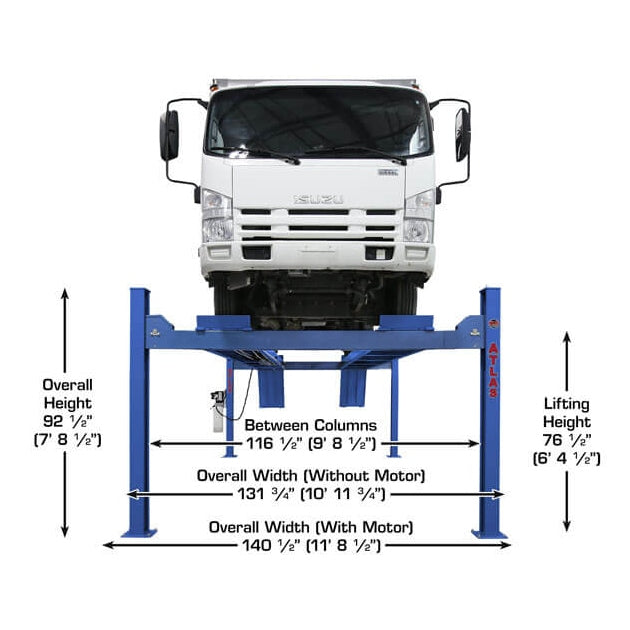

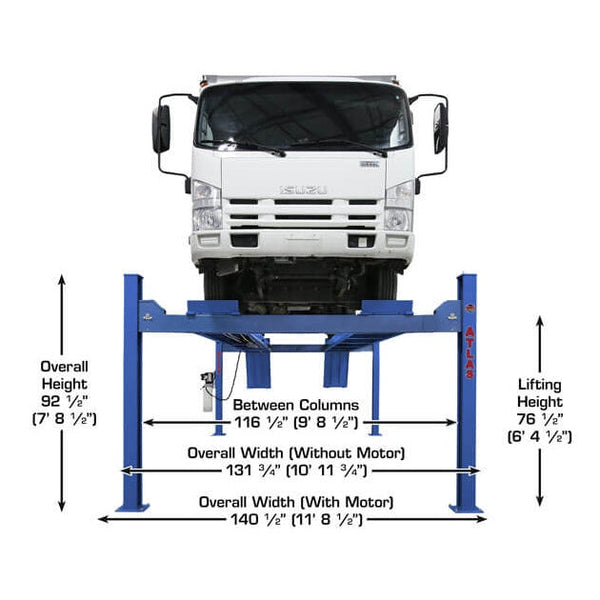

Overall Width Of Columns (Without Motor)
131 3/4″ (10′ 11 3/4″)

Overall Width Of Columns (With Motor)
140 1/2″ (11′ 8 1/2″)

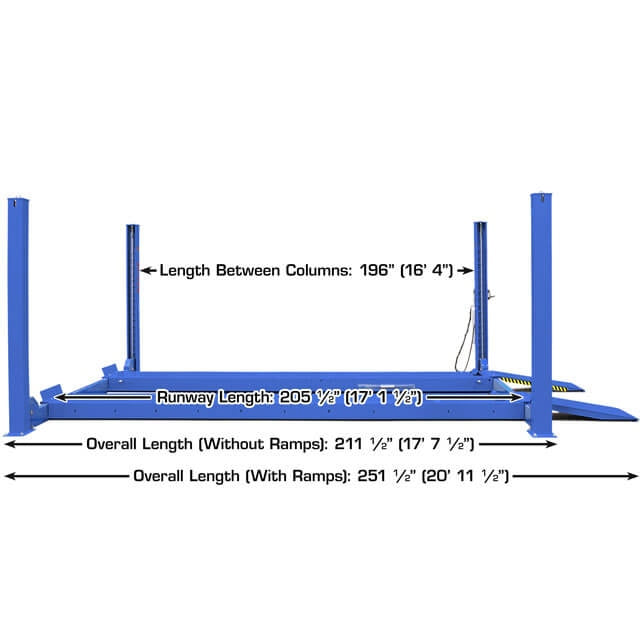

Overall Length With Approach Ramp
251 1/2″ (20′ 11 1/2″)

Length Between Columns
196″ (16′ 4″)

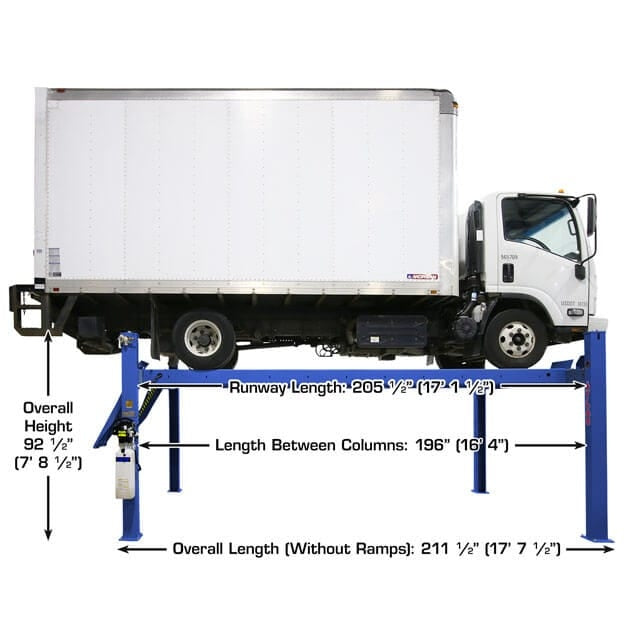

Runway Length
205 1/2″ (17′ 1 1/2″)

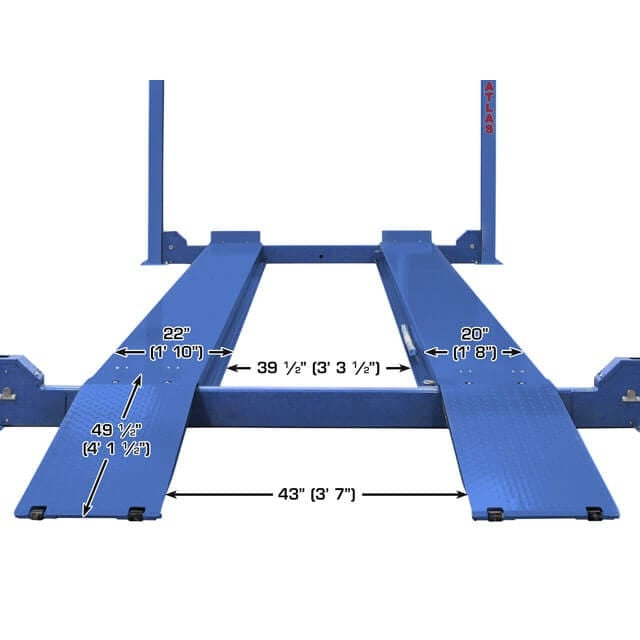

Runway Width
20″

Thickness Of Runway
7″

Width Between Runways
42 3/4″ (w/ Rail 39 1/4″)

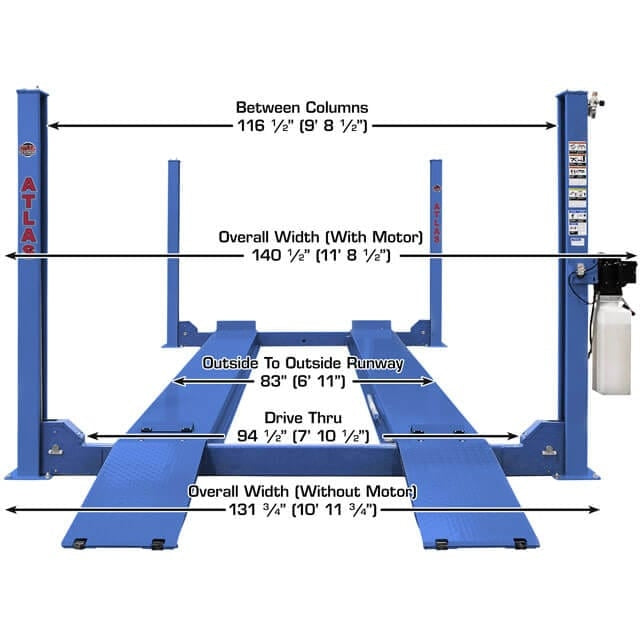

Outside Runway To Outside Runway
83 1/8″ (6′ 11 1/8″)

Clearance Under Runways
69 1/2″ (5′ 9 1/2″)

Clearance Between Columns
116 3/8″ (9′ 8 3/8″)

Height Of Columns
92 1/2″ (7′ 8 1/2″)

Maximum Wheel Base
195″ (16′ 3″)

Drive Thru
94 1/2″ (7′ 10 1/2″)

Air Requirement
85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)

Motor/Electrical Requirement
220 volt single (1) phase.A 30 amp breaker is recommended

Oil Requirement
3-5 Gallons AW32/AW46 (NOT INCLUDED)

Shipping Weight
2,800 LBS.

Requires a minimum of 6″ of concrete with a 3000 psi. rating
