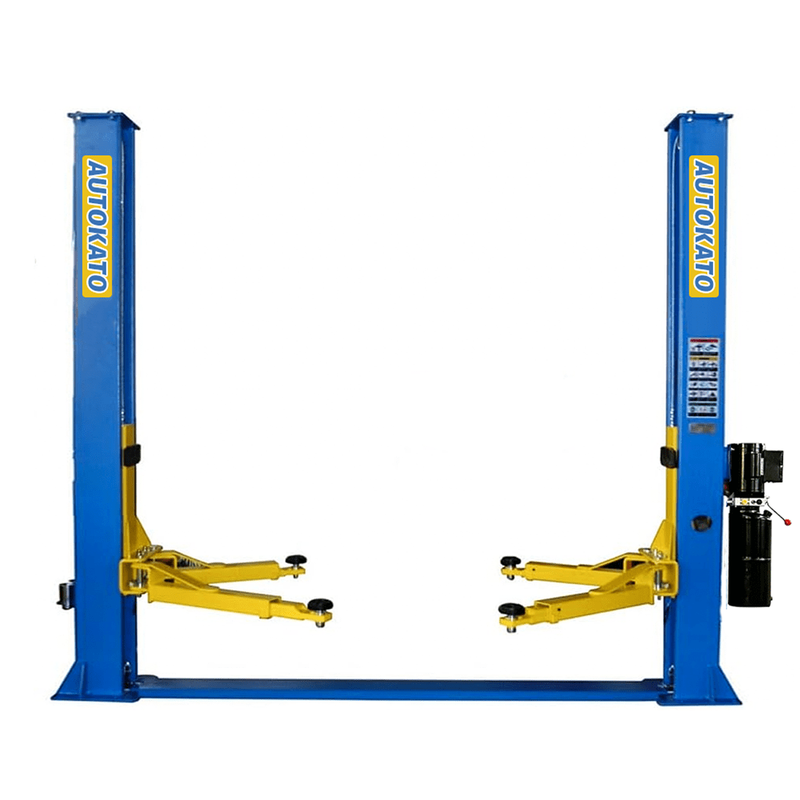

Katool H115Z 11,000lbs Two Post Lift

Description
This Katool H115Z 11,000lbs two-post lift arrives in a base-plate design that simplifies installation and unloading. Lift gate service is available, so you can have it delivered directly to your location without the need for heavy-duty unloading equipment.
Designed for serious professionals and auto enthusiasts alike, the H115Z combines brute strength with refined engineering. With a whopping 11,000lb lifting capacity, it’s built to raise everything from light trucks to heavier SUVs—without breaking a sweat. Dual hydraulic chain-drive cylinders deliver smooth, reliable lifting power, while the top-tier hydraulic system (220V/60Hz) ensures consistent performance day in and day out.
Specifications

Lifting Capacity
11,000 lbs (5,000 KG)

Max. Lifting Height
70.8″ (1800mm)

Minimum Height
3.9″ (100mm)

Overall Height
110.9″ (2818mm)

Overall Width
140.4″ (3565mm)

Outside Column Width
124.8″ (3170mm)

Inside Column Width
110.2″ (2800mm)

Drive-Thru Clearance
98.4″ (2500mm)

Front Arm Reach (Min)
29.5″ (750mm) – 2 stages

Front Arm Reach (Max)
46″ (1170mm) – 2 stages

Rear Arm Reach (Min)
35.4″ (900mm) – 2 stages

Rear Arm Reach (Max)
58.2″ (1480mm) – 2 stages

Motor
220VAC / 60Hz / 1PH / 2.2KW

Net Weight
570 KG

Design
Base Plate

Safety Lock Release
Manual (Dual Side)

Hydraulic System
Top-Level with Dual Chain-Drive Cylinders

Rubber Door Guards
Included

Extension Adapters
Screw-on Pads with +100mm Adaptors

Certification
CE Approved (115% dynamic / 150% static test)

Warranty
Katool provides a 1-year limited warranty on all parts and product defects. Additionally, vehicle lifts include a 3-year warranty on structural components. Optional 2-year extended warranty plans are also available for purchase.
Warranty Includes:

Cylinders, power units, motors, displays, and electronics.
Structural components for vehicle lifts.

Warranty Conditions:

Claims must be within the warranty period and are non-transferable.
Replacement parts are provided free of charge, including shipping.
Labor costs are not included in the warranty.
Disassembly of equipment prior to warranty approval is not permitted.

All warranty claims are subject to review by the warranty/service department. Supporting documentation, such as photos or videos of defects, may be required for approval.
