Atlas Garage PRO8000EXT 8,000 lb Extra Tall 4-Post Lift

Atlas 8,000lb. Extra Tall Portable Hobbyist Lift
The Atlas® Garage PRO8000EXT is a true 8,000 LB. four post lift and is one of our most popular hobbyist lifts. This lift incorporates many of the great features of both the Atlas® Garage PRO8000 and the Atlas® Garage PRO9000.

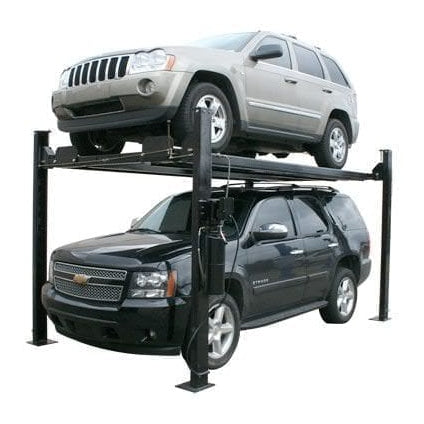

Many of our customers drive an SUV or pick up truck and wanted a storage lift that would “go higher” to allow them to park their taller vehicles under the elevated platform. Many of our competitors sell “taller” lifts. However, their “taller” lifts also have longer runways. Our customers requested that we make a lift which lifts higher, but without the extra length (longer runways take up valuable garage space). Most customers want to store a car on top and park a SUV or pick up truck below. The Atlas® Garage Pro 8000 EXT has been engineered to provide 79″ of clearance UNDER the bottom of the raised runway. If you need the extra lifting height of the Atlas® Garage Pro 9000, but do not need the extra width and runway length provided by that lift, then the Atlas® Garage PRO8000EXT is the perfect choice.
The Atlas® Garage PRO series of 4-post lifts (8,000 lb. capacity) are designed and built for use by homeowners or restoration shops. These lifts are not designed for use in commercial repair shops where they would be raised and lowered several times per day. If you have questions about which lift would best work in your application please contact a salesperson..

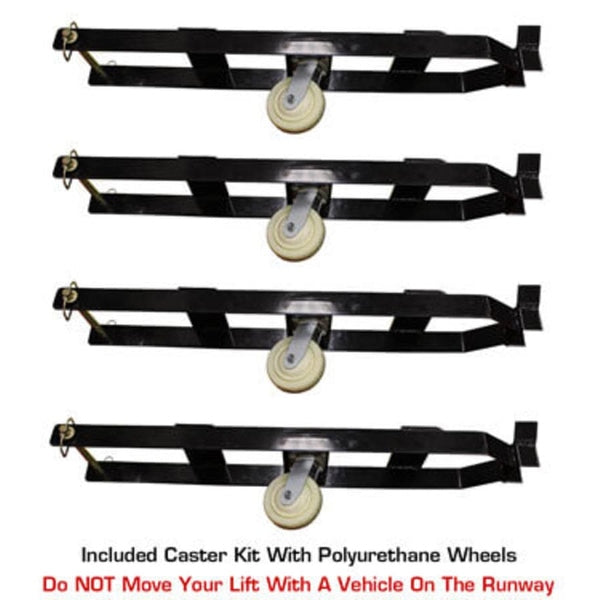

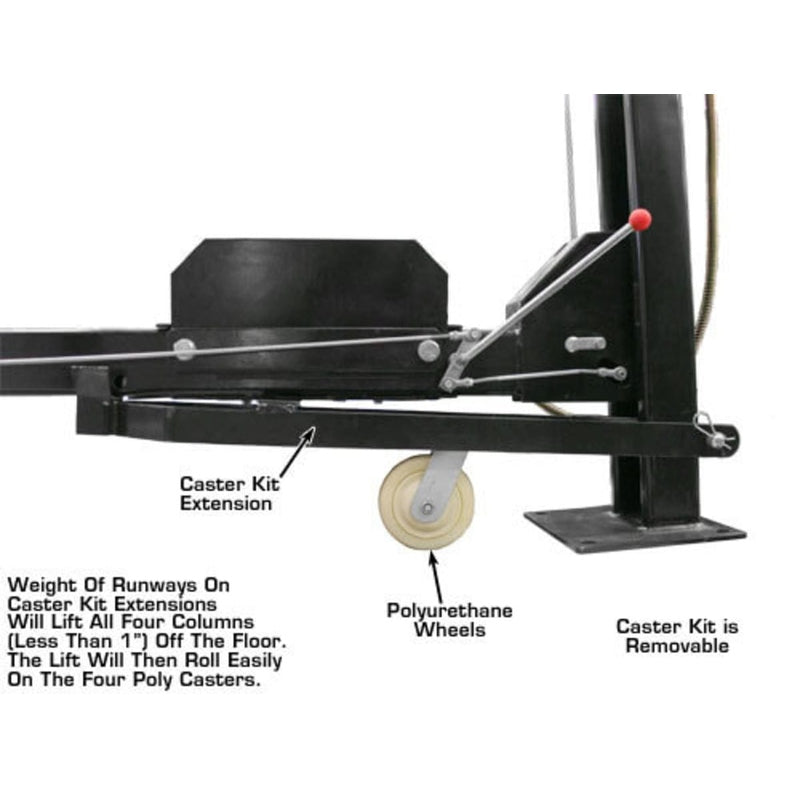

The Atlas® Garage PRO8000EXT includes free plastic drip trays, a free steel jack tray, and a free caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes making the lift portable and allowing it to move between bays or even outside.
Many customers who purchased this lift also purchased the Atlas® RJ35.
Features

8,000 lb. Capacity

Free Standing/Portable Design

Extra Tall

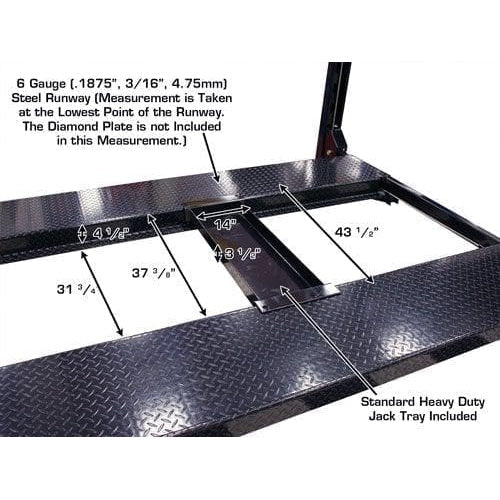

Diamond Plated Runways

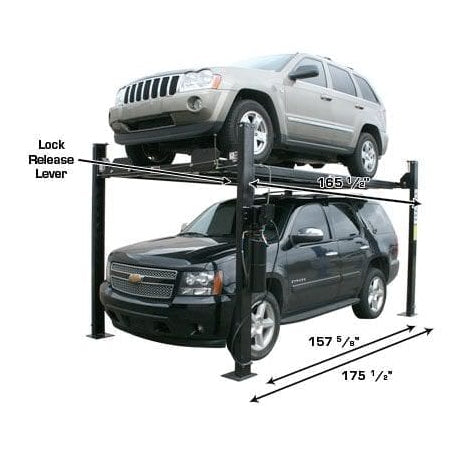

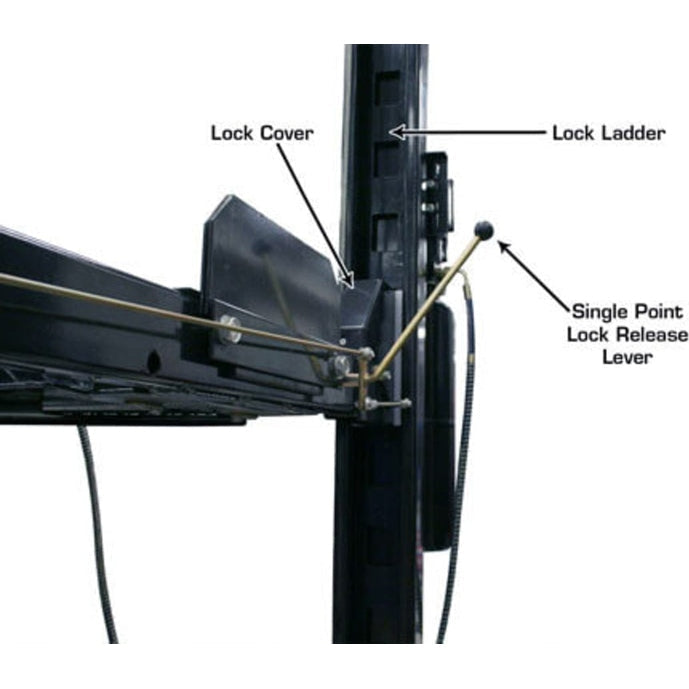

Single-Point Lock Release

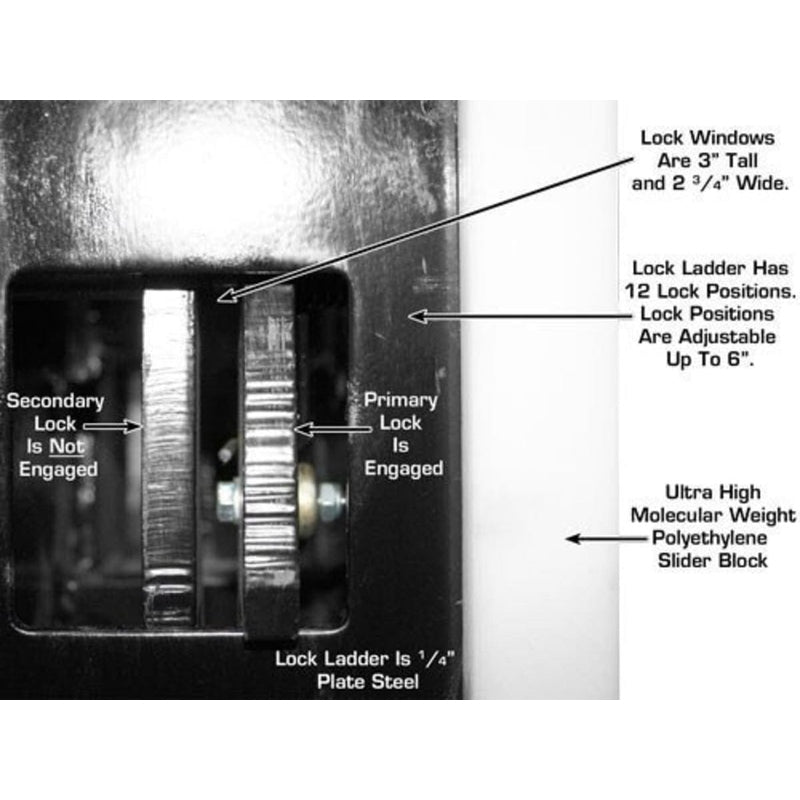

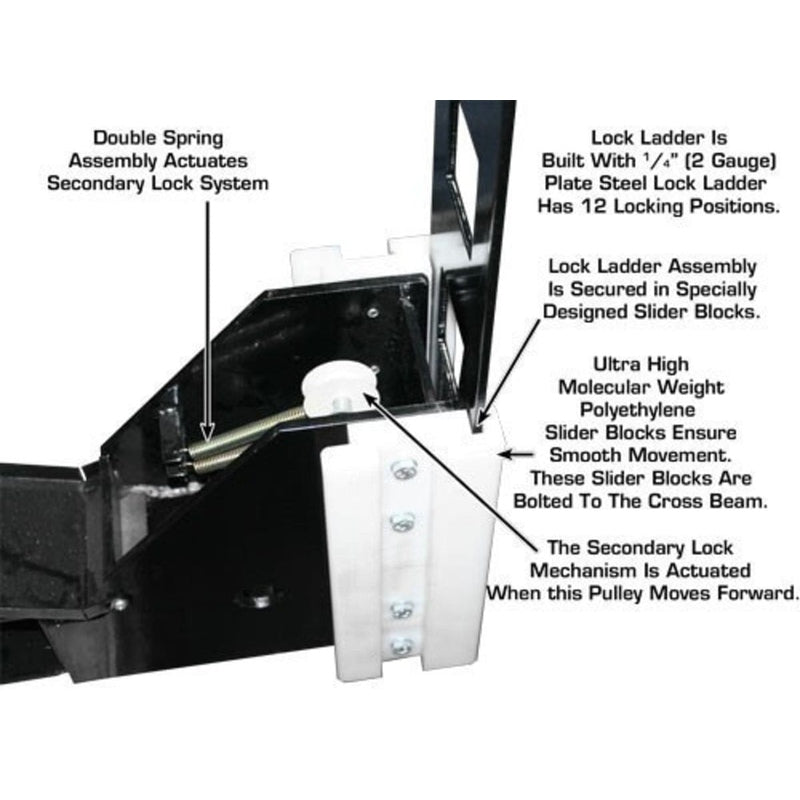

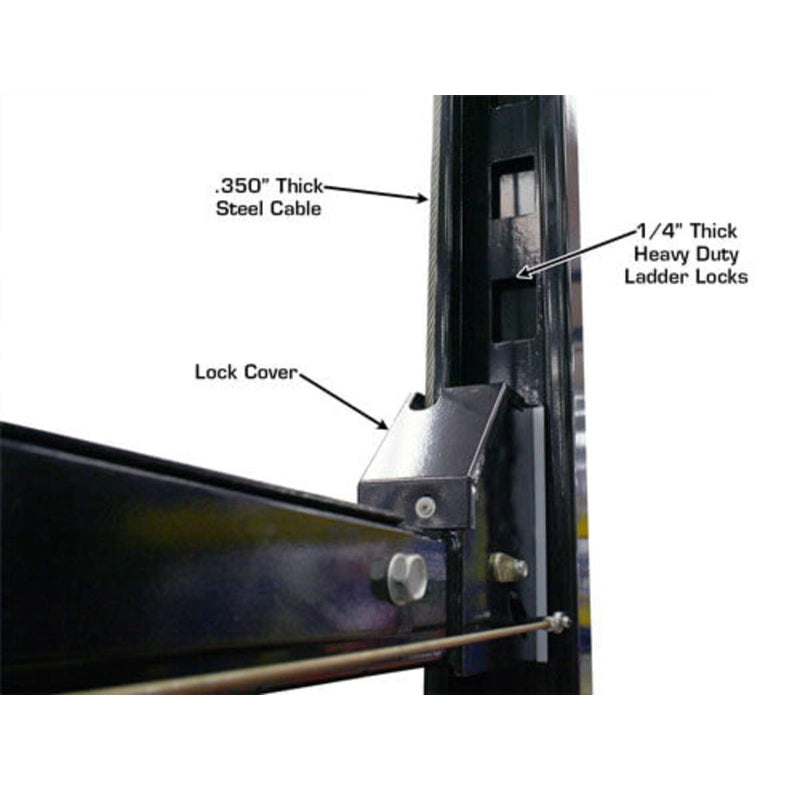

Lock Ladder Design

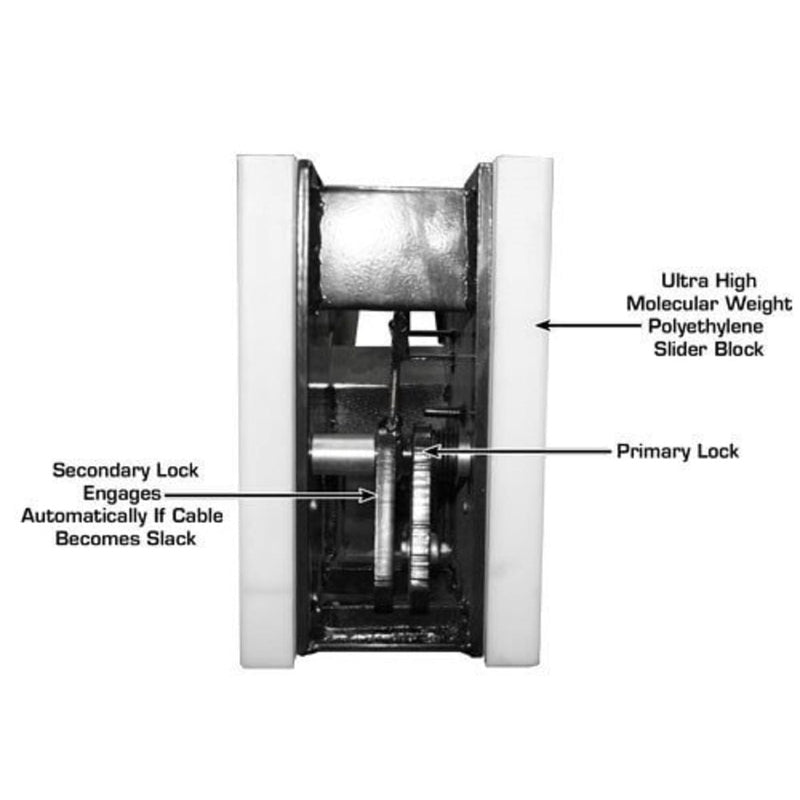

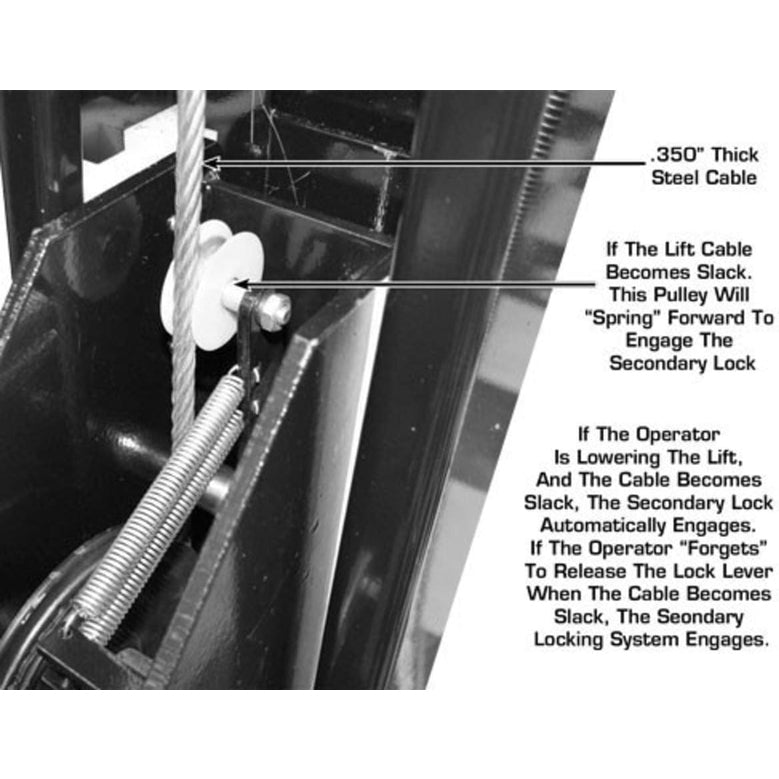

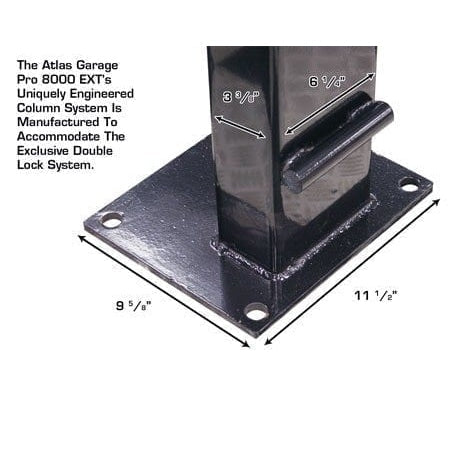

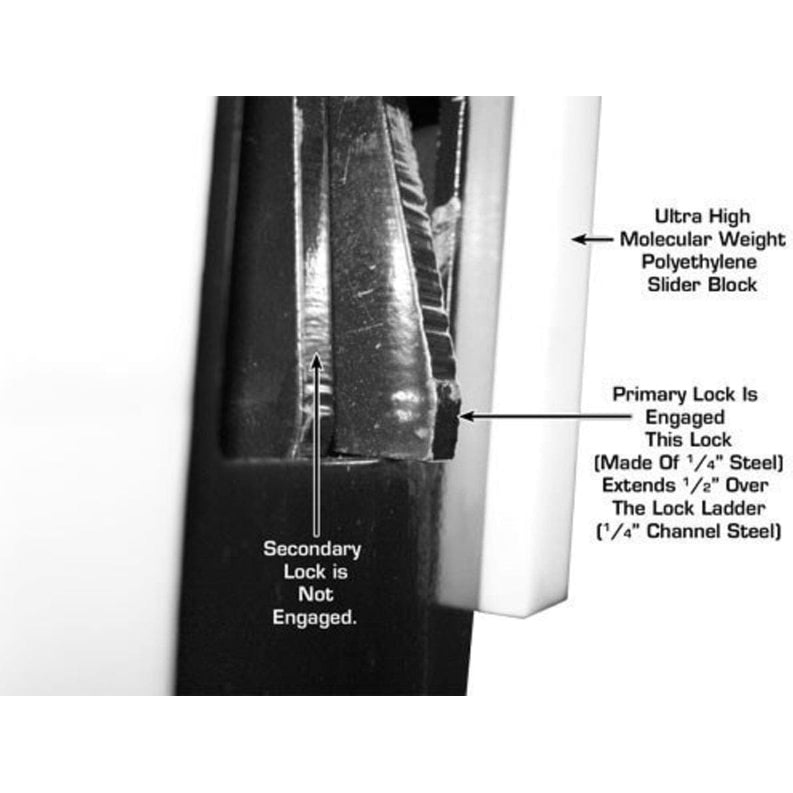

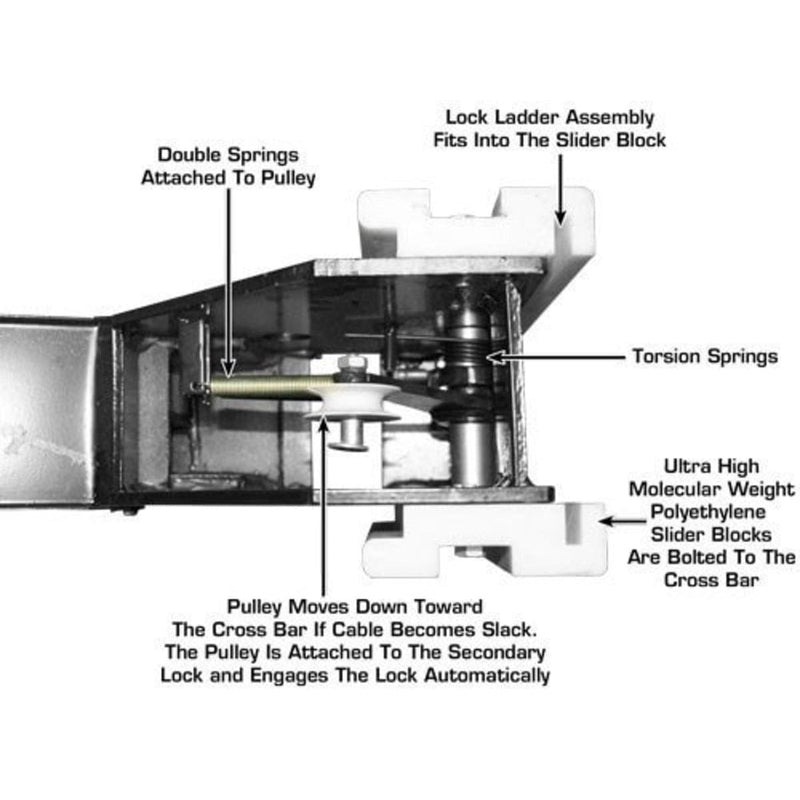

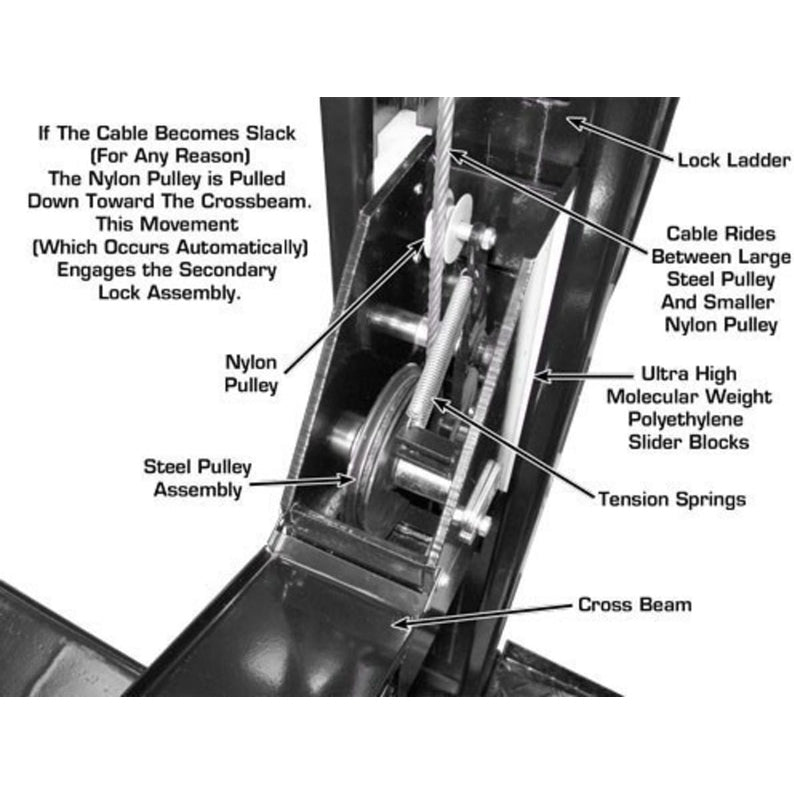

Double Lock Safety System

Caster Kit With Polyurethane Wheels Included

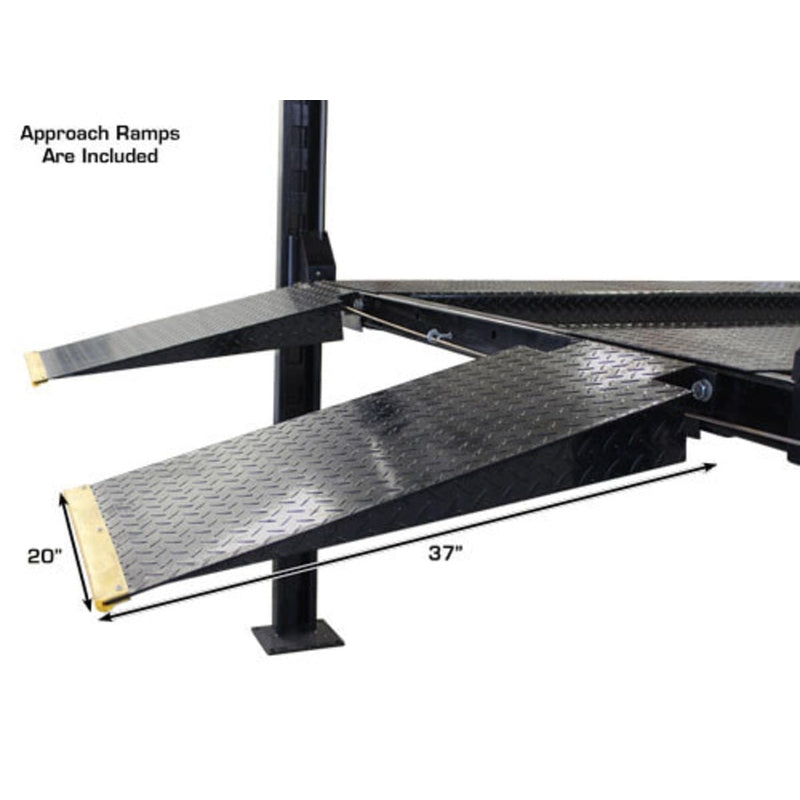

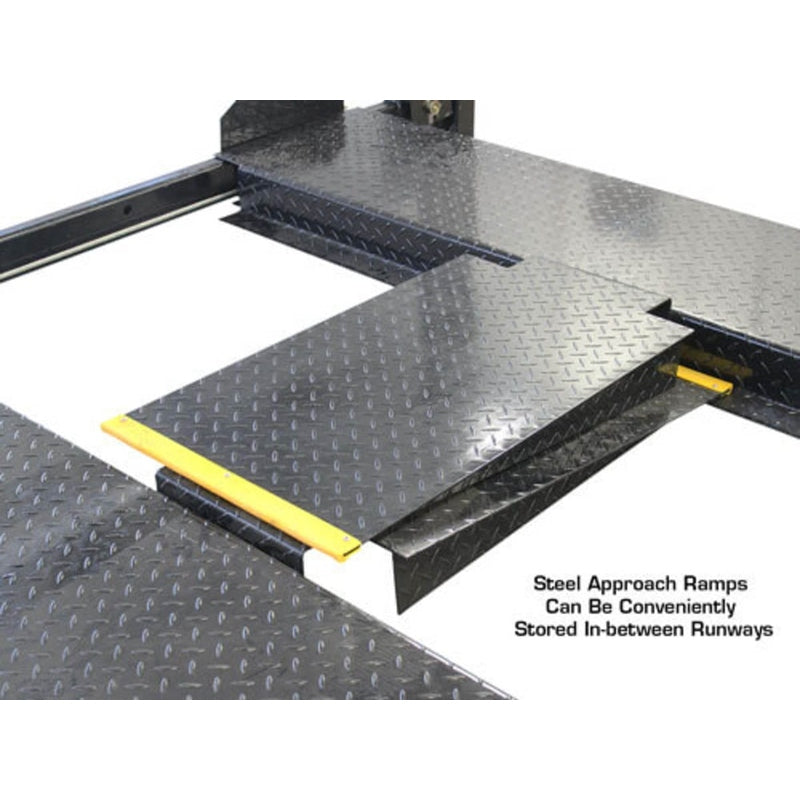

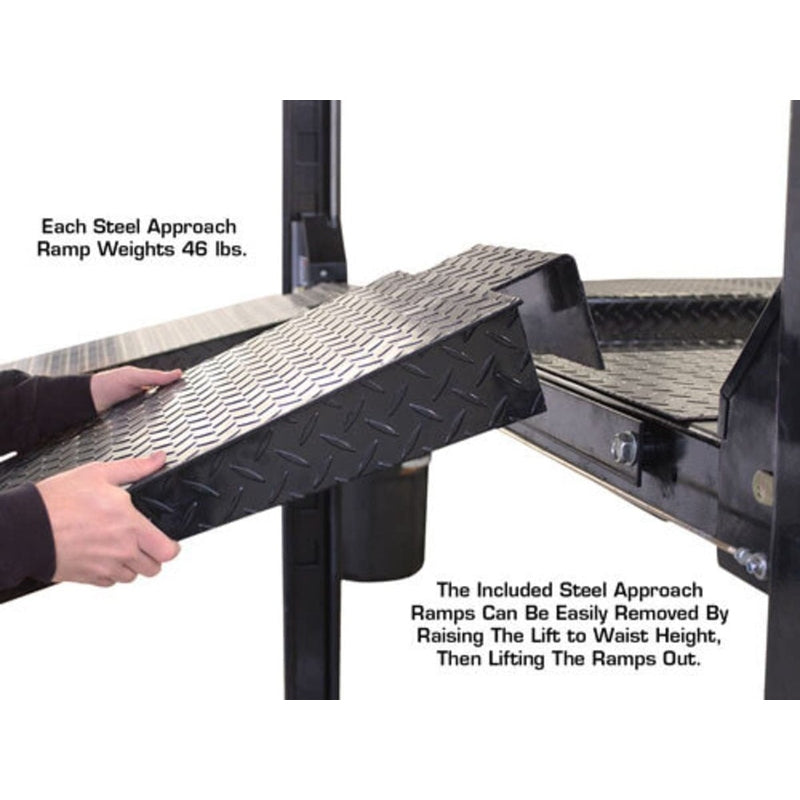

Steel Approach Ramps Included

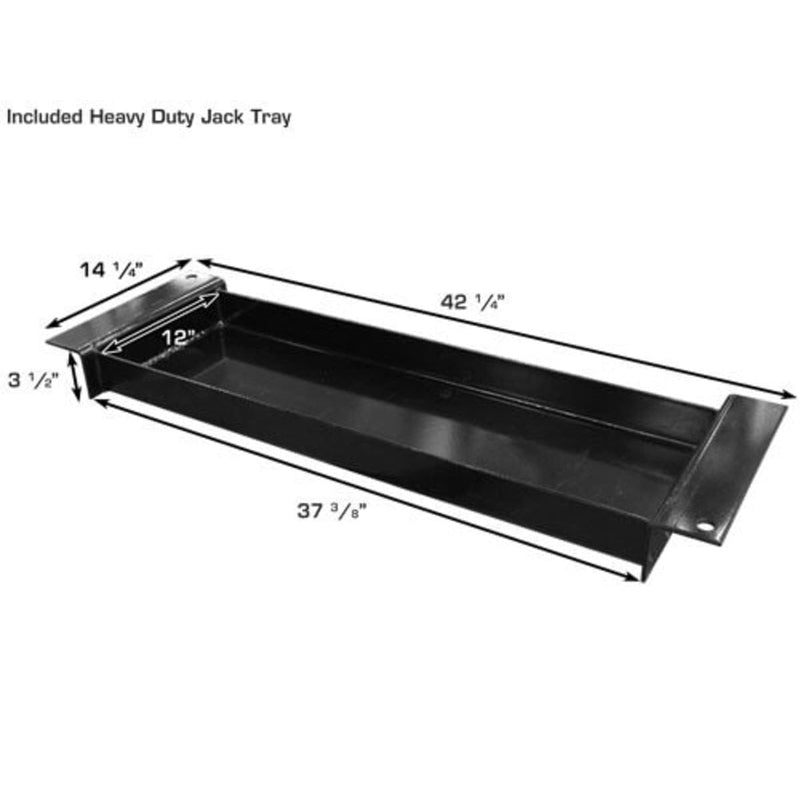

Steel Jack Tray Included

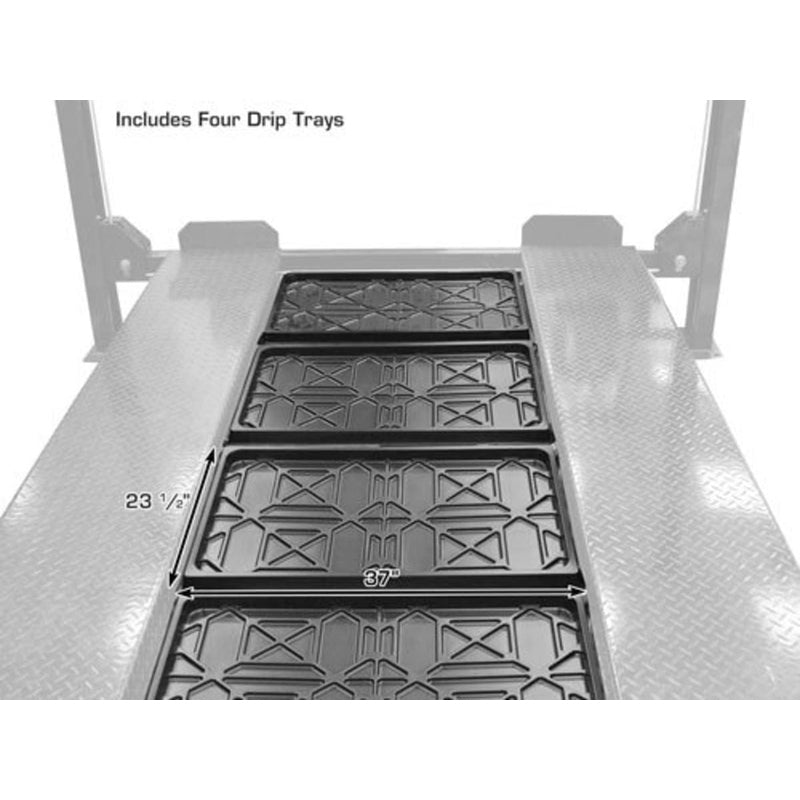

4 Plastic Drip Trays Included

4 Wheel Stops Included

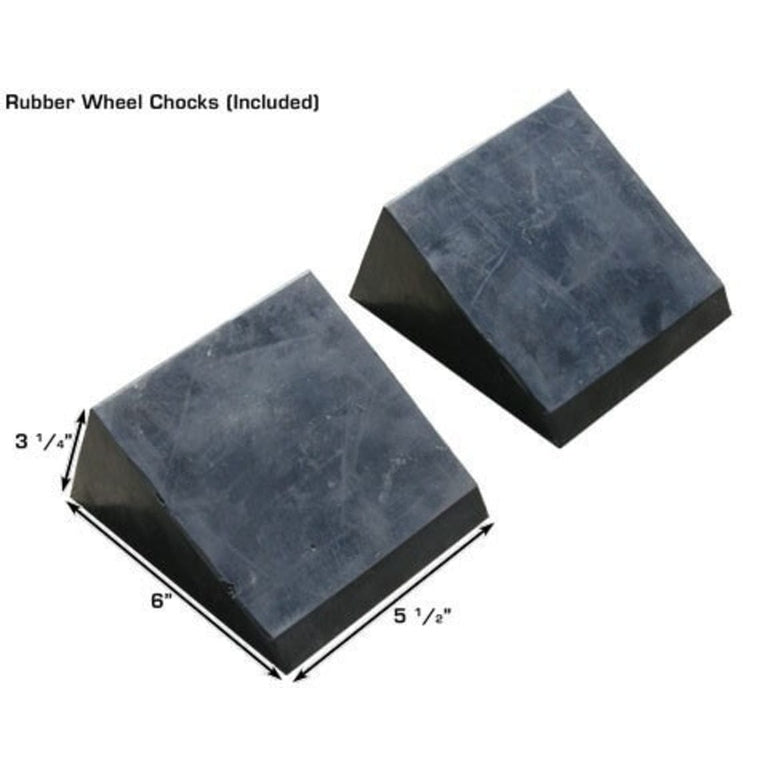

2 Rubber Wheel Chocks Included

Perfect For Storing Or Working On Vehicles

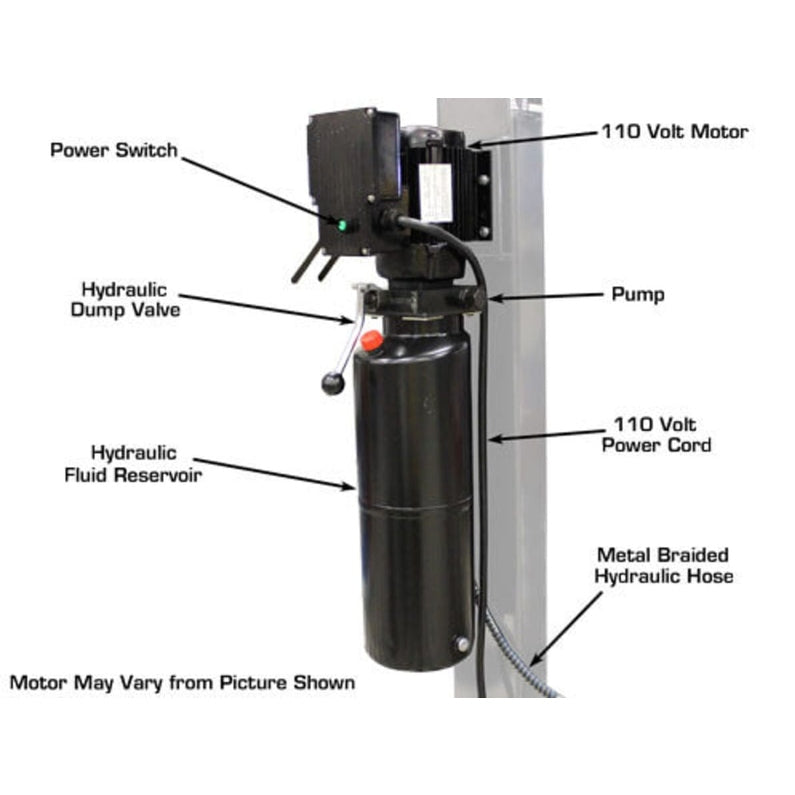

110volt Electric Operation (30 AMP BREAKER REQUIRED)

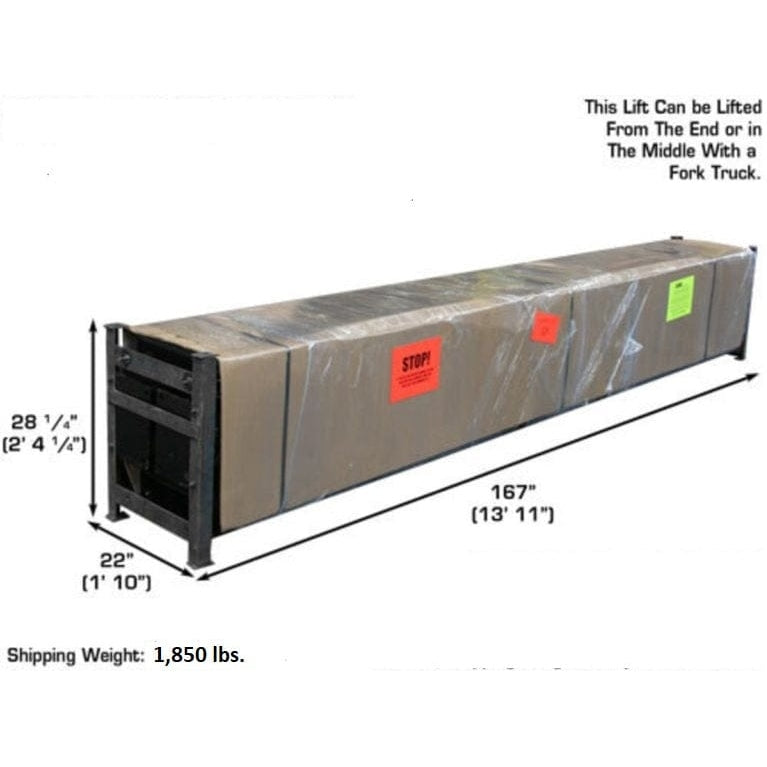

Shipping Weight 1,850 lbs.

2 yr Structural – 1 yr Hydraulic Warranty – Parts Only

Specifications

Atlas® Garage PRO8000EXT Specifications

Capacity
8,000 Lb.

Lifting Height To Top Of Runway
84 1/4″ (7′ 1/4″)

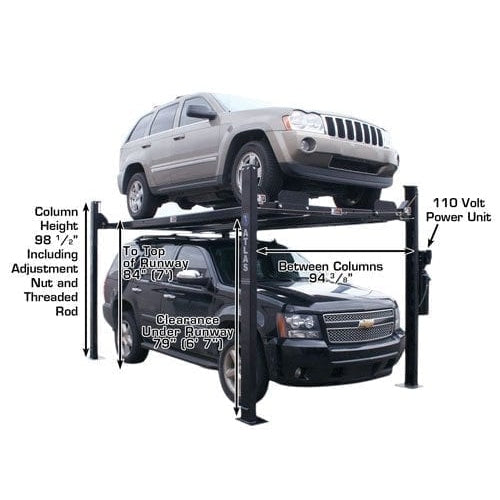

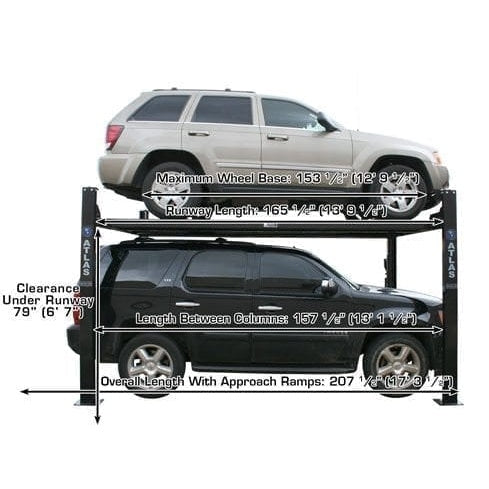

Clearance Under Runways
79″ (6′ 7″)

Height Of Columns
98 1/2″ (8′ 2 1/2″)

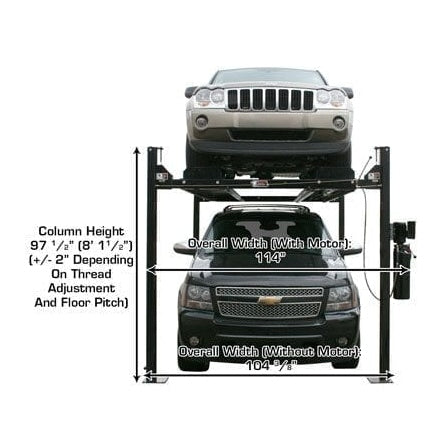

Overall Width (Without Motor)
104 1/2″ (8′ 8 1/2″)

Overall Width (With Motor)
115″ (9′ 7″)

Overall Length With Approach Ramp
206 3/4″ (17′ 2 3/4″)

Approach Ramp
37″ (3′ 1″)

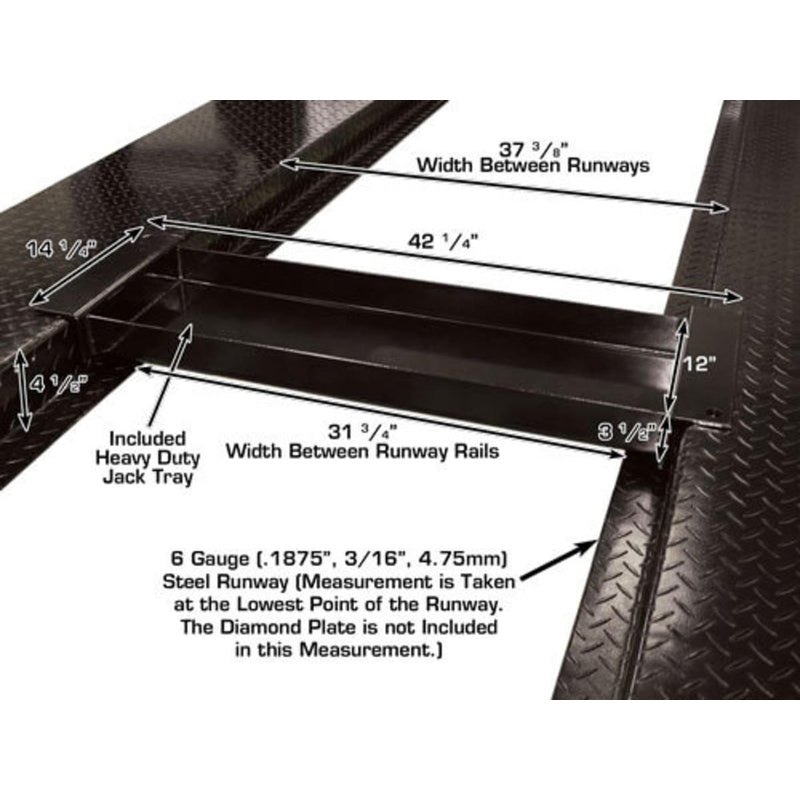

Runway Width
21 1/4″ (w/ Rails) or 18 3/4″ (Driving Surface)

Runway Length
165 3/4″ (13′ 9 3/4″)

Runway Thickness
4 1/2″

Width Between Runways
37″ (3′ 1″)

Width Between Runway Rails
31 1/2″ (2′ 7 1/2″)

Outside Runway To Outside Runway
74 5/8″ (6′ 2 5/8″)

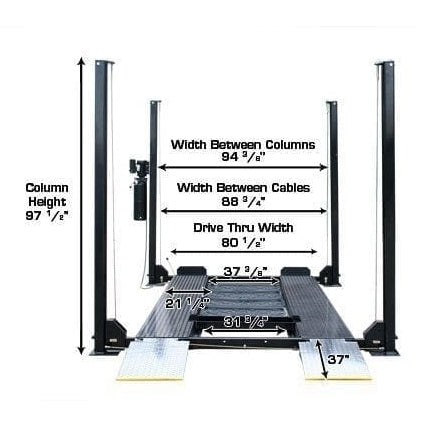

Clearance Between Columns
94 1/2″ (7′ 10 1/2″)

Length Between Columns
157 1/2″ (13′ 1 1/2″)

Maximum Wheel Base
153 1/2″ (12′ 9 1/2″)

Drive Thru (Outside Of Tire To Outside Of Tire)
80 1/2″ (6′ 8 1/2″)

Motor/Electrical Requirement
110 Volt, 30 AMP BREAKER REQUIRED

Shipping Weight
1,850 lb.

Documents
Atlas® Garage PRO8000EXT Manual
Atlas® Garage Pro Lifts Cylinder Bleeding Procedure (Do this immediately after installation)
