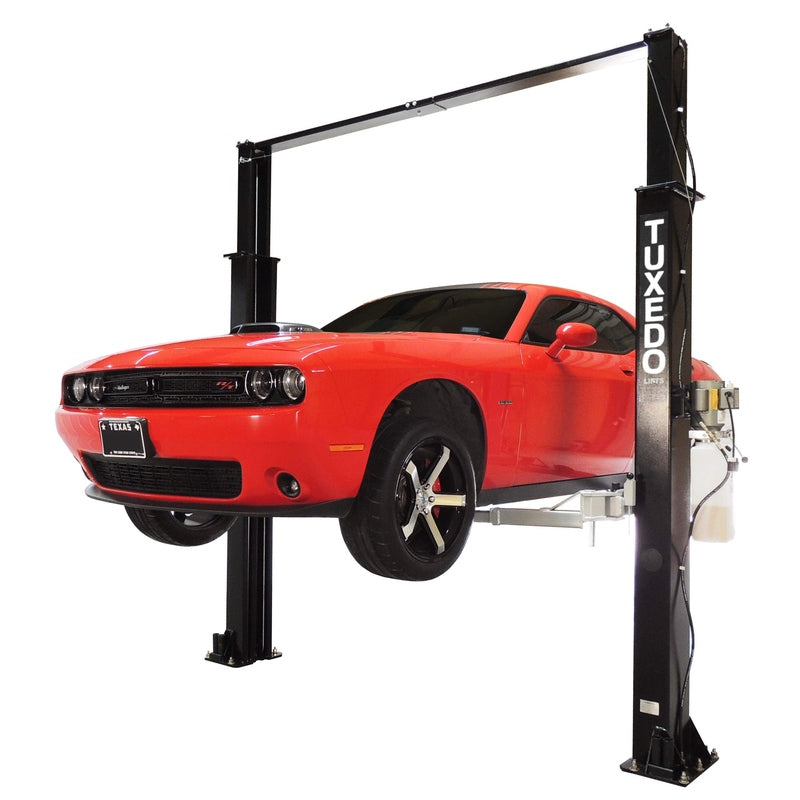

Tuxedo TP9KAC-TUX 9,000 lb Two Post Clear Floor – Asymmetric

Tuxedo 9,000 lb Two Post Clear Floor

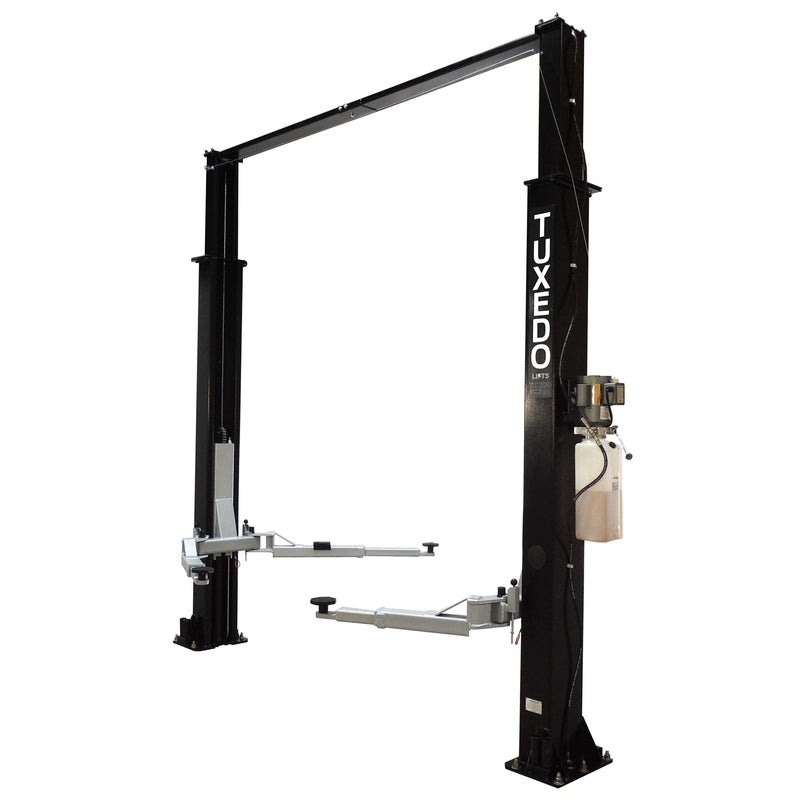

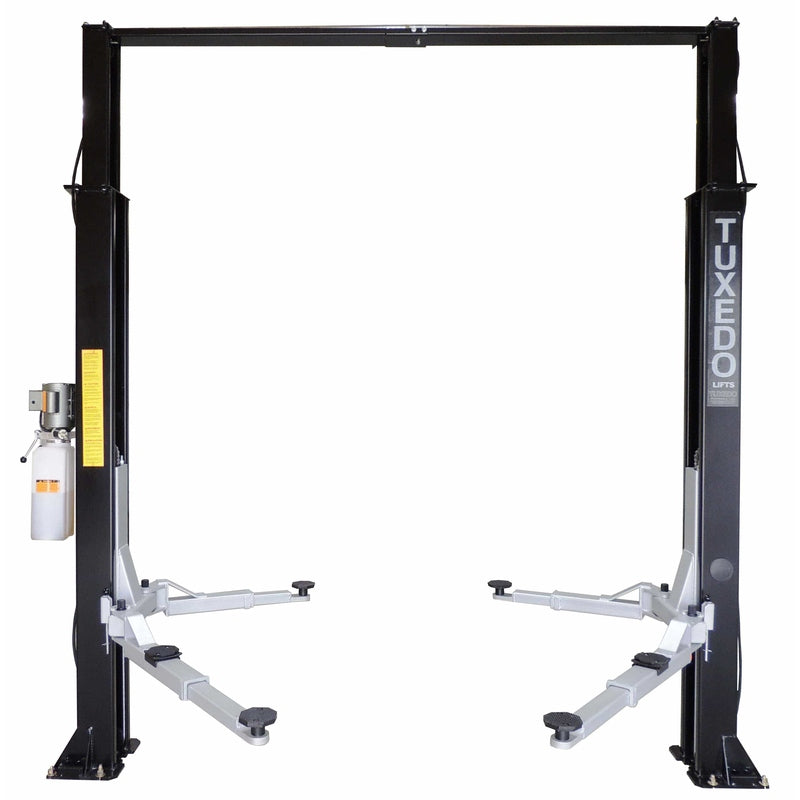

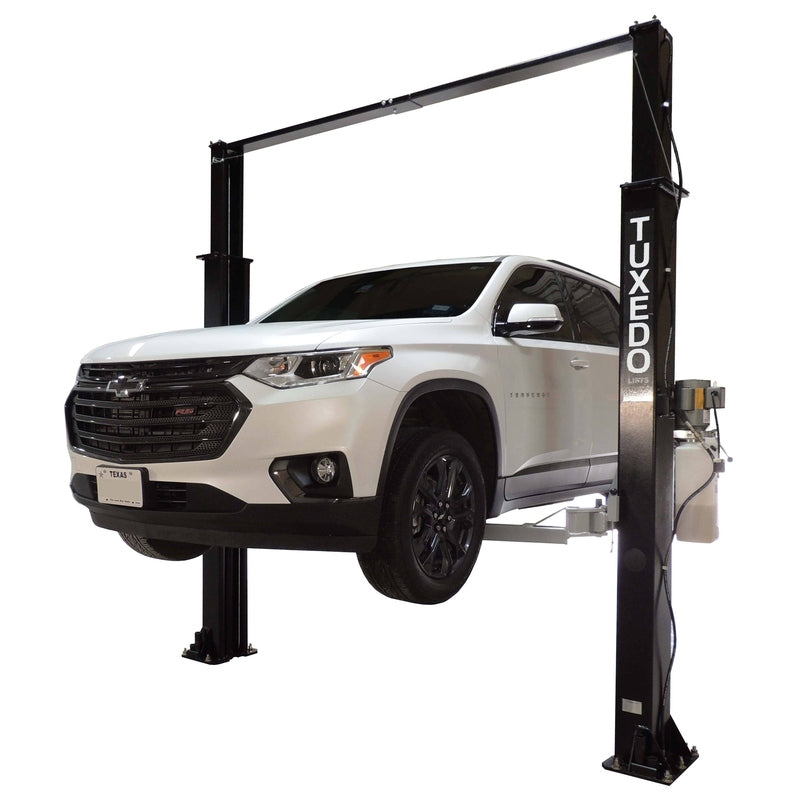

The TUXEDO TP9KAC-TUX 9,000 lb. Light Duty Two Post Lift is an economy designed clear floor vehicle lift with standard lift features including: asymmetrical swing arms, low profile 4 lifting pads, stackable height adaptors, saddle pad adaptors and dual point carriage lock releases. The one piece column with uprights combined with reliable chain drive cylinders make it the perfect service lift for passenger cars, light duty trucks & most SUVs. The automatic arm restraints and durable powder-coat finish provide an economically priced lift with all the features, all for a great value!

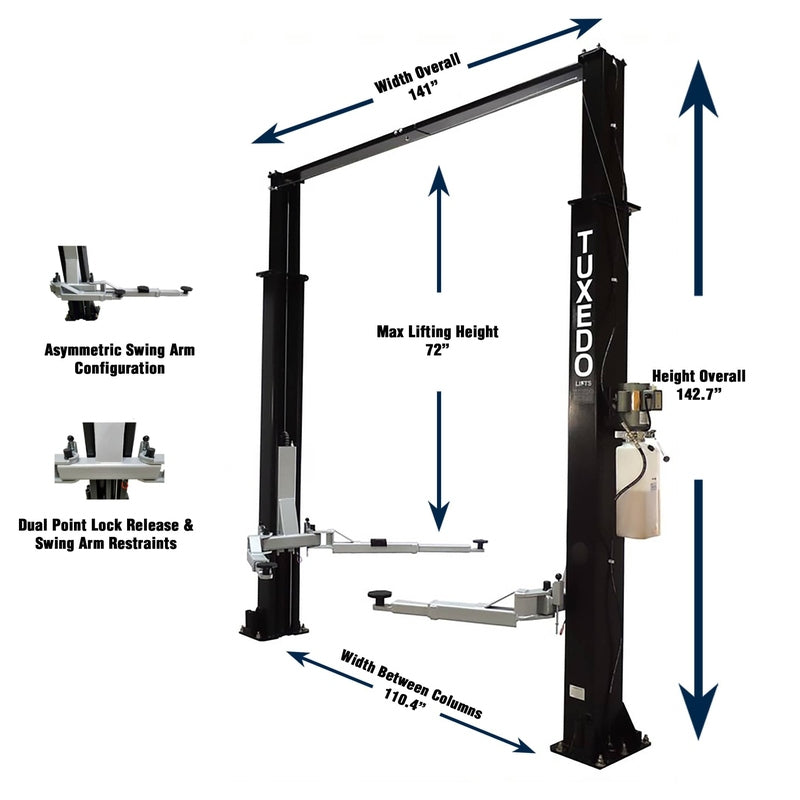

Features

9,000 lbs capacity

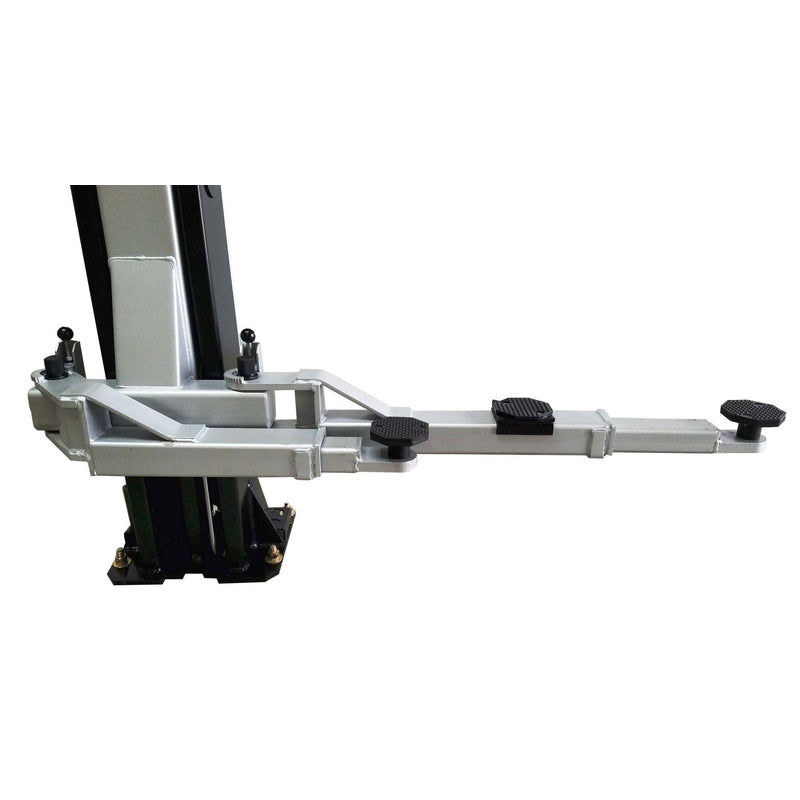

ASymmetric Arms
Chain Drive Cylinders
Dual Point Lock Release

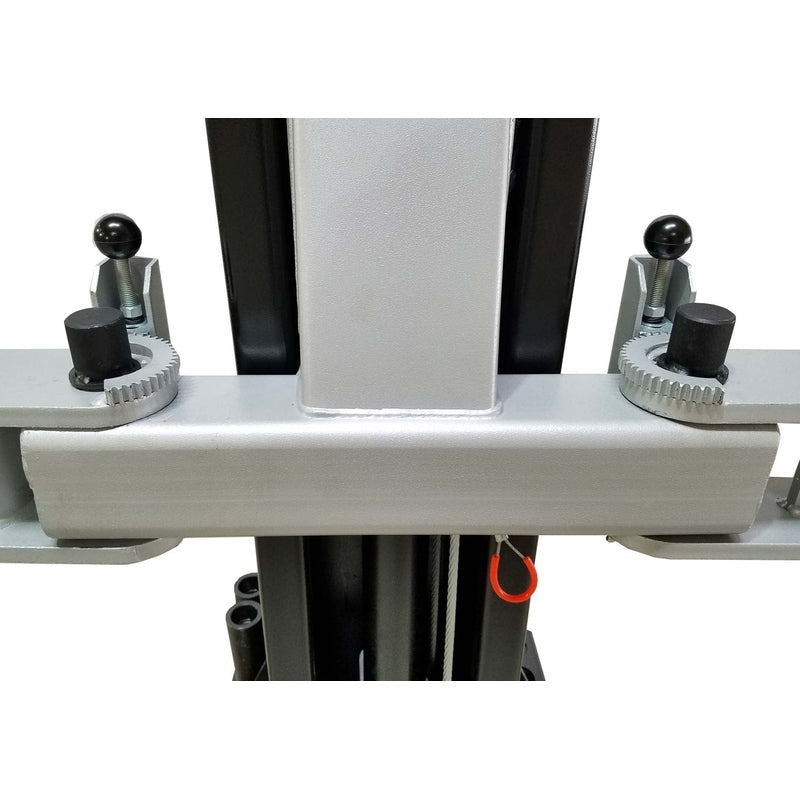

Auto Arm Restraint System
Low profile drop-in Lift Pads

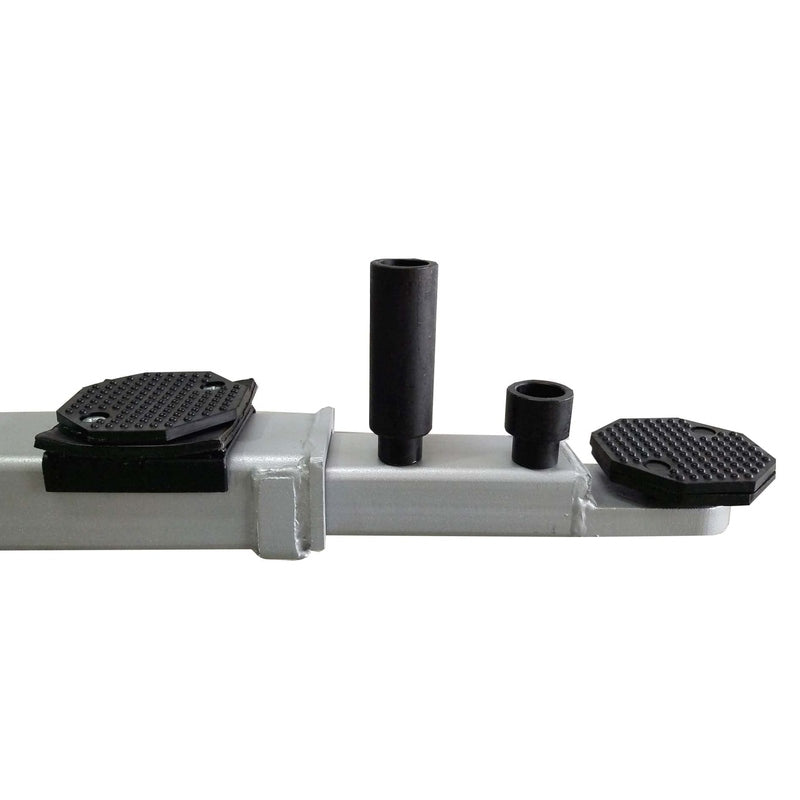

SADDLE PAD ADAPTORS (1 Pair)
Stackable Adapters Included
Black color standard

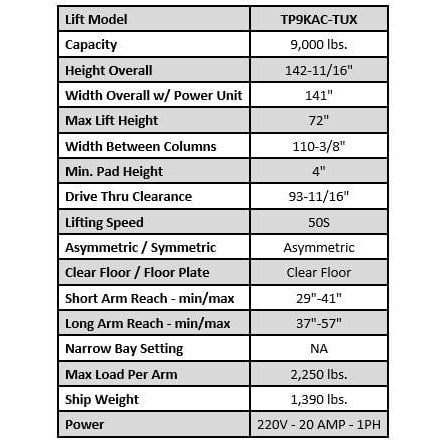

Specifications

Lift Model

TP9KAC-TUX

Capacity

9,000 lbs.

Height Overall

142-11/16″

Width Overall w/ Power Unit

141″

Max Lift Height

72″

Width Between Columns

110-3/8″

Min. Pad Height

4″

Drive Thru Clearance

93-11/16″

Lifting Speed

50S

Asymmetric / Symmetric

Asymmetric

Clear Floor / Floor Plate

Clear Floor

Short Arm Reach min/max

29″-41″

Long Arm Reach min/max

37″-57″

Narrow Bay Setting

NA

Max Load Per Arm

2,250 lbs.

Ship Weight

1,390 lbs

Power

220V 20 AMP 1PH

Manual
Tuxedo TP9KAC-TUX 9,000 lb Two Post Clear Floor Manual
