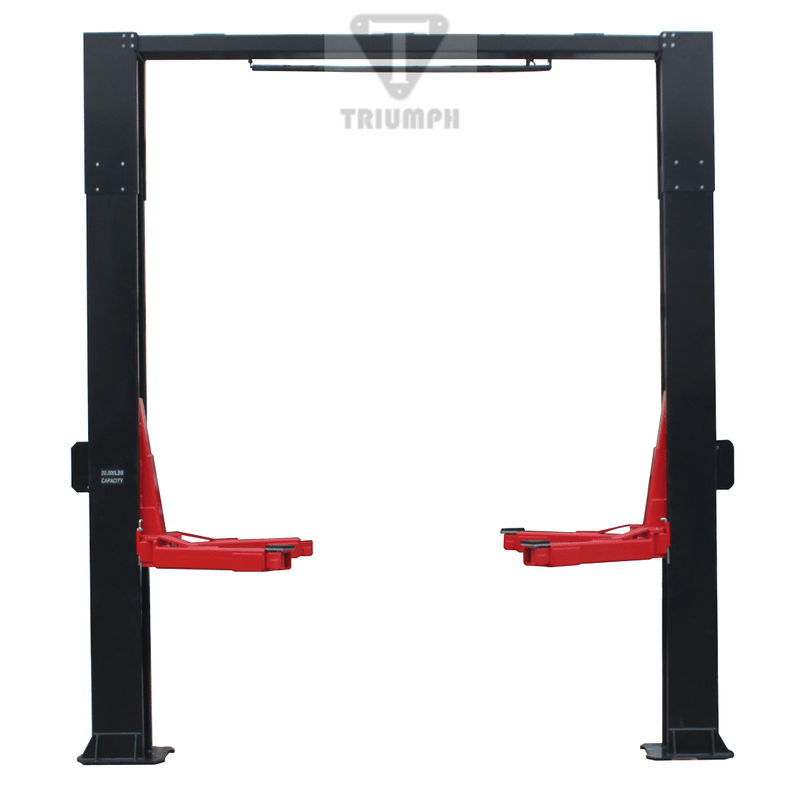

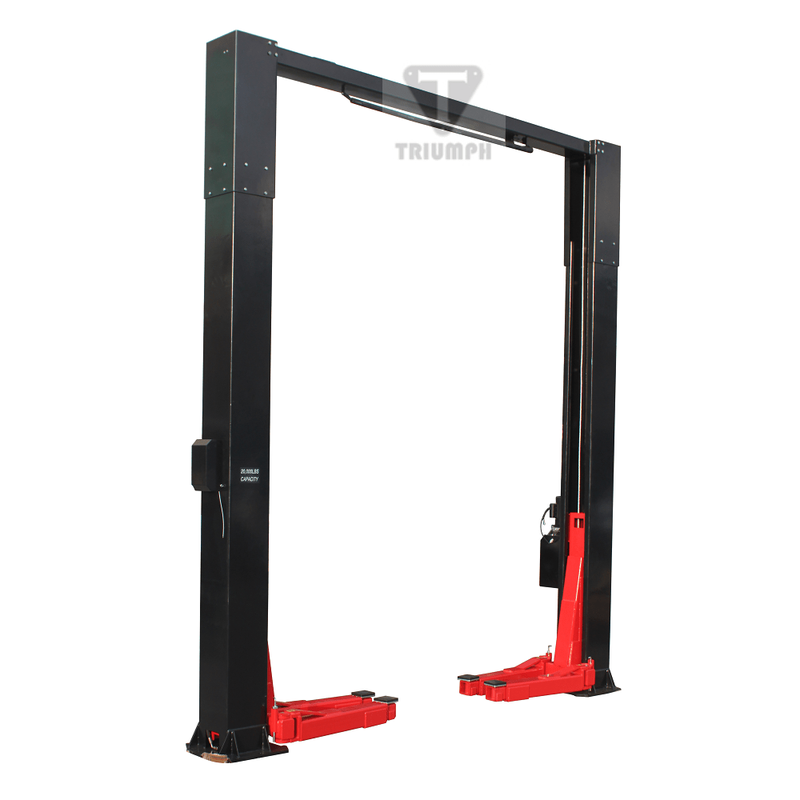

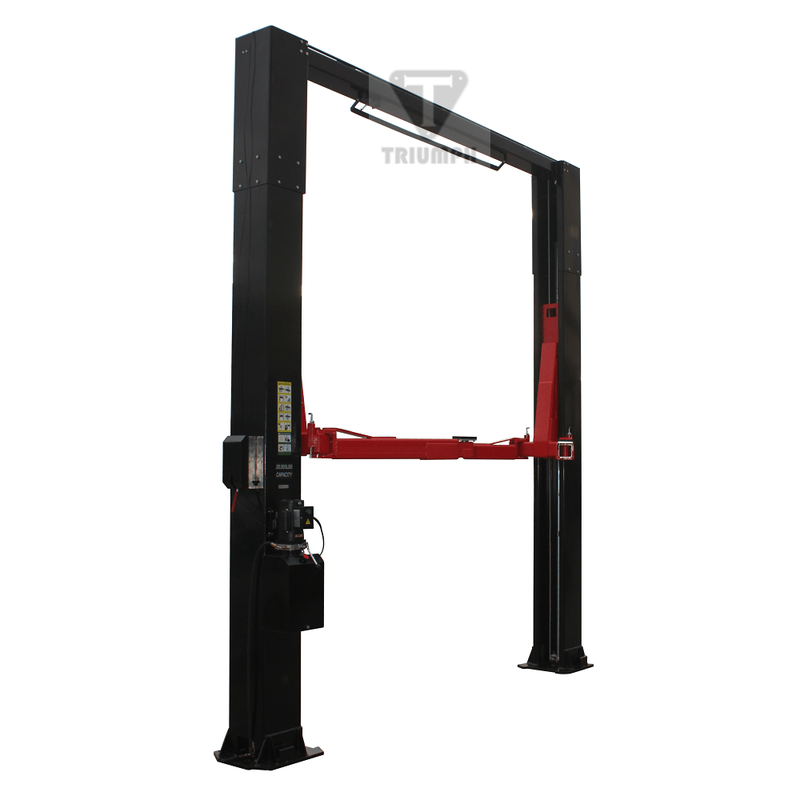

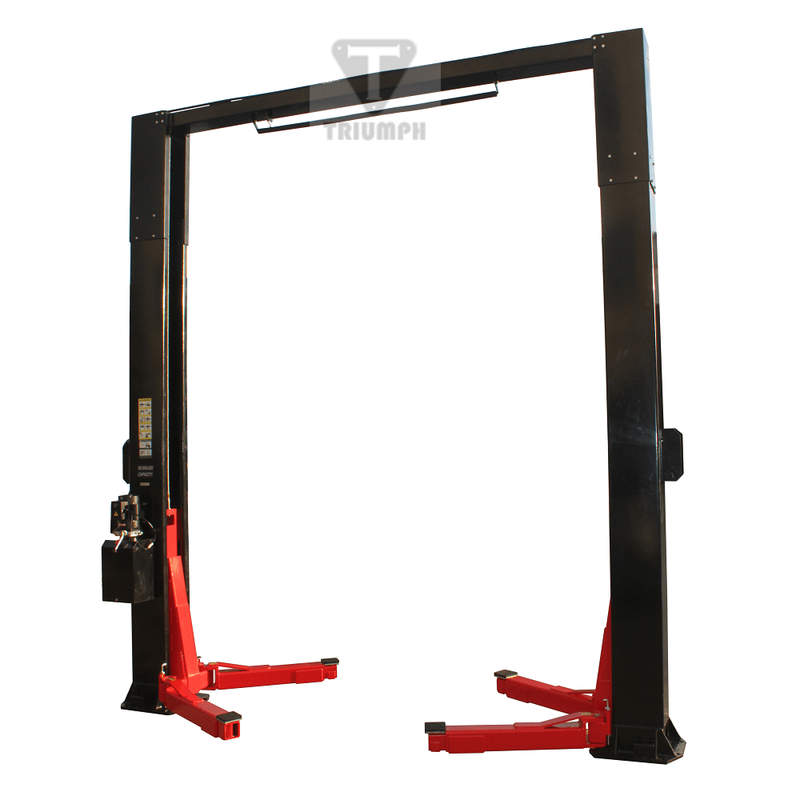

Triumph NTO-20S 20,000 lb Two Post Lift

Overview
The NTO-20S 20,000 lb Two Post Auto Lift by Triumph is a robust and versatile lift designed to handle heavy-duty vehicles with ease. Engineered to the highest quality standards, it offers reliable performance for automotive shops, garages, and service centers. This lift is ISO 9001 and CE Certified/Compliant, ensuring long-lasting durability and safety.
With a comprehensive 1-year parts warranty and 5-year structural warranty, the NTO-20S is a cost-effective solution for all your lifting needs. It includes direct drive cylinders, an electrical safety shutoff, free truck adapters, and mounting hardware, making it a complete package for professional use.
Key Features

High Capacity: 20,000 lbs for lifting heavy vehicles.

Durable Design: Manufactured to ISO 9001 and CE standards for reliability.

Concrete Requirements: 6″ slab with 4,000 PSI strength for secure installation.

Direct Drive Cylinders: Provides smooth and efficient lifting.

Safety Features: Electrical override automatic safety shut-off for added protection.

Truck Adapters: Included for added versatility.

Free Mounting Hardware: Simplifies installation.

Quick Lift Time: 40 seconds for efficient operations.

Warranty: 1-year parts and 5-year structural warranty for peace of mind.

Specifications

Capacity
20,000 lbs
Overall Height
170.5″

Overall Width
155″
Lifting Height
74″

Distance Between Posts
124″
Drive Thru Width
113″

Lowered Height
6″
Base Plate Size
21×20″

Truck Adapters
Yes
Lock Release
Single Point

Electric Safety Cutoff
Yes
Lift Time
40 Seconds

Voltage
220 Volt
Horsepower
3 HP

Concrete Requirements
6″ Slab, 4,000 PSI
Style
Overhead
