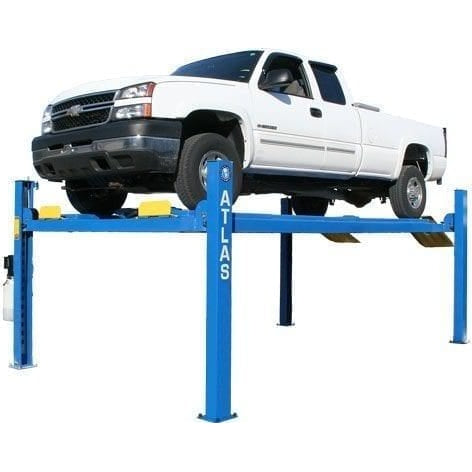

Atlas 412A 12,000 lb 4-Post Alignment Lift

Commercial Grade12,000 lb. Alignment Lift
The Atlas 412A 12,000 pound capacity four post alignment lift is designed and built to commercial grade standards and will provide many years of service. Our Atlas lifts offer many exclusive features not found on many other competitors lifts.
The Atlas 412A incorporates many structural and cosmetic features that are found on lifts costing thousands of dollars more money. The 412A is tested to ensure that this lift system will perform flawlessly at its rated capacity.

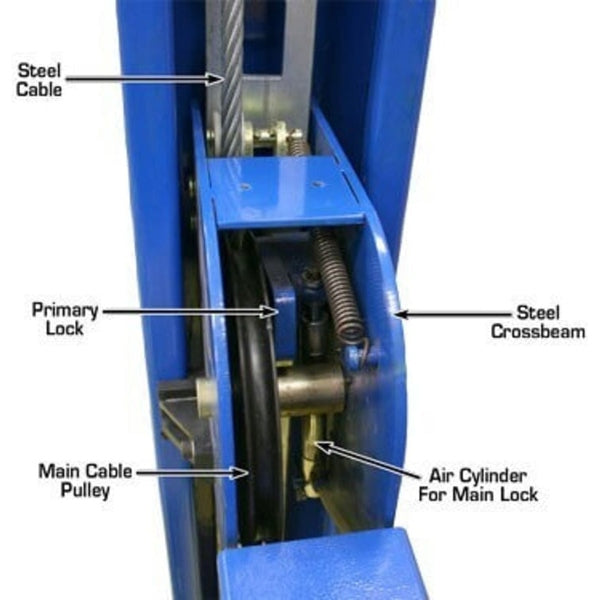

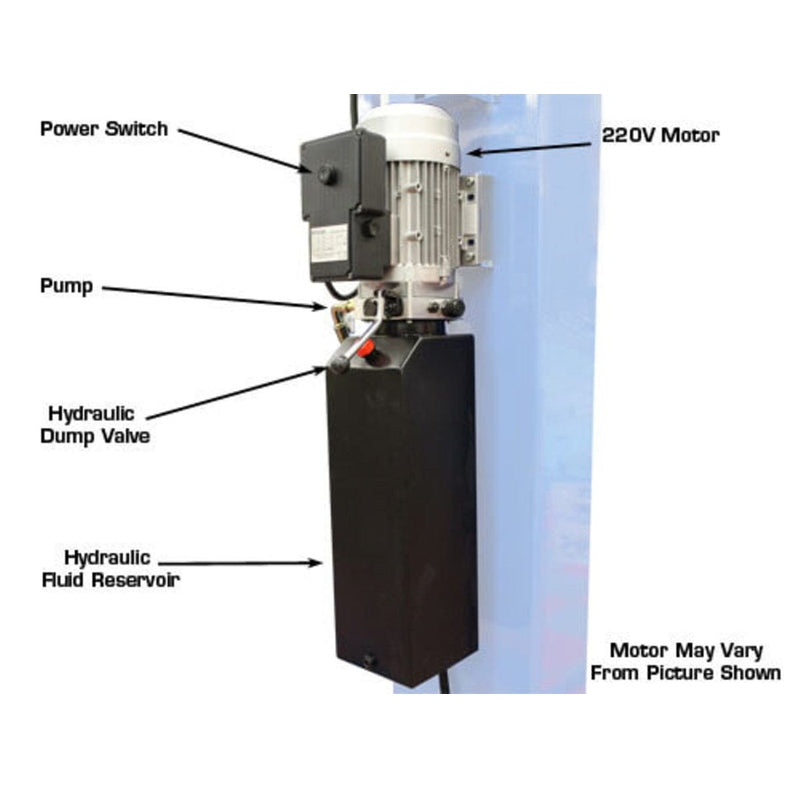

The Atlas 412A uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an old style chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to level properly and the exposed hydraulic cylinder is responsible for numerous door dings.

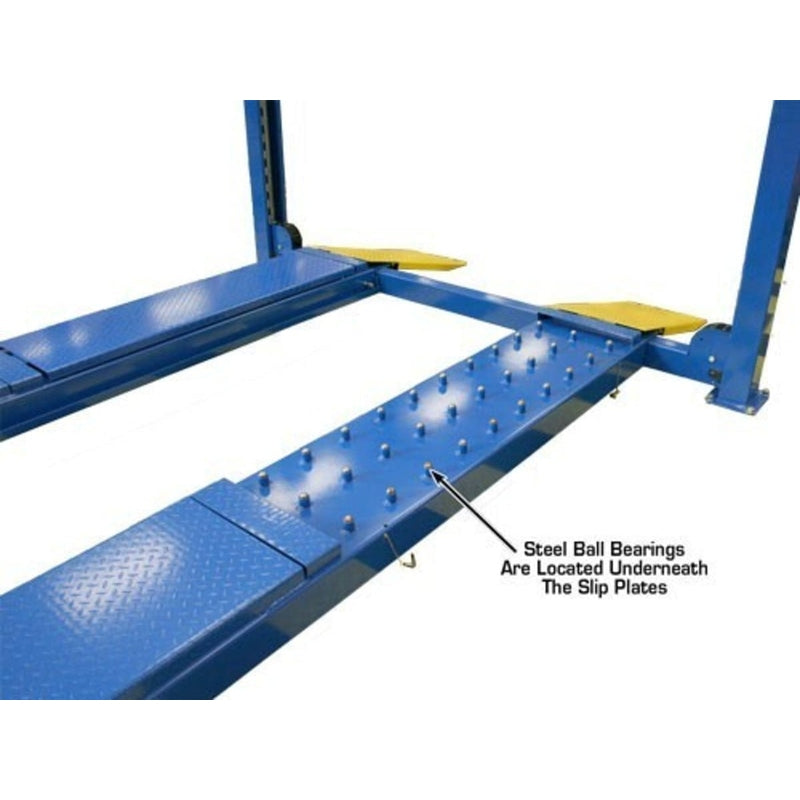

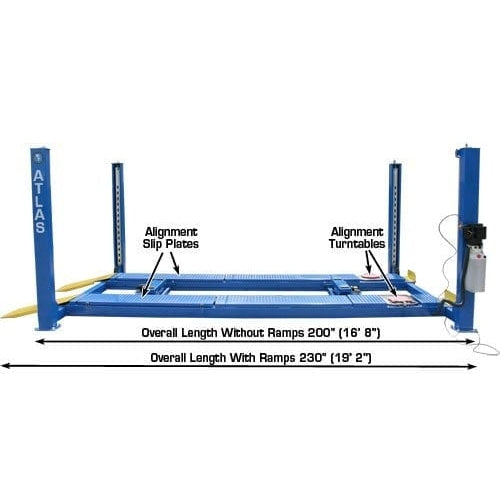

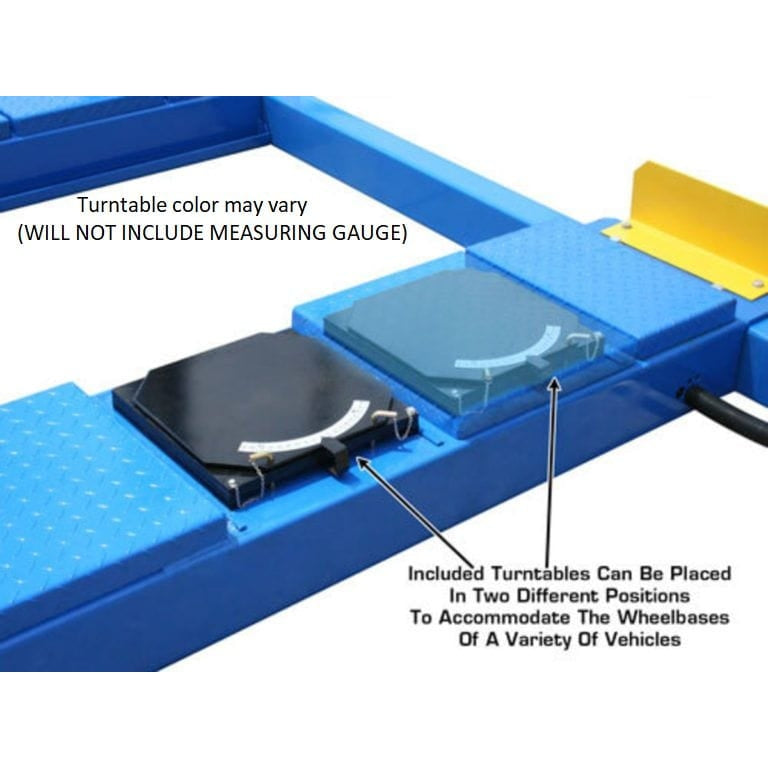

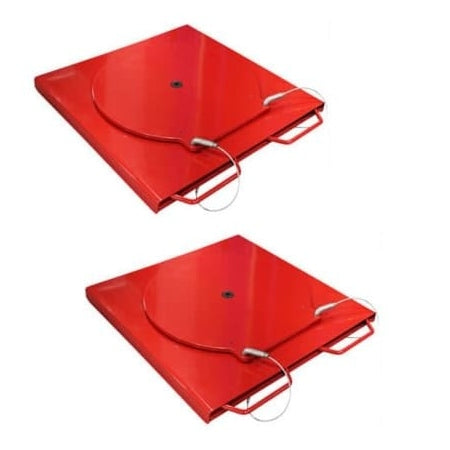

Besides having all the heavy duty features of the Atlas 412, such as tracks between the runways to allow the use of a rolling bridge jack (the Atlas RJ6BK) on the lift (rolling jacks sold separately) the 412A features slip plates and alignment turntables. The slip plates are built in and are assured to be level with the turntables. The turntables can be set in different positions on the runway to accommodate a wide variety of wheelbases. The 412A also features metal cover plates to replace the turntables when not in use and so the lift can be used for more than just alignments.
.embed-container { position: relative; padding-bottom: 56.25%; height: 0; overflow: hidden; max-width: 100%; } .embed-container iframe, .embed-container object, .embed-container embed { position: absolute; top: 0; left: 0; width: 100%; height: 100%; }

Features

12,000 lb. Capacity
Heavy Duty, Commercial Grade
Extra Tall, Extra Wide & Extra Long
Built-In Slip Plates & Alignment Turntables Included

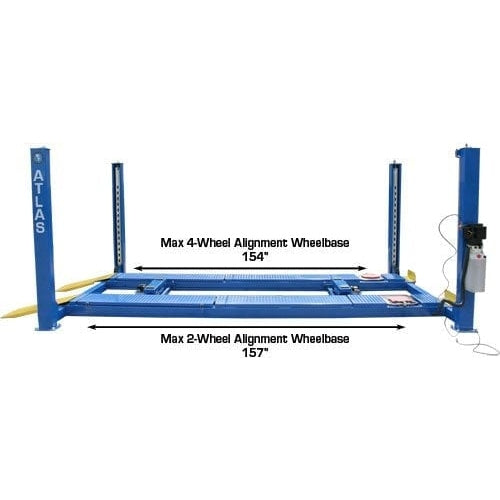

Multiple Positions for Turntable Placement
Runway Covers Included (when Turntables are Removed)

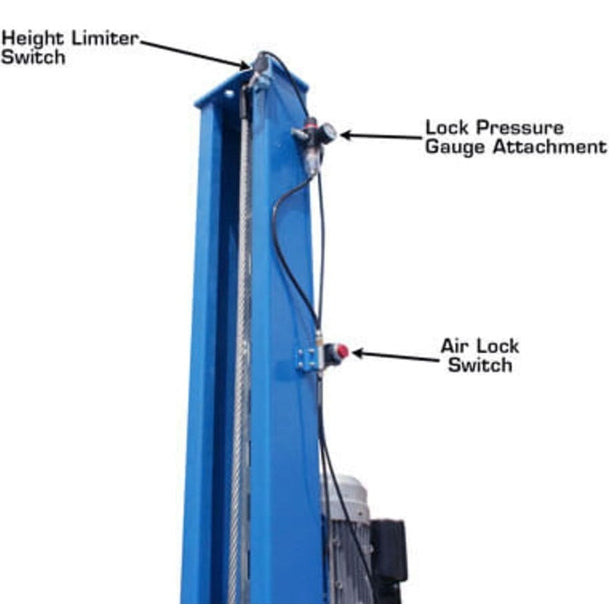

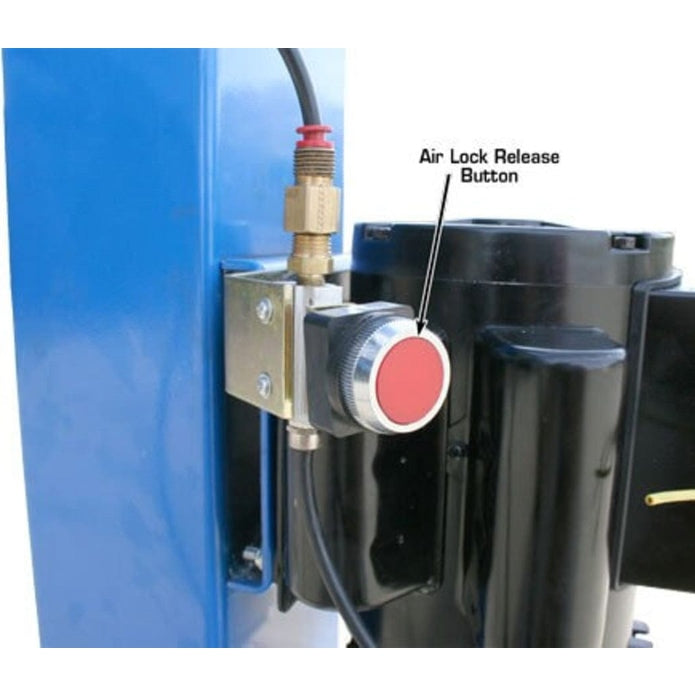

Air Operated Single Point Lock Release (External Air Supply Required)
Lock Ladder Design
Double Lock Safety System
Powder Coat Finish

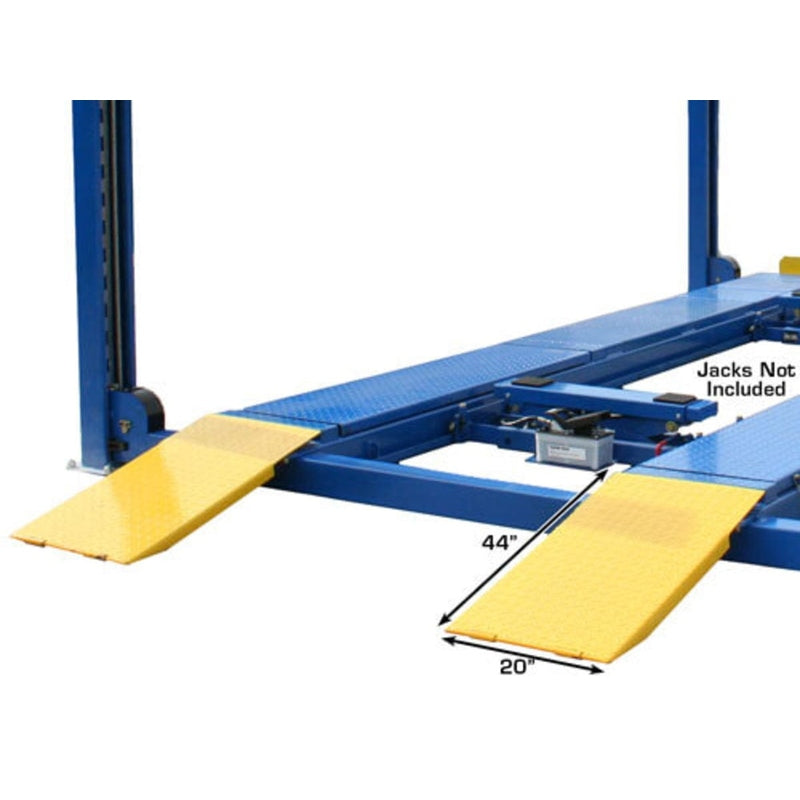

Steel Approach Ramps Included
Additional Drive off Ramps Available (Sold Separately)
Runway Extensions Available (Sold Separately)

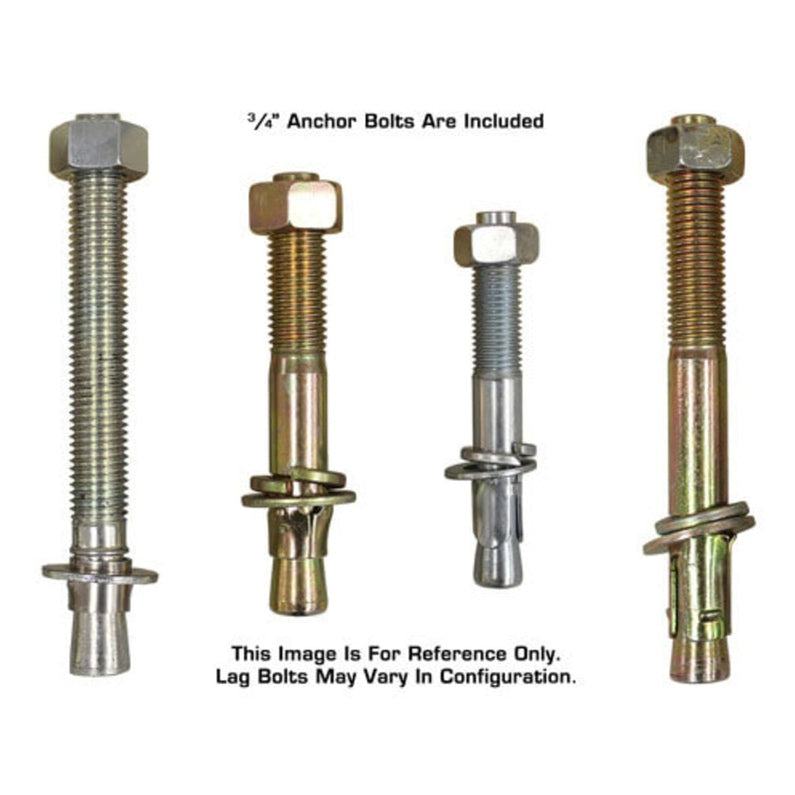

Mounting Hardware Included
220volt/1phase Electric Operation (Requires a 30amp Breaker)

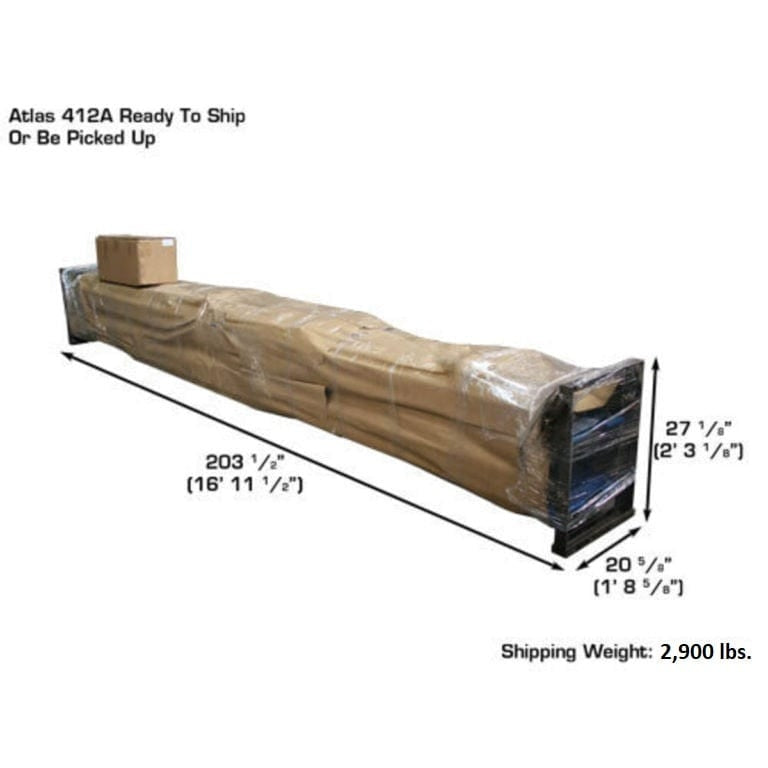

Shipping Weight: 2,900 lbs.
5 yr Structural 2 yr Hydraulic Warranty Parts Only

Atlas ATTD-412A Specifications

Capacity
12,000 lb.

Lifting Height
77 3/4″ (6′ 5 3/4″)

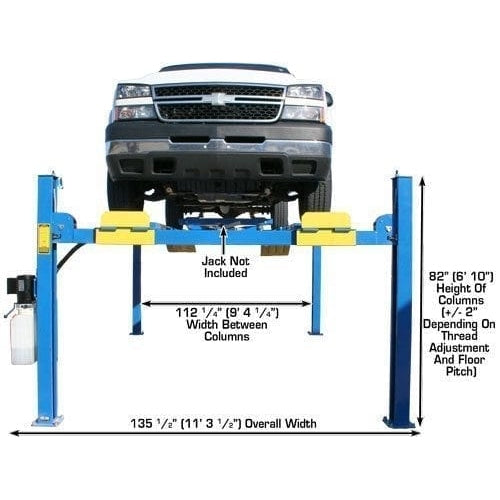

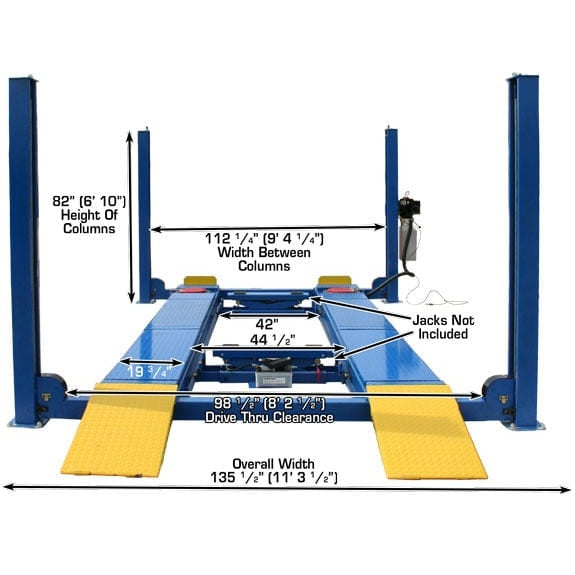

Overall Width Of Columns (Without Motor)
126 1/4″ (10′ 6 1/4″)

Overall Width Of Columns (With Motor)
135 1/4″ (11′ 3 1/4″)

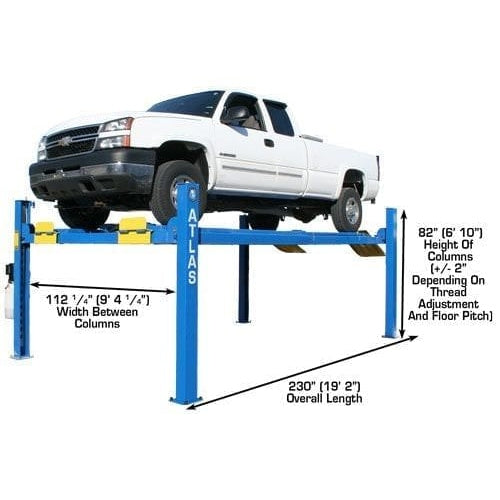

Overall Length With Approach Ramp
236 1/2″ (19′ 8 1/2″)

Length Between Columns
183 1/4″ (15′ 3 1/4″)

Runway Length
194 1/2″ (16′ 2 1/2″)

Runway Width
20″

Thickness Of Runway
7 1/2″

Width Between Runways
43 1/4″ (w/ Rail 39 3/4″)

Outside Runway To Outside Runway
83 1/4″ (6′ 11 1/4″)

Clearance Under Runways
70 1/4″ (5′ 10 1/4″)

Clearance Between Columns
112 5/8″ (9′ 4 5/8″)

Height Of Columns
89 3/4″ (7′ 5 3/4″)

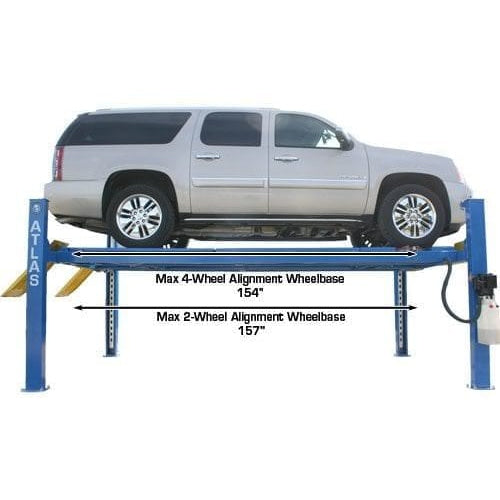

Maximum Wheel Base
185″ (15′ 5″)

Drive Thru
98″ (8′ 2″)

Air Requirement
85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)

Motor/Electrical Requirement
220 volt single (1) phase.A 30 amp breaker is recommended

Oil Requirement
3-5 Gallons AW32/AW46 (NOT INCLUDED)

Shipping Weight
2,900 LBS.

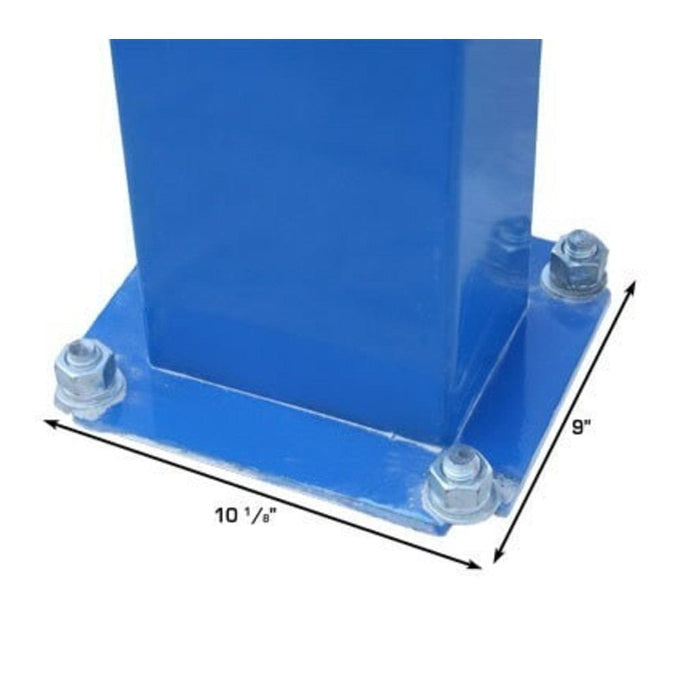

Requires a minimum of 6″ of concrete with a 3000 psi. rating

Documents
Atlas ATTD-412A Manual
Atlas 412A Cylinder Bleeding Procedure (Do this immediately after installation)
