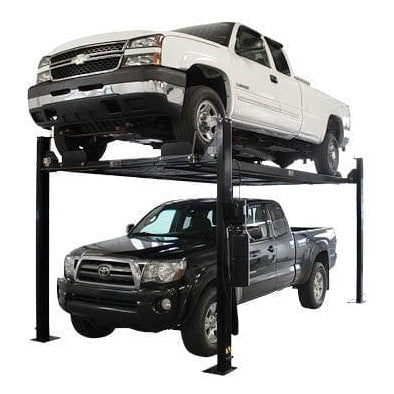

Atlas Garage PRO8000EXT-L 8,000 lb Extra Tall/Extra Long 4-Post Lift

Description
The Atlas® Garage PRO8000EXT-L features the extra lifting height of the PRO8000EXT but is also 20 inches longer and 3 inches wider. Or to compare to the original, the Garage PRO8000EXT-L is 20 inches longer, 3 inches wider, and 14 inches taller than the standard Atlas® Garage PRO8000! The extra runway length will accommodate almost all of the longer wheelbase pickup trucks, except duallys. This is because the dual rear wheels are TOO WIDE to fit between the column lock assemblies. Check out the Atlas® Garage PRO9000 if you need a portable lift for your dually!
The Atlas® Garage PRO series of 4-post lifts (8,000 lb. capacity) are designed and built for use by homeowners or restoration shops. These lifts are not desinged for use in commercial repair shops where they would be raised and lowered several times per day. If you have questions about which lift would best work in your application please contact a salesperson..

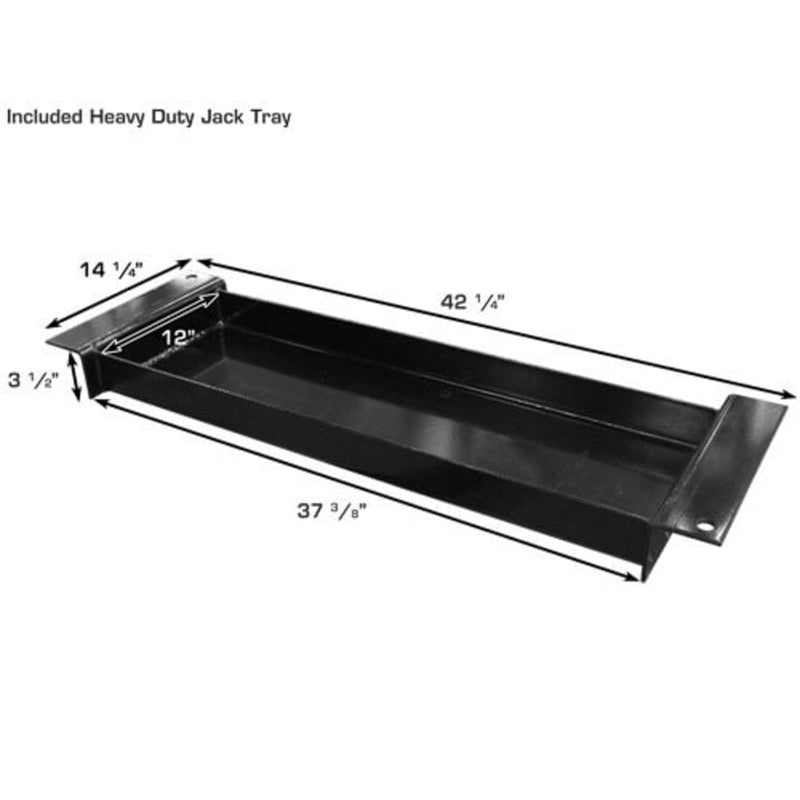

The Atlas® Garage PRO8000EXT-L includes free plastic drip trays, a free steel jack tray, and a free caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes making the lift portable and allowing it to move between bays or even outside.
Many customers who purchased this lift also purchased the Atlas® RJ35.
.embed-container { position: relative; padding-bottom: 56.25%; height: 0; overflow: hidden; max-width: 100%; } .embed-container iframe, .embed-container object, .embed-container embed { position: absolute; top: 0; left: 0; width: 100%; height: 100%; }

Features

8,000 lb. Capacity

Free Standing/Portable Design

Extra Tall/Extra Long

Diamond Plated Runways

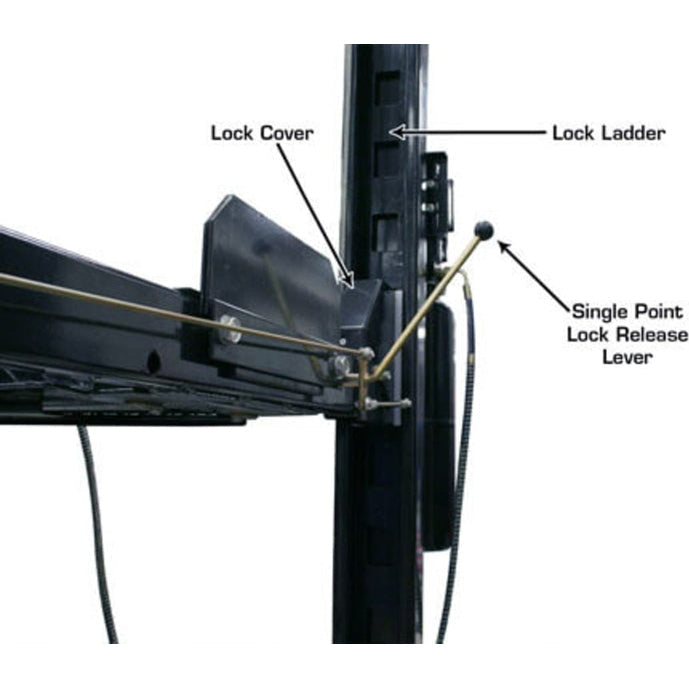

Single-Point Lock Release

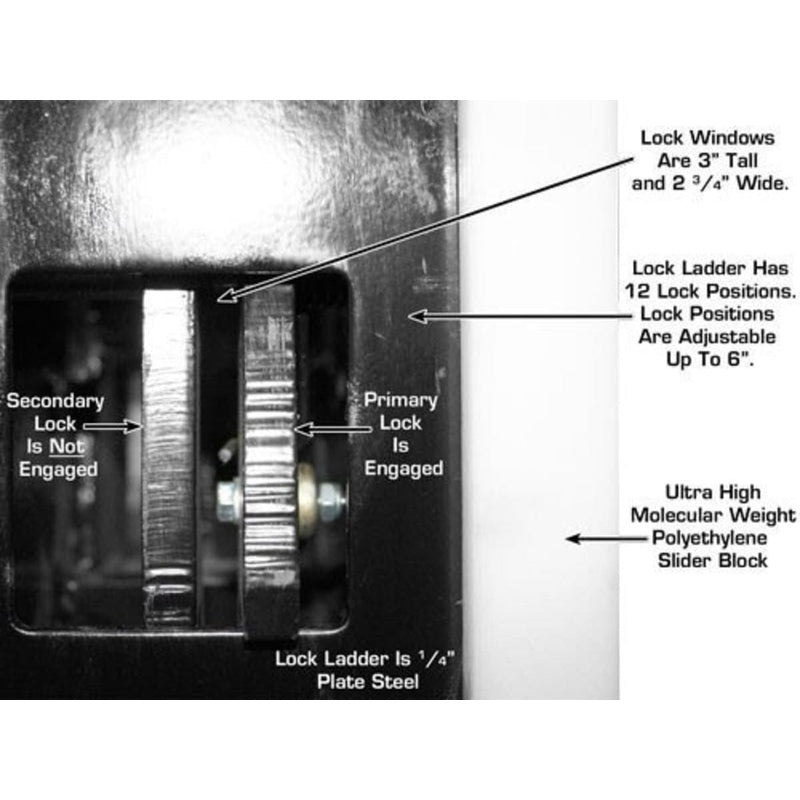

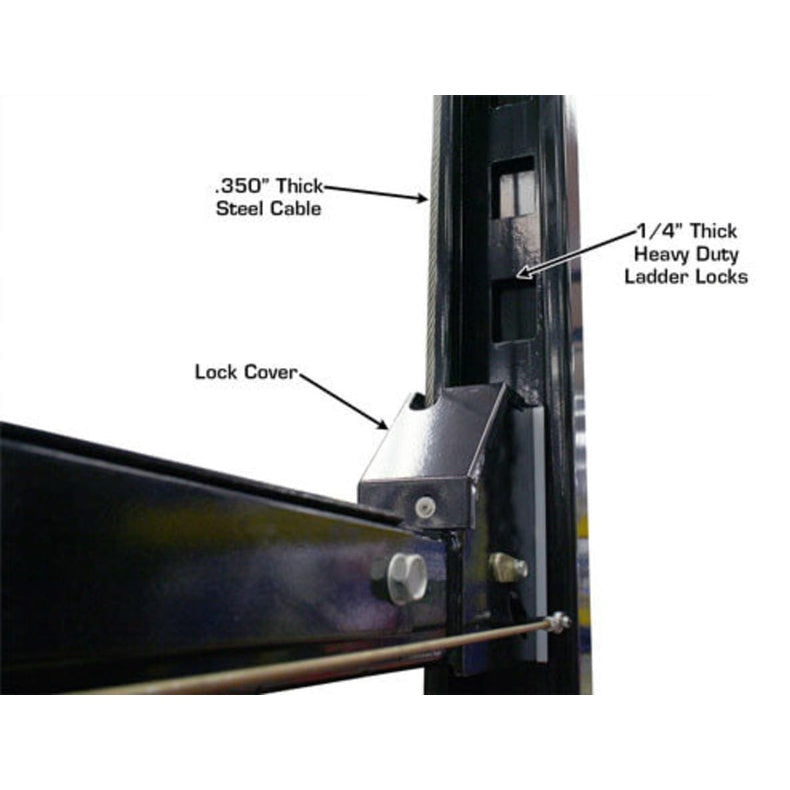

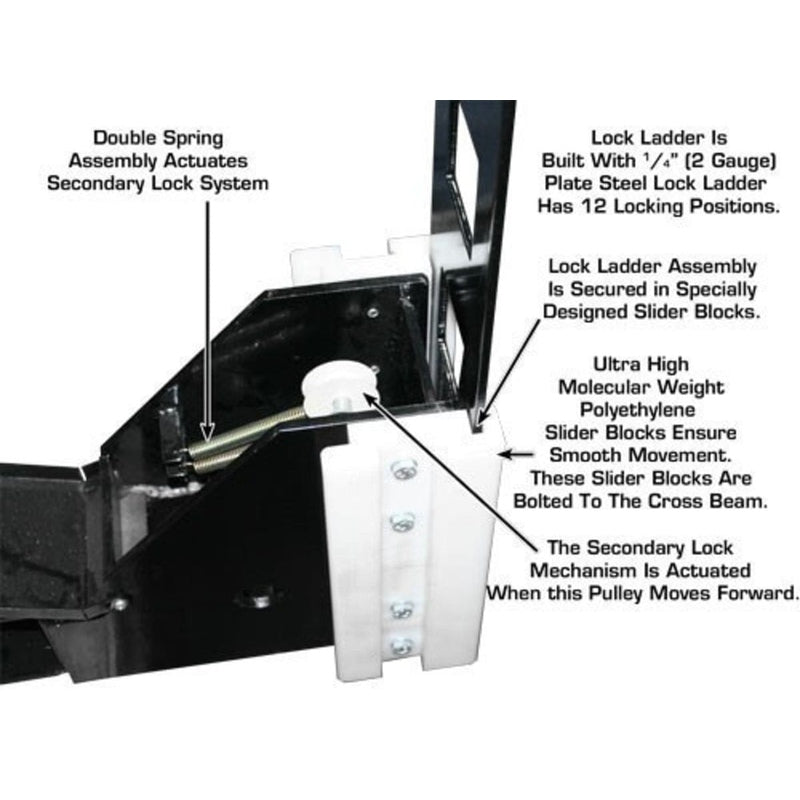

Lock Ladder Design

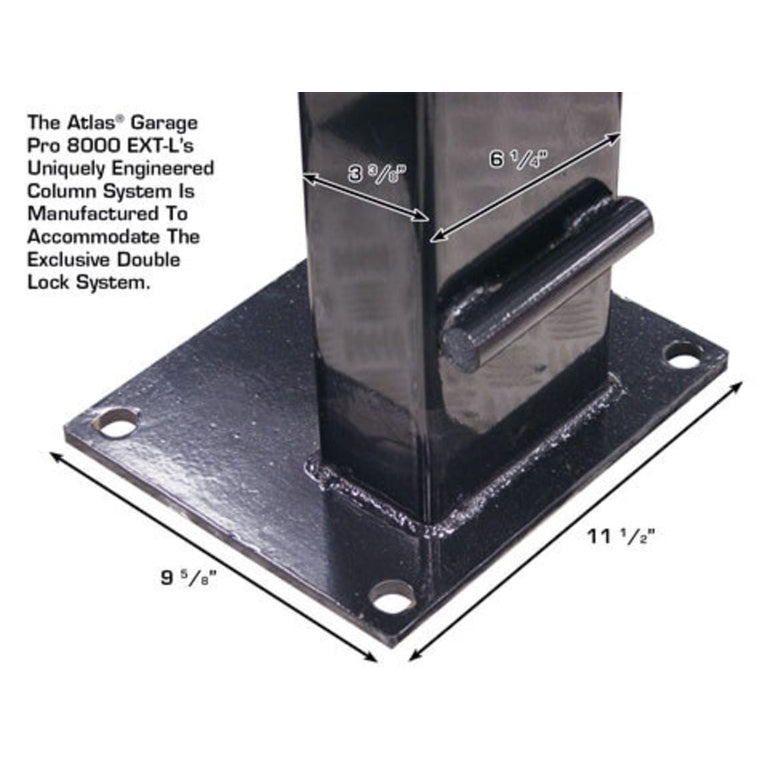

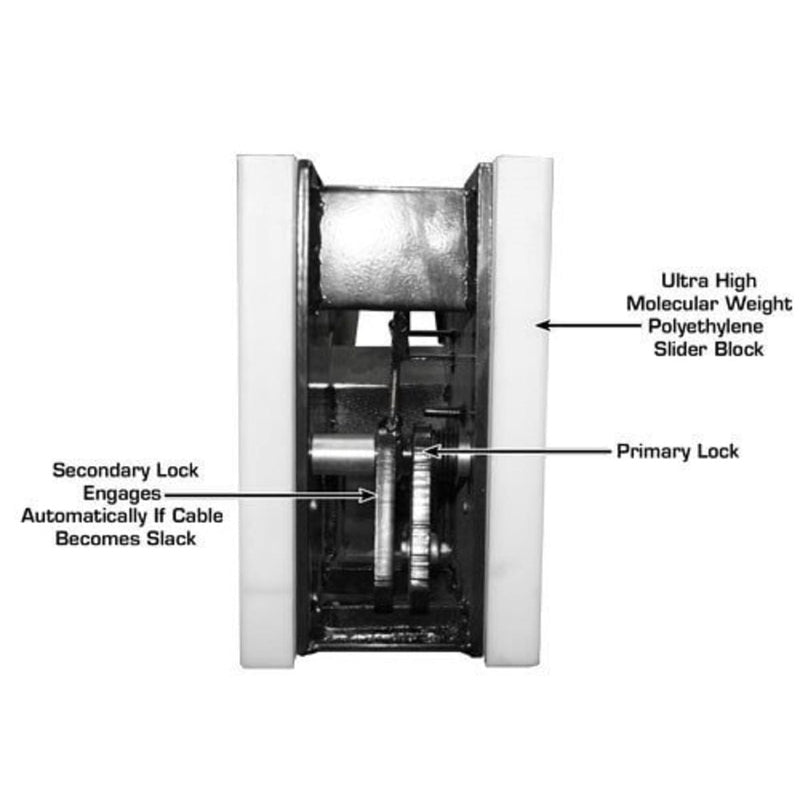

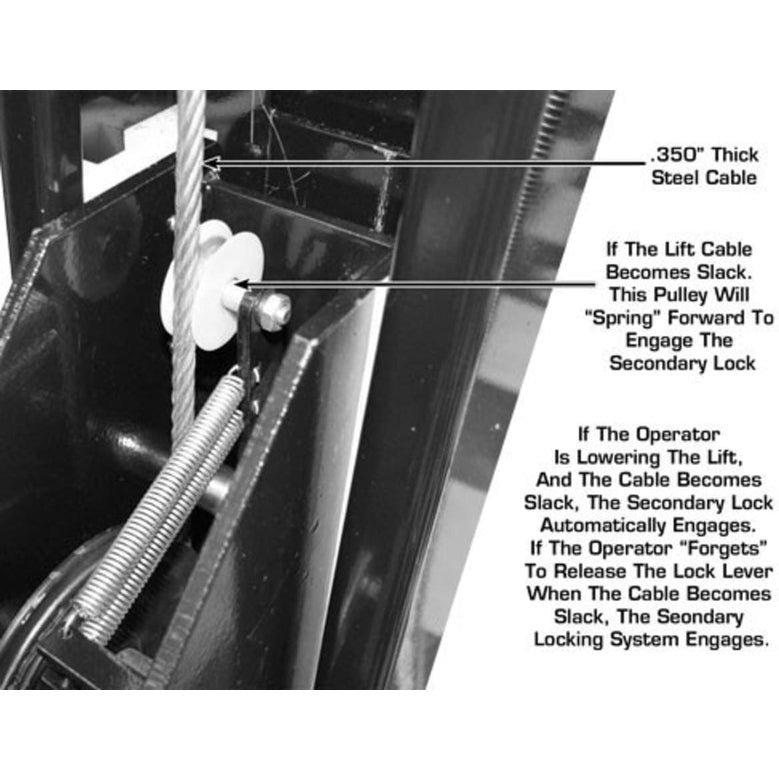

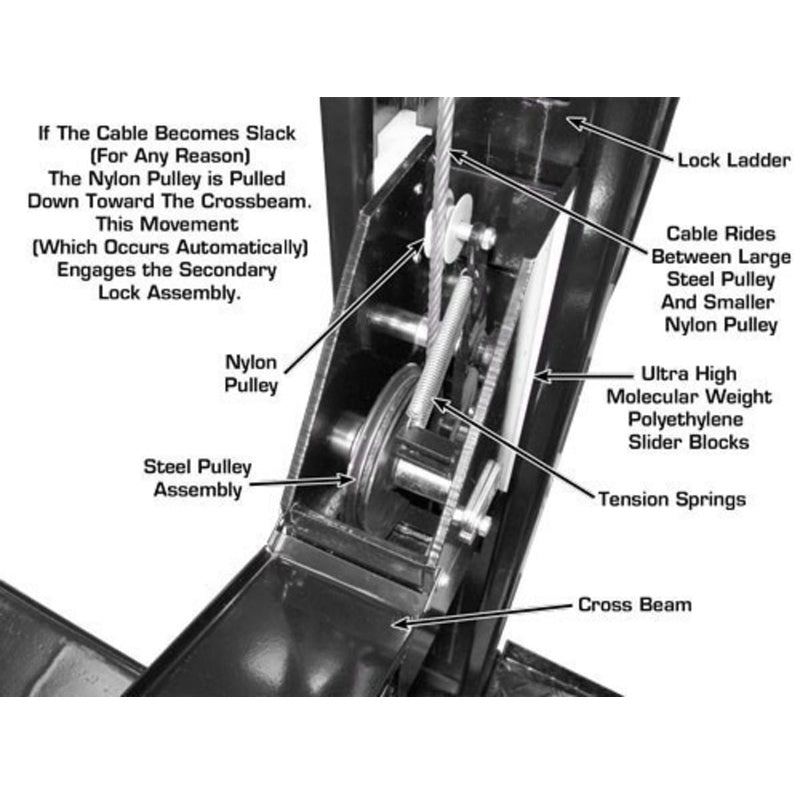

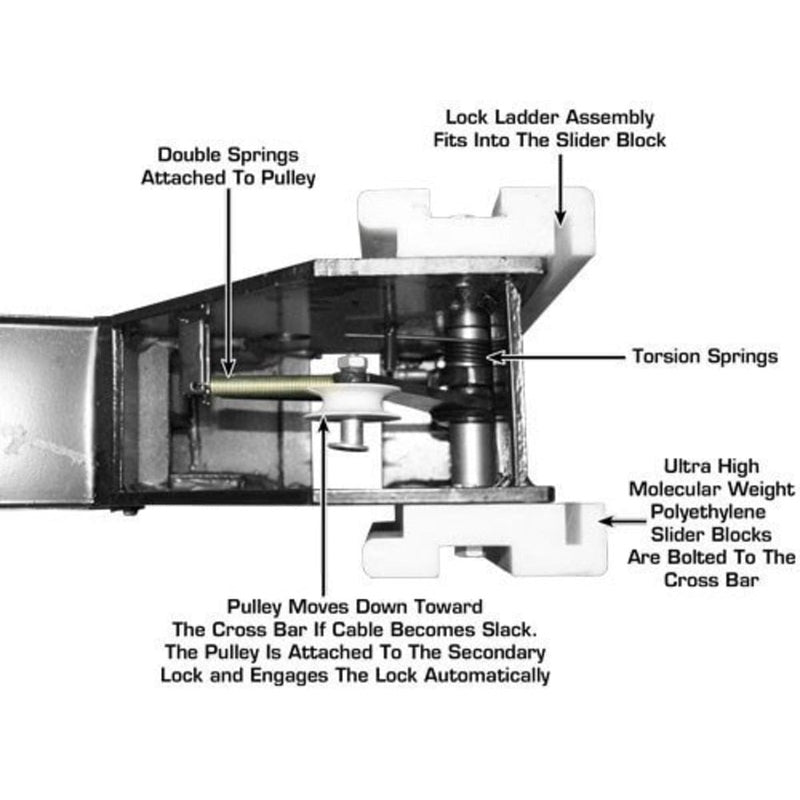

Double Lock Safety System

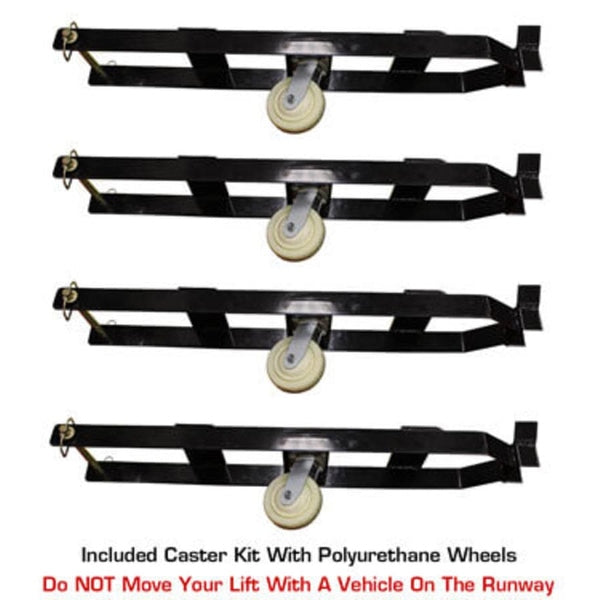

Caster Kit With Polyurethane Wheels Included

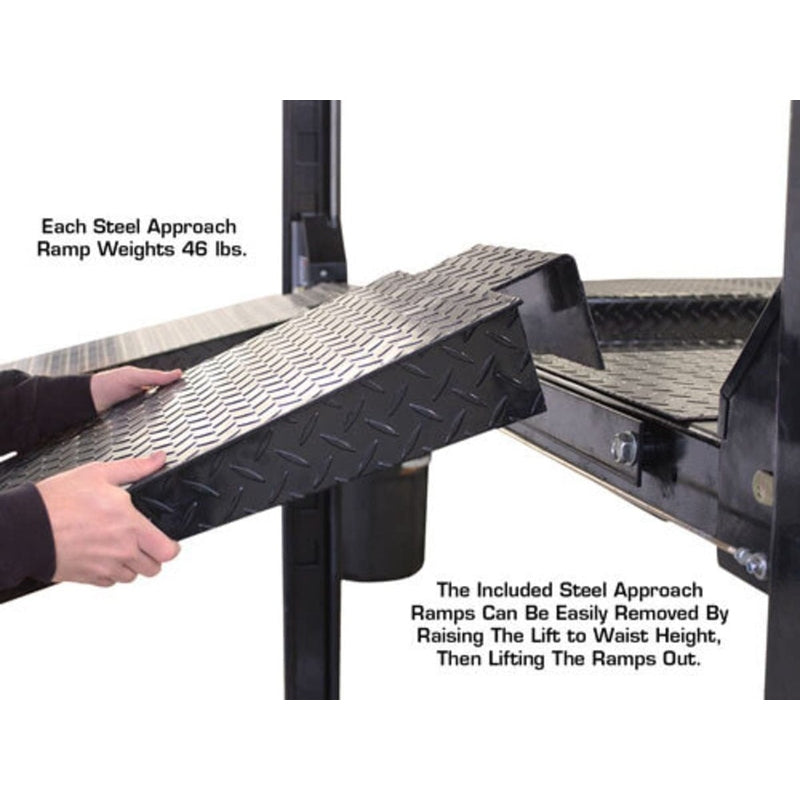

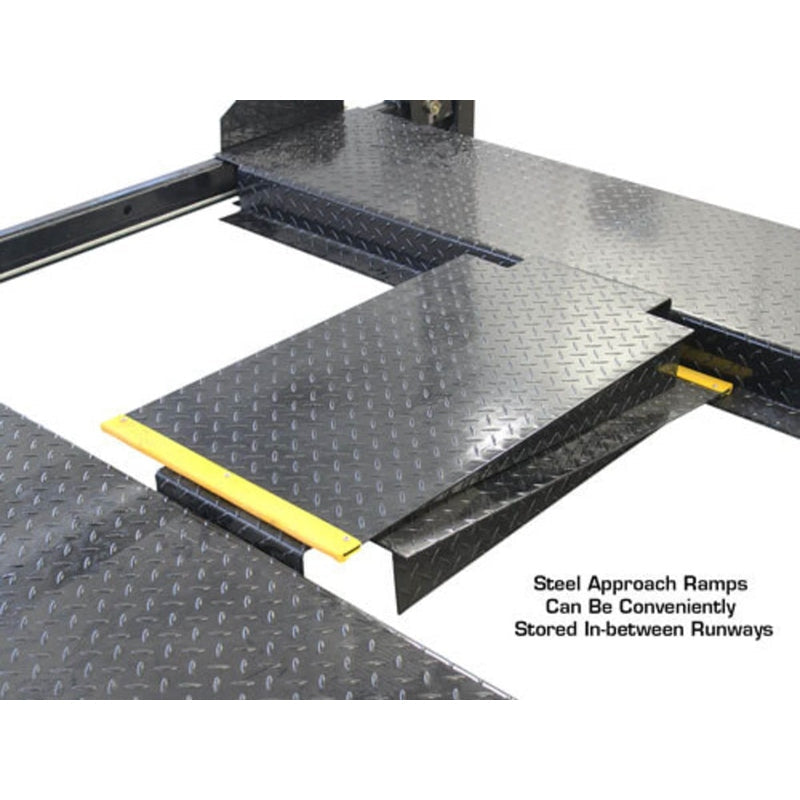

Steel Approach Ramps Included

Steel Jack Tray Included

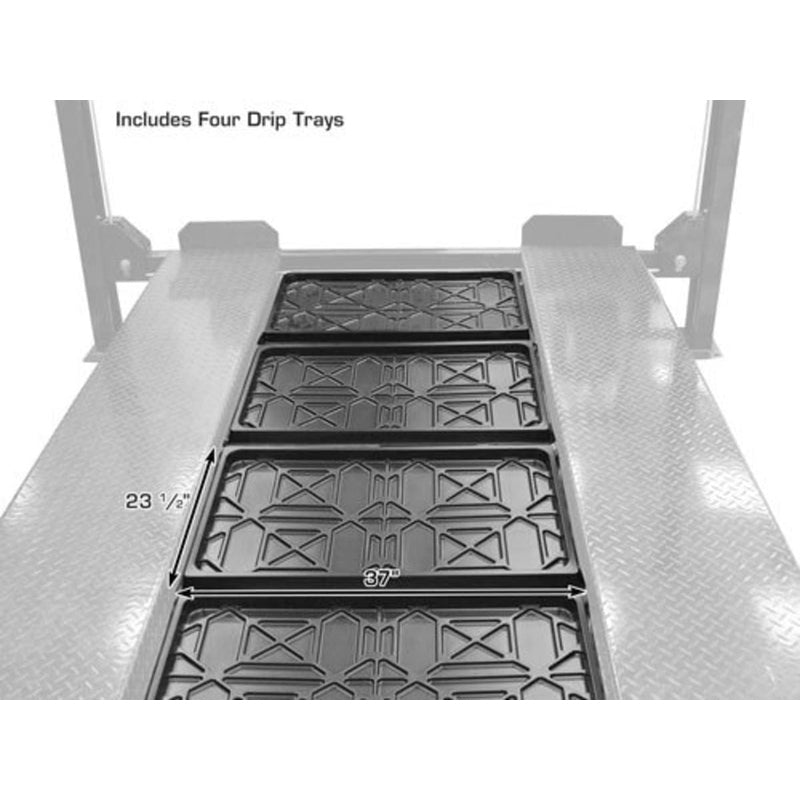

4 Plastic Drip Trays Included

4 Wheel Stops Included

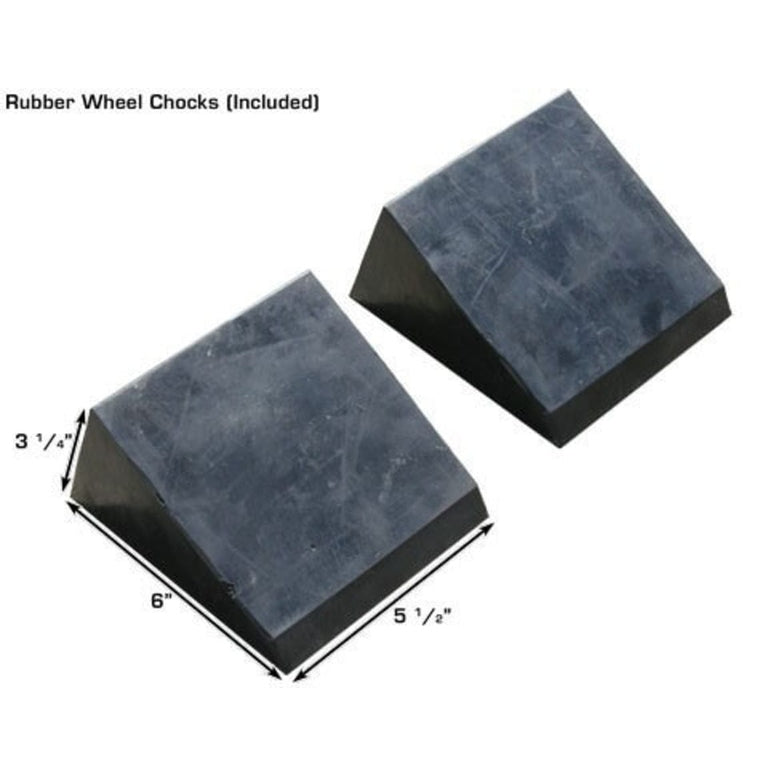

2 Rubber Wheel Chocks Included

Perfect For Storing Or Working On Vehicles

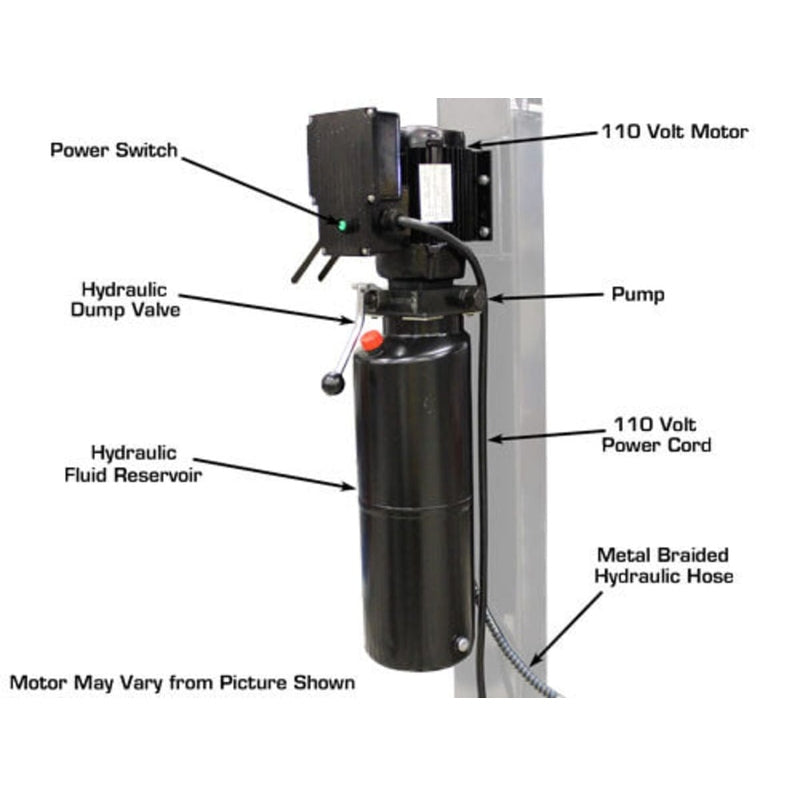

110volt Electric Operation (30 AMP BREAKER REQUIRED)

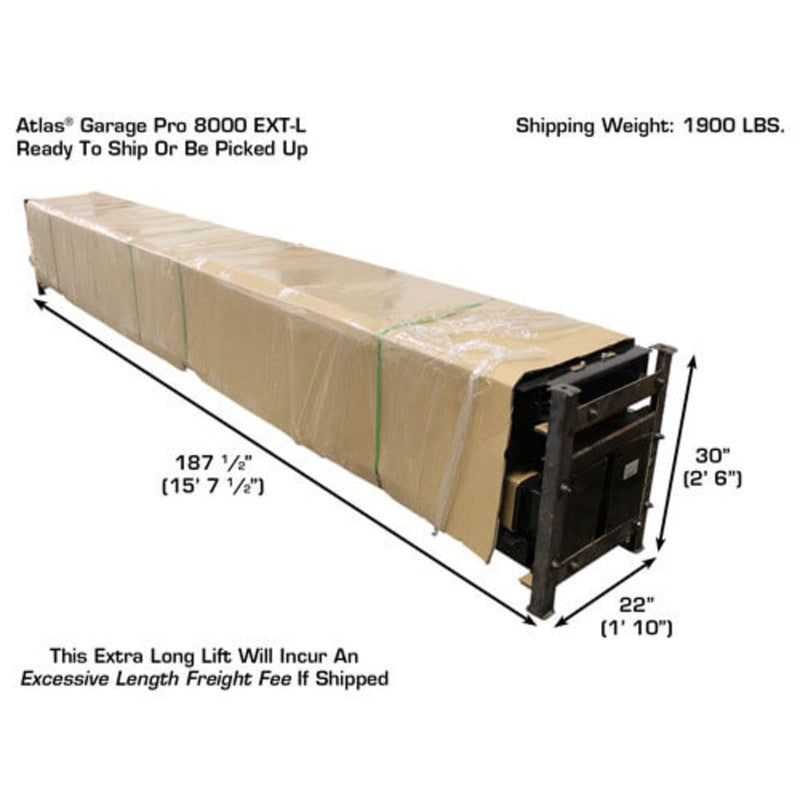

Shipping Weight 1,900 lbs.

2 yr Structural – 1 yr Hydraulic Warranty – Parts Only

Specifications

Atlas® Garage PRO8000EXT-L Specifications

Capacity
8,000 Lb.

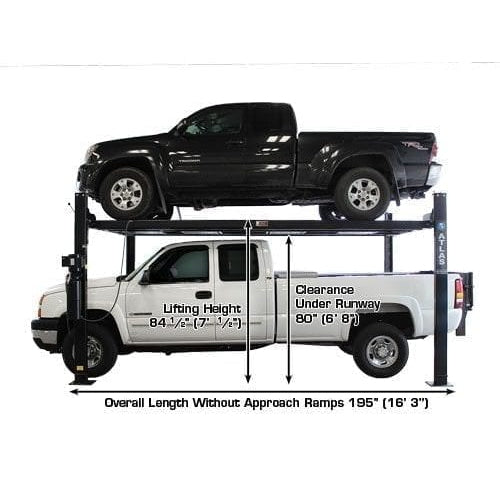

Lifting Height To Top Of Runway
84″ (7′)

Clearance Under Runways
78 1/2″ (6′ 6 1/2″)

Height Of Columns
98 1/2″ (8′ 2 1/2″)

Overall Width (Without Motor)
108″ (9’)

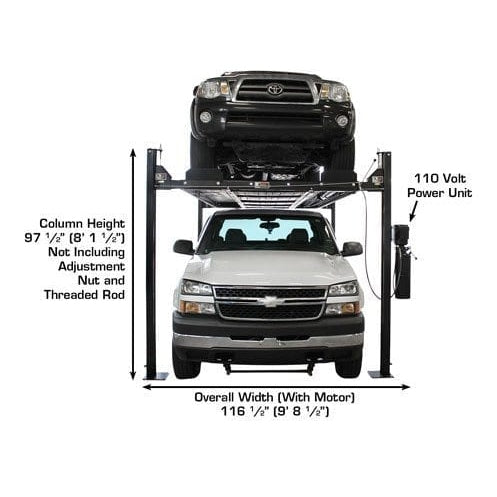

Overall Width (With Motor)
116 1/2″ (9′ 8 1/2″)

Overall Length With Approach Ramp
222″ (18’ 6”)

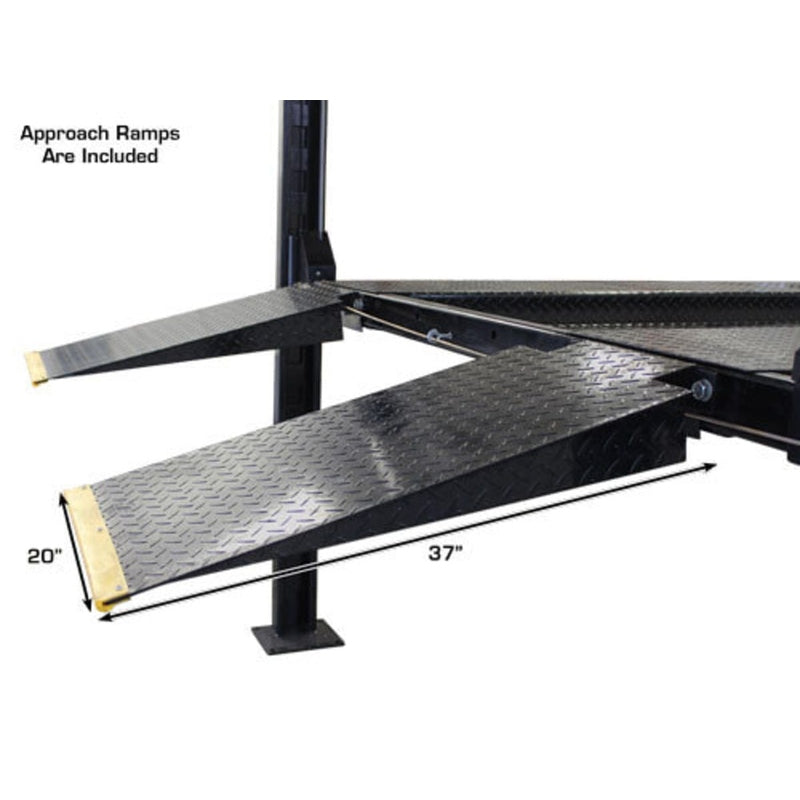

Approach Ramp
37″ (3′ 1″)

Runway Width
22″ (w/ Rails) or 18 3/4″ (Driving Surface)

Runway Length
185″ (15’ 5”)

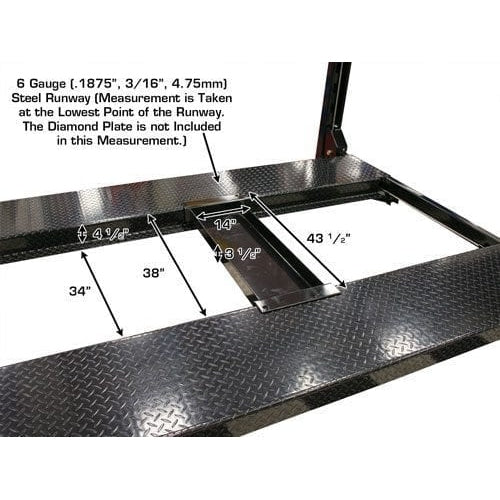

Runway Thickness
4 1/2″

Width Between Runways
38″ (3′ 2″)

Width Between Runway Rails
34″ (2’ 10″)

Outside Runway To Outside Runway
77 3/4″ (6′ 5 3/4″)

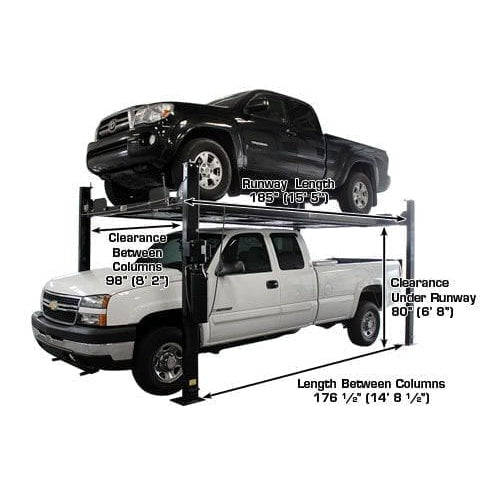

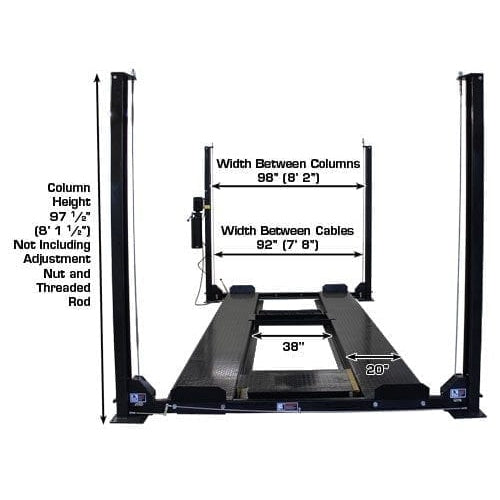

Clearance Between Columns
98″ (8’ 2″)

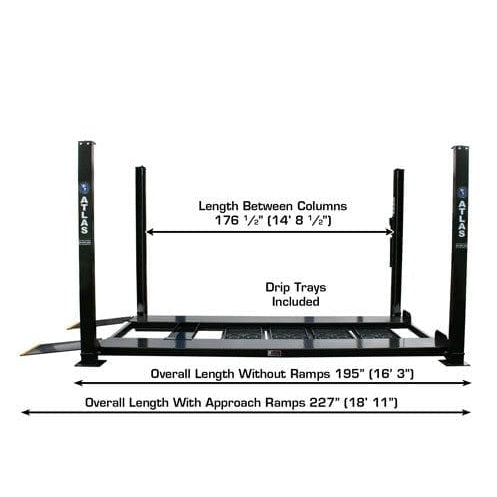

Length Between Columns
176 1/2″ (14’ 8 1/2″)

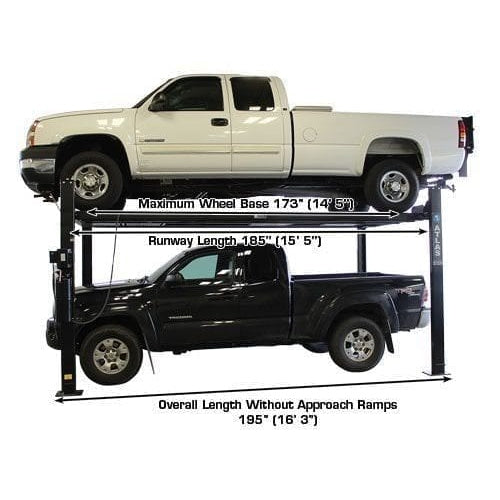

Maximum Wheel Base
173″ (14′ 5″)

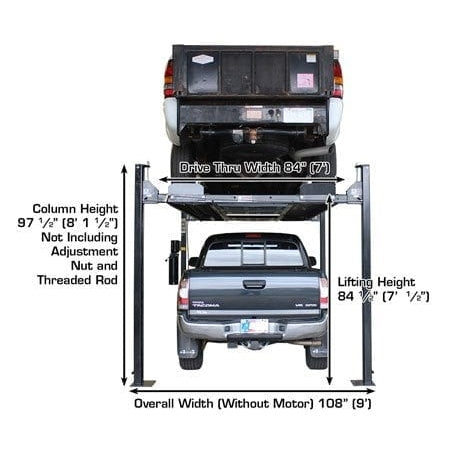

Drive Thru (Outside Of Tire To Outside Of Tire)
84″ (7’)

Motor/Electrical Requirement
110 Volt, 30 AMP BREAKER REQUIRED

Shipping Weight
1,900 lb.

Documents
Atlas® Garage PRO8000EXT-L Manual
Atlas® Garage Pro Lifts Cylinder Bleeding Procedure (Do this immediately after installation)
