Atlas Platinum PVL14OF-EXT ALI Certified Open Front Alignment 4 Post Lift

Description

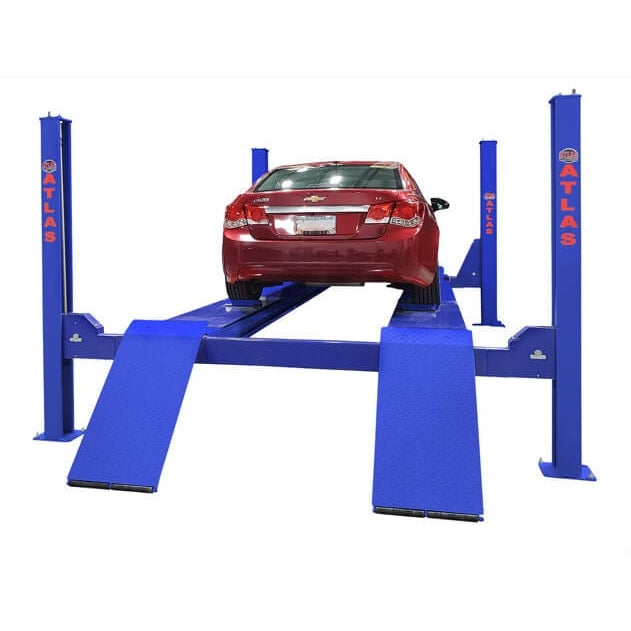

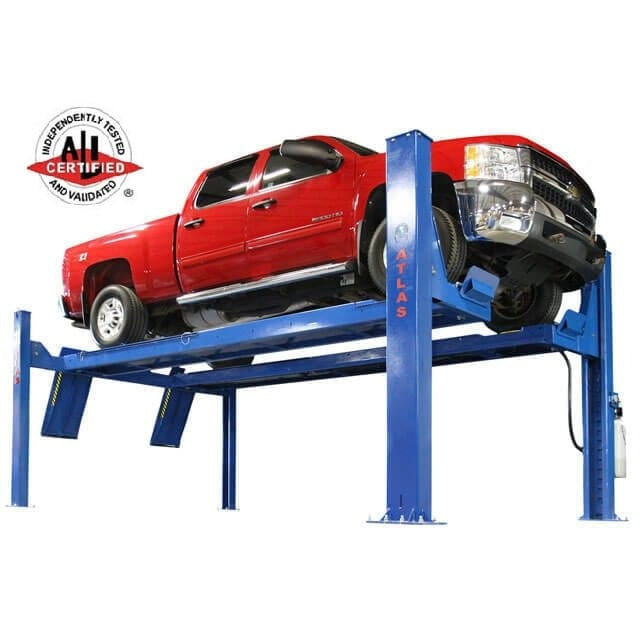

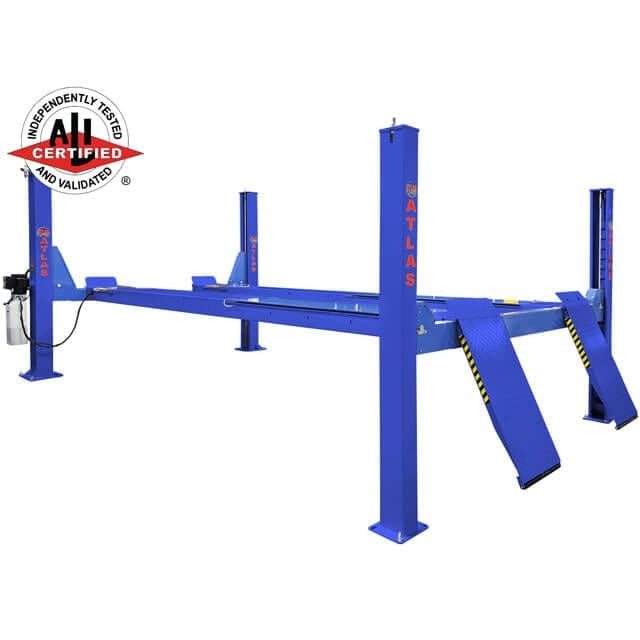

The Atlas® Platinum PVL14OF-EXT is a four post commercial grade Open-Front Alignment lift designed with the professional shop in mind. This lift has extra long runways and can accommodate a variety of cars, vans, SUVs, trucks, and commercial vehicles. the Open-Front design allows better access to the underside of vehicles during use. The AP-PVL14OF-EXT features built in slip plates and a pair of heavy duty turntables so the user can do wheel alignments.
The Platinum PVL14OF-EXT uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.
The Atlas® Platinum PVL14OF-EXT features “tracks” between the runways to allow the use of a rolling bridge jack (recommended is the Atlas® Platinum RJ7000) on the lift. Rolling jacks sold separately.
The Atlas® Platinum PVL14OF-EXT is also ALI certified and backed by one of the industry’s best warranties for an added peace of mind.

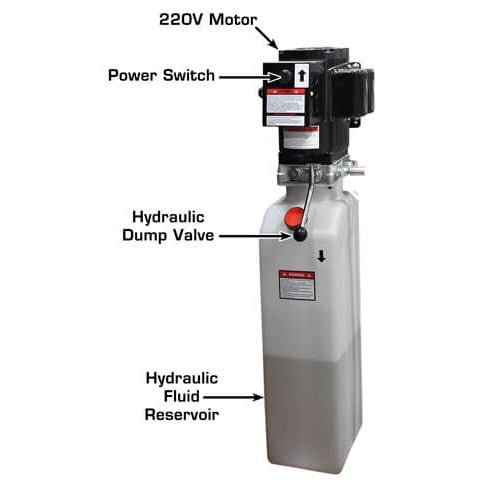

This product features an ALLY Hydraulic AL3000 Power Unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.
Features

ALI Certified Lift

14,000 lb. Capacity

Heavy Duty, Commercial Grade

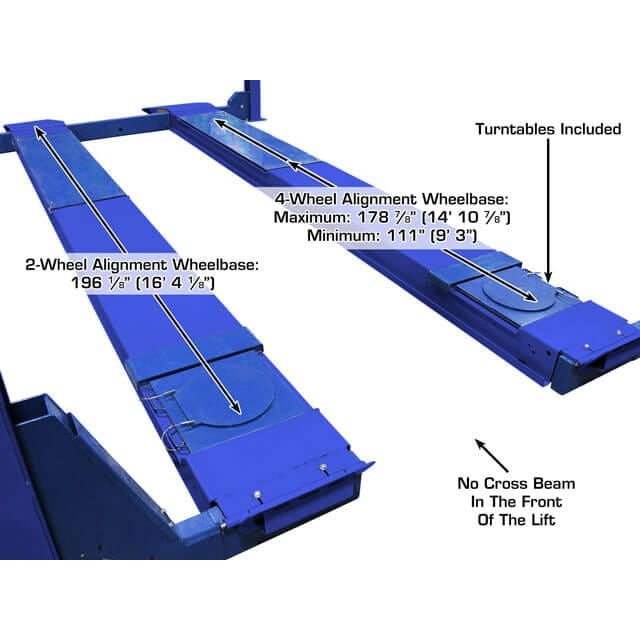

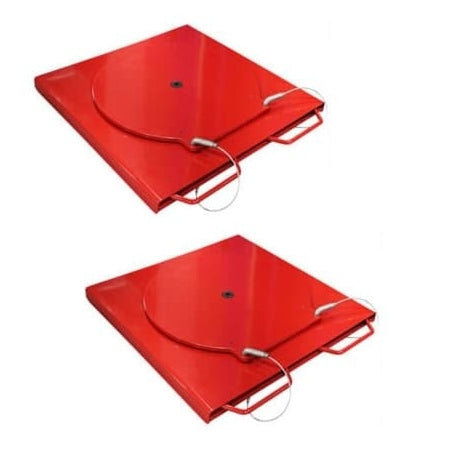

Alignment Lift, Includes Built in Slip Plates & Turntables

Open Front Design for Better Access

Extra Long Runways

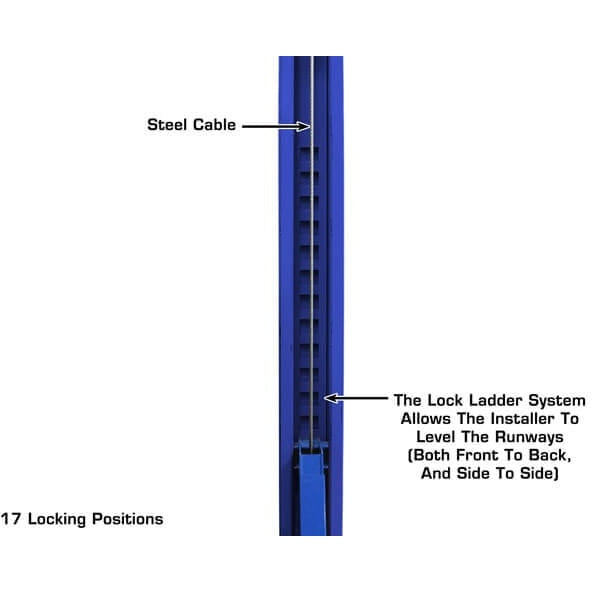

Adjustable Lock Ladder Design

Higher Quality Powder Coat Finish

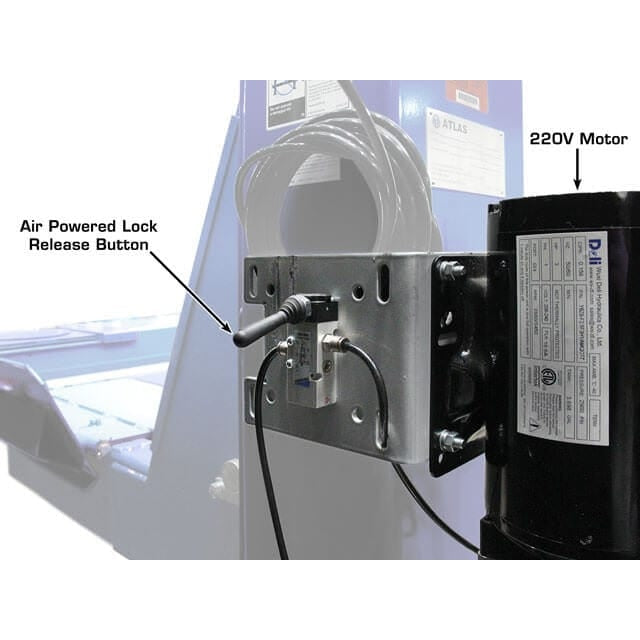

Air Operated Single Point Lock Release (External Air Supply Required)
Lock Ladder Design

Double Lock Safety System

Powder Coat Finish

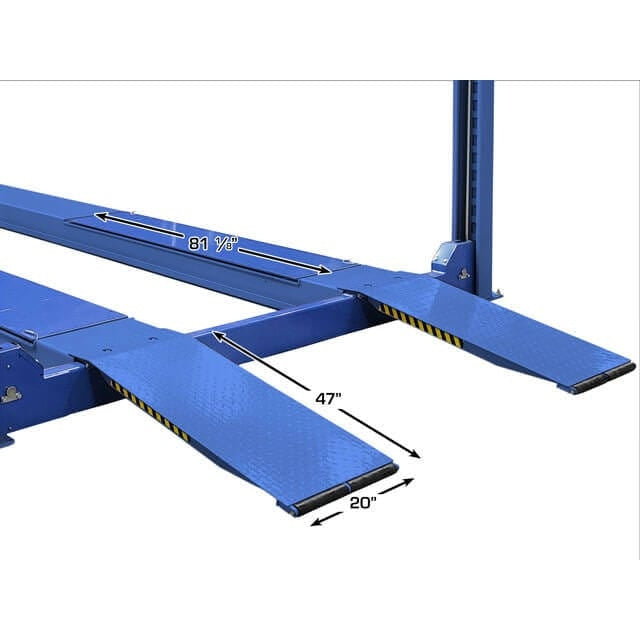

Steel Approach Ramps Included

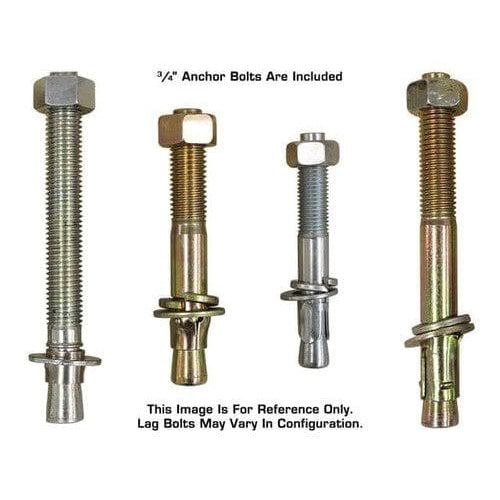

Mounting Hardware Included

Standard with Premium ALLY Powerunit

220volt/1phase Electric Operation (Requires a 30amp Breaker)

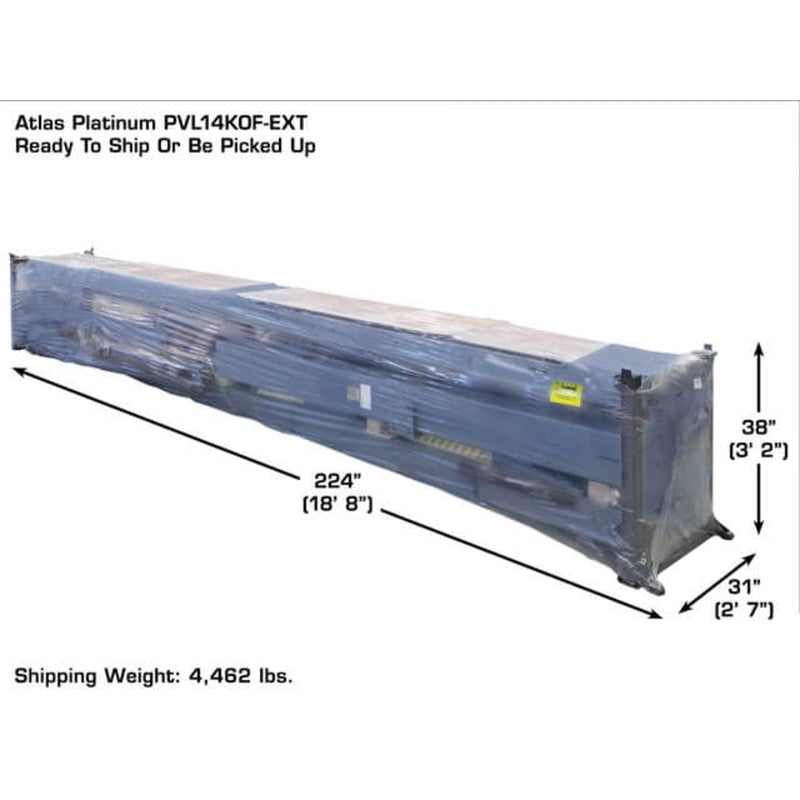

Shipping Weight: 4,462 LB.

5 yr Structural – 2 yr Hydraulic – 2 yr Powerunit Warranty

Specifications

Atlas® Platinum PVL14OF-EXT Specifications

Capacity
14,000 lb.

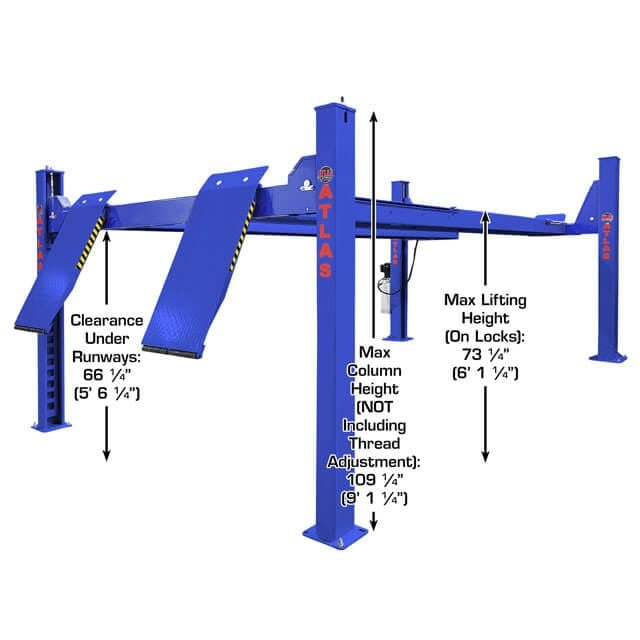

Lifting Height
73 1/4″ (6′ 1 1/4″)

Overall Width Of Columns (Without Motor)
140 1/8″ (11′ 8 1/8″)

Overall Width Of Columns (With Motor)
148 3/4″ (12′ 4 3/4″)

Overall Length With Approach Ramp
272 1/8″ (22′ 8 1/8″)

Length Between Columns
207″ (17′ 3″)

Runway Length
223 1/2″ (18′ 7 1/2″)

Runway Width
20″

Thickness Of Runway
7″

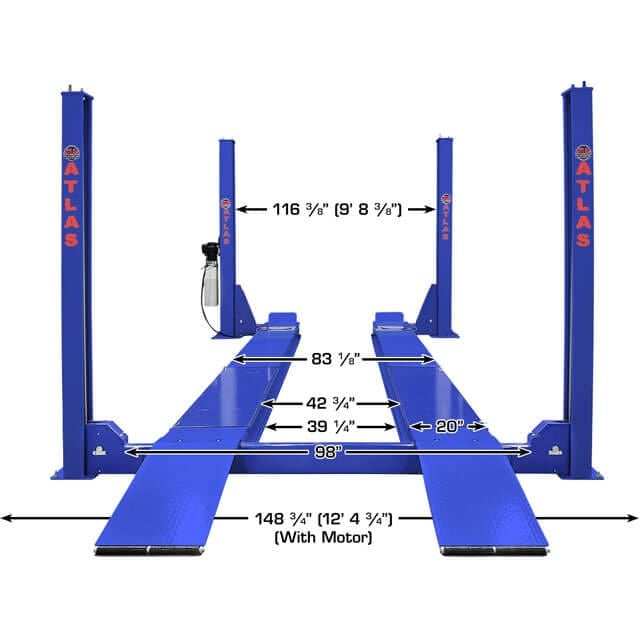

Width Between Runways
42 3/4″ (w/ Rail 39 1/4″)

Outside Runway To Outside Runway
83 1/8″ (6′ 11 1/8″)

Clearance Under Runways
66 1/4″ (5′ 6 1/4″)

Clearance Between Columns
116 3/8″ (9′ 8 3/8″)

Height Of Columns
92 1/2″ (7′ 8 1/2″) Rear/109 1/4″ (9′ 1 1/4″) Front

Maximum Wheel Base
203″ (16′ 11″)

Drive Thru
94 1/2″ (7′ 10 1/2″)

Air Requirement
85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)

Motor/Electrical Requirement
220 volt single (1) phase.A 30 amp breaker is recommended

Oil Requirement
3-5 Gallons AW32/AW46 (NOT INCLUDED)

Shipping Weight
4,462 LBS.

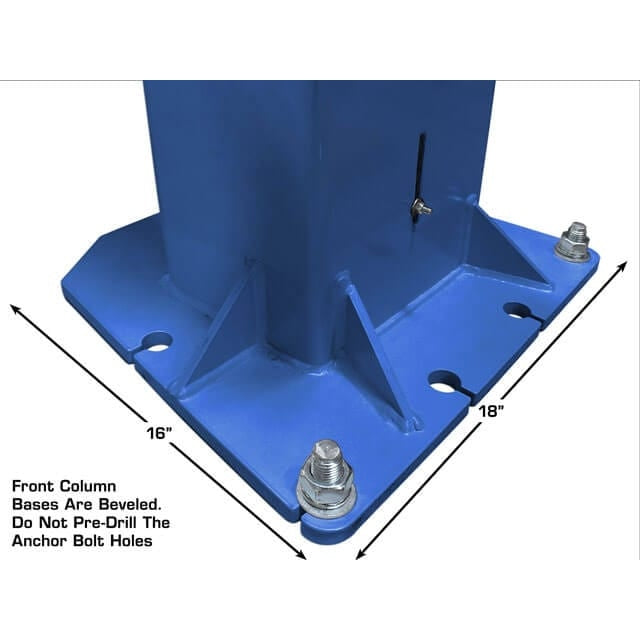

Requires a minimum of 6″ of concrete with a 3000 psi. rating

Documents
Atlas Platinum PVL14OF-EXT Manual
