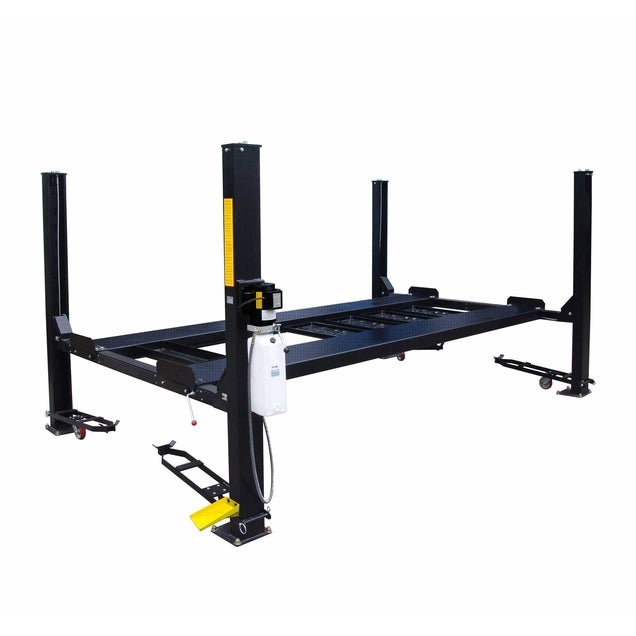

Tuxedo FP9K-DX-XLT 9,000 lb Deluxe Storage Lift Extended Length / Height – Poly casters, drip trays, jack tray

Description
The FP9K-DX-XLT Four Post Lift is designed and constructed to be a commercial grade lift, with industry leading Runway length & Drive-Thru width, allowing the ability to either Store or Service largevehicles. In addition, the FP9K-DX-XLT comes standard with Poly Casters, Drip Trays & Jack / ToolTray, making it one of the best lift values in the industry!

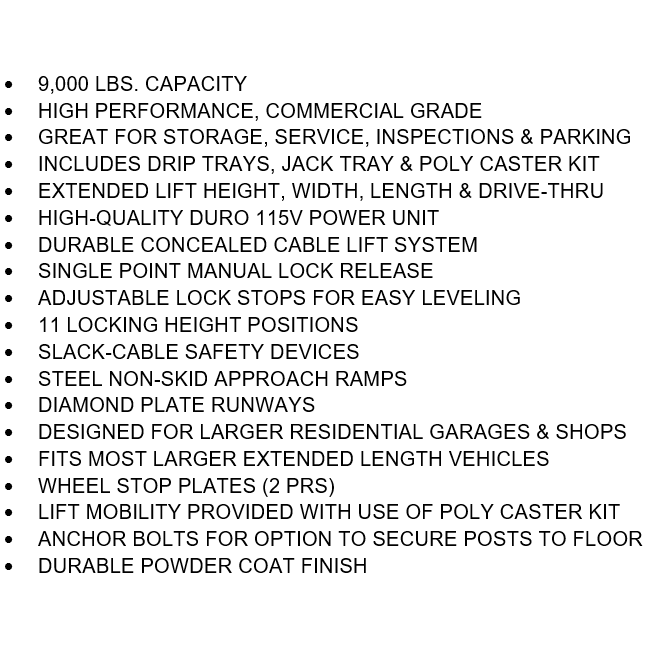

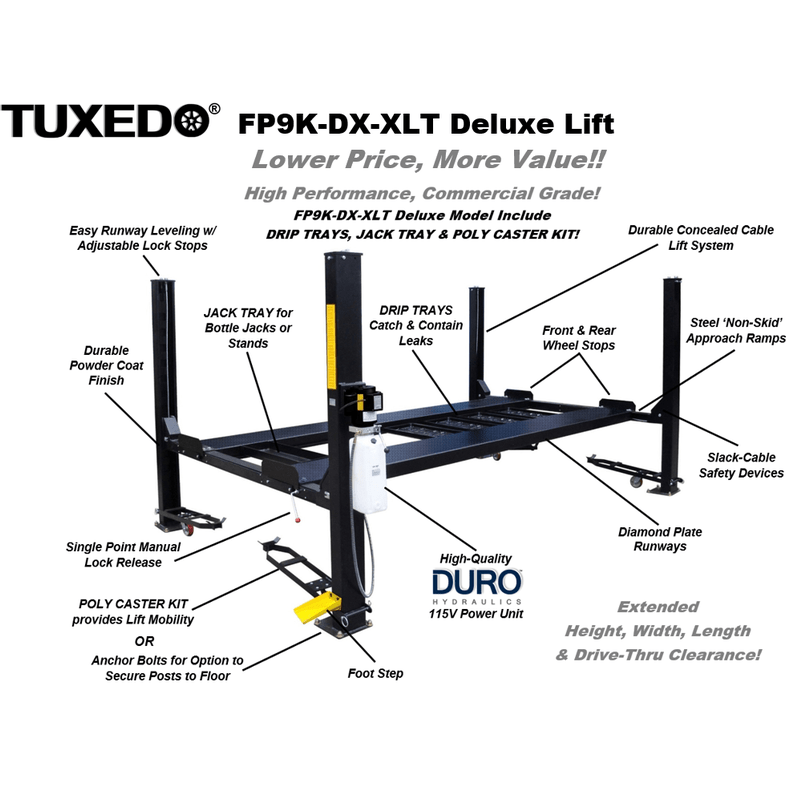

Features

Deluxe Storage / Service Lift
9,000 Lbs. Capacity
Extended Runway Length & Drive-Thru Width
Cable Driven Lift System
Single Point Manual Lock Release
Adjustable Locking Positions
Slack Cable Safety

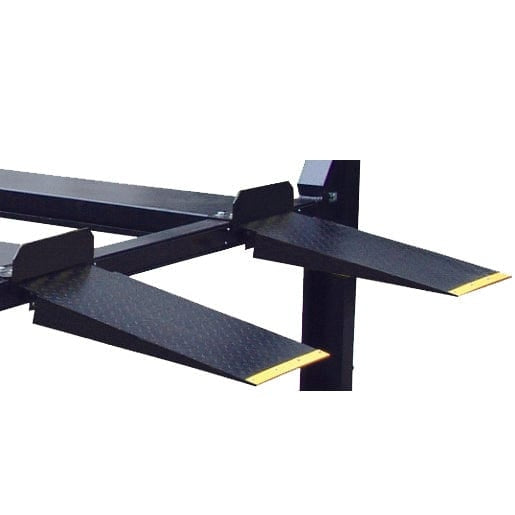

Steel Approach Ramps
Great For Storage And/Or General Commercial Service

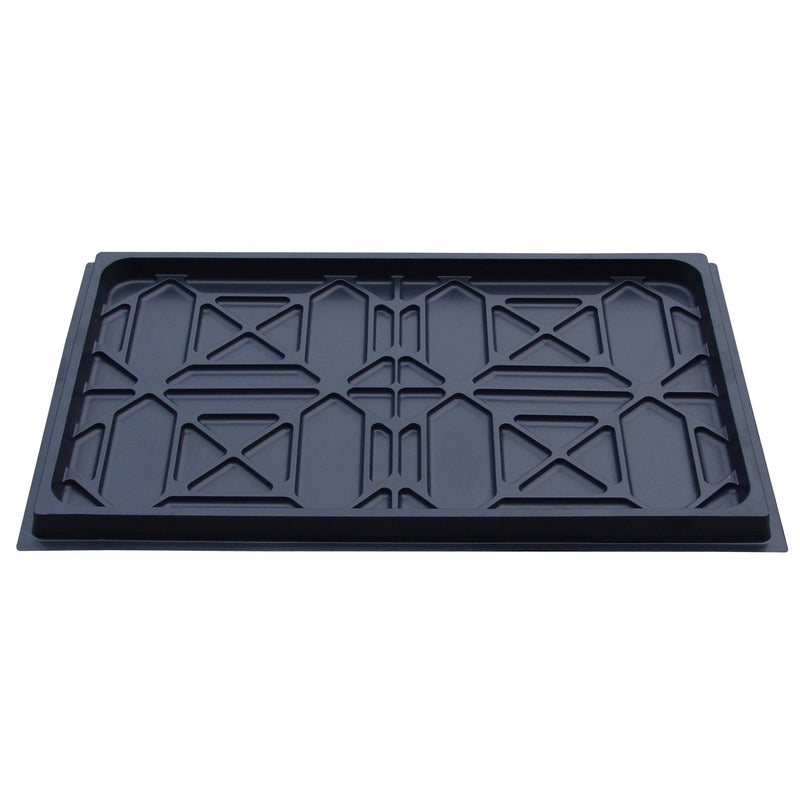

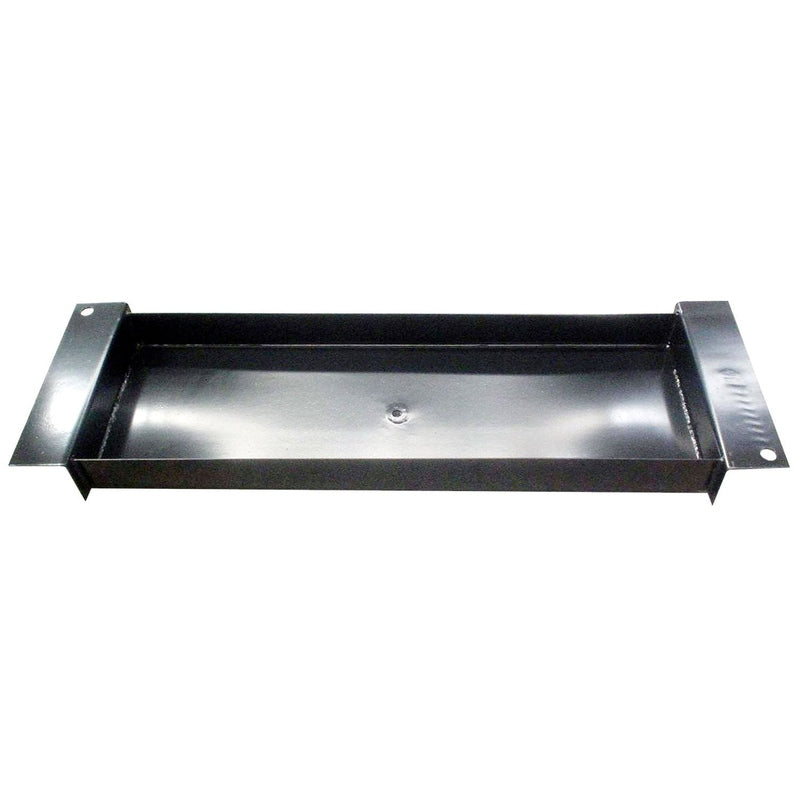

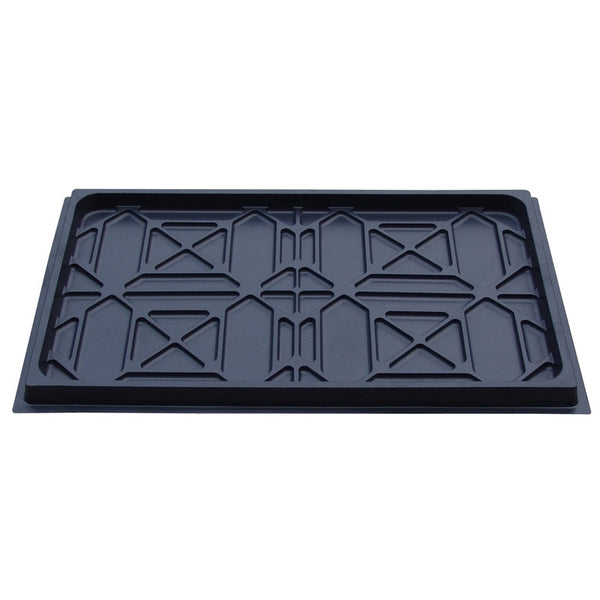

Includes Drip Trays, Jack Tray & Poly Caster Kit

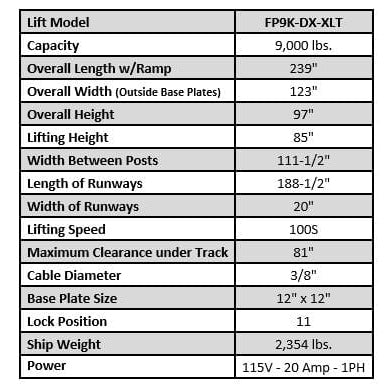

Specifications

Lift Model
FP9K-DX-XLT

Capacity
9,000 lbs

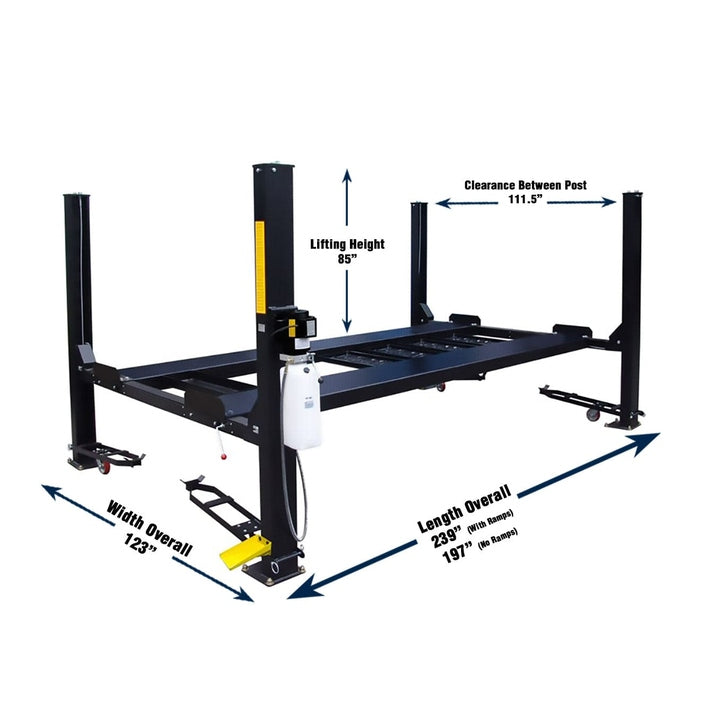

Overall Length w/Ramp
239″

Overall Width(Outside Base Plates)
123″

Overall Height
97″

Lifting Height
85″

Width Between Posts
111-1/2″

Length of Runways
188-1/2″

Width of Runways
20″

Lifting Speed
100S

Maximum Clearance under Track
81″

Cable Diameter
3/8″

Base Plate Size
12″ x 12″

Lock Position
11

Ship Weight
2,354 lbs

Power
115V 20 Amp 1PH

Manual
Tuxedo FP9K-DX-XLT 9,000 lb Deluxe Storage Lift Manual
