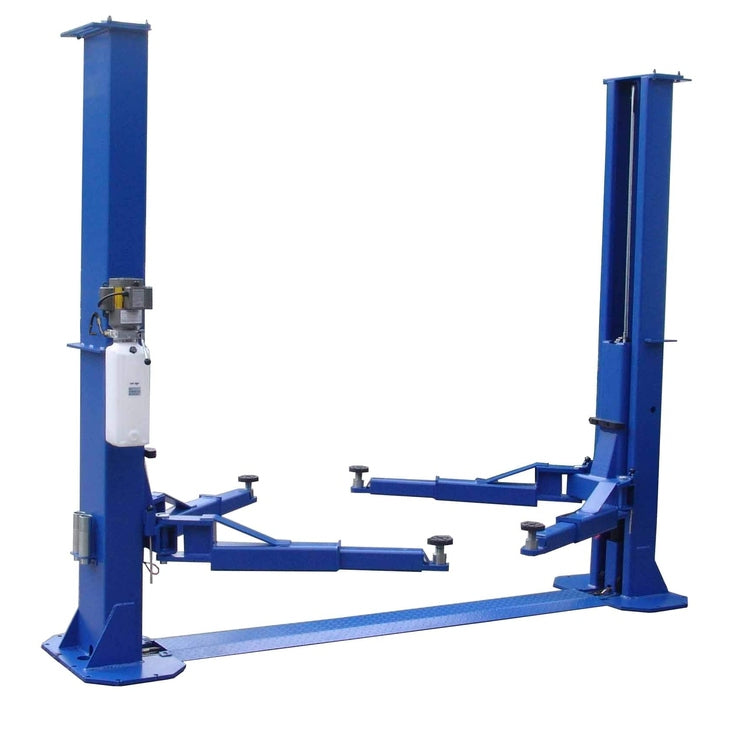

Tuxedo TP12KFX 12,000 lb Two Post Floor Plate Lift

Tuxedo 12,000 lb Two Post Floor Plate Lift
Introducing the New TP12K & TP15K ‘X HD Series Two Post Lifts!! The new TP12KFX & TP15KCX Two Post Floor Plate & Clear Floor Lifts have been redesigned and now come standard with Low profile Drop-In Adjustable Swivel Pads with Height Adapters, Internal Hose Routing, Padded Overhead Shut-Off Bar with Kill Switch, reduced overall Width, & Rubber Door Guards, making these models some of the best heavy duty Two Post Lift values in the industry!
Features

12,000 lbs Capacity
Symmetric Arms

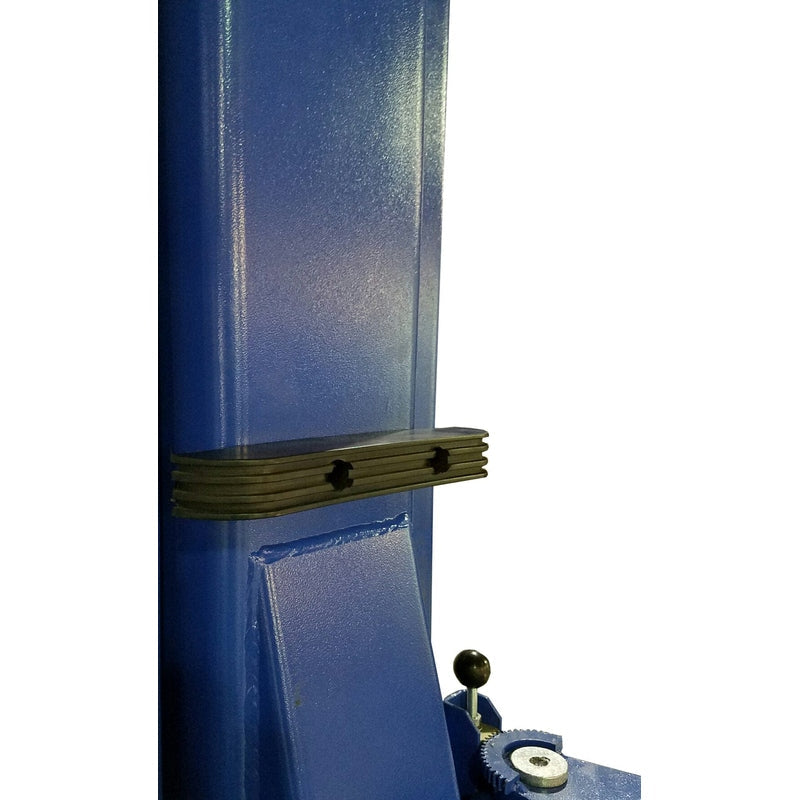

Rubber Door Guards
Chain Drive Cylinders
Dual Point Lock Release
auto Arm Restraint System

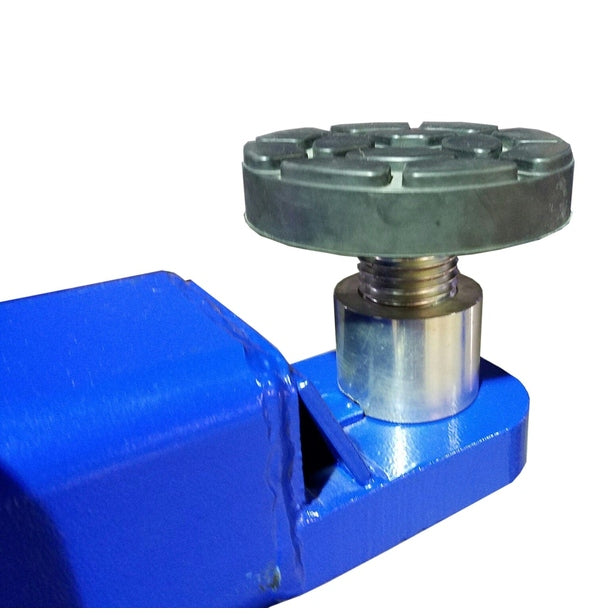

Spin Up Lift Pads

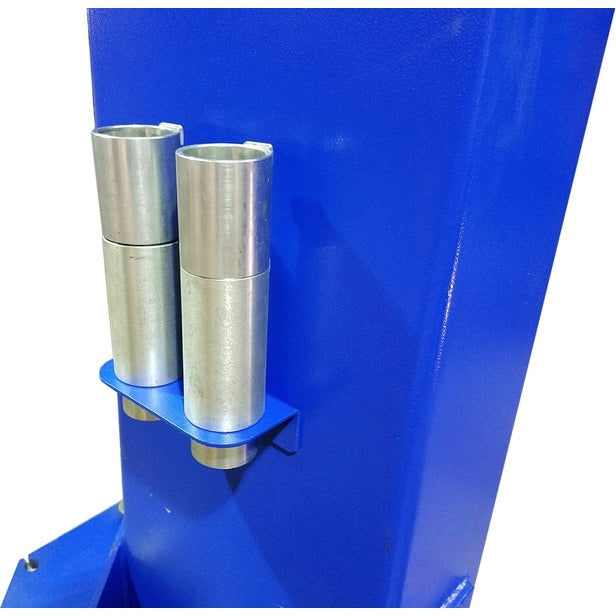

Stackable Adapters Included
Internal Hose routing

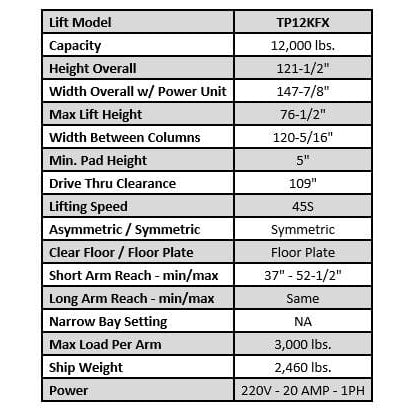

Specifications

Lift Model
TP12KFX

Capacity
12,000 lbs.

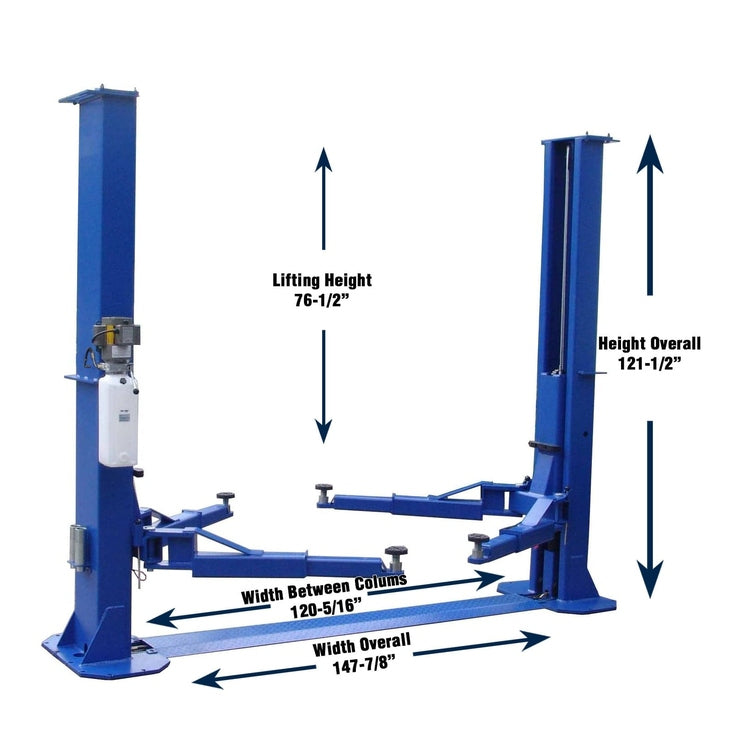

Height Overall
121-1/2″

Width Overall w/ Power Unit
147-7/8″

Max Lift Height
76-1/2″

Width Between Columns
120-5/16″

Min. Pad Height
5″

Drive Thru Clearance
109″

Lifting Speed
45S

Asymmetric / Symmetric
Symmetric

Clear Floor / Floor Plate
Floor Plate

Short Arm Reach min/max
37″ 52-1/2″

Long Arm Reach min/max
Same

Narrow Bay Setting
NA

Max Load Per Arm
3,000 lbs.

Ship Weight
2,460 lbs

Power
220V 20 AMP 1 PH

Manual
Tuxedo TP12KFX 12,000 lb Two Post Floor Plate Lift Manual
