Tuxedo TP9KF-TUX 9,000 lb Two Post Floor Plate – Symmetric

Tuxedo Light Duty 2 Post Lift 9,000 lb. Capacity

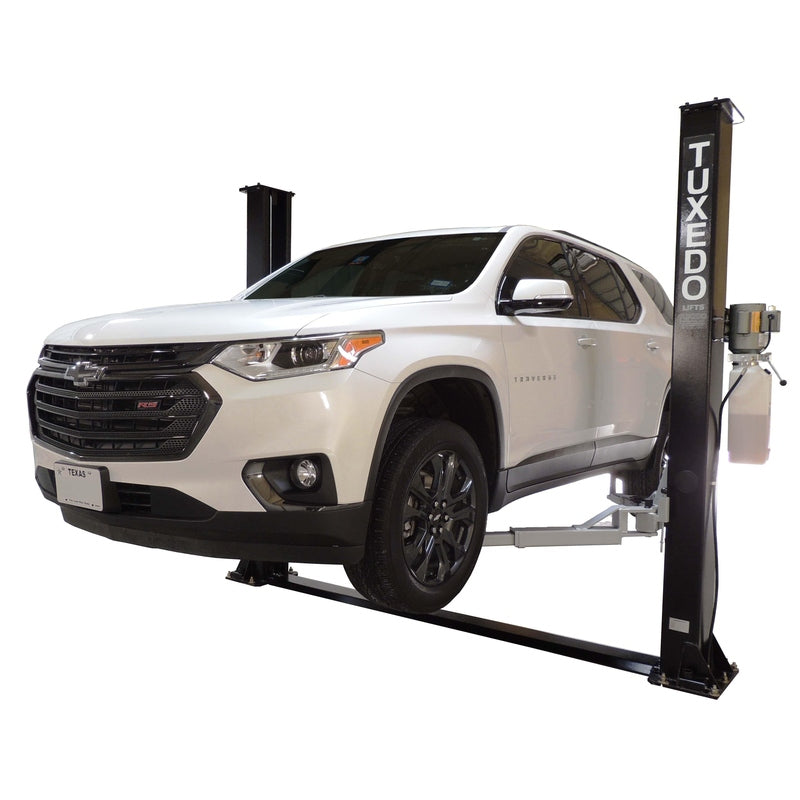

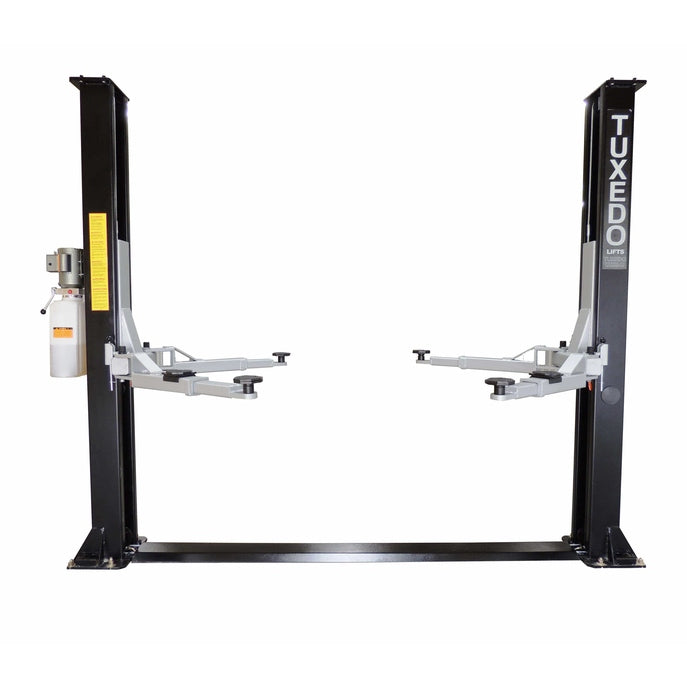

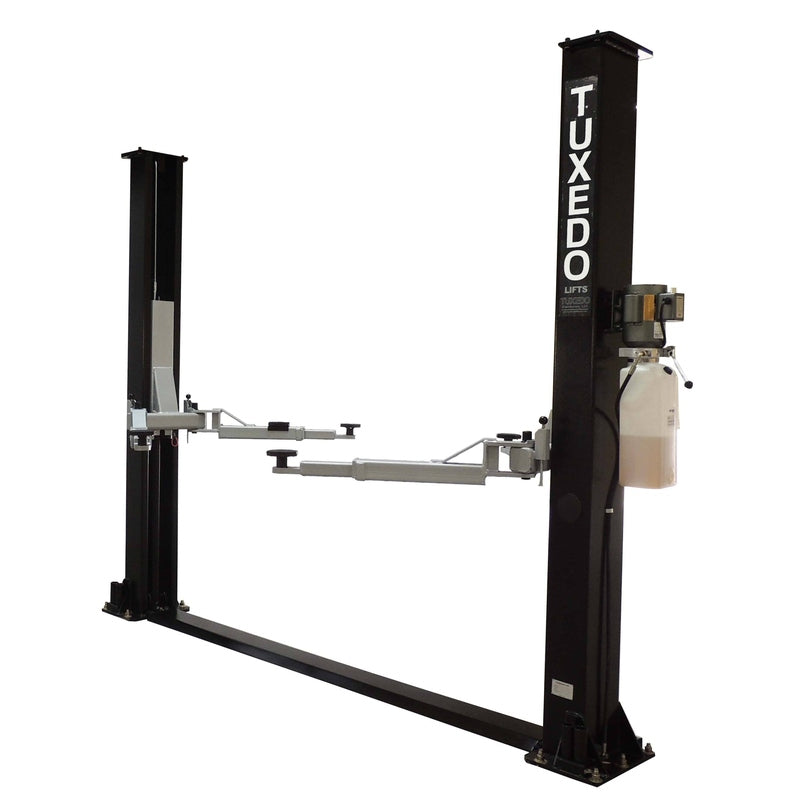

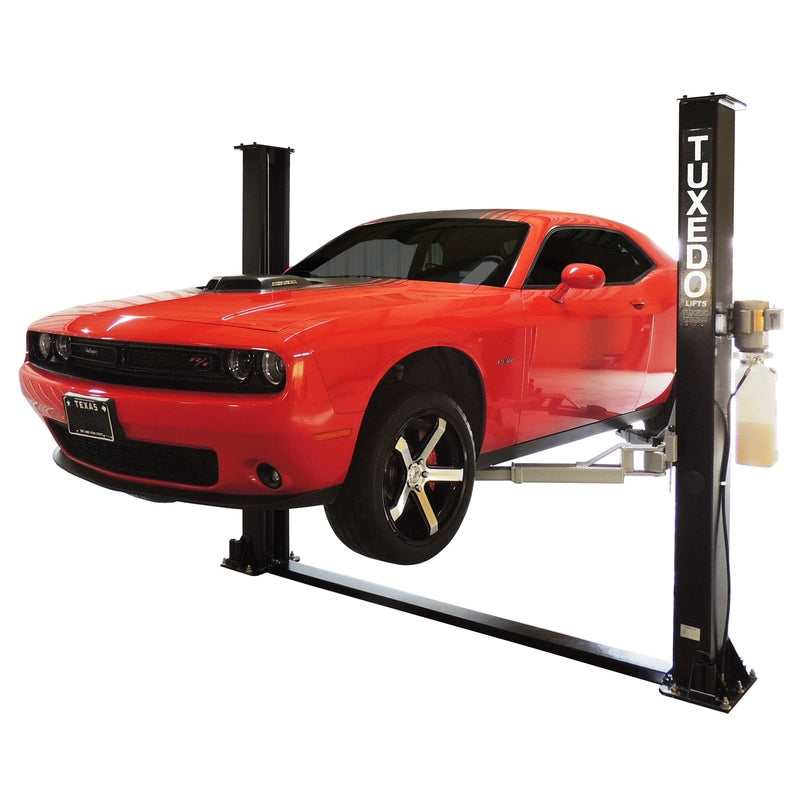

The TUXEDO TP9KF-TUX 9,000 lb. Light Duty Two Post Lift is an economy designed open top / floor plate vehicle lift with standard lift features including: symmetrical swing arms, low profile 4 lifting pads, stackable height adaptors, saddle pad adaptors and dual point carriage lock releases. The one piece column combined with reliable chain drive cylinders makes it the perfect service lift for passenger cars, light duty trucks & most SUVs. The automatic arm restraints and durable powder-coat finish provide an economically priced lift with all the features, all for a great value!
Features

9,000 lbs capacity

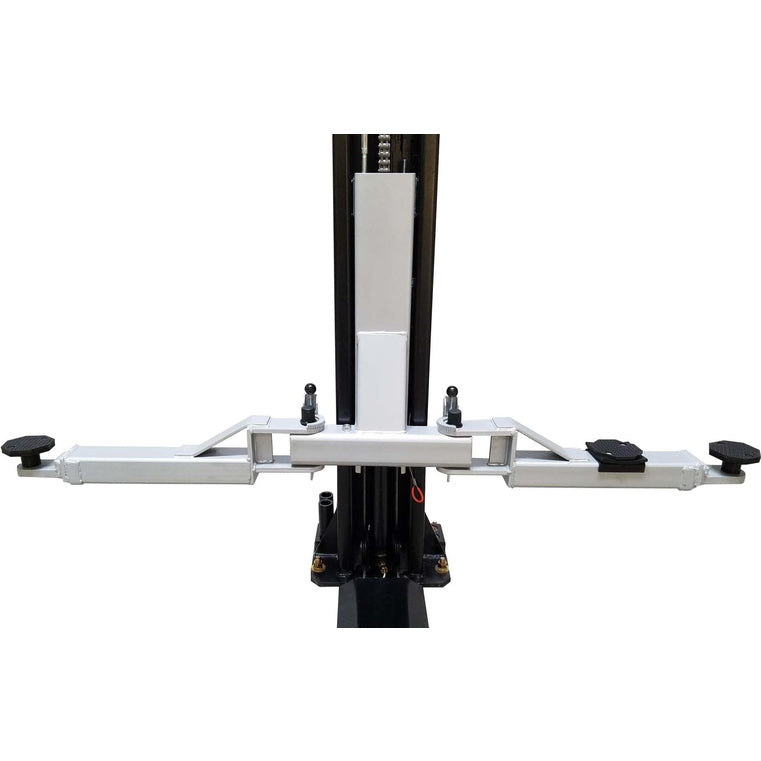

Symmetric Arms
Chain Drive Cylinders
Dual Point Lock Release

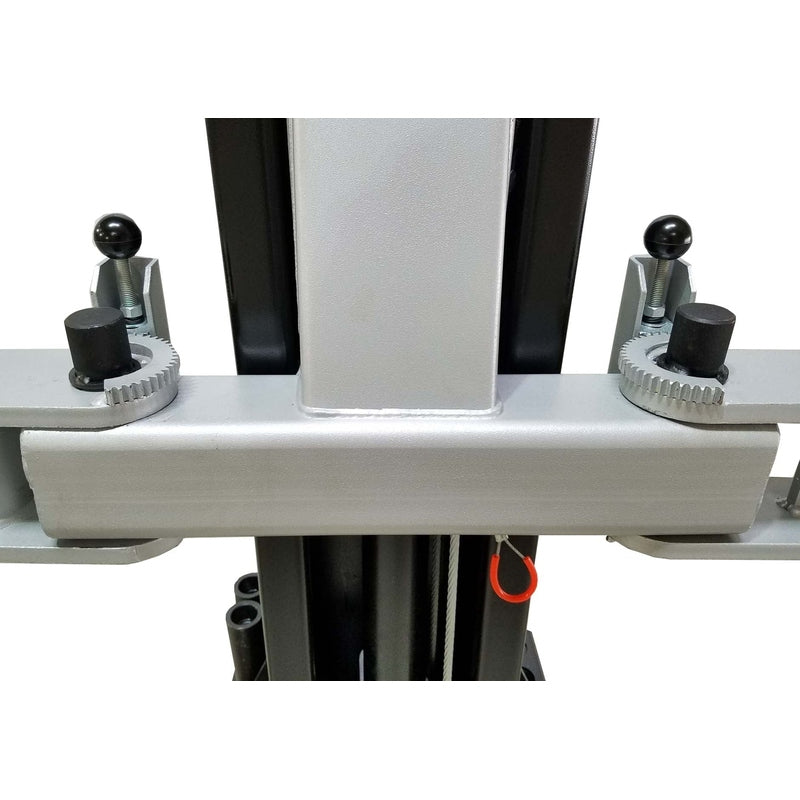

Auto Arm Restraint System

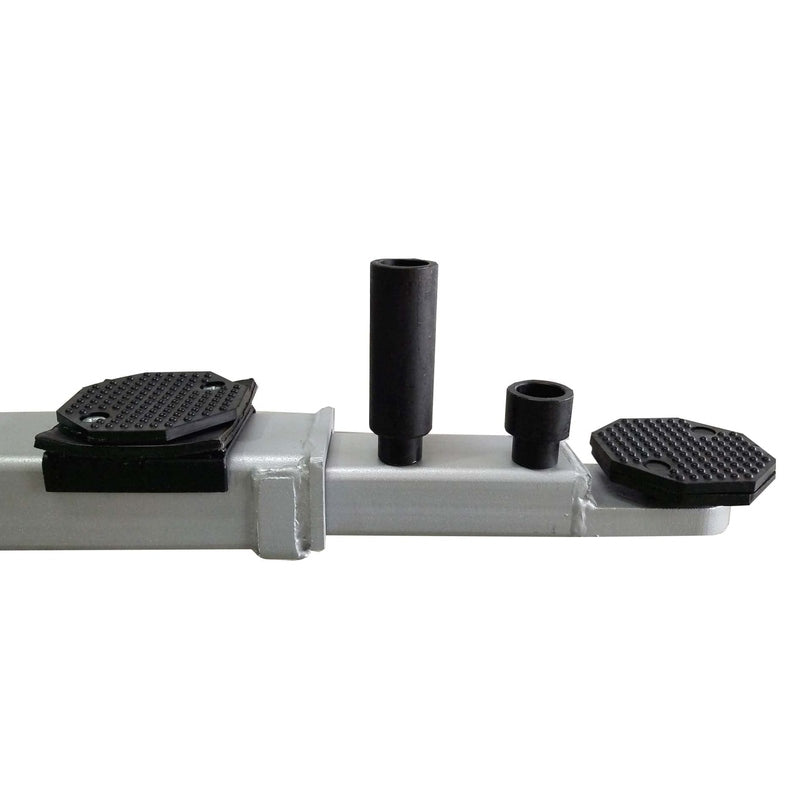

Low profile drop-in Lift Pads
SADDLE PAD ADAPTORS (1 Pair)
Stackable Adapters Included
Black color standard

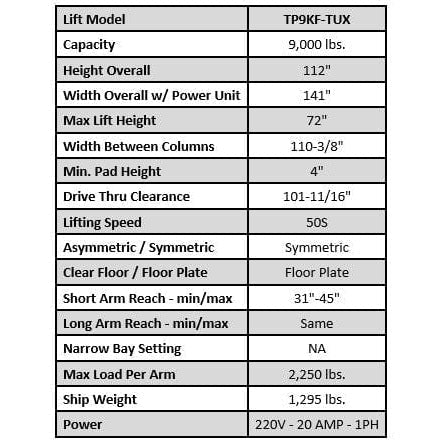

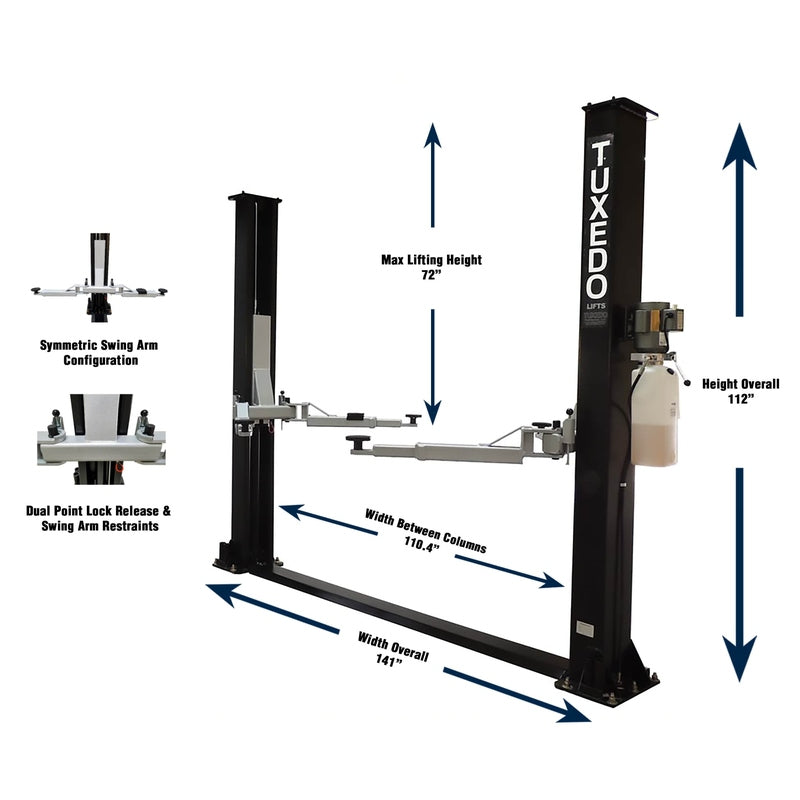

Specifications

Lift Model
TP9KF-TUX

Capacity
9,000 lbs.

Height Overall
112″

Width Overall w/ Power Unit
141″

Max Lift Height
72″

Width Between Columns
110-3/8″

Min. Pad Height
4″

Drive Thru Clearance
101-11/16″

Lifting Speed
50S

Asymmetric / Symmetric
Symmetric

Clear Floor / Floor Plate
Floor Plate

Short Arm Reach min/max
31″-45″

Long Arm Reach min/max
Same

Narrow Bay Setting
NA

Max Load Per Arm
2,250 lbs.

Ship Weight
1,295 lbs

Power
220V 20 AMP 1PH

Manual
Tuxedo TP9KF-TUX 9,000 lb Two Post Lift Manual
