Atlas PSP-6000 6,000 lb Portable Single Post Lift

Description

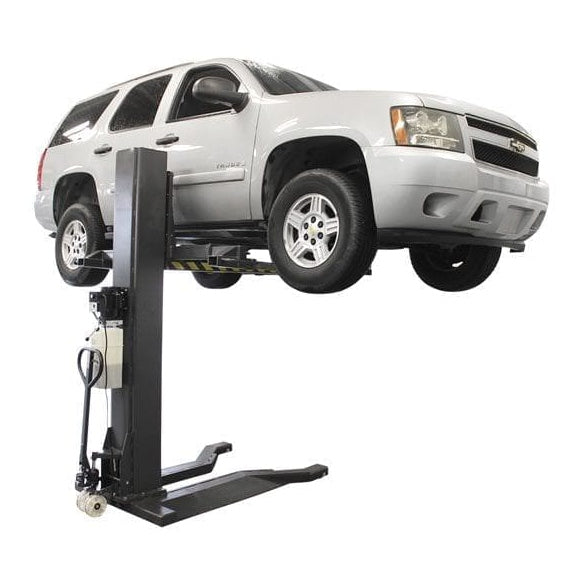

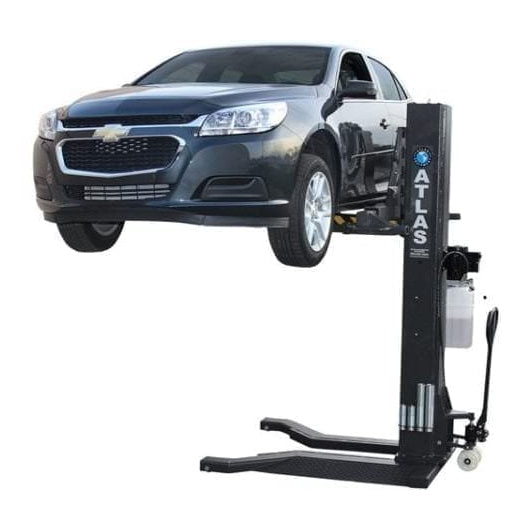

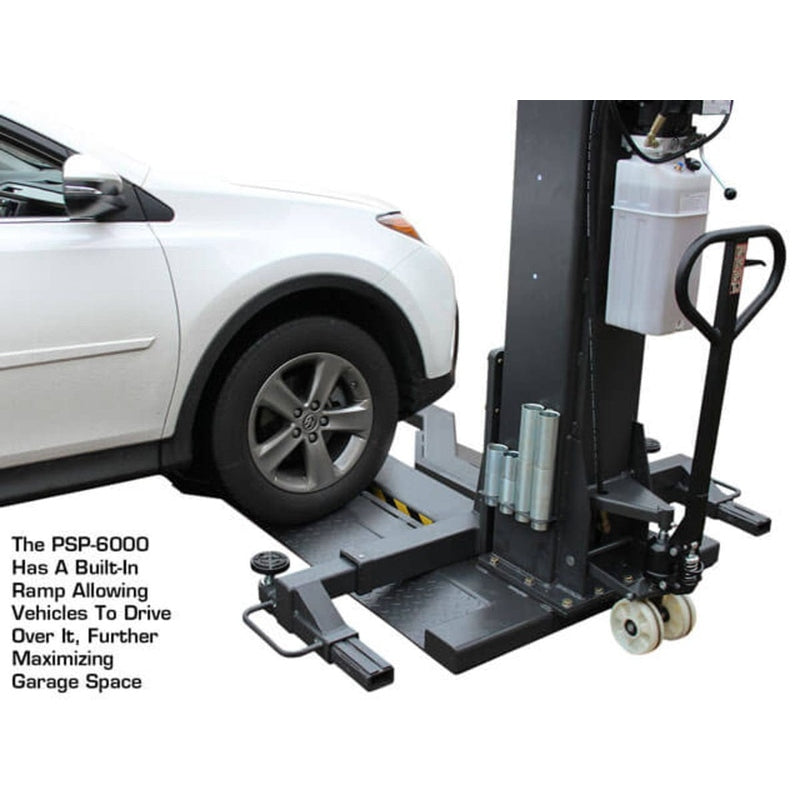

The Atlas® PSP-6000 portable single post lift is the perfect choice for the commercial service shop or the Mr. Homeowner who does not want to tie up a bay space with a permanently mounted above ground lift. This portable vehicle lift allows the operator to walk under the vehicle or move around the vehicle to perform wheel service. When the Atlas PSP-6000 is not in use, it may be rolled out of the way into a corner. The PSP-6000 also has a built-in ramp allowing vehicles to drive over it, further maximizing garage space.
The Portable Single Post Lift rolls easily on a level concrete surface and can be used either inside or outside of your garage. The column fits under a 9 foot (108 inch) ceiling and allows the operator to raise most vehicles high enough to access many parts of the vehicle that would not be accessible with a mid-rise lift.
The Atlas® PSP-6000 column is equipped with the chain break mechanism that automatically locks the carriage into place in the unlikely event of a chain failure.
.embed-container { position: relative; padding-bottom: 56.25%; height: 0; overflow: hidden; max-width: 100%; } .embed-container iframe, .embed-container object, .embed-container embed { position: absolute; top: 0; left: 0; width: 100%; height: 100%; }

Features

6,000 lbs. Capacity

Portable

Low Profile Design

Rigid Base Construction

Built in Drive-over Ramps

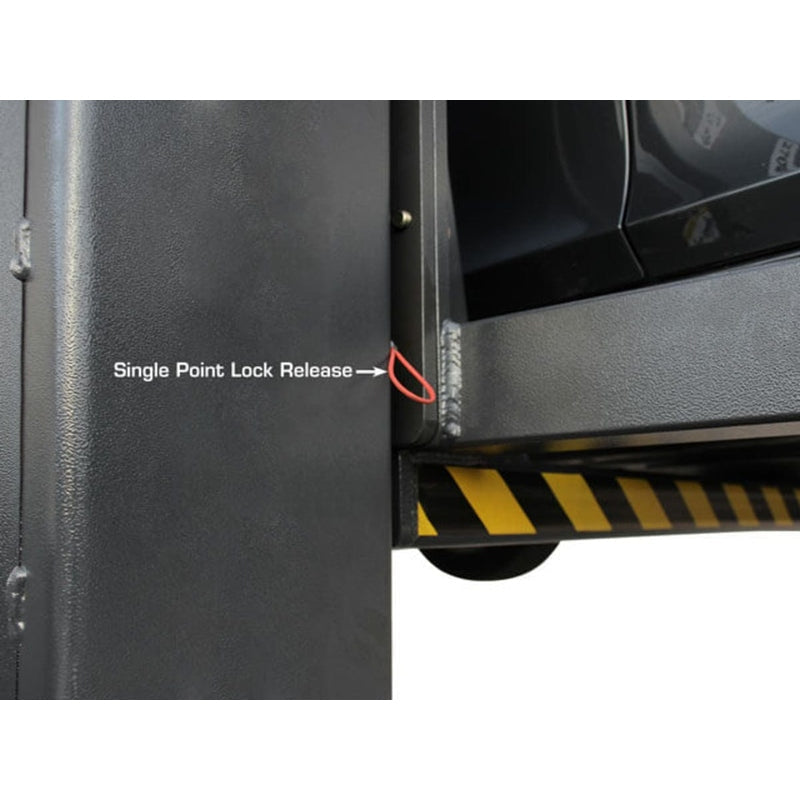

Single Point Lock Release

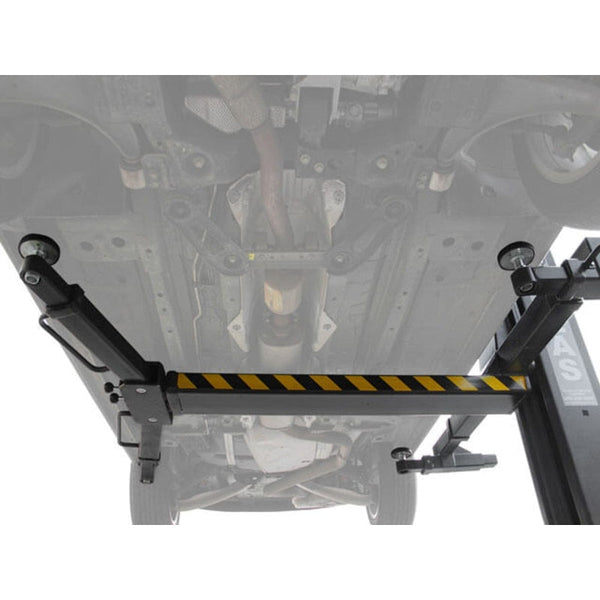

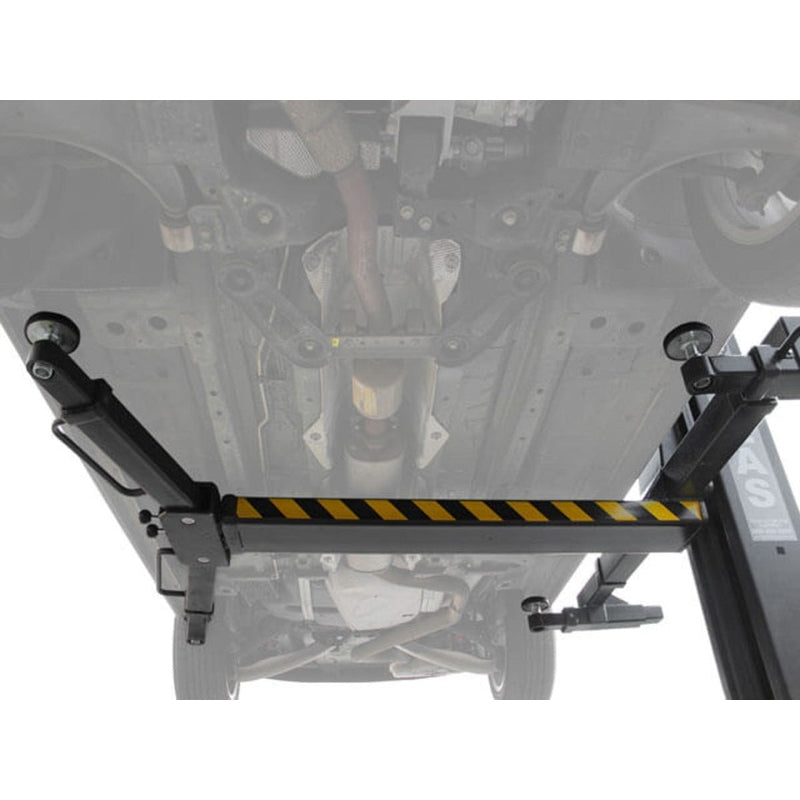

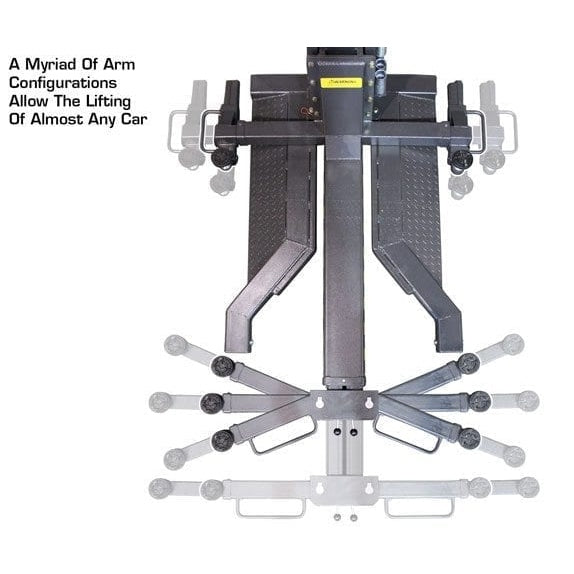

Two-Stage Telescoping Swing Arms

Locking Arm Restraints

Lifting Height: 5′ 11 2/3″ (71 2/3″)

110volt Electric Operation (Requires 30amp Breaker)

Free 8 Piece Truck Adapter Set

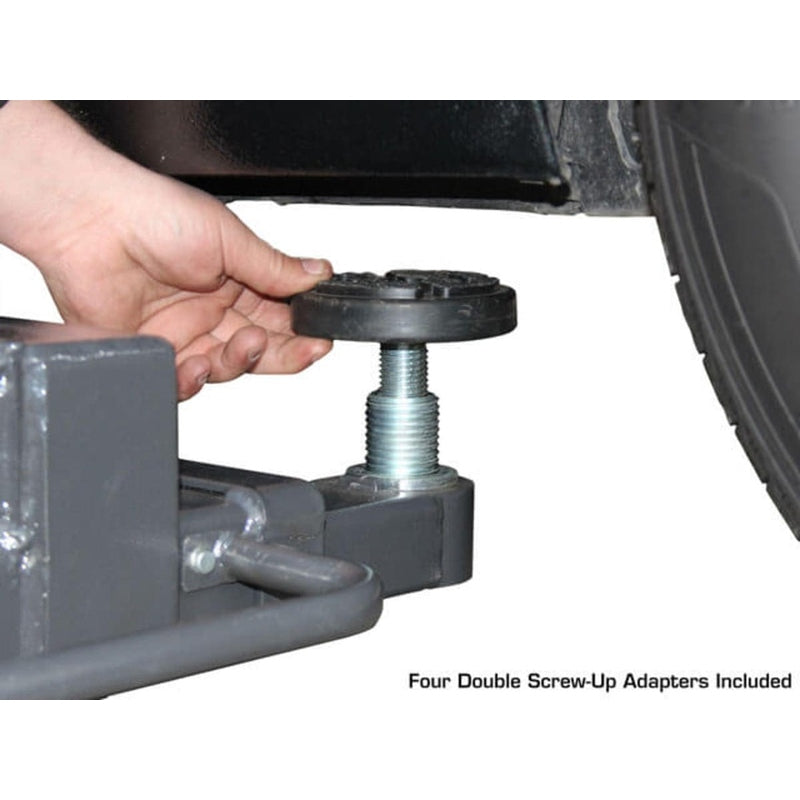

Includes Double Screw-up Adapters

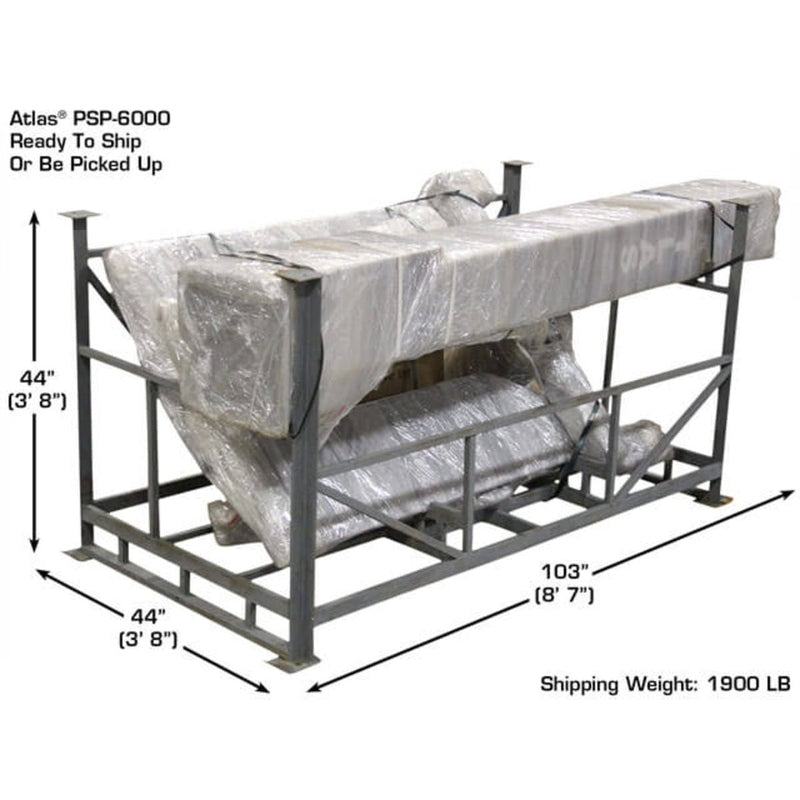

Shipping Weight: 1,900 lbs.

2 yr Structural – 1 yr Hydraulic Warranty – Parts Only

Specifications

Atlas® PSP-6000 Specifications

Capacity
6,000 LB.

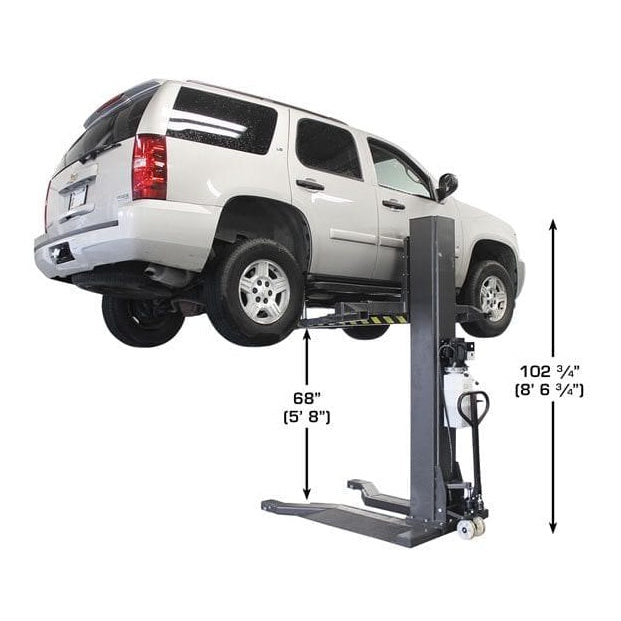

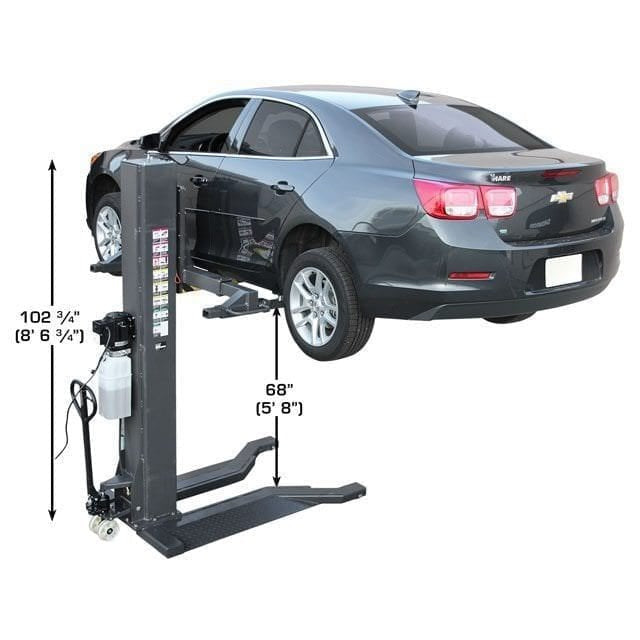

Overall Height
102 3/4″ (8′ 6 3/4″)

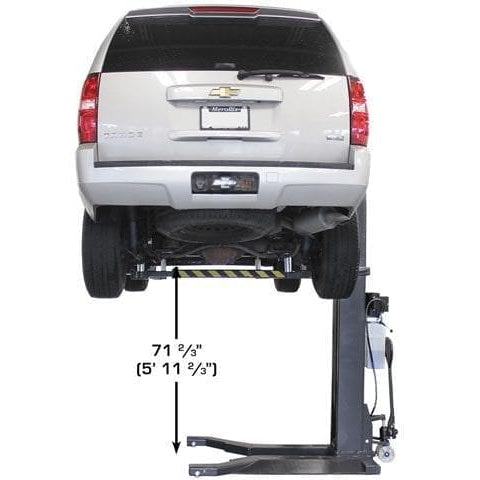

Max. Lifting Height (Without Truck Adapters)
71 2/3″ (5′ 11 2/3″)

Max. Clearance
68″ (5′ 8″)

Minimum Height
5″

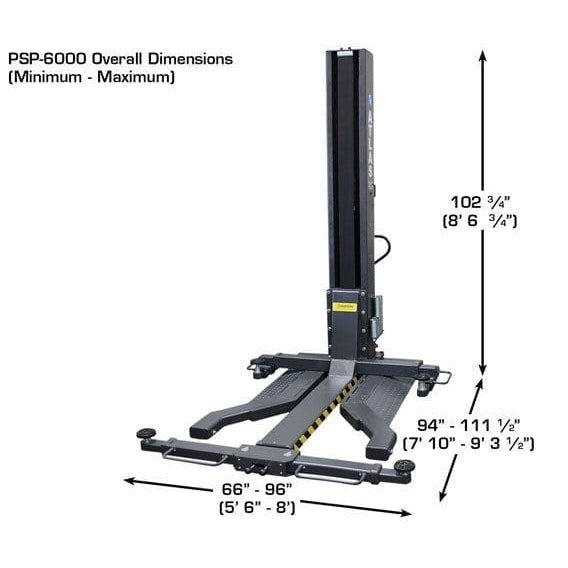

Overall Maximum Dimensions
L: 111 1/2″ x W: 96″ x H: 102 3/4″

Column Size
10 1/2″ x 12 1/2″

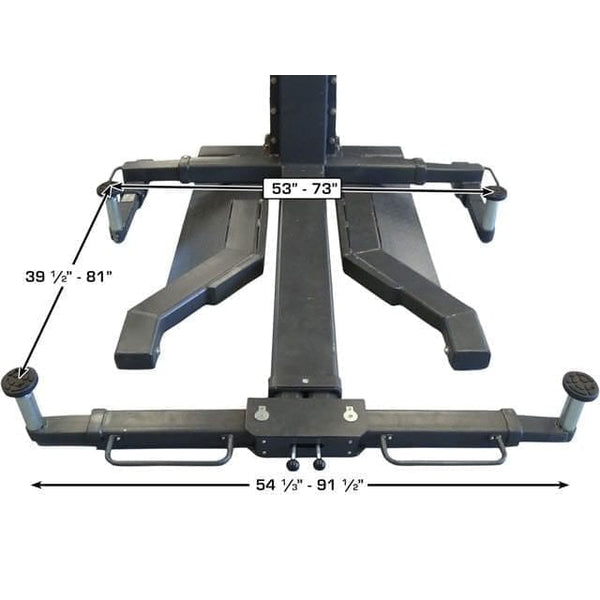

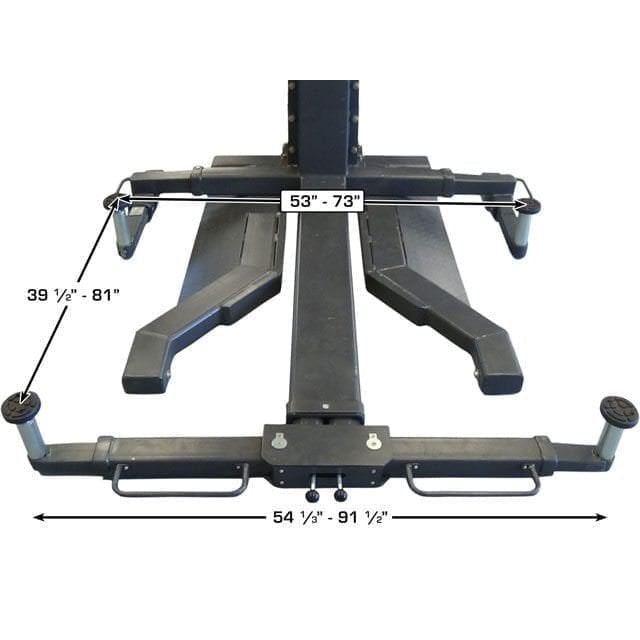

Distance Between Lifting Pads (Column Side to Offside)
39 1/2″ to 81″

Distance Between Lifting Pads (Column Side to Column Side)
53″ to 73″

Distance Between Lifting Pads (Offside Side to Offside)
54 1/3″ to 91 1/2″

Motor/Electric Requirement
110volt, 30 amp breaker required

Oil Requirement
3-5 Gallons AW32 or AW46 (NOT INCLUDED)

Shipping Weight
1,900 lbs.

Adapter Heights
4 Each 2.75″, 6”

Arm Hole/Adapter Peg Size
2”

Documents
Atlas® PSP-6000 Manual
