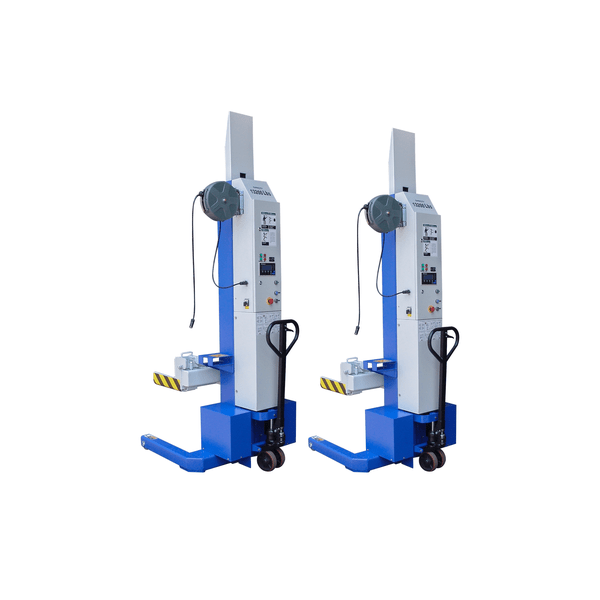

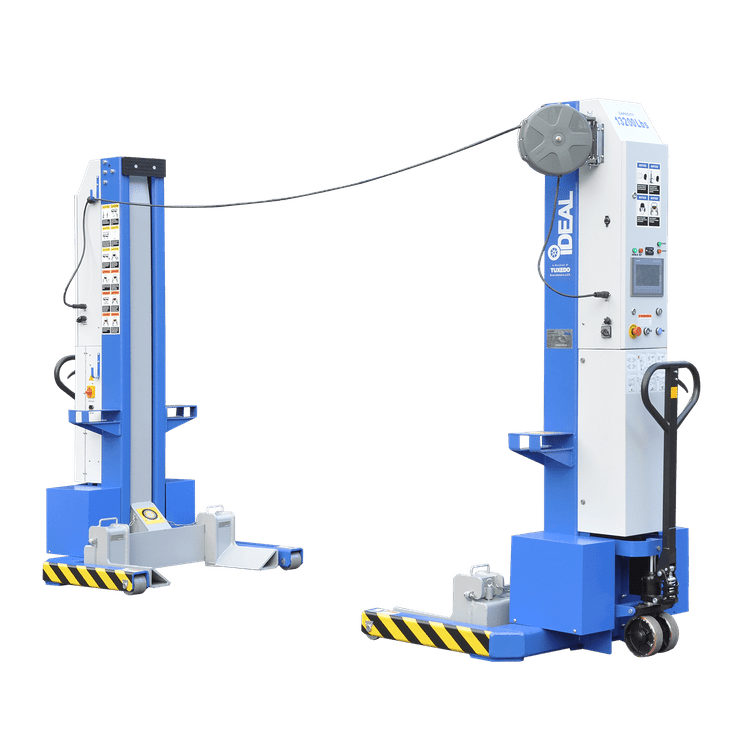

iDEAL MSC-13K-B-226 Mobile Column Lift, Two Column Set, 26,000 lbs.

iDEAL MSC-13K-B-226 26k Lbs Mobile Column Set
The MSC-13K-B can be purchased in sets of 2, 4, or 6 columns with a total capacity up to 78,000lbs. The iDEAL MSC-13K-B is a compact mobile design that allows it to be used in a normally flat bay when needed or stored out of the way when performing service that does not require a lift. The design allows the safe lifting of passenger cars, light pick-up trucks when using optional accessories, and up to a school bus or fire truck in the standard configuration.
Features

Heavy Duty
Mobile Column Lift
Up To 78,000 Lbs. Capacity
Easy To Use Control Panel
Operable From Any Column
Adjustable Fork Accommodates Many Wheel Sizes
Direct Drive Hydraulic Cylinder
Independent Mechanical Locking System
Battery Operated With Onboard Charging System Sold Separately
Easily Moved For Use In Multiple Bays
Small Footprint Allows For Out Of The Way Storage
Available In Two, Four And Six Column Configuration
Optional Accessories For Expanded Service Operations

Specifications

Lift Model
MSC-13K-B-226

Column Configurations
2 Column

Capacity
26,000 lbs.

Ac Power (Input, Per Column)
100-140VAC, 60Hz, 1PH

DC Power (Output, Per Column)
24VDC

Lifting Height
Min. 88.6″ / Max 155.5″

Column Heights – Min/Max
44.1″

Fork Adjustable Range
6.3″ 22″

Fork Length
14″

Fork to Column Clearance
9.3″

Rise Time
75 Seconds

Descent Time
60 Seconds

Maximum Distance between Columns
32.8″

Minimum Concrete Surface Strength
3000PSI

Noise Level
70dB(A)

Set – Up / Operation
Indoors

Battery Type (Not included)
12VDC Sealed Deep Cycle Battery ( BCI Group 31, AH-105)

Ship Weight
1,210 lbs per Column

Manual
iDEAL MSC-13K-B-226 26k Lbs Mobile Column Set Manual
