iDEAL MSC-13K-B-678 Mobile Column Lift, Six Column Set, 78,000 lbs.

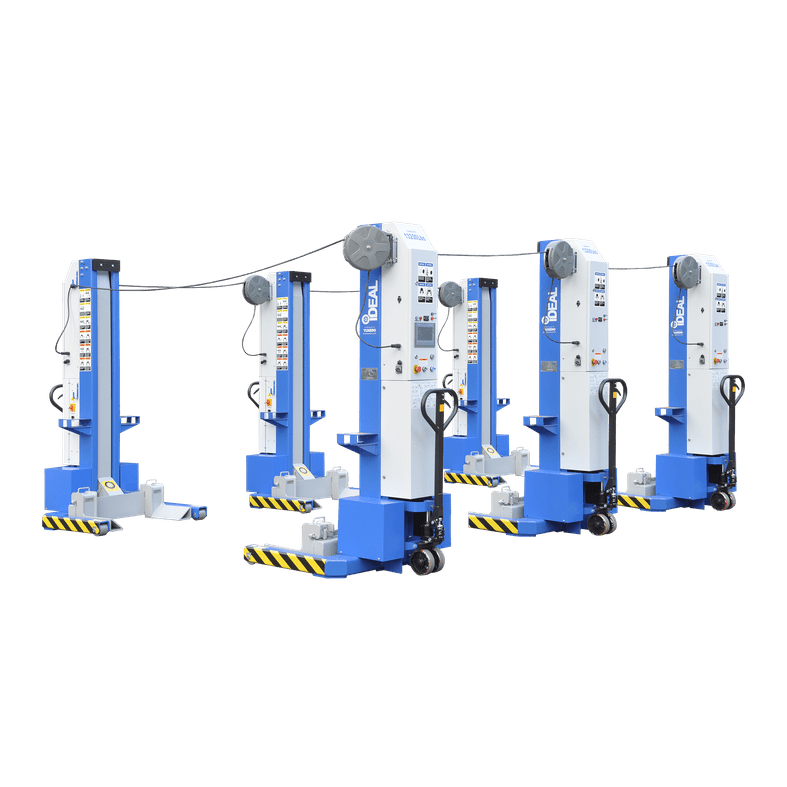

iDEAL MSC-13K-B-678 78,000 lbs Mobile Column Lift
The iDEAL MSC-13K-B is a compact mobile design that allows it to be used in a normally flat bay when needed or stored out of the way when performing service that does not require a lift. The design allows the safe lifting of passenger cars, light pick-up trucks when using optional accessories, and up to a school bus or fire truck in the standard configuration.
Features

Easy to use master controller for individual or paired synchronized operation
Siemens PLC and Electro-Optical encoder provide continuous synchronization of all columns
Adjustable lifting forks accommodate the widest range of wheels
Easily positioned with pallet jack-style wheel
Heavy-duty hydraulic system
Large carriage bearings provide durable, fast, and easy lifting
LCD screen with keyboard offers easy-to-read visuals of settings and lifting height
Independent mechanical locking system
Emergency switch on each column provide the highest safety assurance
Optional jack stands are available
Up To 78,000 Lbs. Capacity
Easy To Use Control Panel
Operable From Any Column
Adjustable Fork Accommodates Many Wheel Sizes
Direct Drive Hydraulic Cylinder
Independent Mechanical Locking System
Battery Operated With Onboard Charging System Easily Moved For Use In Multiple Bays
Small Footprint Allows For Out Of The Way Storage
Available In Two, Four And Six Column Configuration
Optional Accessories For Expanded Service Operations
Batteries not included

Specifications

Specifications

Lift Models
MSC-13K-B-678

Column Configurations
6 Column

Capacity
78,000 lbs

AC Power (Input, Per Column)
100-140VAC, 60Hz, 1 PH

DC Power (Output, Per Column)
24VDC

Lifting Height
67.1″

Column Heights Min/Max
Min. 88.6″ / Max 155.5″

Overall Width
44.1″

Fork Adjustable Range
6.3″ 22″

Fork Length
14″

Fork to Column Clearance
9.3″

Rise Time
75S

Descent Time
60S

Maximum Distance between Columns
32.8′

Minimum Concrete Surface Strength
3000 PSI

Noise Level
70 dB(A)

Set-Up / Operation
Indoors

Battery Type (Not included)
12VDC Sealed Deep Cycle Battery (BCI Group 31, AH-105)

Ship Weight
1,210 lbs per Column
