Atlas 9OHSC 9,000 lb Overhead 2-Post Lift

Atlas Overhead 9,000lb. Capacity 2-Post Lift
The Atlas 9OHSC two post above ground lift is the perfect choice for those smaller commercial repair facilities or Mr. Homeowners who demand the highest quality at the absolute best price. The 9OHSC is a TRUE 9,000 lb. capacity two post lift that offers a great value to the customer.

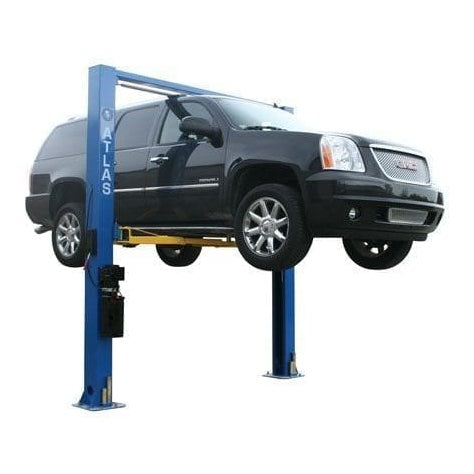

The Atlas 9OHSC is engineered and manufactured to lift vehicles ranging from Smart Cars to a Suburban. The 9OHSC incorporates a single piece 11 10 formed column and an extra-long carriage that provides maximum column and arm strength to lift and support a 9,000 lb. vehicle..
The Atlas 9OHSC has single piece columns and extra-long carriages to ensure years of trouble free service. The single piece columns require the customer to have a ceiling of at least 12 feet to stand up the column.
Features

9,000 lb. Capacity
Overhead, Open-Floor Lift
Single-Piece Column Design

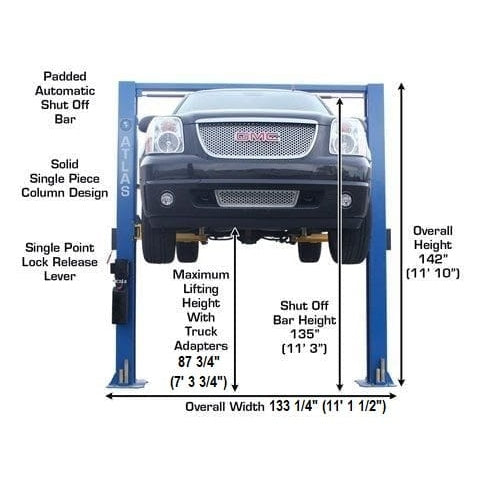

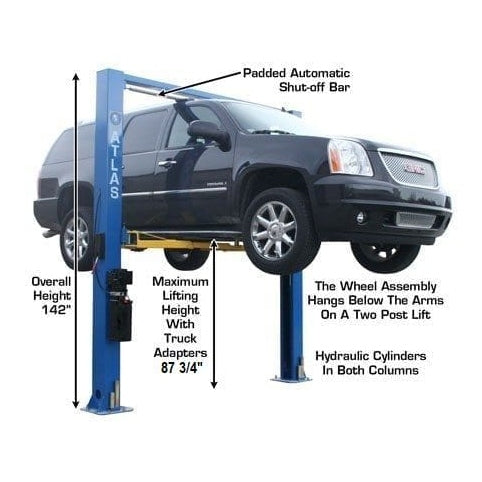

Overall Height: 142″ (11′ 10″)

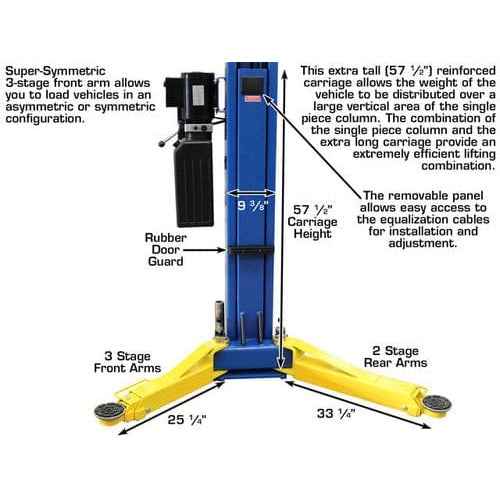

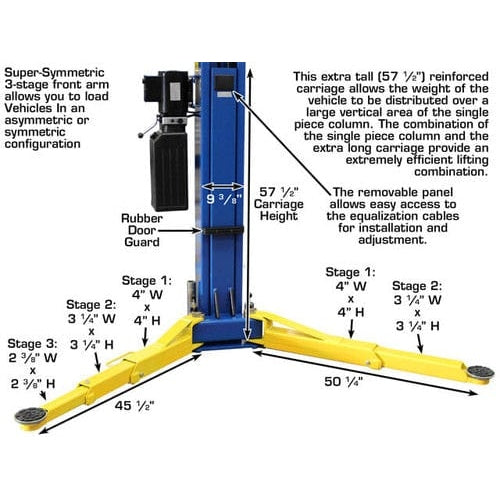

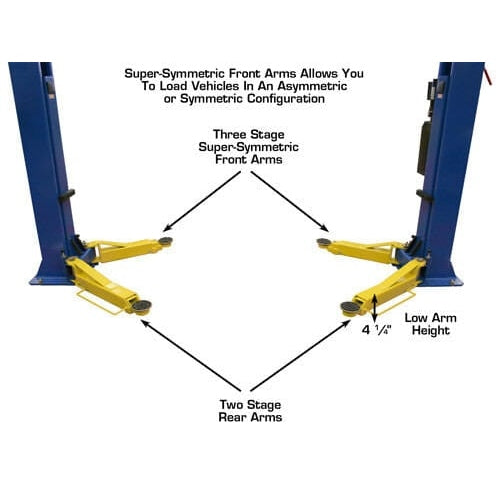

3-Stage Front Arms/2-Stage Rear Arms

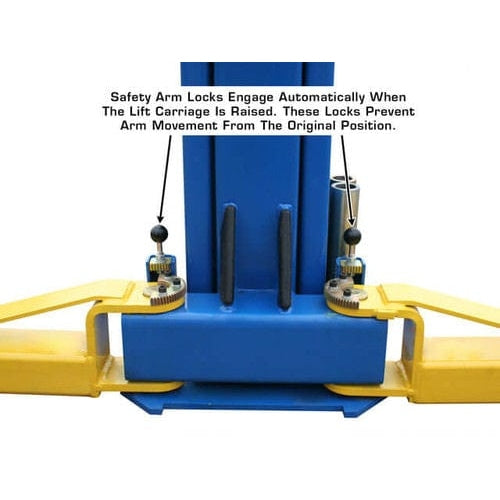

Automatic Arm Restraints

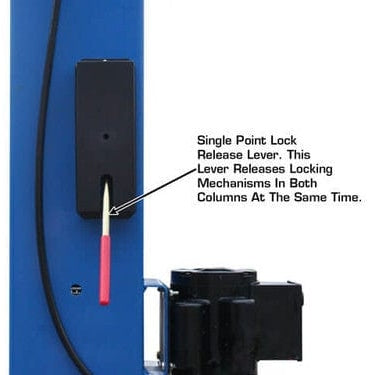

Single-Point Lock Release
Rubber Guards on Carriages

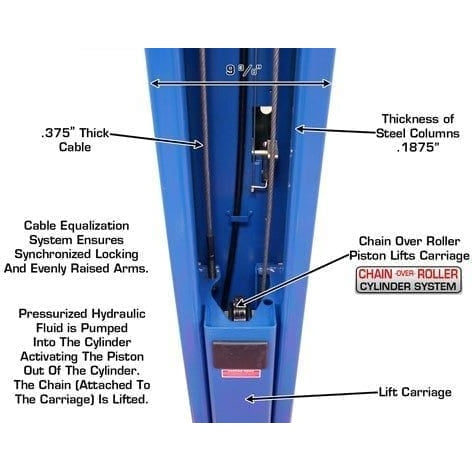

Dual Hydraulic Chain-Drive Cylinders

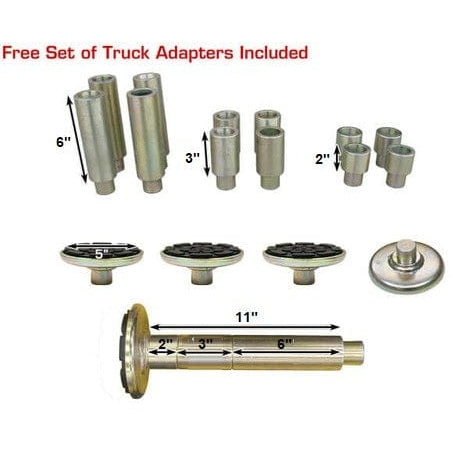

Free 12 Piece Truck Adapter Set

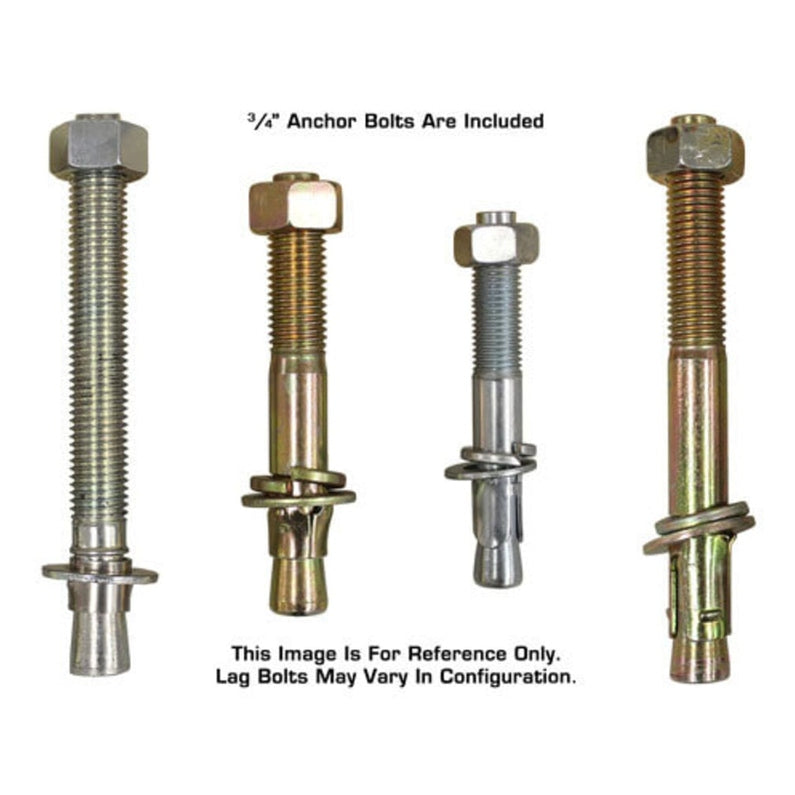

Mounting Hardware Included

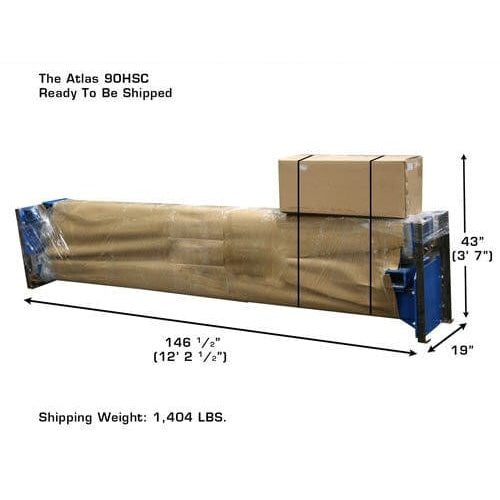

Shipping Weight: 1,430 lbs.
5 yr Structural 2 yr Hydraulic Warranty Parts Only

Atlas ATTD-9OHSC-SS Specifications

Capacity
9,000 LB.

Overall Height
142″ (11 10″)

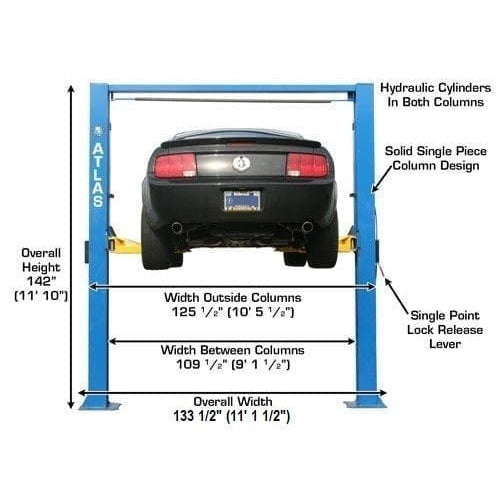

Overall Floor Width
133 1/2″ (11 1 1/2″)

Outside Column to Outside Column
125 1/2″ (10 5 1/2″)

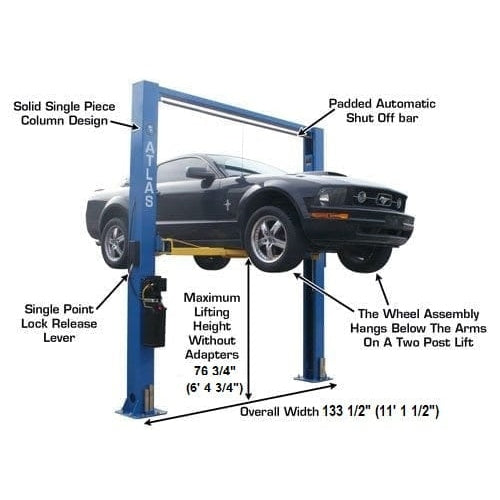

Maximum Lift Height (Without Adapters)
76 3/4″

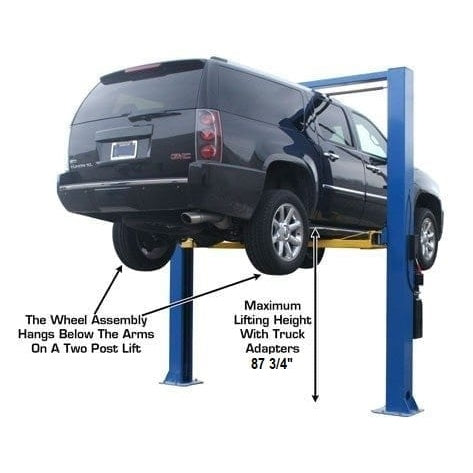

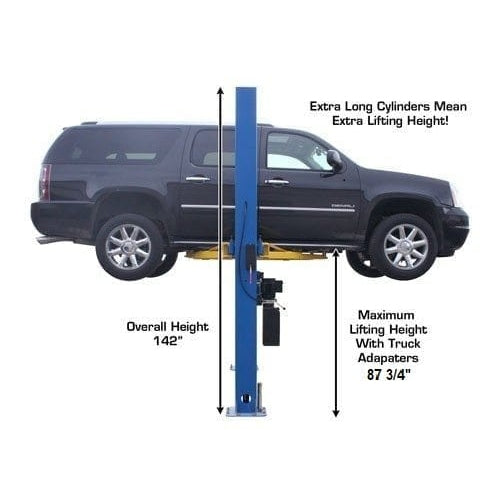

Maximum Lift Height (With Adapters)
87 3/4″

Minimum Arm Height
4″

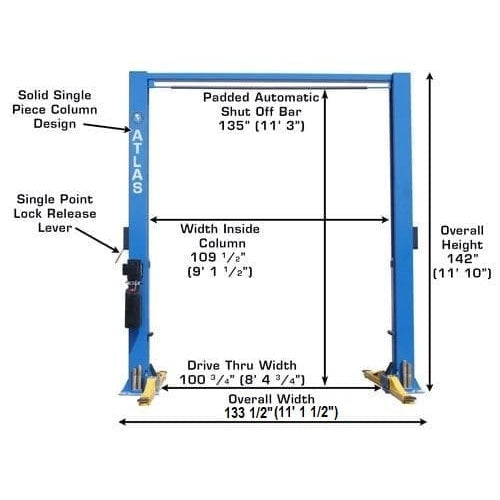

Inside Column
109 1/2 (9 1 1/2)

Drive Thru
100 1/2 (8 4 1/2)

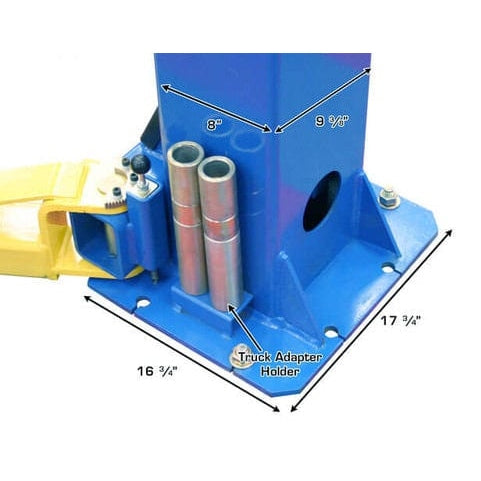

Column Size
8″ x 9 3/8″

Column Thickness of Steel
5mm

Base Of Lift
16 3/4″ x 17 3/4″

Motor/Electrical Requirement
220 volt single (1) phase.A 30 amp breaker is recommended

Oil Requirement
3-5 Gallons AW32/AW46 (NOT INCLUDED)

Shipping Weight
1,430 LBS.

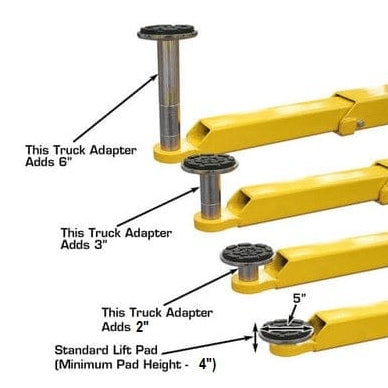

Adapter Heights
4 Each 2, 3, 6

Arm Hole/Adapter Peg Size
1.5

Requires a minimum of 4″ of concrete with a 3000 psi. rating

Documents
Atlas ATTD-9OHSC-SS Manual
Atlas 9OHSC-SS Cylinder Bleeding Procedure(Do this immediately after installation)
