Atlas OHX10000X 10,000 lb Extra Tall 2-Post Lift

Description

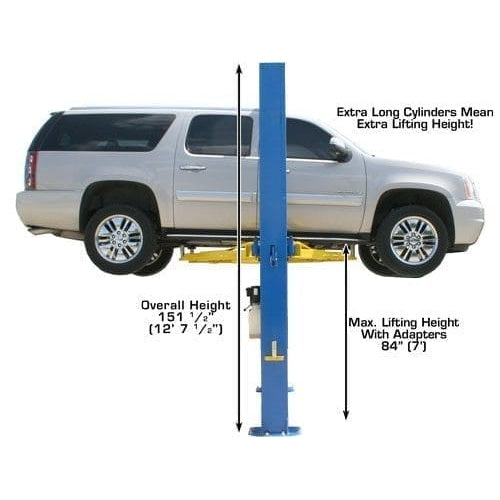

The Atlas® OHX10000X two post commercial grade above ground lift is the perfect choice for those large commercial repair facilities or the “Mr. Homeowner” who demand the highest quality at the absolute best price. The Atlas® OHX10X is a TRUE 10,000 lb. capacity two post lift that offers a great value to the customer.  Due to the drive through width, arm length and arm style the Atlas® OHX10000X was engineered and manufactured to lift a wide range of vehicles, specifically longer wheel based vehicles such as a one-ton diesel dually. Extra lifting height and extra width between the columns allows the operator to work on varied sizes of vehicles and offers a “fudge factor” of about 6 inches when “driving through” to another part of the building or lifting the van or “ladder truck”. If you are over 6′ 1″, the Atlas® OHX10X has longer cylinders which allow the vehicle to be “lifted” about 3 inches higher than many other lifts.

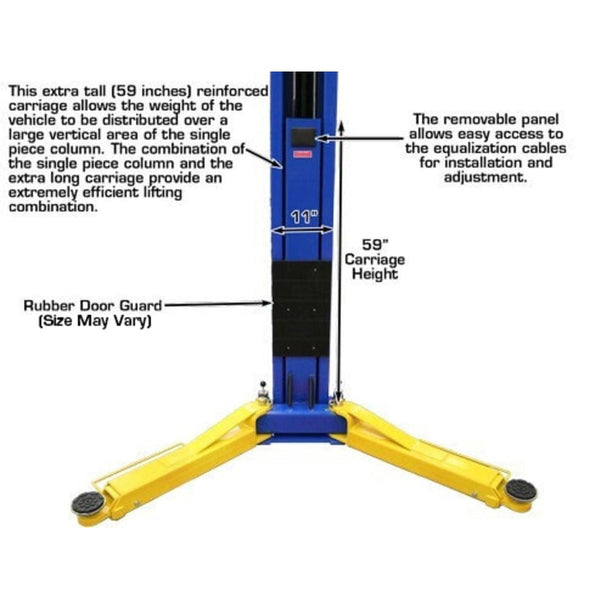

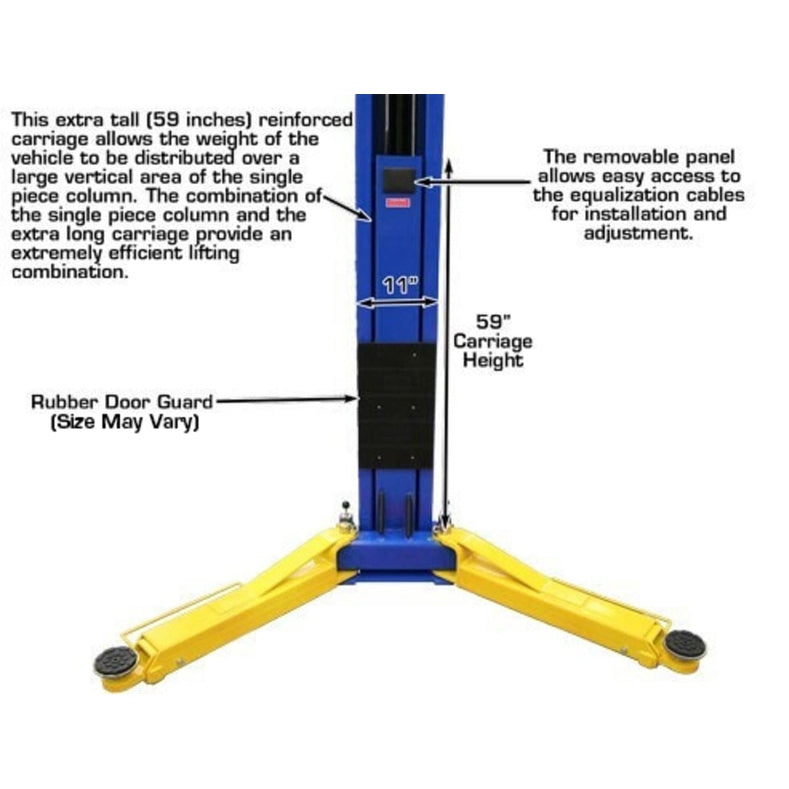

The Atlas® OHX10X incorporates a single piece 12′ 7″ formed column and an extra-long carriage that provides maximum column and arm strength to lift and support a 10,000 lb. vehicle. The single piece columns require the customer to have a ceiling of at least 13 feet to stand the column.
Features

10,000 lb. Capacity

Commercial Grade

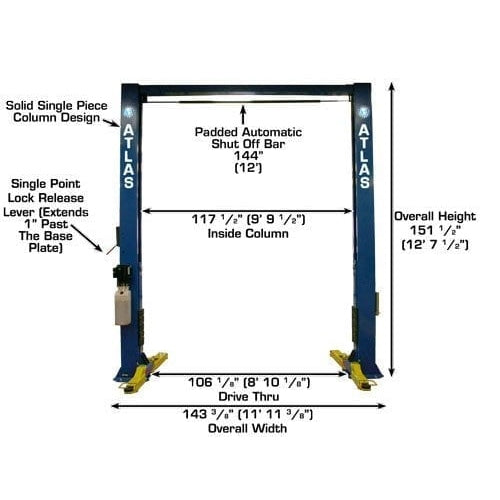

Extra Tall & Extra Wide

Overall height: 152″ (12′ 8″)

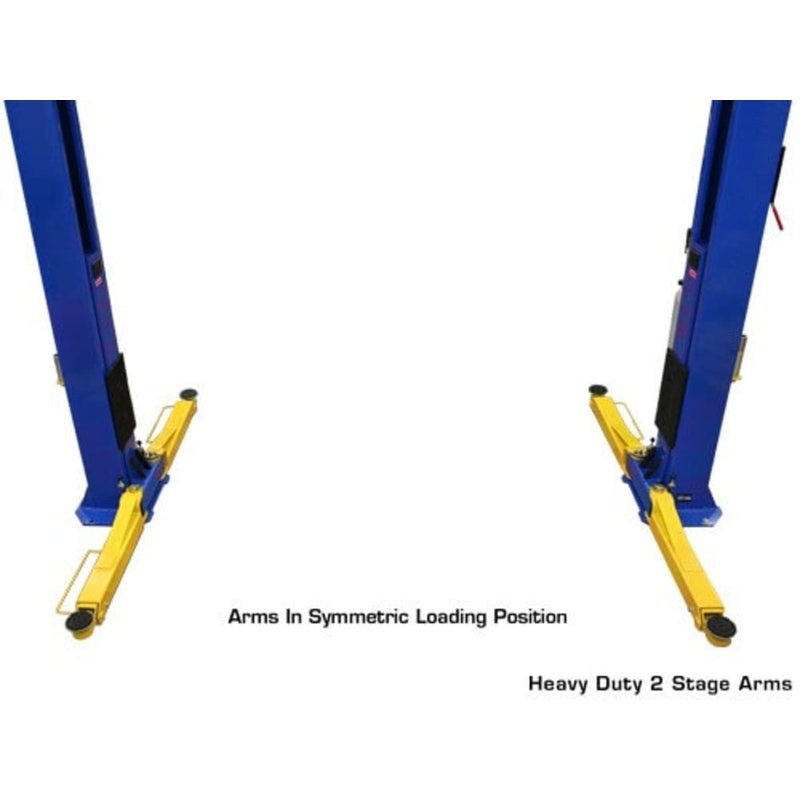

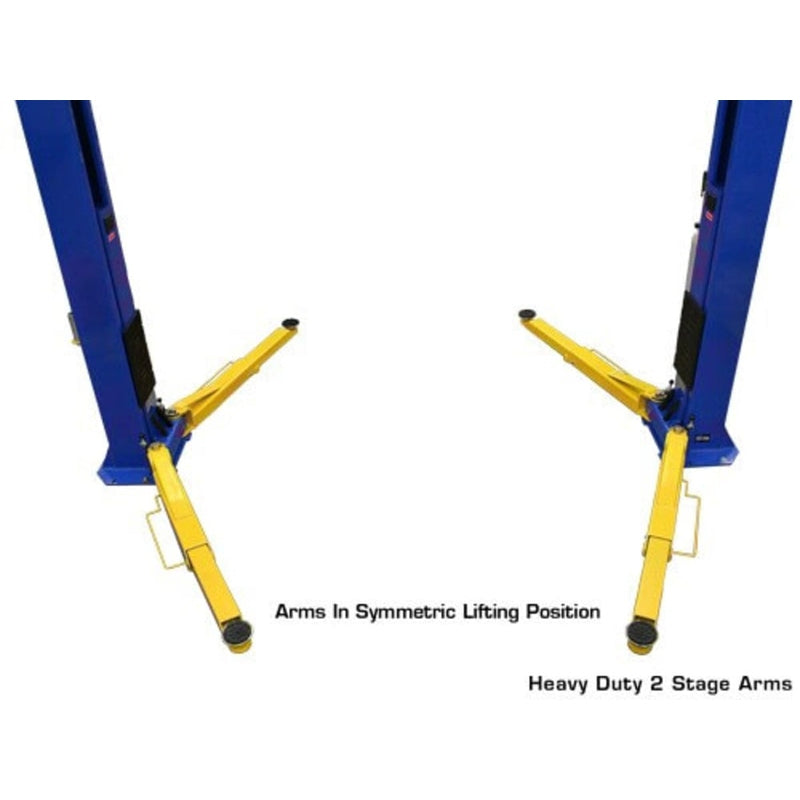

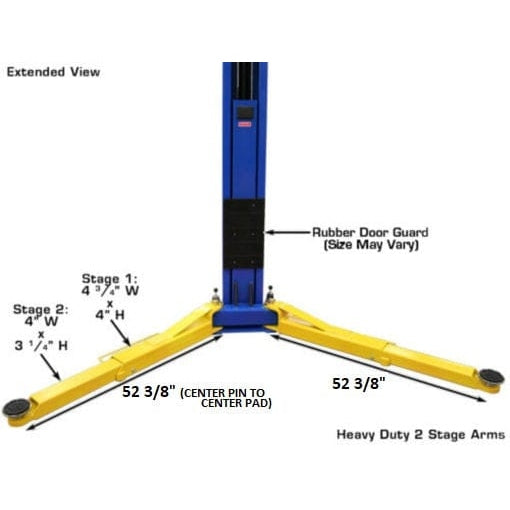

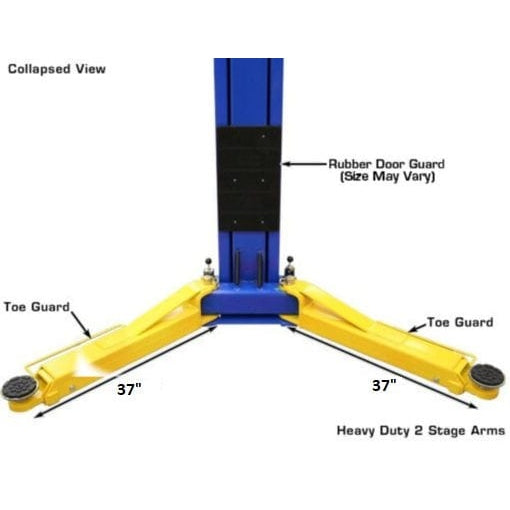

Symmetric arms

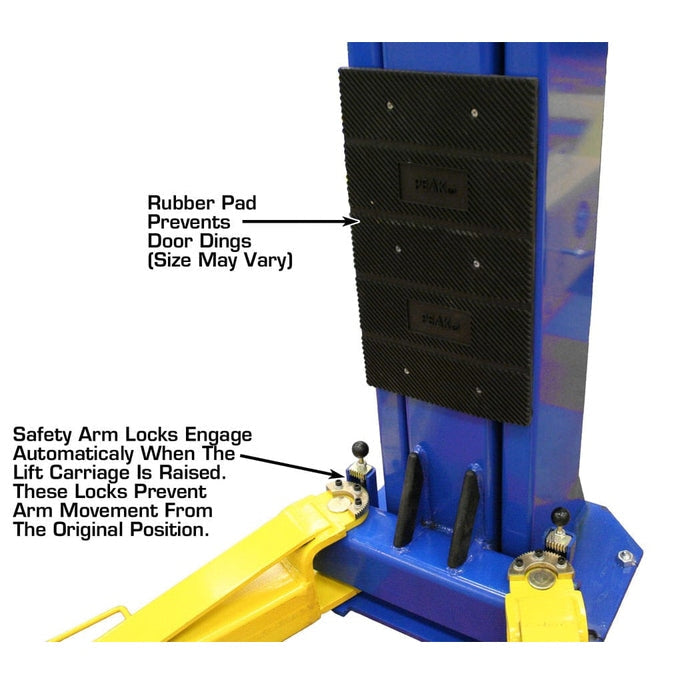

Automatic Arm Restraints

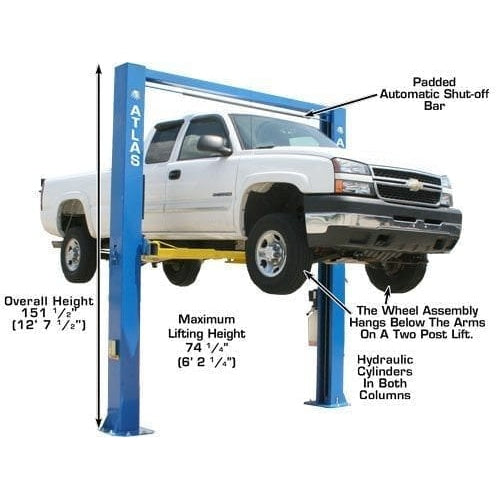

“Padded” Shut-Off Bar

Rubber Covers on Carriages

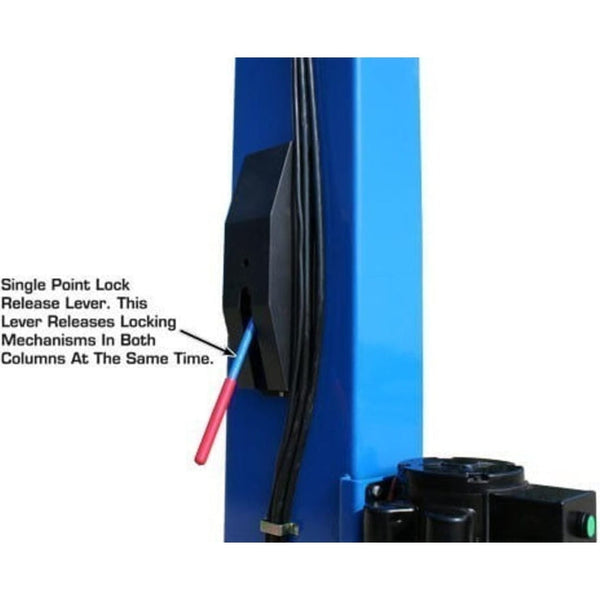

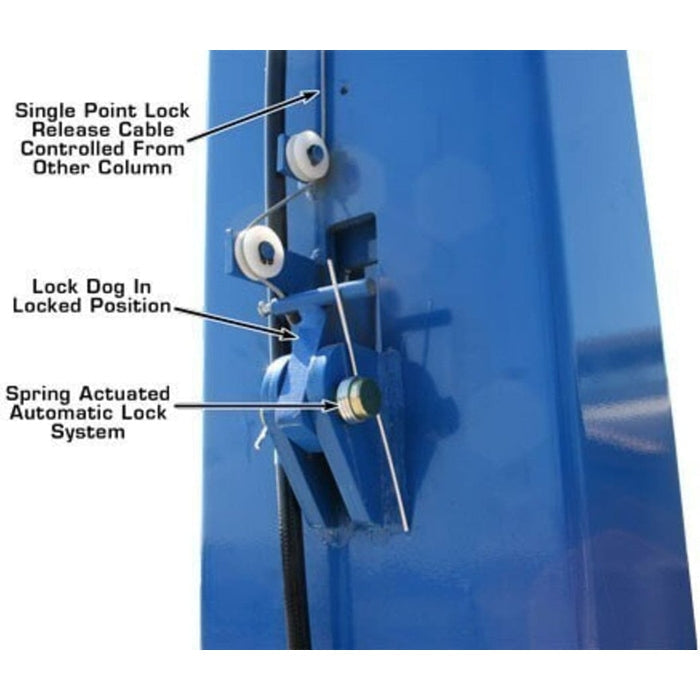

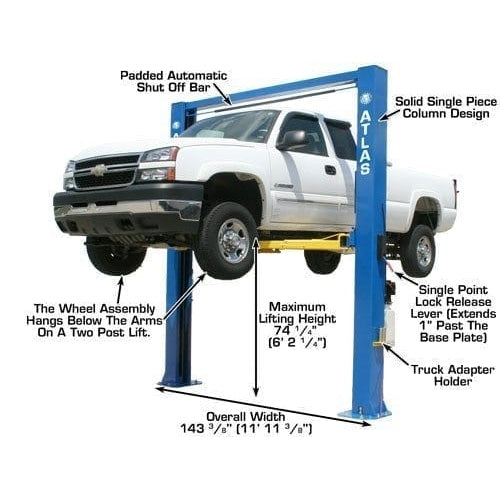

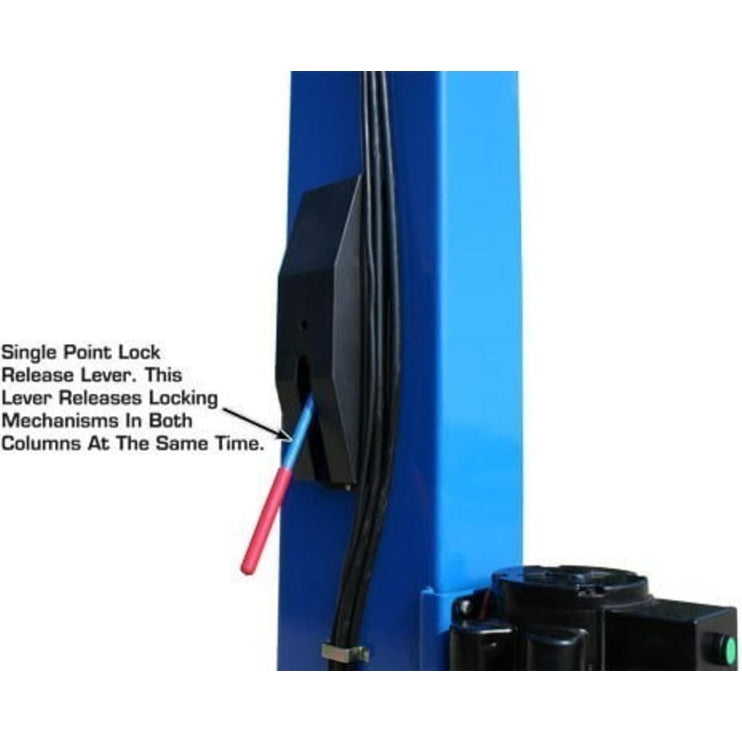

Single Point Lock Release

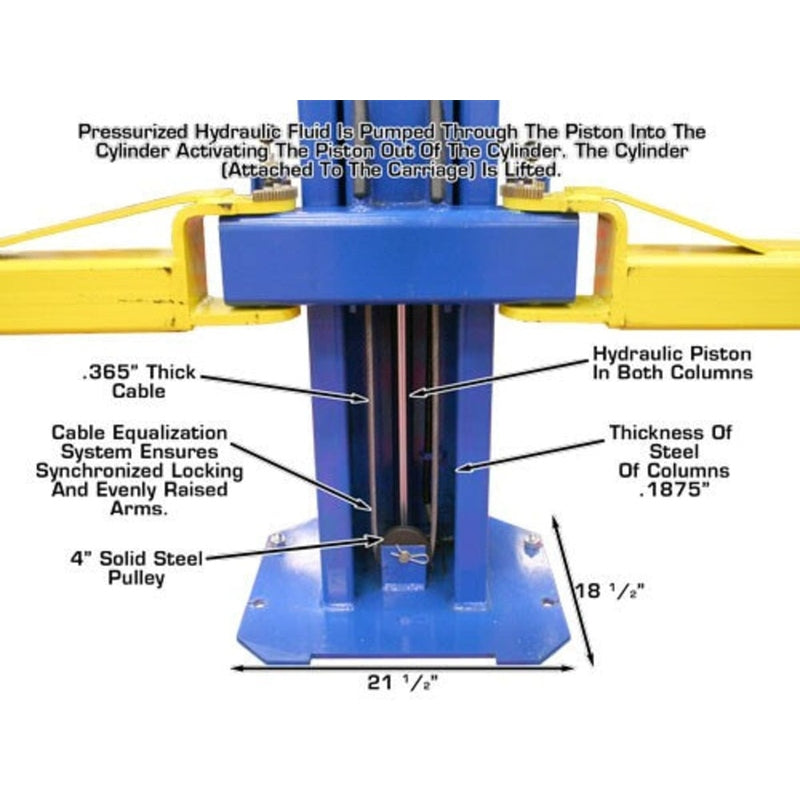

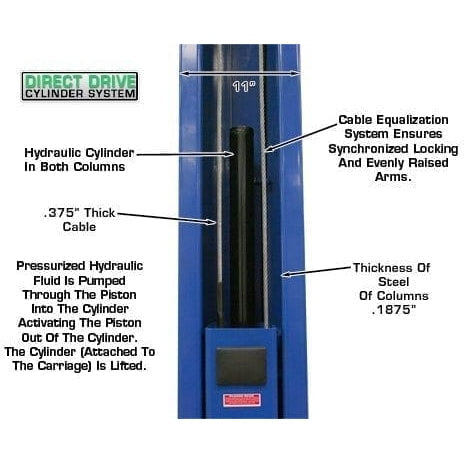

Dual Direct-Drive Cylinders

Powder Coat Finish

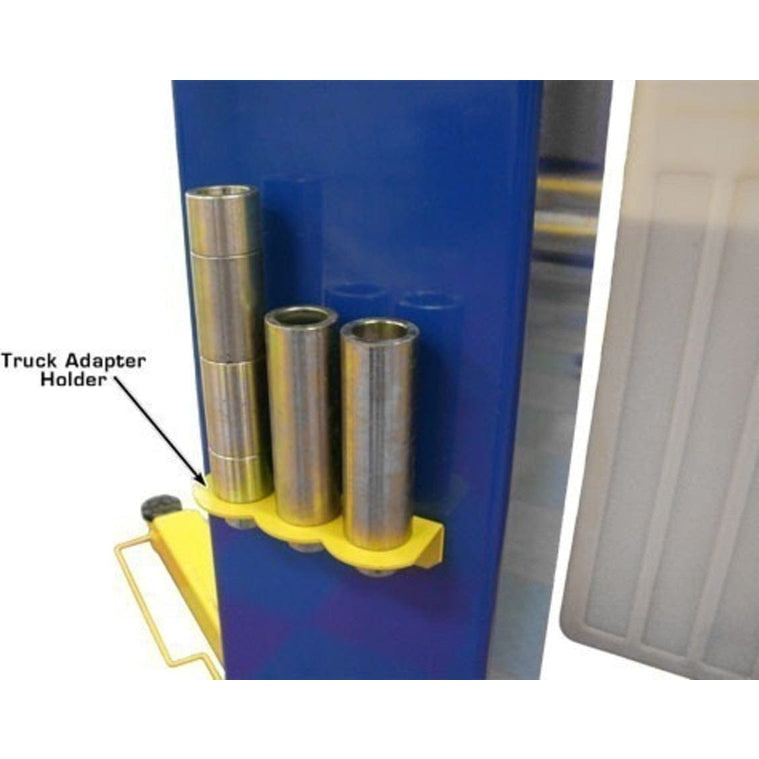

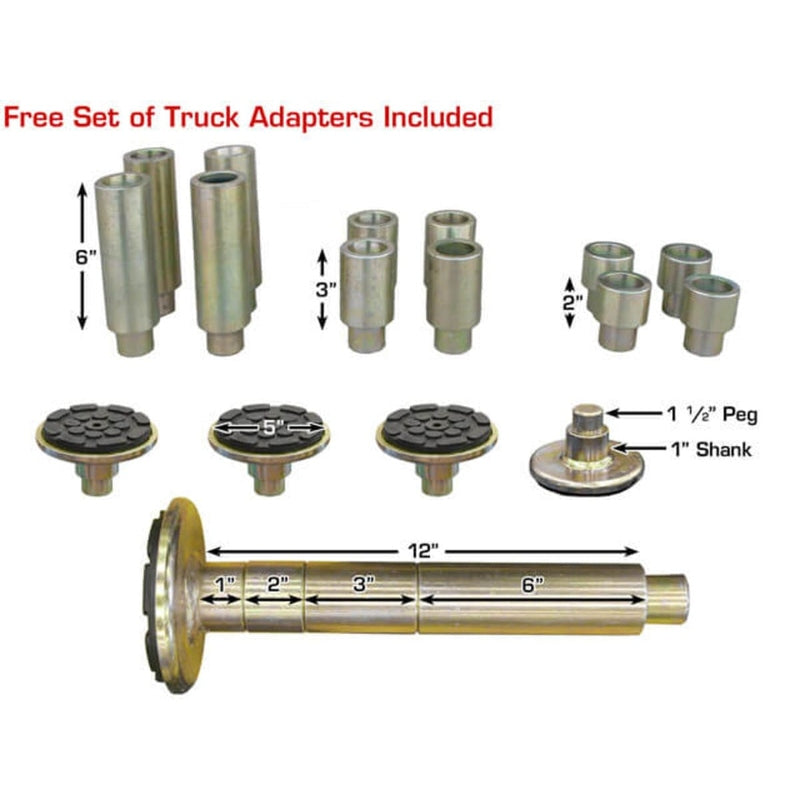

Free 12 Piece Truck Adapter Set

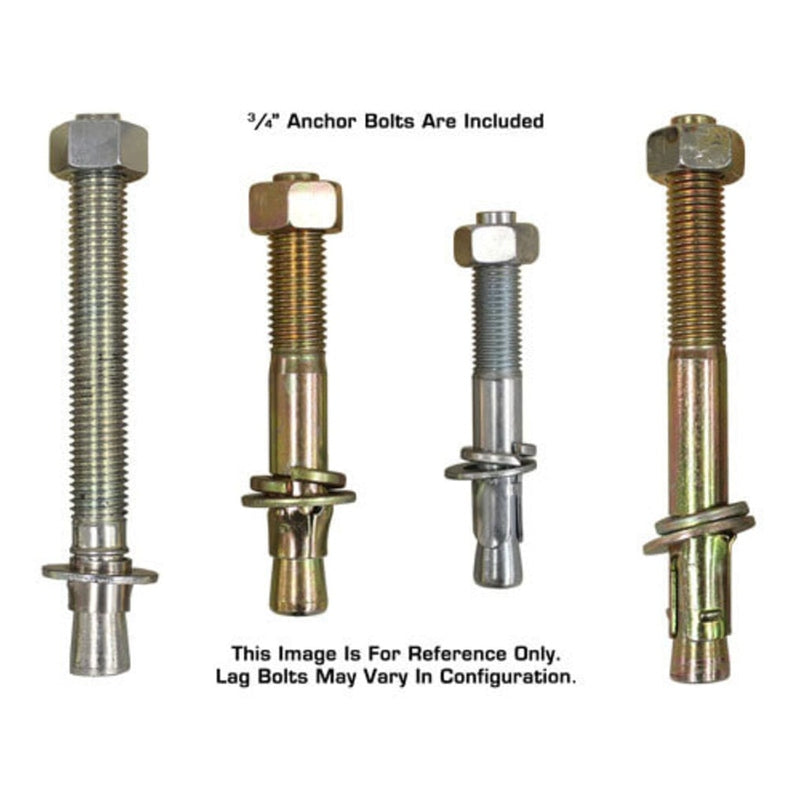

Mounting Hardware Included

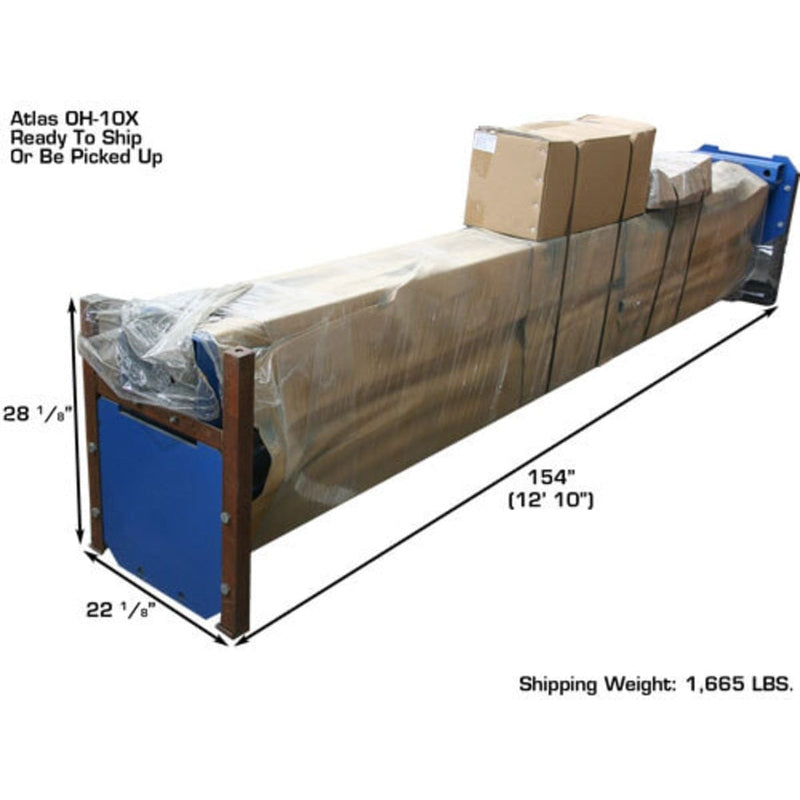

Shipping Weight: 1,665 lbs

5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

Specifications

Atlas® ATTD-OHX10000X Specifications

Capacity
10,000 LB.

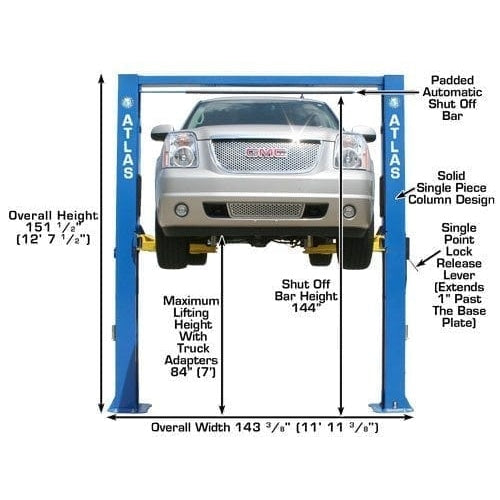

Overall Height
152″ (12’ 8”)

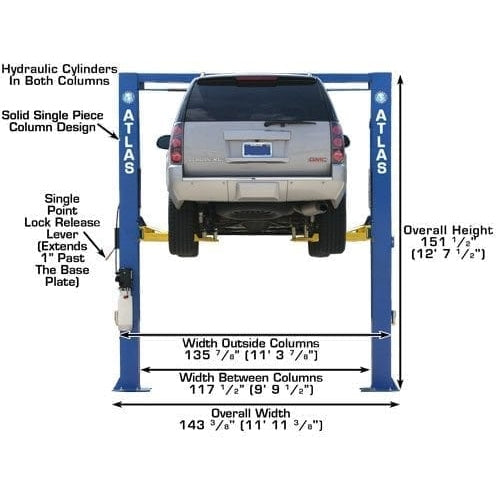

Overall Floor Width
144 3/8″ (12’ 3/8″)

Outside Column to Outside Column
136″ (11’ 4″)

Maximum Lift Height (Without Adapters)
74 3/4″

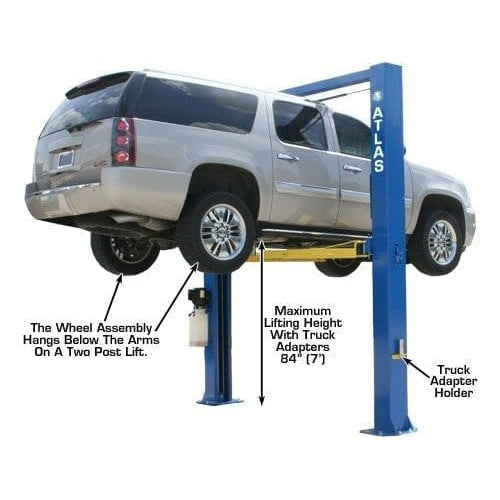

Maximum Lift Height (With Adapters)
85 3/4″

Minimum Arm Height
4 1/2″

Inside Column
118 1/4” (9’ 10 1/4”)

Drive Thru
106 7/8” (8’ 10 7/8”)

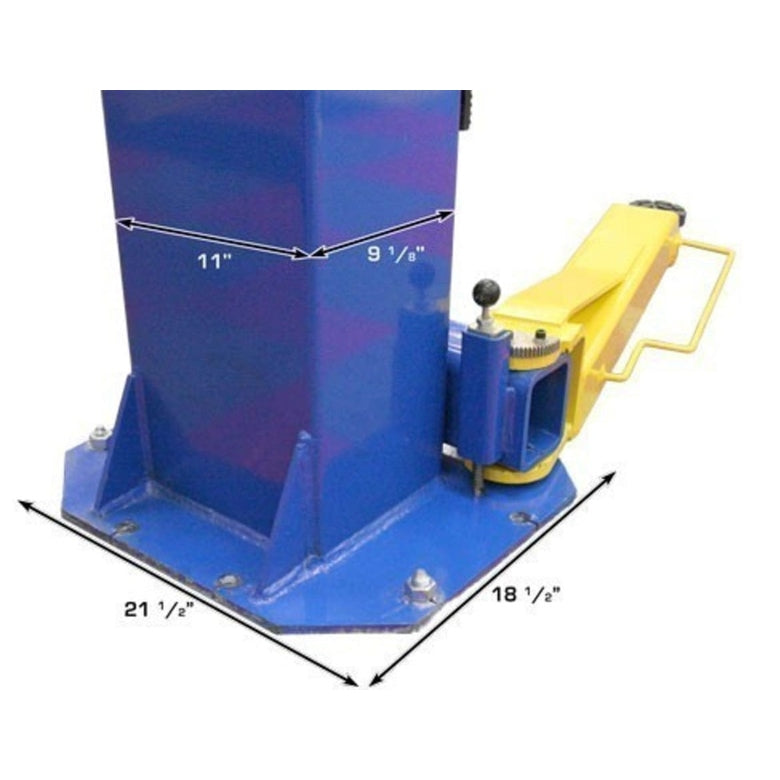

Column Size
9 1/8″ x 11″

Column Thickness of Steel
5mm

Base Of Lift
18 1/2″ x 21 1/2″

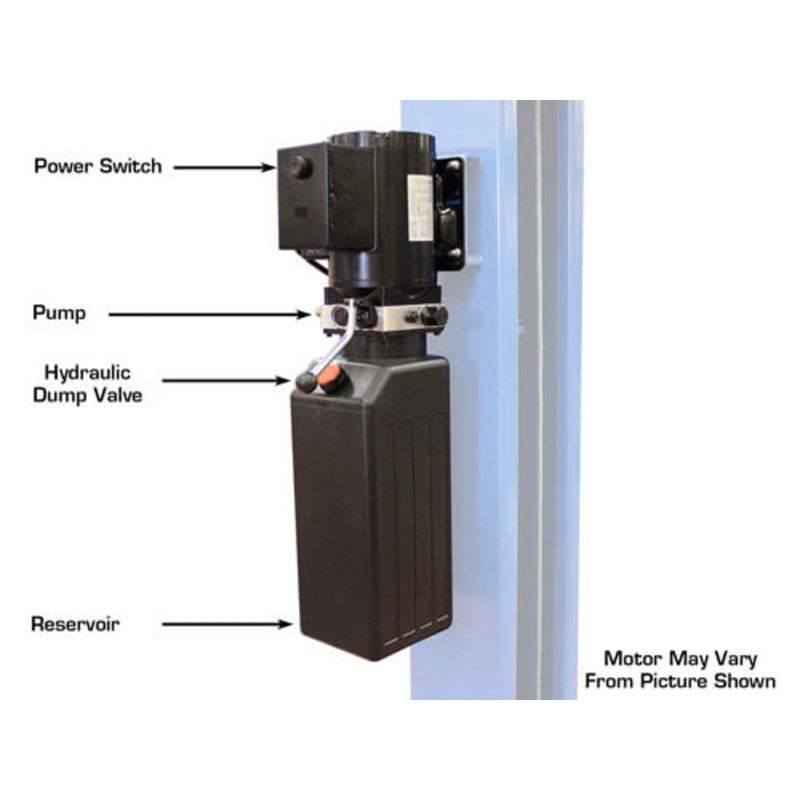

Motor/Electrical Requirement
220 volt single (1) phase.A 30 amp breaker is recommended

Oil Requirement
3-5 Gallons AW32/AW46 (NOT INCLUDED)

Shipping Weight
1,665 LBS.

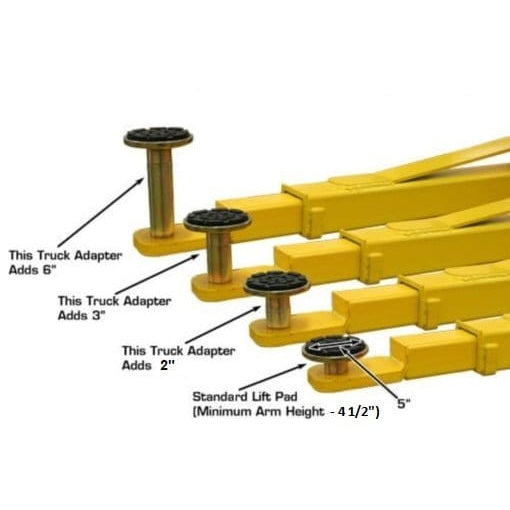

Adapter Heights
4 Each 2”, 3”, 6”

Arm Hole/Adapter Peg Size
1.5”

Requires a minimum of 4″ of concrete with a 3000 psi. rating

Documents
Atlas® ATTD-OHX10000X Manual
