Atlas Platinum PVL15 15,000 lb Heavy Duty 2-Post Lift

Description

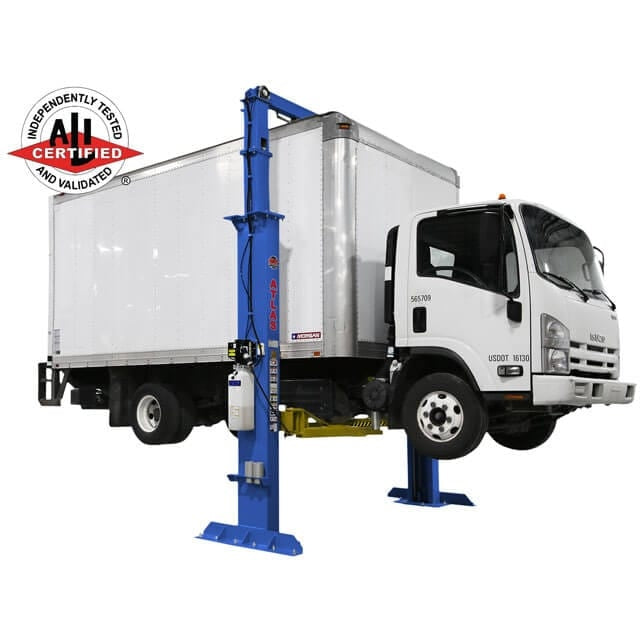

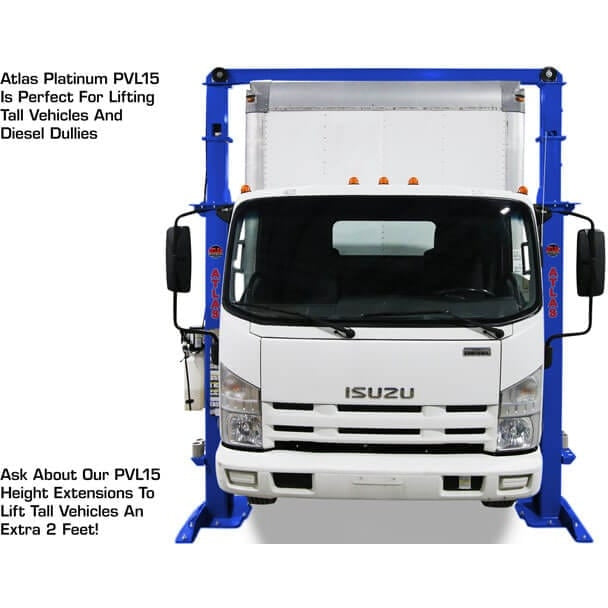

The Atlas® Platinum PVL15 is an ALI CERTIFIED, commercial grade, 15,000 lb. capacity overhead two-post lift designed to accommodate both long wheel base trucks and service trucks. The Platinum PVL15 has an overall height of 174 1/2″ (14′ 6 1/2″), but can be extended by an extra 2 feet to accommodate taller vehicles with the Height Extension Kit.

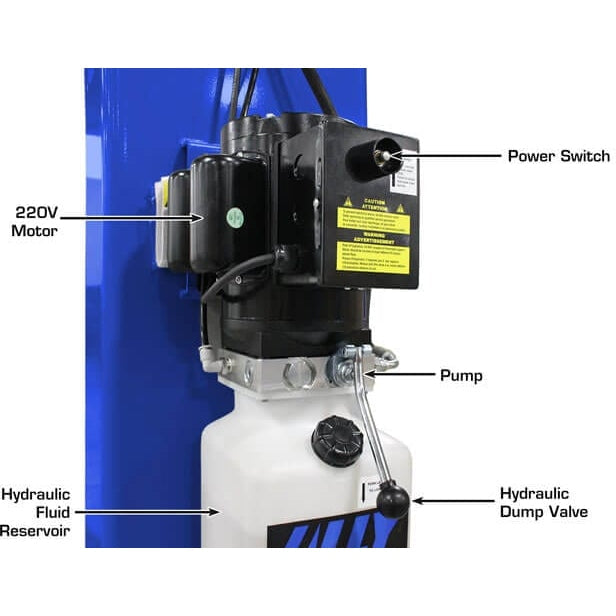

This product features an ALLY Hydraulic AL2300 Power Unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.
Features

ALI Certified Lift

15,000 lb. Capacity

Heavy Duty, Commercial Grade

Extra Tall & Extra Wide

Overall Height 174 1/2″ (14′ 6 1/2″)

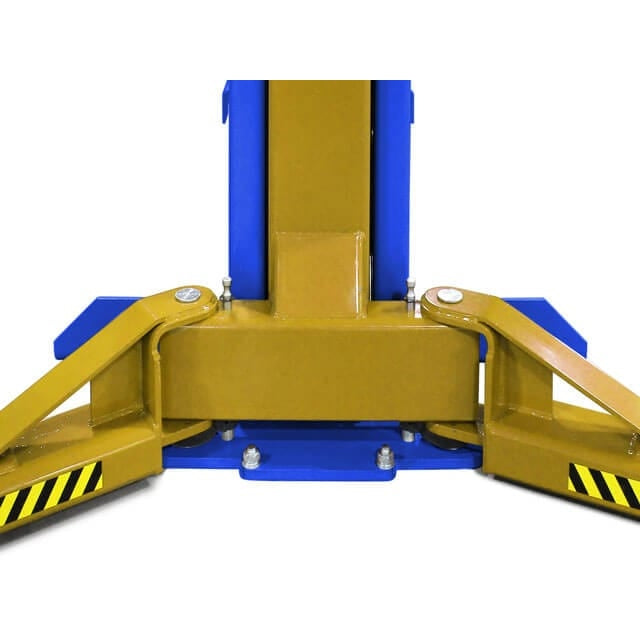

Padded Carriages

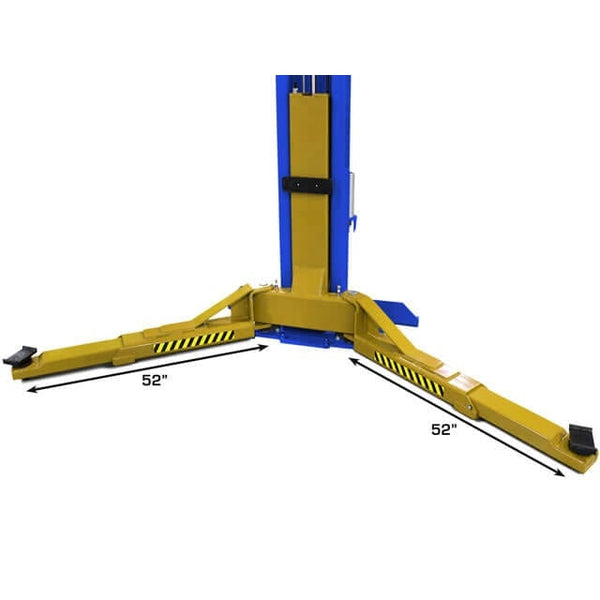

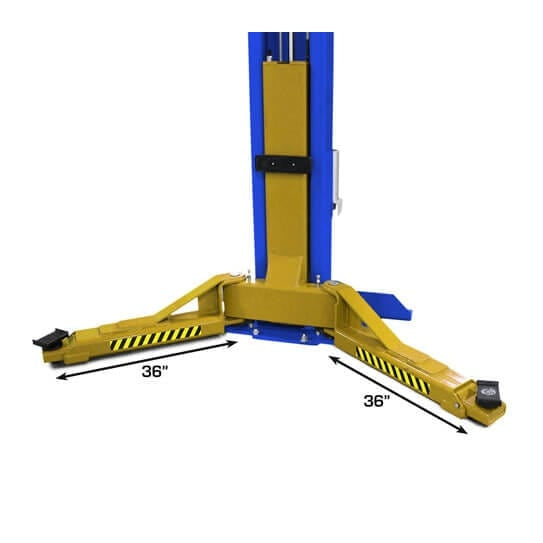

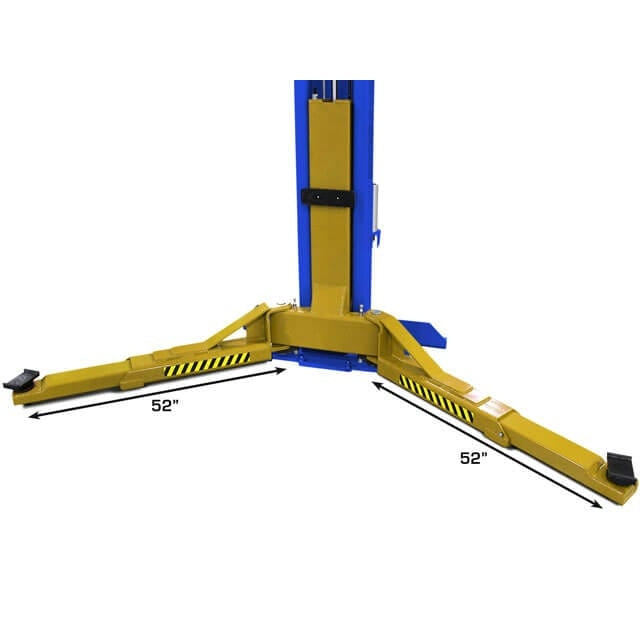

Symmetric Arms

Professional Grade Arm Lock Restraint System

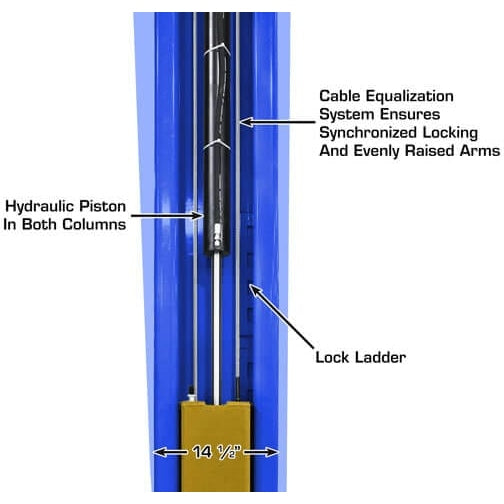

Dual Direct-Drive Hydraulic Cylinders

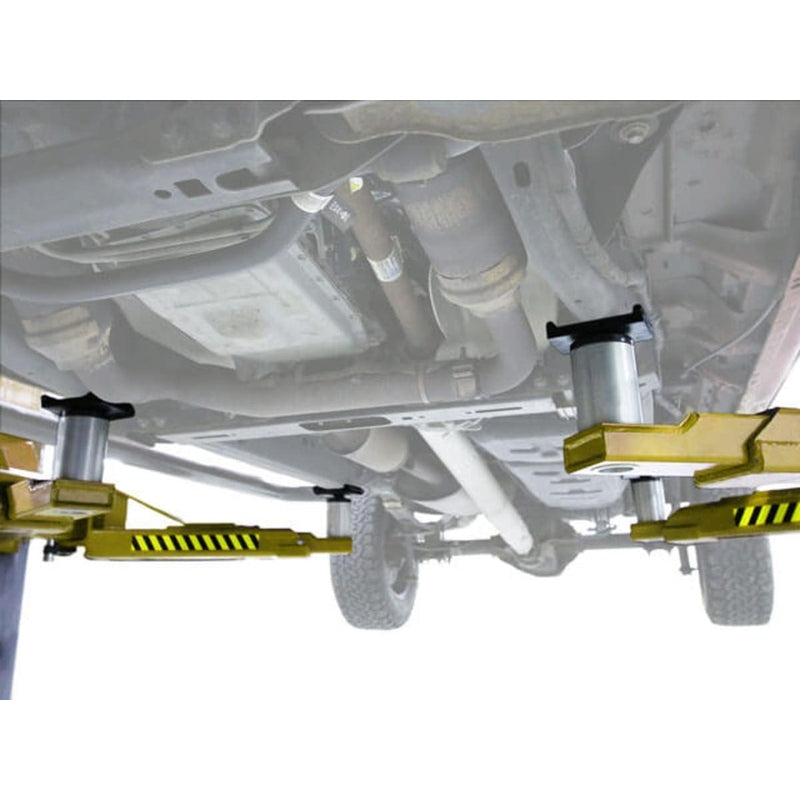

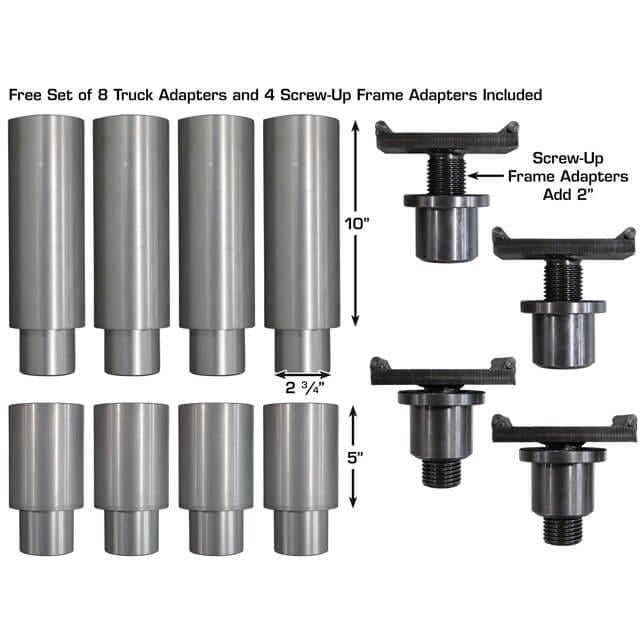

Free 8 Piece Truck Adapter Set and 4 Screw-Up Frame Adapters

Heavy Duty 3/8″ Equalization Cables

Mounting Hardware Included

Standard with Premium ALLY Powerunit

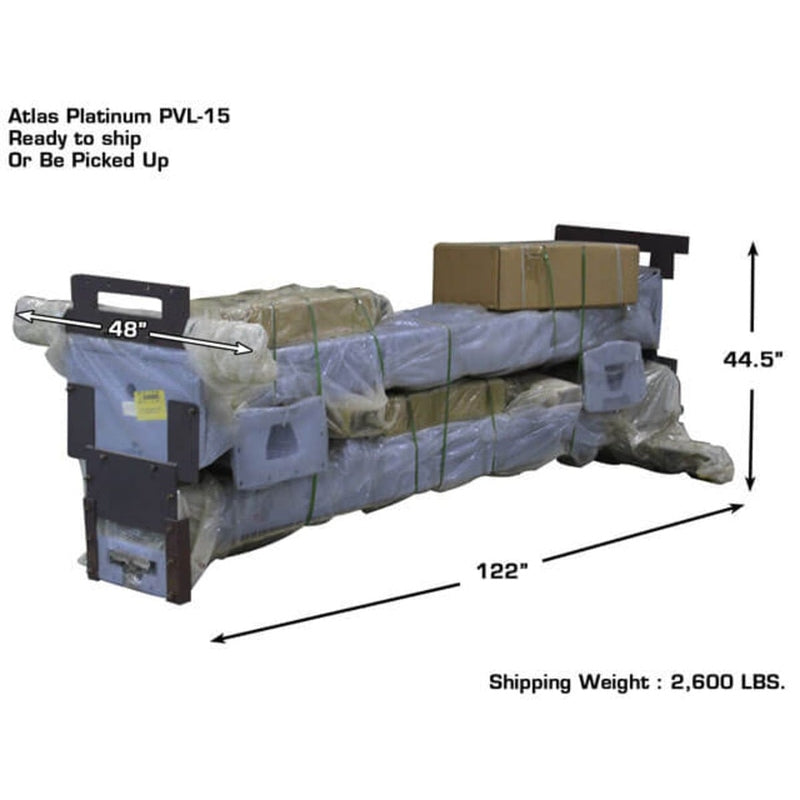

Shipping Weight: 2,600 lbs.

5 yr Structural – 2 yr Hydraulic – 2 yr Powerunit Warranty

Specifications

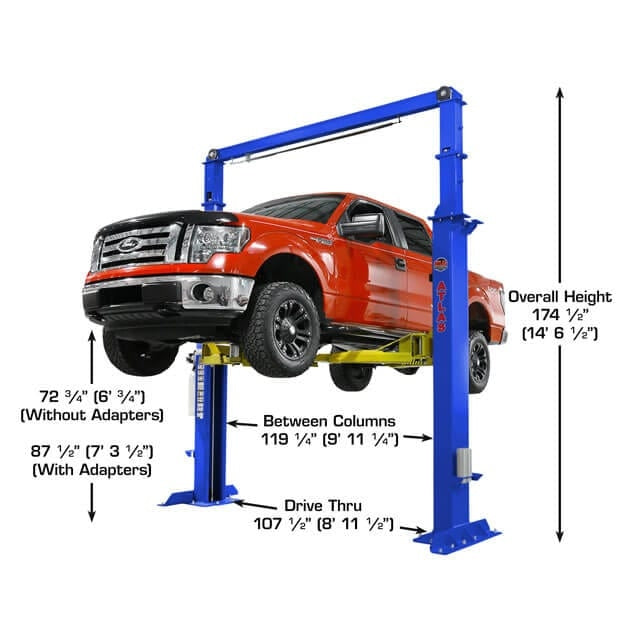

Atlas® Platinum PVL15 Specifications

Capacity
15,000 LB.

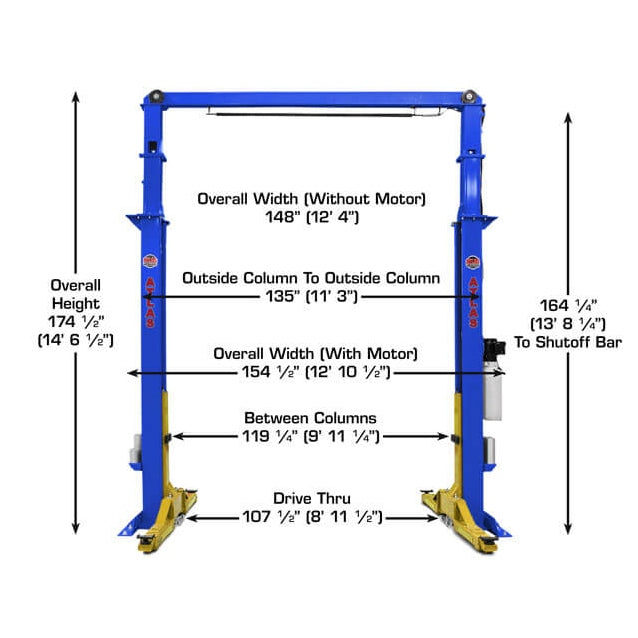

Overall Height
174 1/2″ (14’ 6 1/2”)

Overall Floor Width
148″ (12’ 4”)

Outside Column to Outside Column
135″ (11’ 3″)

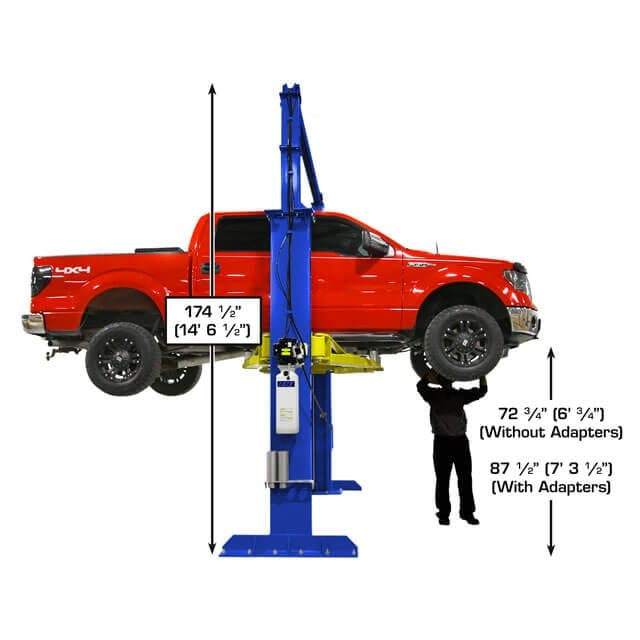

Maximum Lift Height (Without Adapters)
72 3/4″

Maximum Lift Height (With Adapters)
87 1/2″

Minimum Arm Height
6″

Inside Column
119 1/4” (9’ 11 1/4”)

Drive Thru
107 1/2” (8’ 11 1/2”)

Column Size
8″ x 14 1/2″

Column Thickness of Steel
8mm

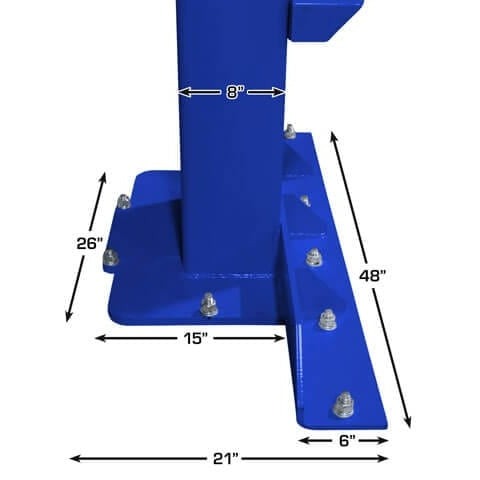

Base Of Lift
21″ x 48″

Motor/Electrical Requirement
220 volt single (1) phase.A 30 amp breaker is recommended

Oil Requirement
3-5 Gallons AW32/AW46 (NOT INCLUDED)

Shipping Weight
2,600 LBS.

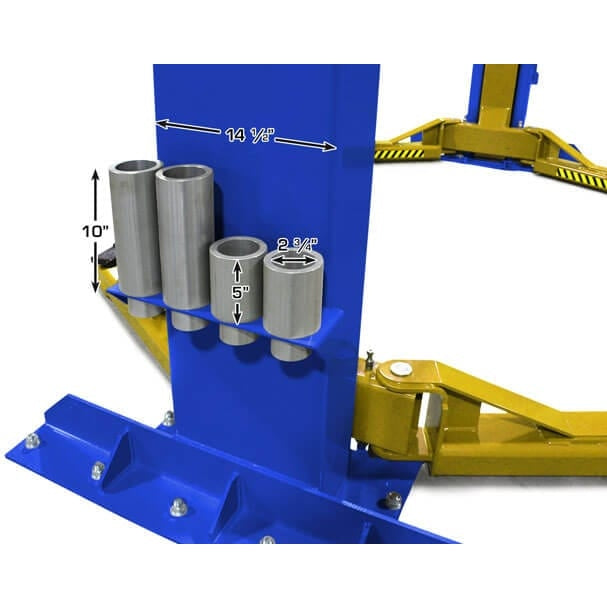

Adapter Heights
4 Each 5”, 10”

Arm Hole/Adapter Peg Size
2.75”

Requires a minimum of 6″ of concrete with a 3000 psi. rating
