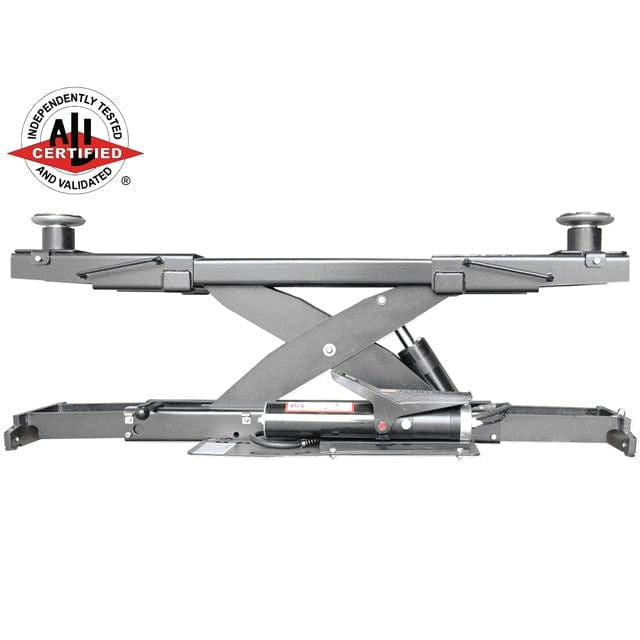

Atlas Platinum RJ7000 ALI Certified 7,000 lb. Capacity Rolling Jack

Description

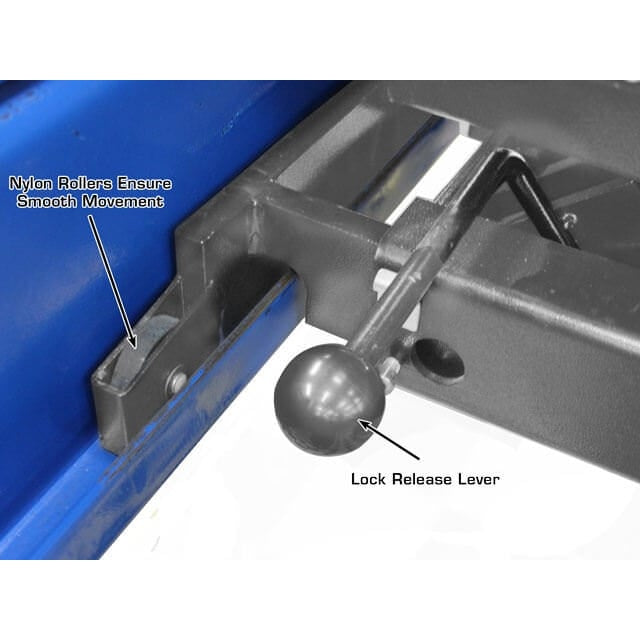

The Atlas® Platinum RJ7000 air/hydraulic rolling jack has telescoping arms that can be extended over the runways of a four post lift. The lift pads at the end of these arms can be positioned under the lifting points that are located over the runways of that four post lift. This rolling jack is equipped with expandable rail supports which adjust to fit between the runways of many different four post above ground lifts. These supports have a unique roller system that allows the rolling hydraulic jack to glide easily under the entire length of the vehicle.
The Atlas® Platinum RJ7000 is an ALI Certified Accessory recommended for the Atlas® Platinum line of ALI Certified 4-Post lifts.

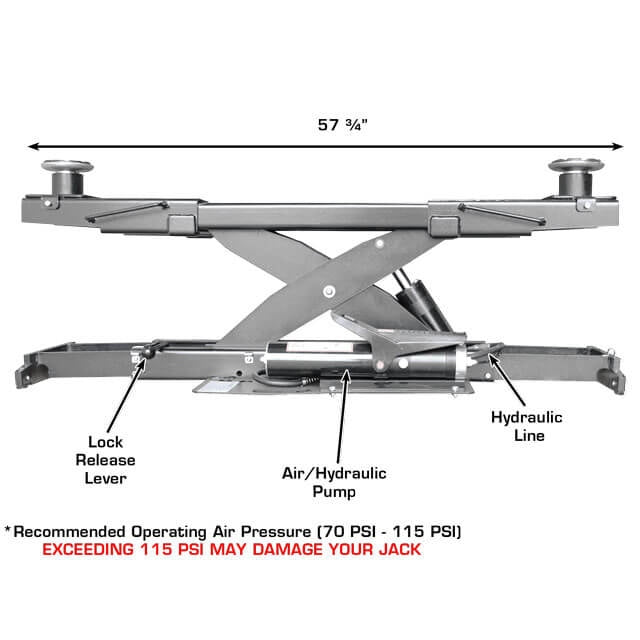

IMPORTANT: The Atlas® AP-RJ7000 is designed and engineered to operate on “delivered” air pressure of between 70-115 PSI. If you exceed 115 PSI, you may damage your jack.
Features

ALI Certified Accessory, Recommended for Platinum PVL14 & Platinum PVL14OF-EXT

7,000 lb. Capacity

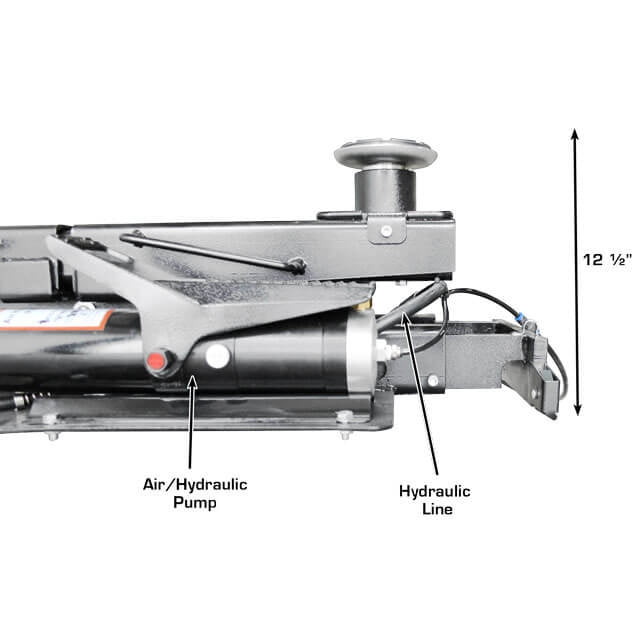

Air/Hydraulic Operated

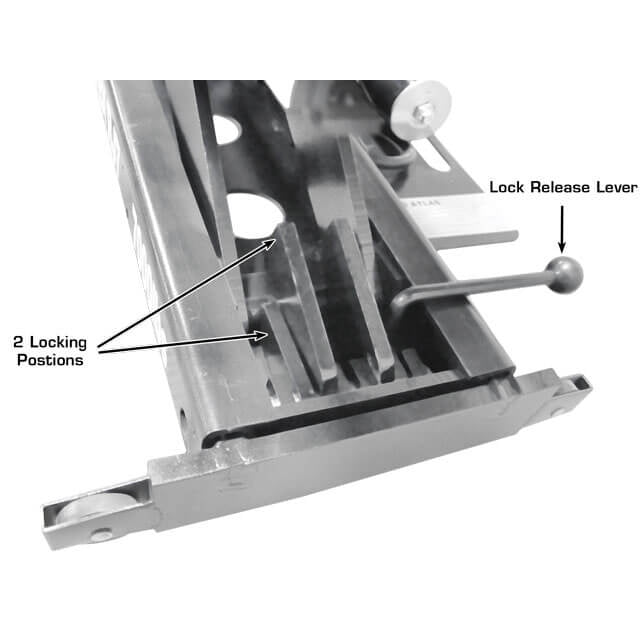

Two Safety Lock Positions

Double Screw-Up Adapters Included

Compact Size with Low Profile

Smooth Rolling Action

Scissor mechanism allows for level lifting

Powder Coated Finish

1 Year Parts Only Warranty

Specifications

Atlas® Platinum RJ7000 Specifications

Maximum Capacity
7,000 lb.

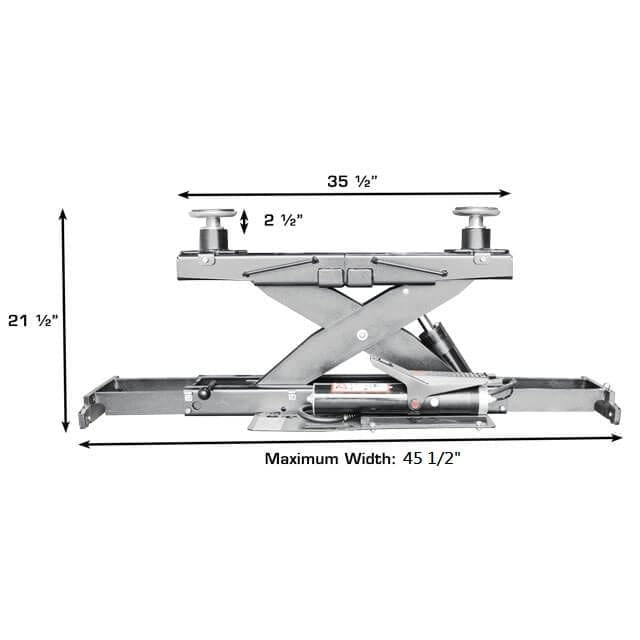

Maximum Width
45 1/2″ (3′ 9 1/2″)

Minimum Width
36″ (3′)

Distance Between Runway Capability
36″- 45″

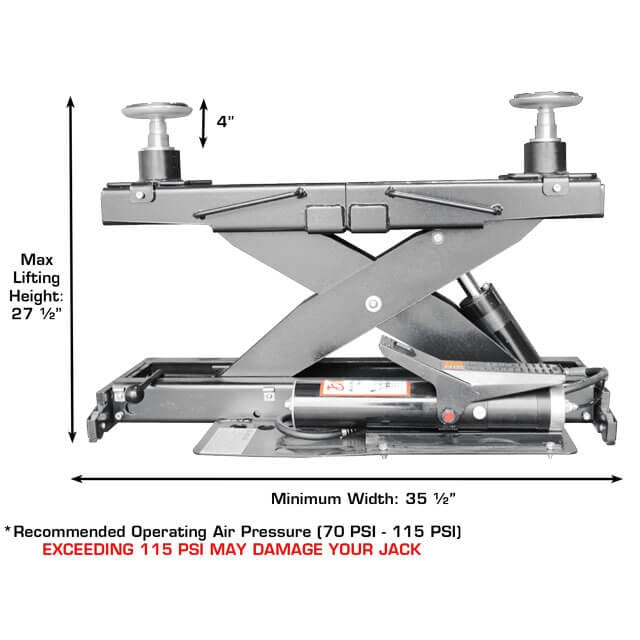

Maximum Lifting Height (With Adapters)
27 1/2″ (2′ 3 1/2″)

Air Requirement
70-115 PSI

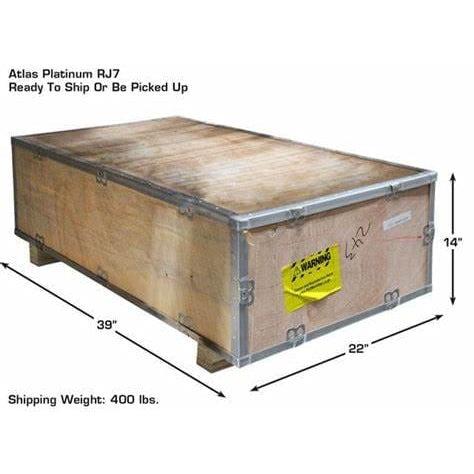

Shipping Weight
400 lbs.

Double Screw-Up Adapter Pad
1 1/2″ – 4″

Documents
Atlas® Platinum RJ7000 Manual
Rolling Jack Measuring Guide
