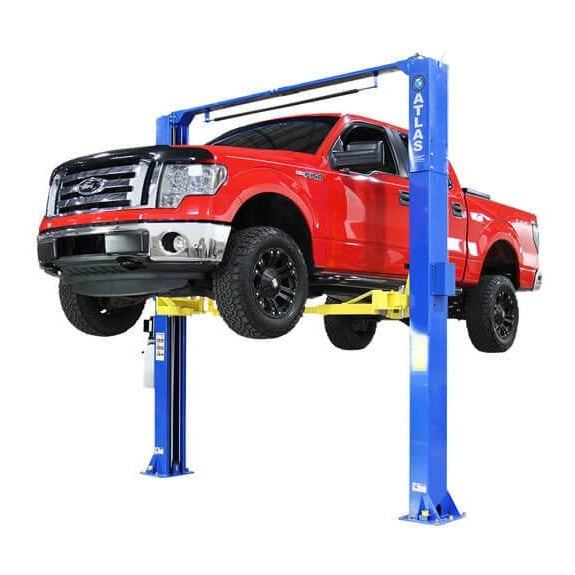

Atlas PRO-9D 9,000 lb Overhead 2-Post Lift

Description
The Atlas® PRO-9D two post above ground lift is the perfect choice for those smaller commercial repair facilities or the “Mr. Homeowner” who demand the highest quality at the absolute best price. The 12 foot tall Atlas® PRO-9D is a TRUE 9,000 lb. capacity two post lift that offers a great value to the customer.

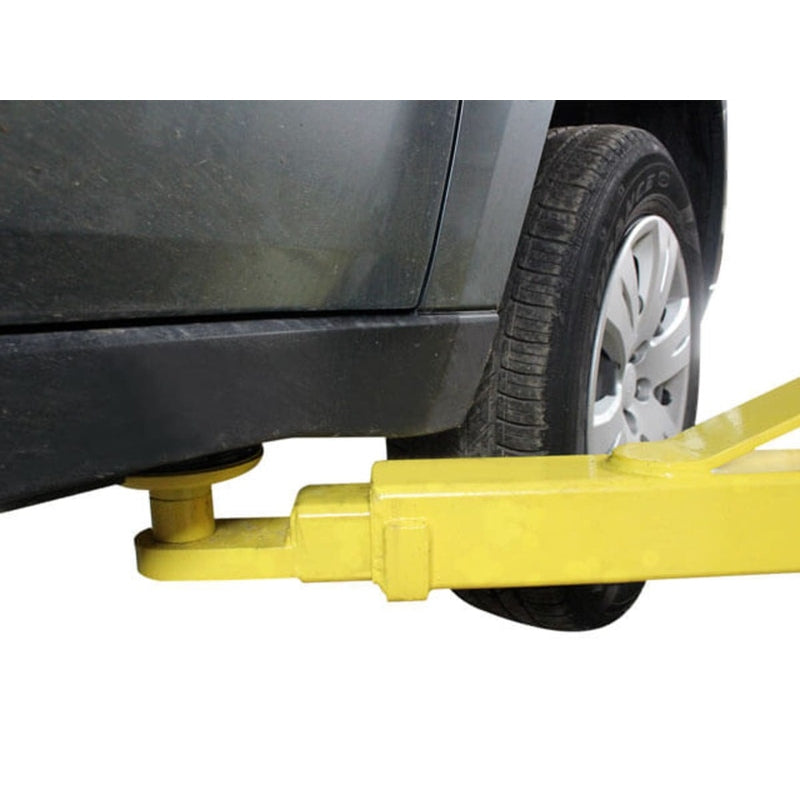

The Atlas® PRO-9D has symmetric columns and specially designed arms that can be set in either the symmetric or asymmetric position. The asymmetric/symmetric arm design offers an extremely low lift pad position on the EZ-metric lift arm configuration. This low pad height will allow the operator to position the lift arms under most small cars (with low pick up points) and heavier pick up trucks.

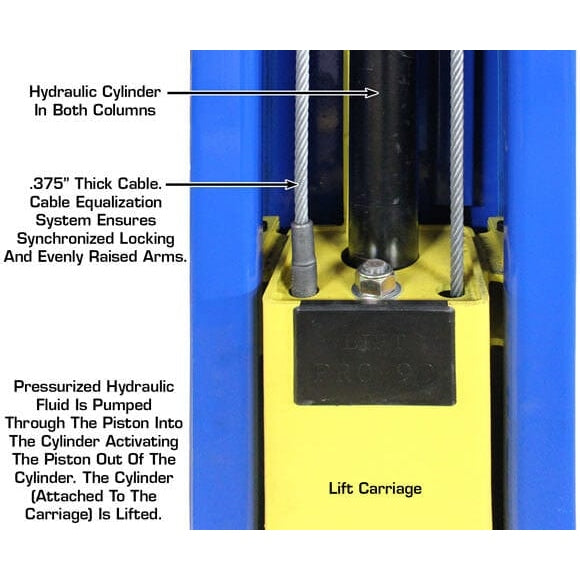

The PRO-9D has dual direct drive cylinder, this direct drive system, with fewer moving parts, ensures years of excellent lifting service from your Atlas above ground hoist.
.embed-container { position: relative; padding-bottom: 56.25%; height: 0; overflow: hidden; max-width: 100%; } .embed-container iframe, .embed-container object, .embed-container embed { position: absolute; top: 0; left: 0; width: 100%; height: 100%; }

Features

9,000 lb. Capacity

Overhead, Open-Floor design

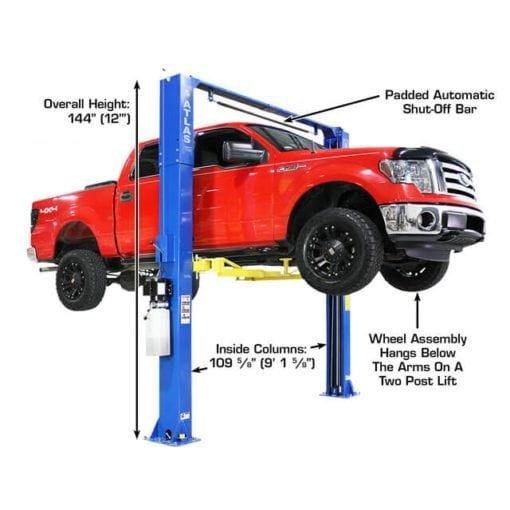

Overall Height: 144″ (12′)

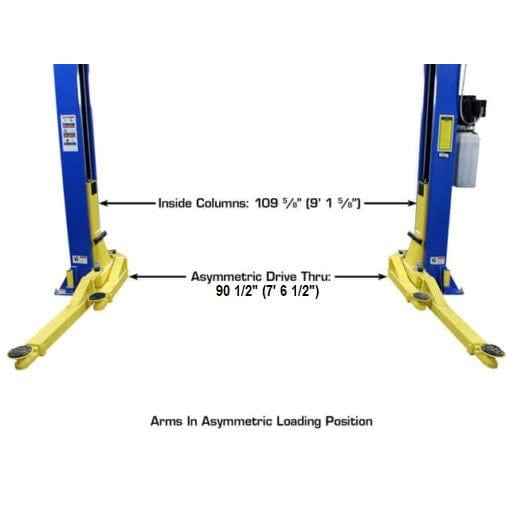

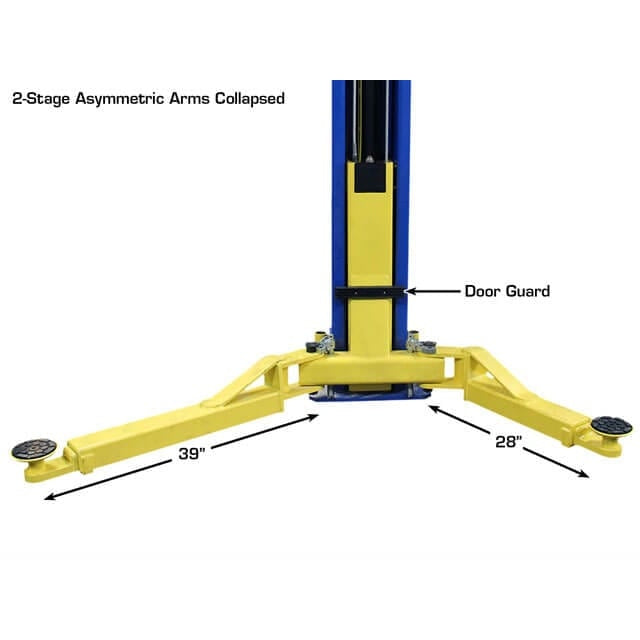

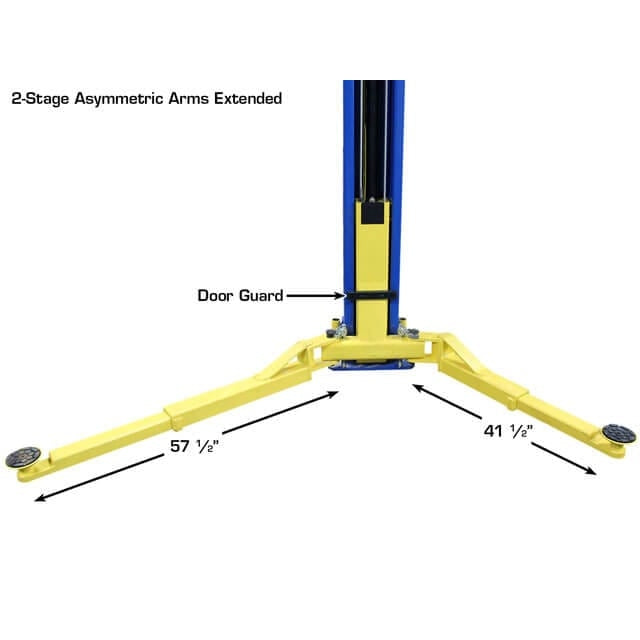

Asymmetric/Symmetric Arms

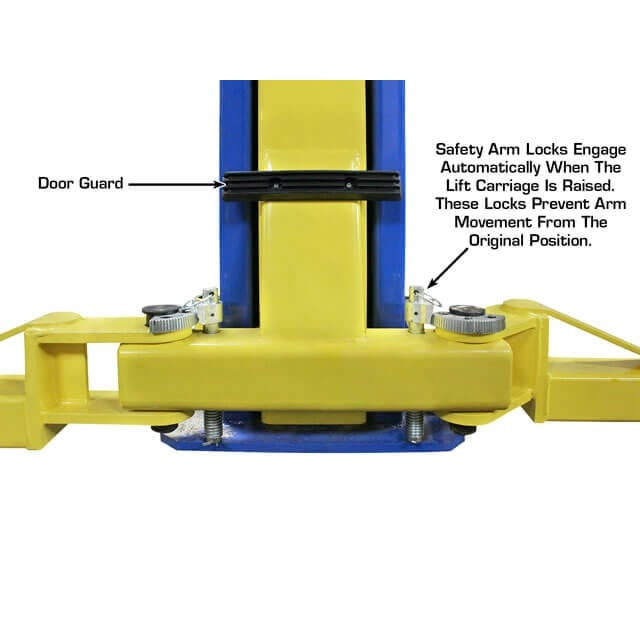

Automatic Arm Restraints

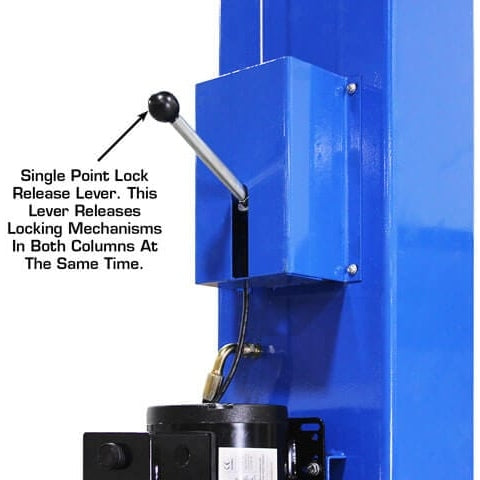

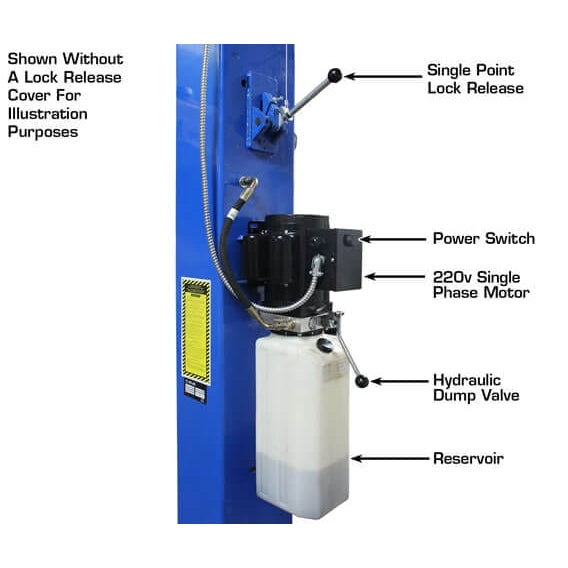

Single-Point Lock Release

Rubber Guards on Carriages

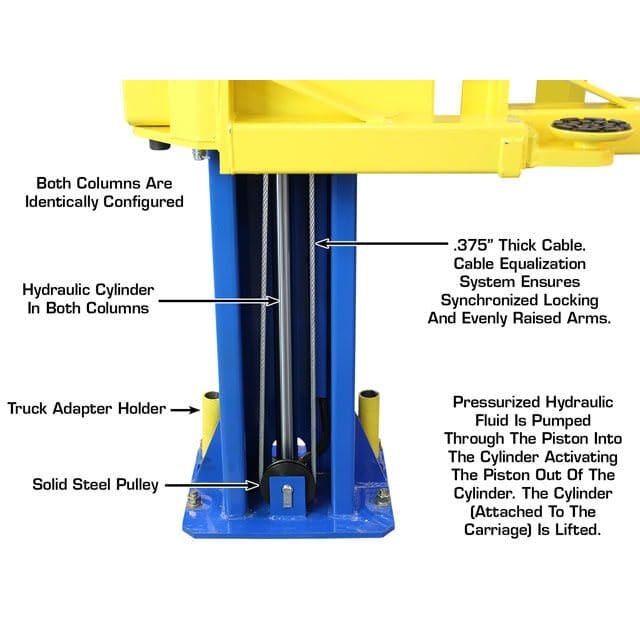

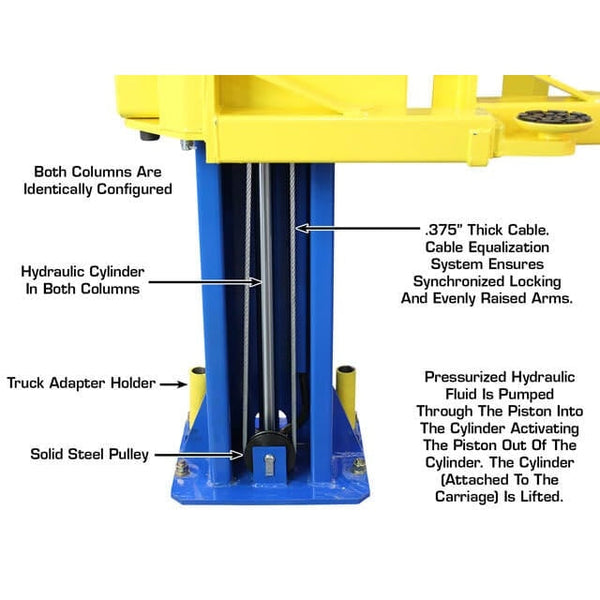

Dual Direct-Drive Cylinders

Powder Coat Finish

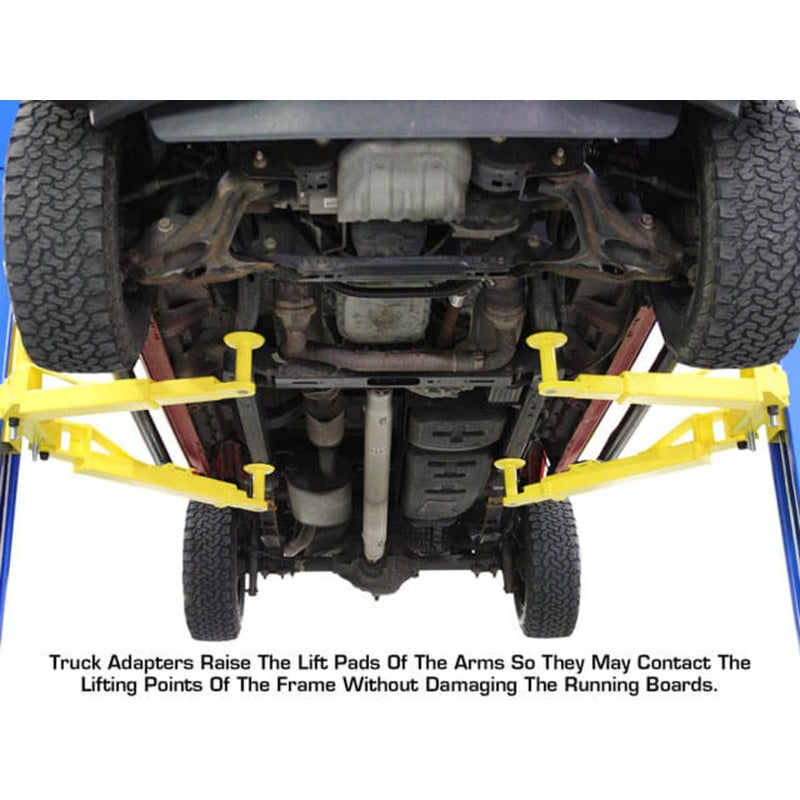

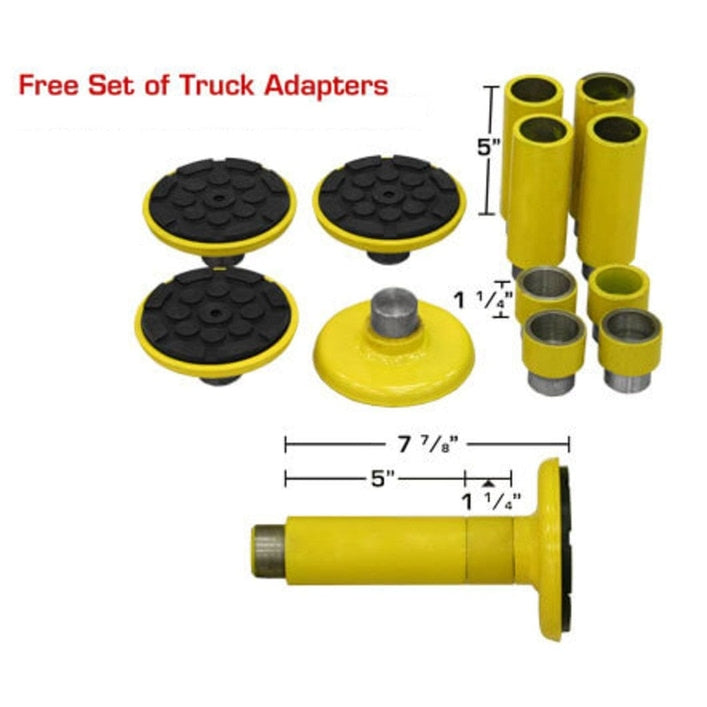

Free 8 Piece Truck Adapter Set

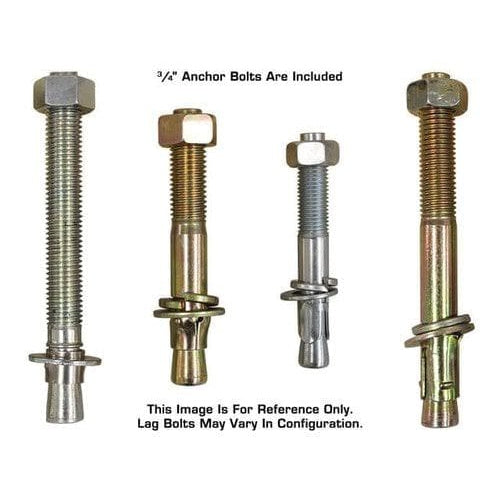

Mounting Hardware Included

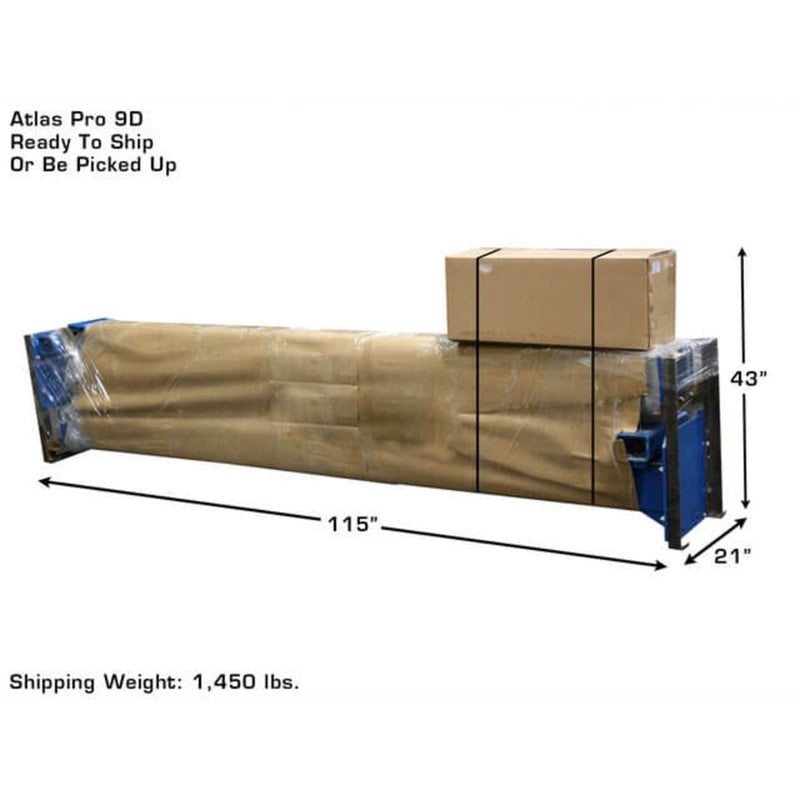

Shipping Weight: 1,450 lbs.

5-year Structural Warranty, 2-year Hydraulic-Power Warranty

Specifications

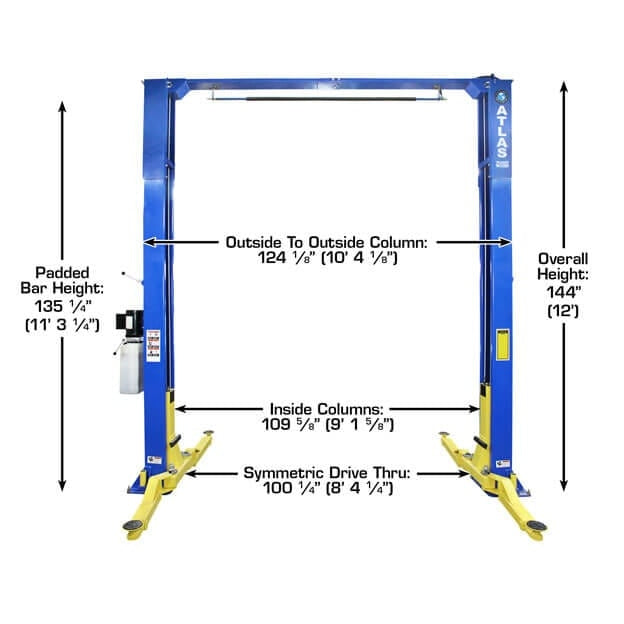

Atlas® PRO-9D Specifications

Capacity
9,000 LB.

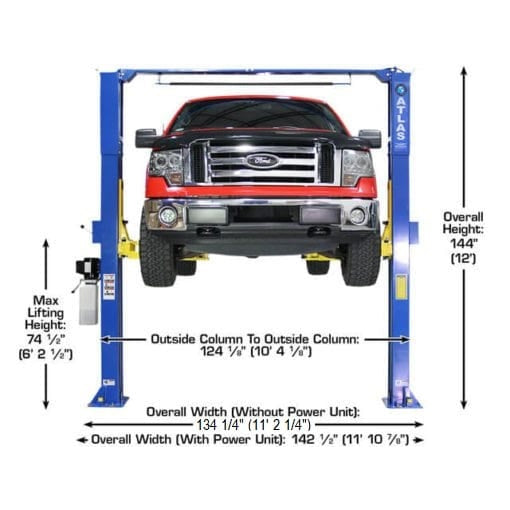

Overall Height
144″ (12’)

Overall Floor Width
134 1/2″ (11’ 2 1/2″)

Outside Column to Outside Column
124 7/8″ (10’ 4 7/8″)

Maximum Lift Height (Without Adapters)
68″

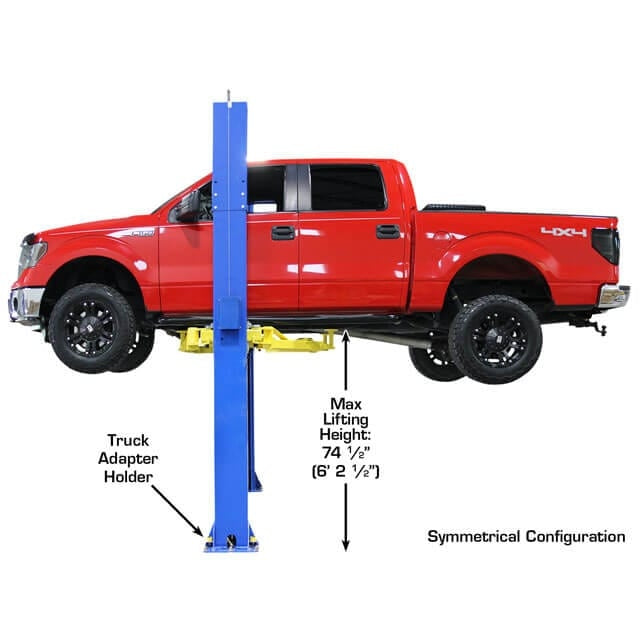

Maximum Lift Height (With Adapters)
74 1/4″

Minimum Arm Height
4 1/2″

Inside Column
110” (9’ 2”)

Drive Thru
100” (8’ 4”) Symmetric/ 90 1/2″ (7’ 6 1/2”) Asymmetric

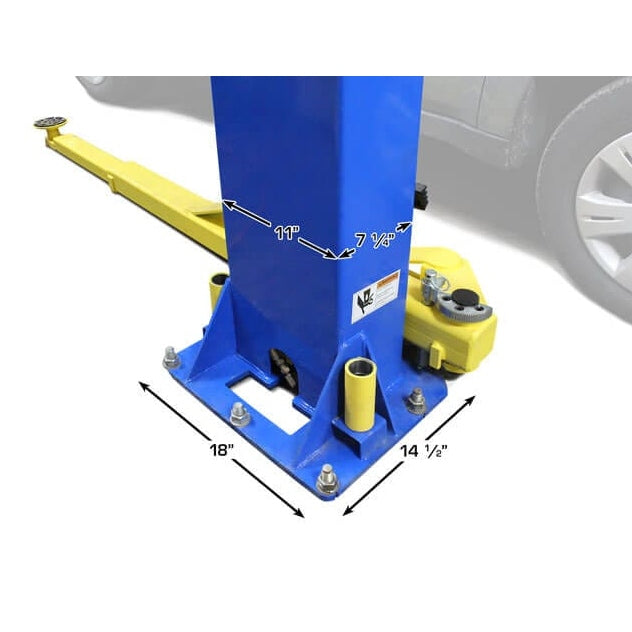

Column Size
7 1/4″ x 11″

Column Thickness of Steel
5mm

Base Of Lift
14 1/4″ x 18″

Motor/Electrical Requirement
220 volt single (1) phase.A 30 amp breaker is recommended

Oil Requirement
3-5 Gallons AW32/AW46 (NOT INCLUDED)

Shipping Weight
1,450 LBS.

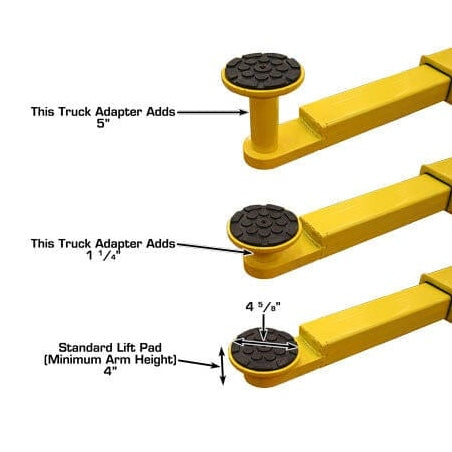

Adapter Heights
4 Each 1.5”, 5”

Arm Hole/Adapter Peg Size
1.5”

Requires a minimum of 4″ of concrete with a 3000 psi. rating

Documents
Atlas® Pro-9D Manual
