Atlas PV12PX 12,000 lb Overhead 2-Post Lift

Description
The Atlas® PV series represents the absolute best value for the customer who demands a heavy-duty professional grade two post lift at the lowest possible price. Atlas® has been manufacturing the PV series two post above ground lifts for over a decade. Thousands sold! Descriptions such as “bulletproof”, built like a brick outhouse, tougher than nails, and other such euphemistic phrases are used every day to describe any of the Atlas® PV series models.

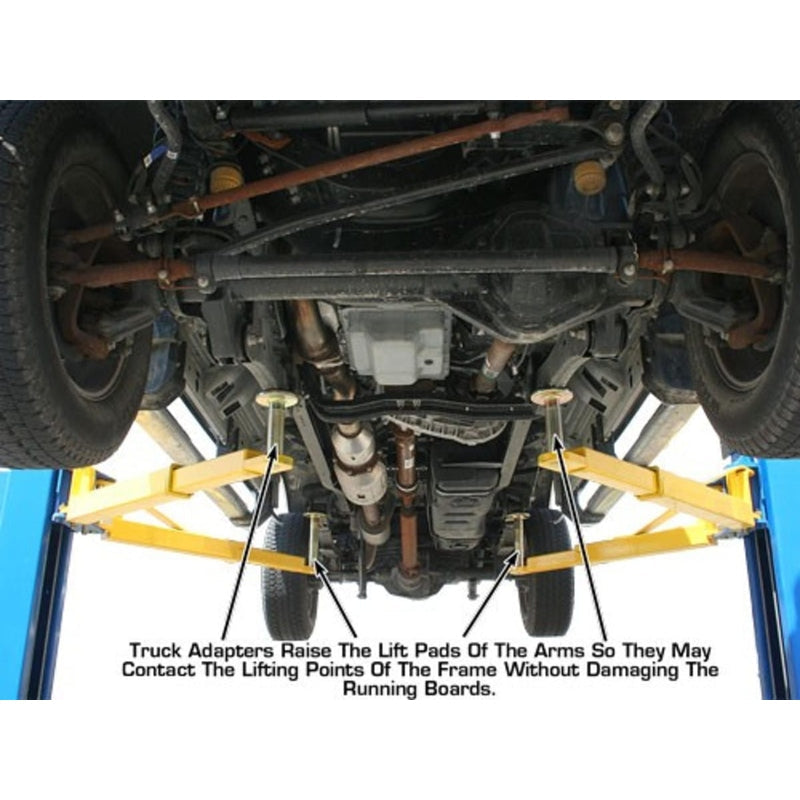

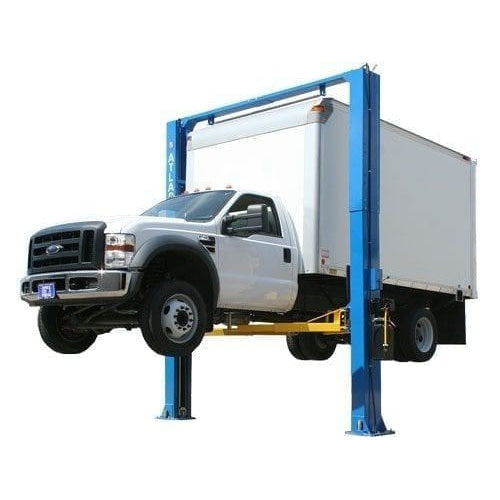

The Atlas® PV12PX is a commercial grade lift designed to accommodate both long wheel-base trucks and because of a low pad height, passenger cars. The distance between the symmetrical columns is 123″ with a drive through space of 109″. The extra distance between the symmetrical columns will allow the widest of vehicles or vehicles with wide rearview mirrors to be lifted or driven through. The increased length of the symmetrical arms coupled with the additional height of the included peg style truck adapter set allows the operator to safely raise long wheel-base trucks with a variety of running boards.  The extra height means extra clearance allowing you to lift vans and box trucks without worry.
The Atlas® ATEXH-PV12PX features three height settings, the lowest setting of 150 inches or 12 foot 6 inches requires the purchase of extra short cables.
Features

12,000 lb. capacity

Extra Tall & Extra Wide

Commercial Grade

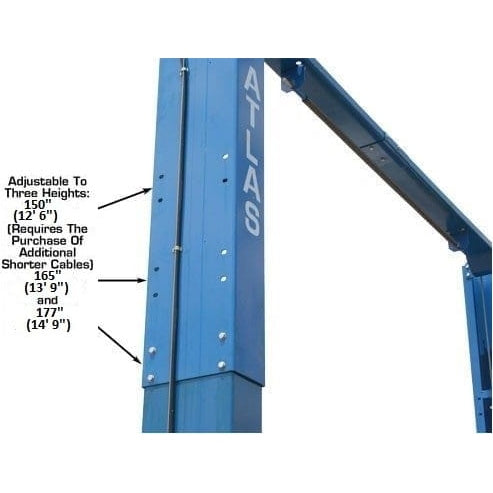

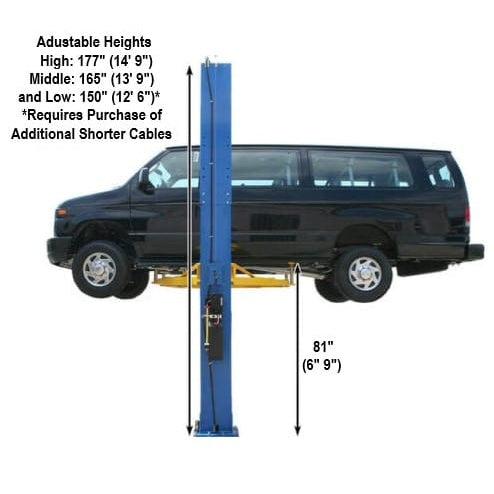

Adjustable height 150″ (12′ 6″) or 165″ (13′ 9″) or 177″ (14′ 9″)

Special low height 150″ (12′ 6″) (Requires purchase of extra cables)

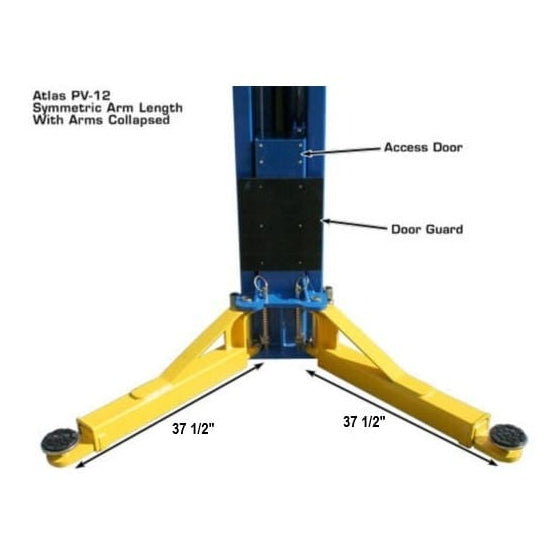

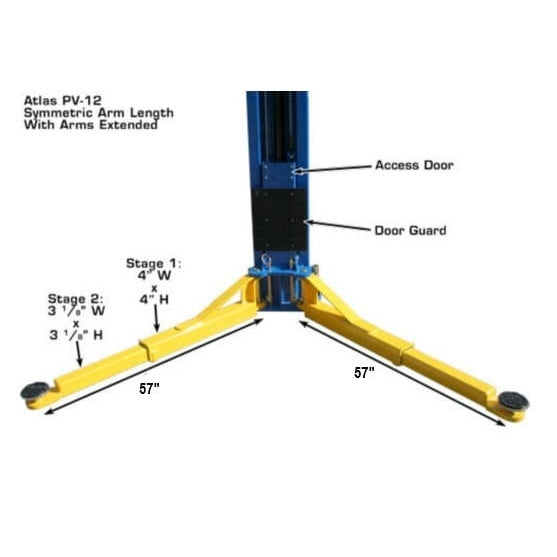

Symmetric arms

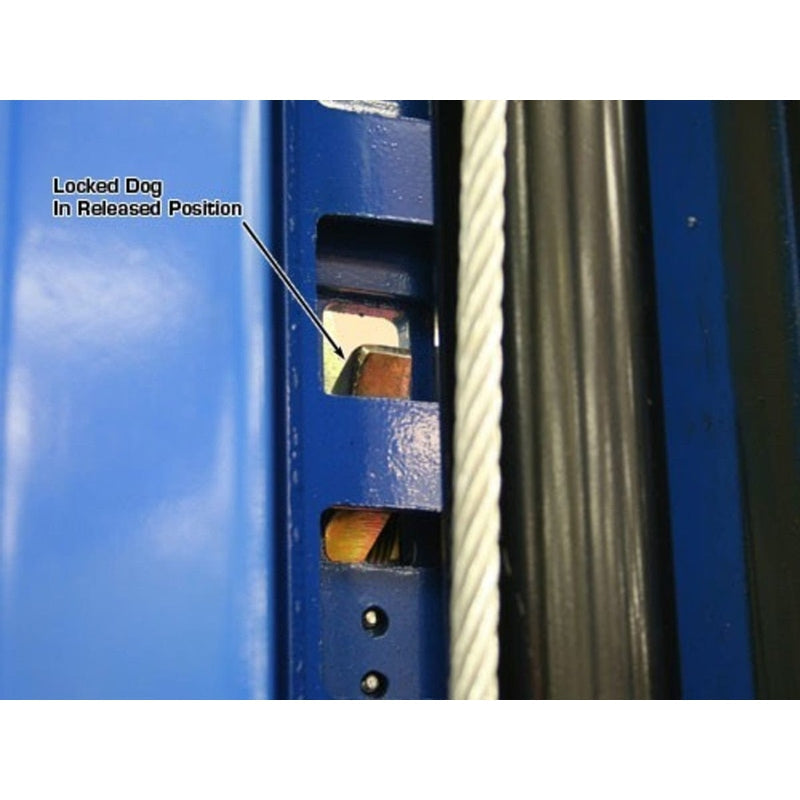

Automatic Arm Restraints

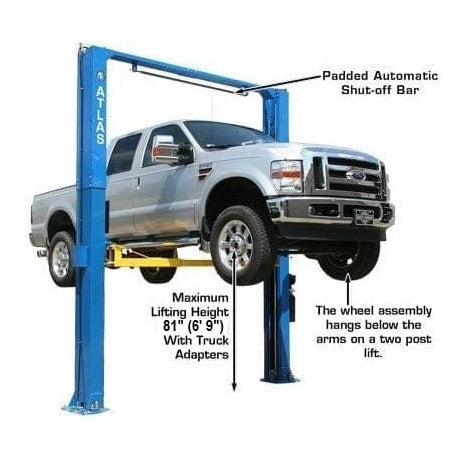

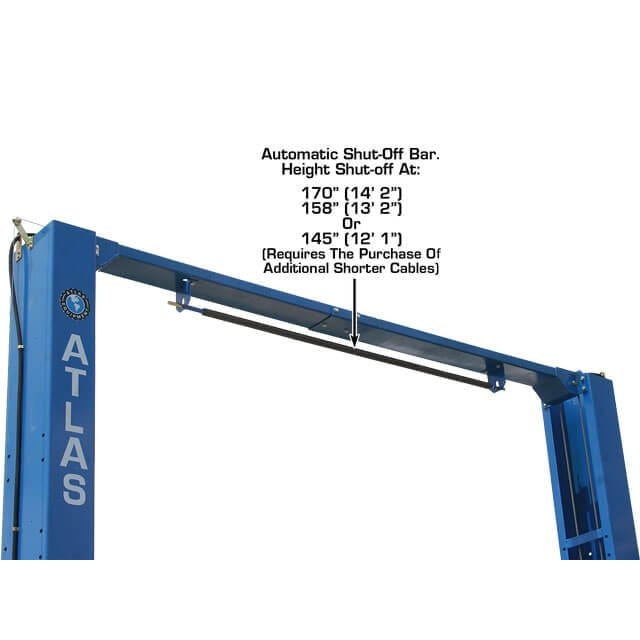

“Padded” Shut-Off Bar

Door Guards on Carriages

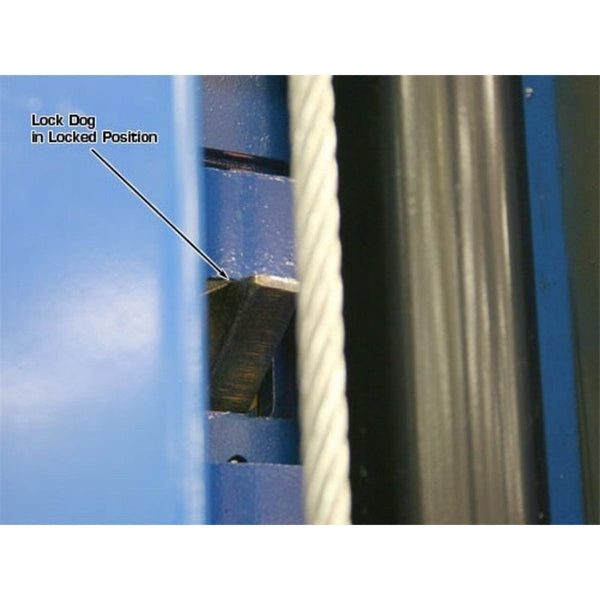

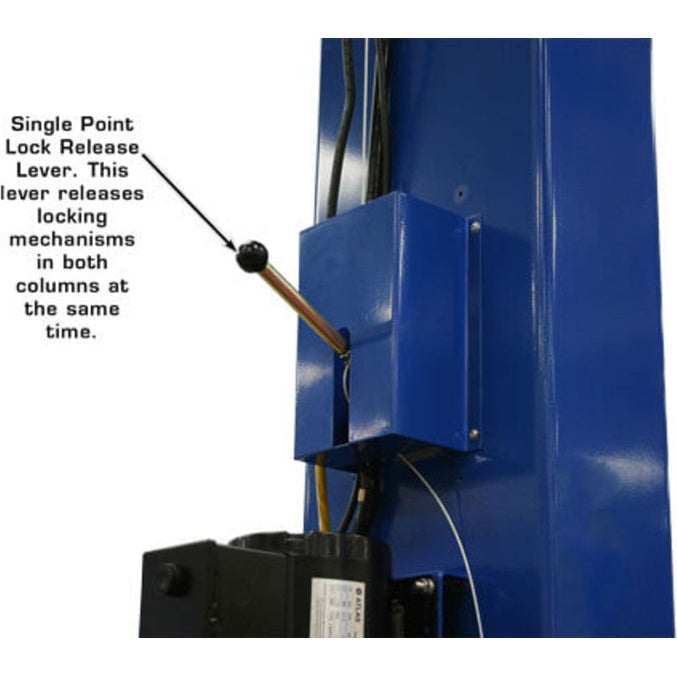

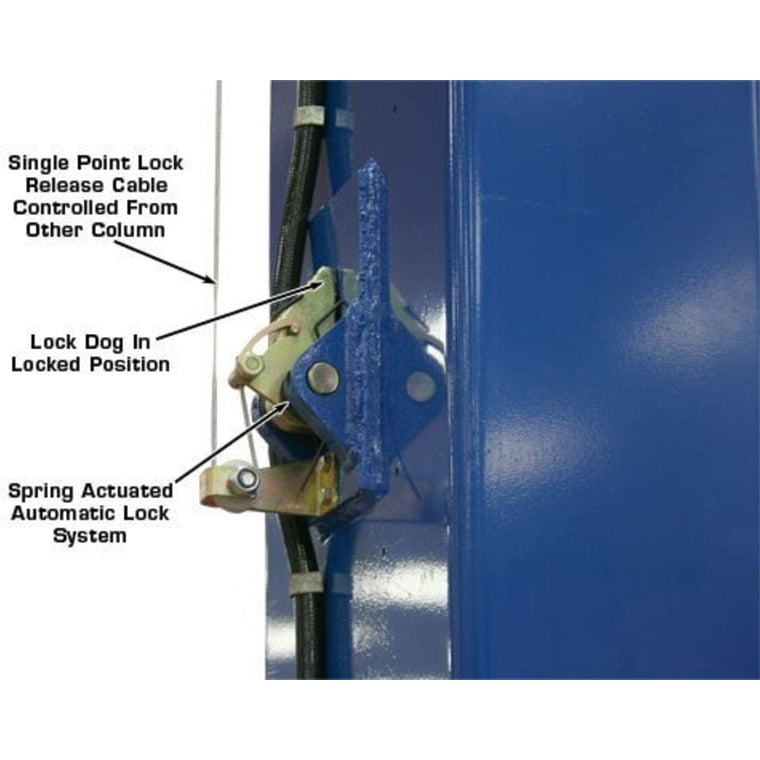

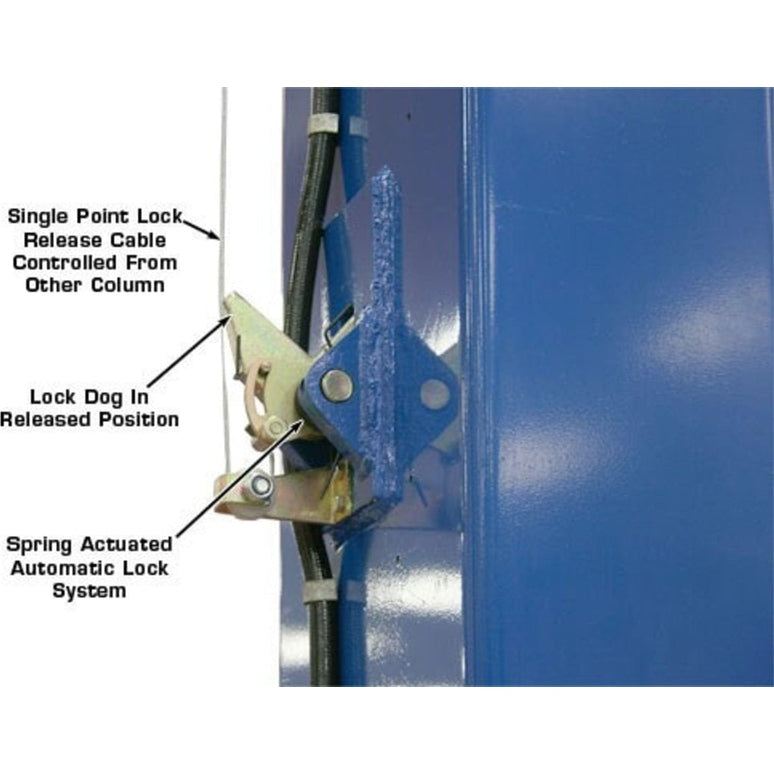

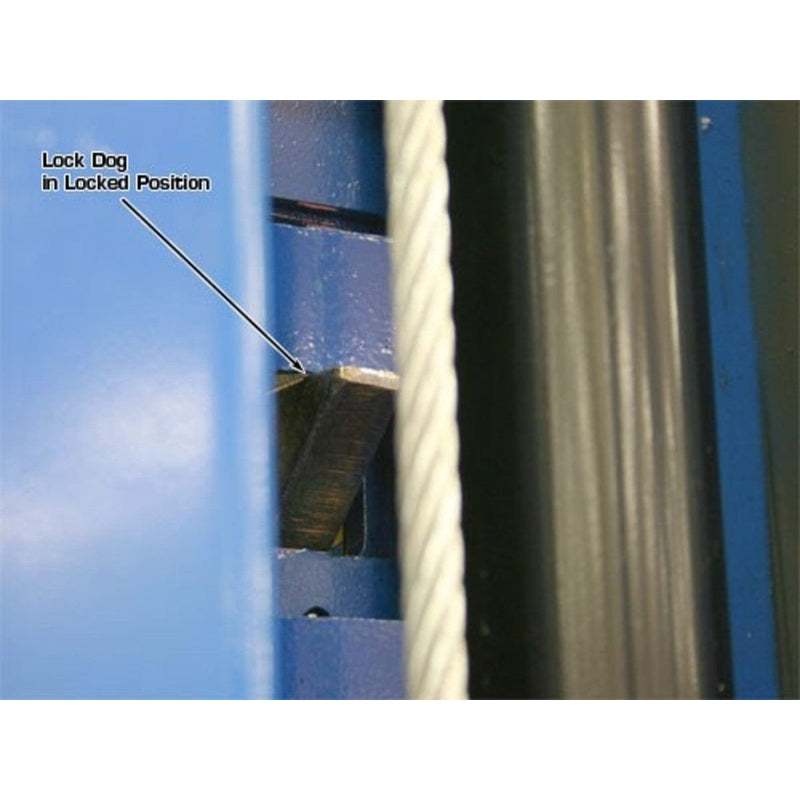

Single Point Lock Release

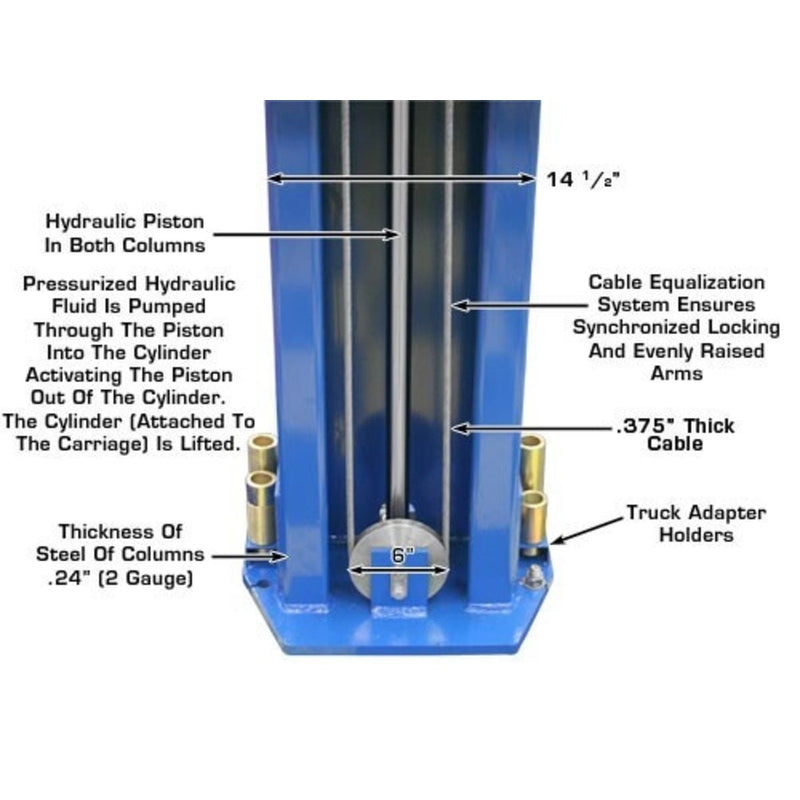

Direct-Drive Cylinders

Powder Coat Finish

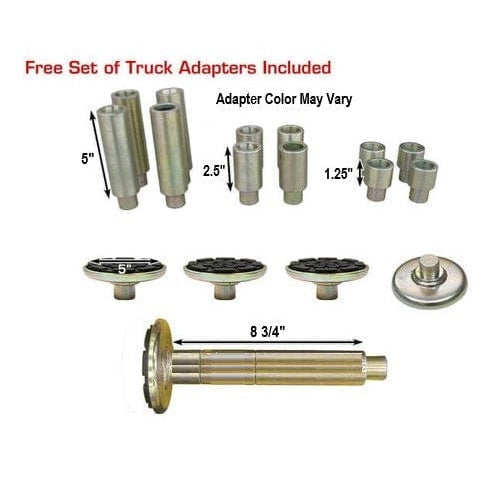

Free 12 Piece Truck Adapter Set

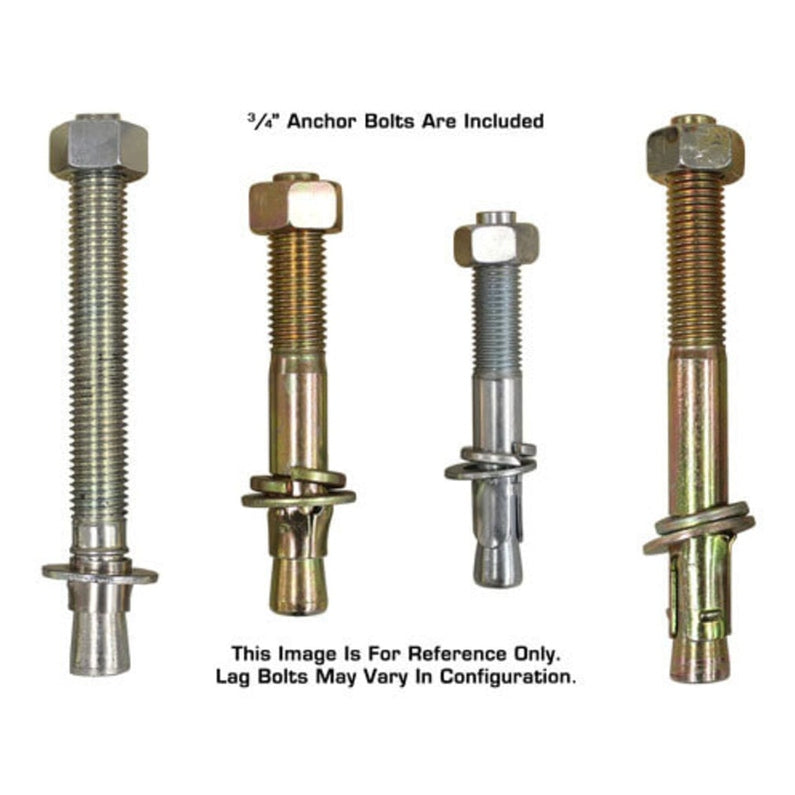

Mounting Hardware Included

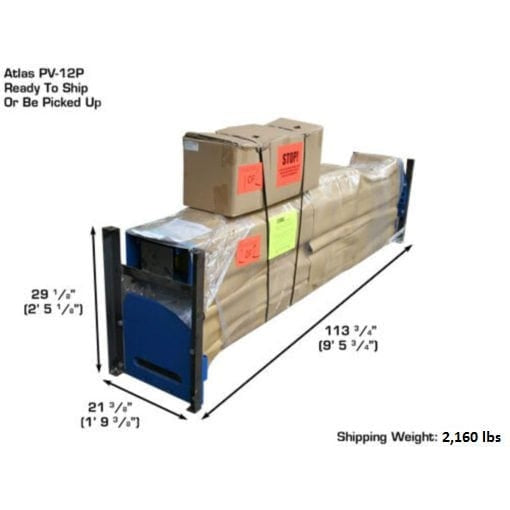

Shipping weight: 2,160 lbs.

5 yr. Structural – 2 yr. Hydraulic – 1 yr. Power Unit – Parts Only Warranty

Specifications

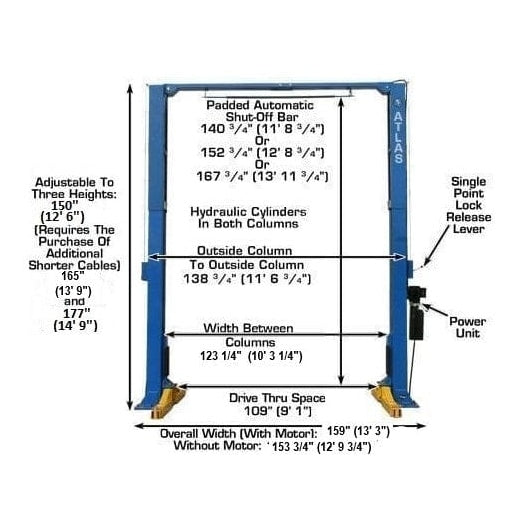

Atlas® ATTD-PV12PX Specifications

Capacity
12,000 LB.

Overall Height
165″ (13’ 9”) or 177” (14’ 9”)

Special Low Height
150″ (12’ 6”) (Requires Purchase of Extra Cables)

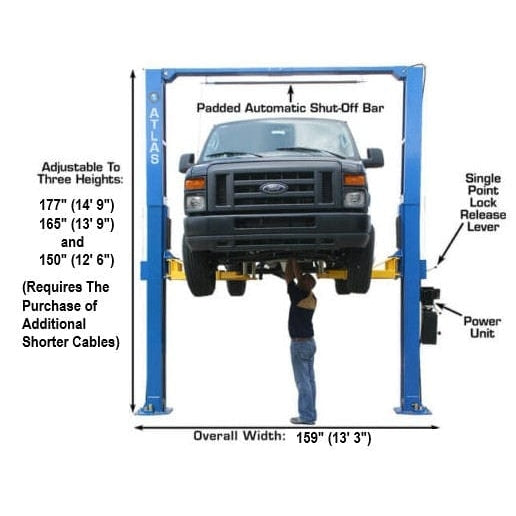

Overall Floor Width
150 3/4″ (12’ 6 3/4”)

Outside Column to Outside Column
139 1/8″ (11’ 7 1/8″)

Maximum Lift Height (Without Adapters)
72 1/4″

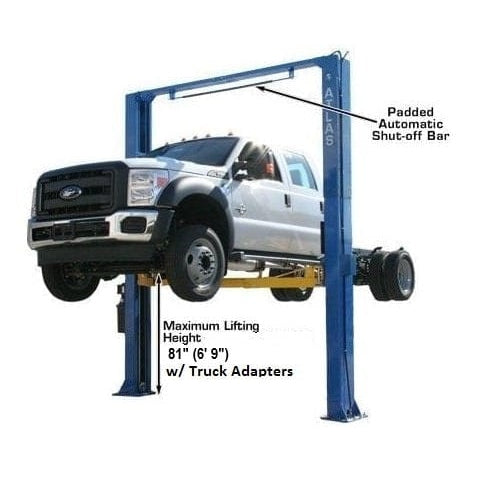

Maximum Lift Height (With Adapters)
81″

Minimum Arm Height
4 1/2″

Inside Column
123 1/2” (10’ 3 1/2”)

Drive Thru
109 1/2″ (9’ 1 1/2”)

Column Size
7 1/2″ x 14 1/2″

Column Thickness of Steel
6mm

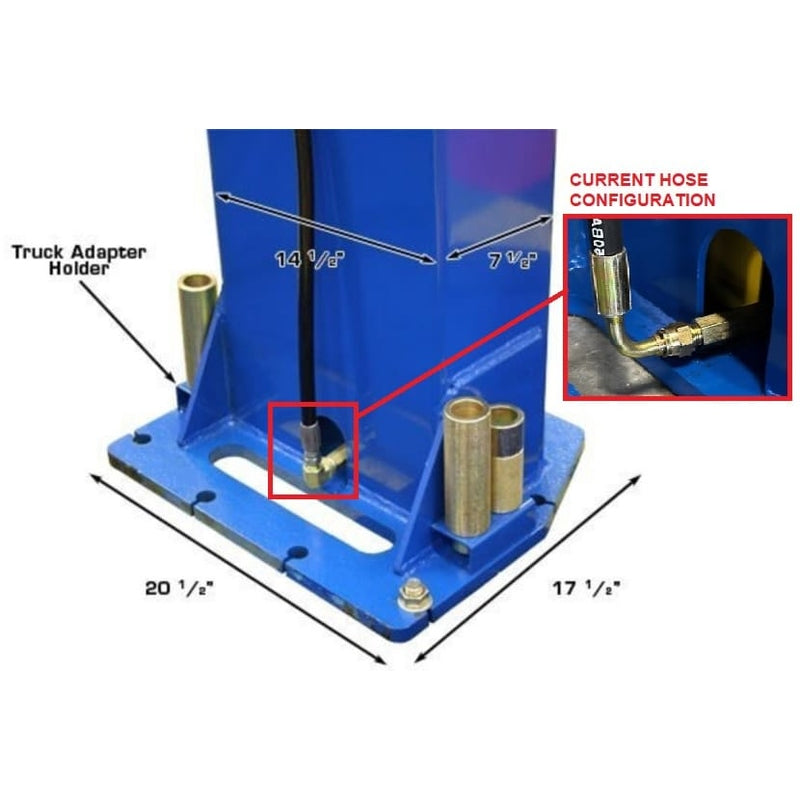

Base Of Lift
17 1/2″ x 20 1/2″

Motor/Electrical Requirement
220 volt single (1) phase.A 30 amp breaker is recommended

Oil Requirement
3-5 Gallons AW32/AW46 (NOT INCLUDED)

Shipping Weight
2,160 LBS.

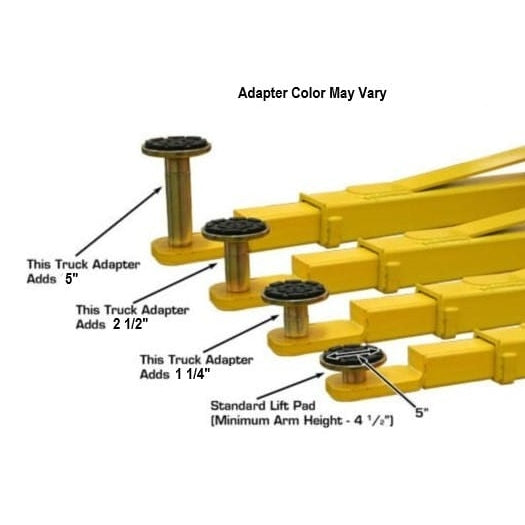

Adapter Heights
4 Each 1.25”, 2.5”, 5”

Arm Hole/Adapter Peg Size
1.5”

Requires a minimum of 6″ of concrete with a 3000 psi. rating

Documents
Atlas® XH-PV12PX Manual
