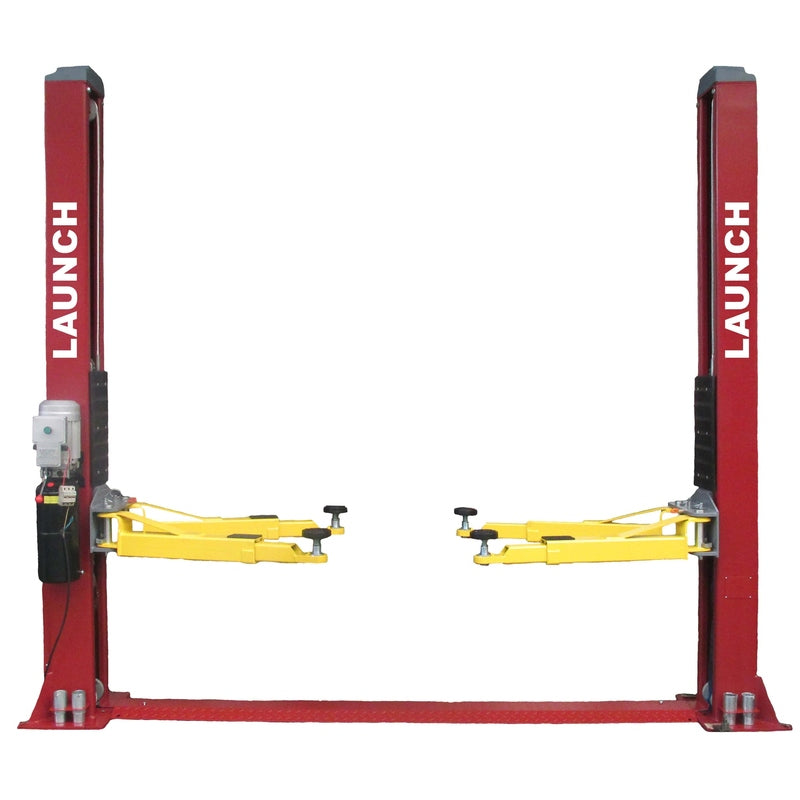

Launch Tech USA TLT240SB 9,000 lb Two Post Floor Plate – Symmetric – RED

Description
This lift is a commercial grade, baseplate style car lift with symmetric (straight column) posts and symmetric arms. The TLT240SB symmetric arms and open top are perfect for lifting pickup trucks. Dual point lock release and durable chain-driven cylinders used on the TLT240SB are a durable time-proven design, making the TLT240SB an excellent choice for the professional shop or the car enthusiast. Launch provides unmatched support and availability for its complete product line.

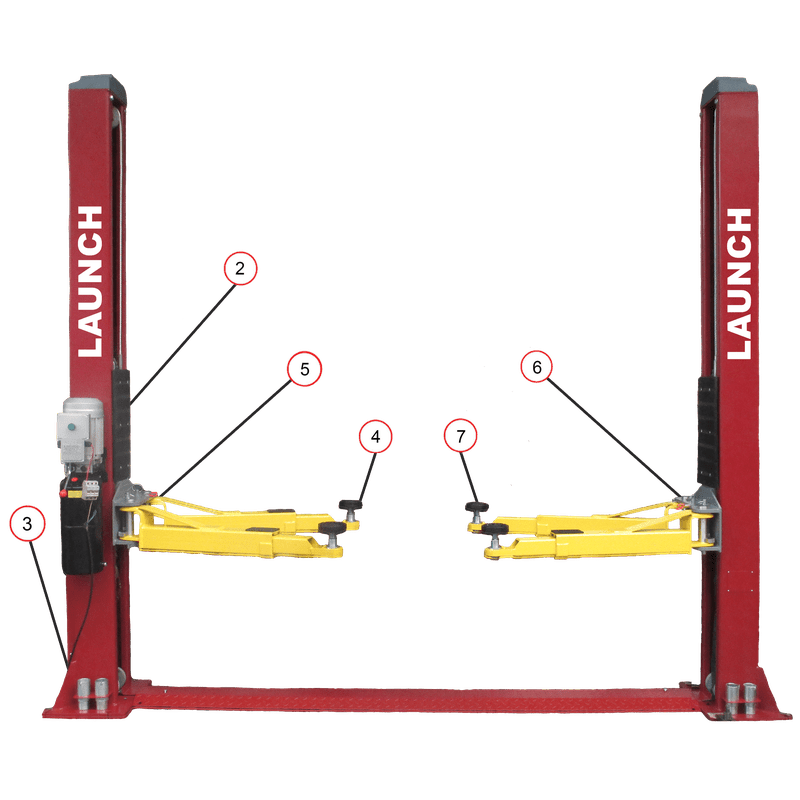

Features

9,000 lbs Capacity
Chain Drive

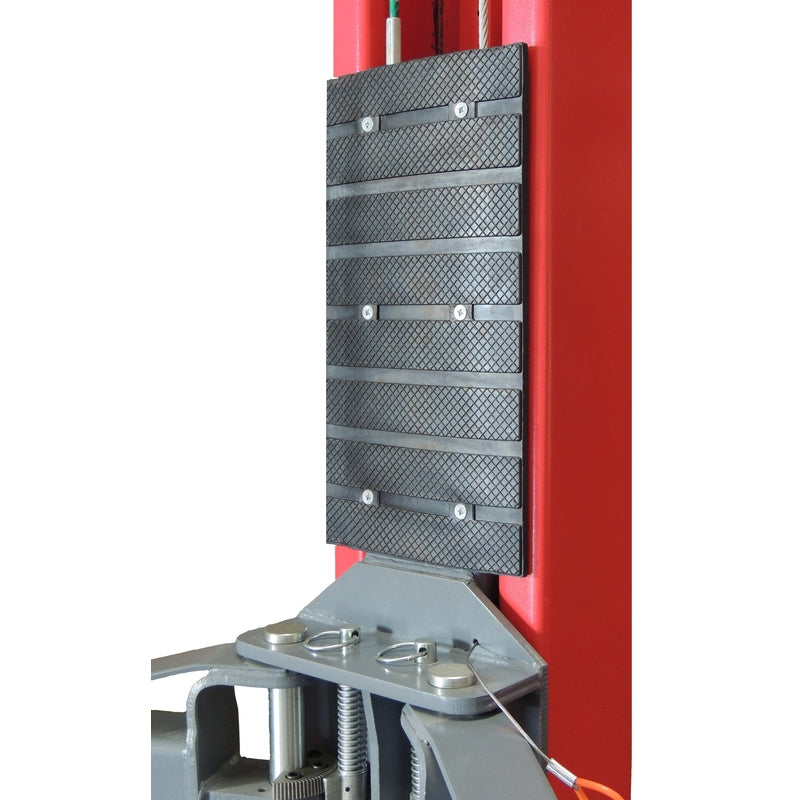

Rubber Door Guards

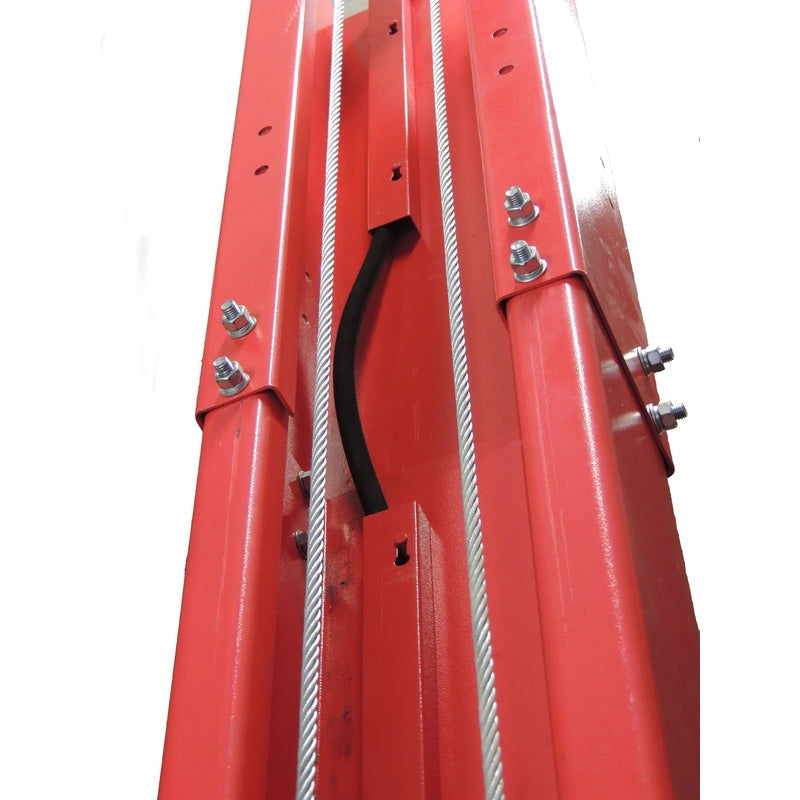

Hose Guards

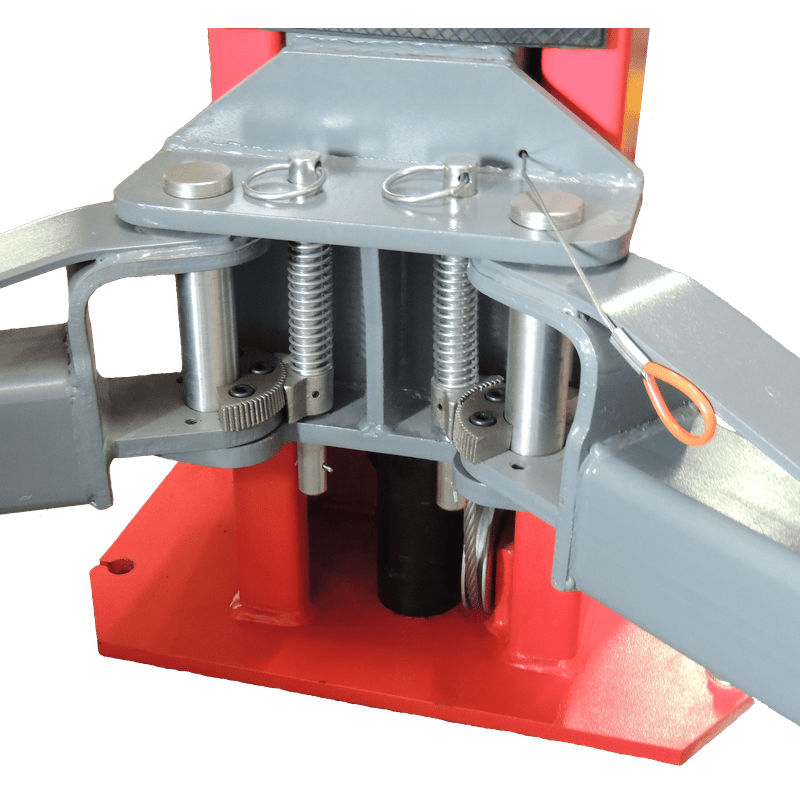

Dual Point Lock Release
Heavy Duty Arm Restraint System

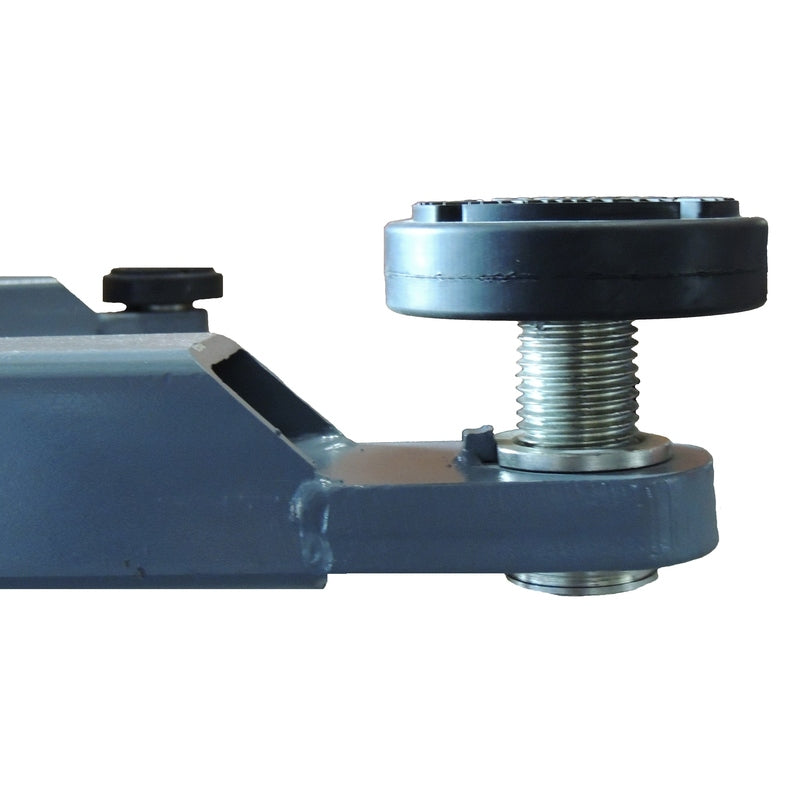

Double Telescoping Screw Pads

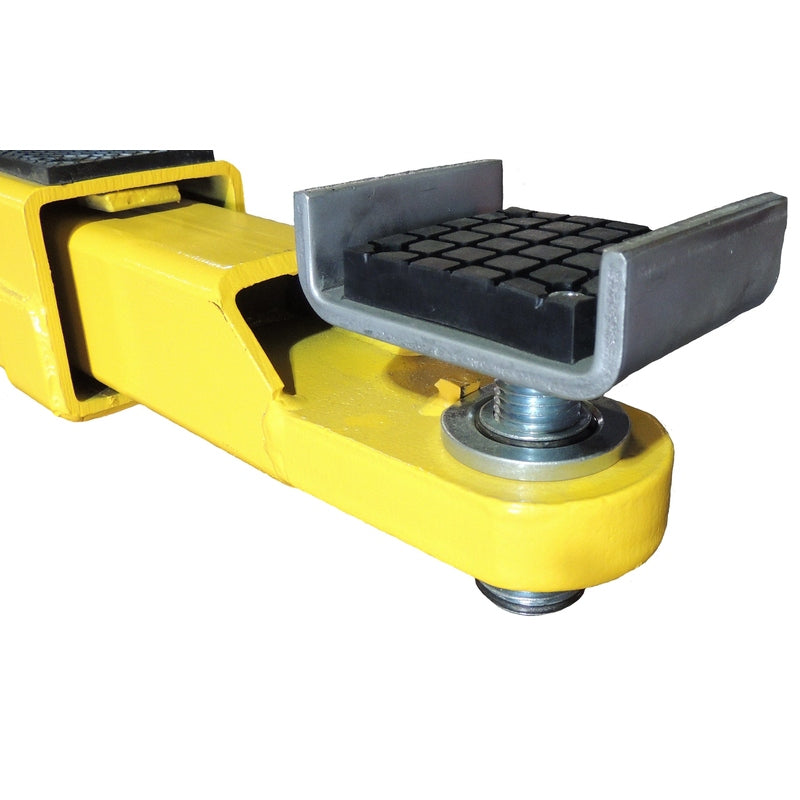

Stackable Foot Pad Adapters Included

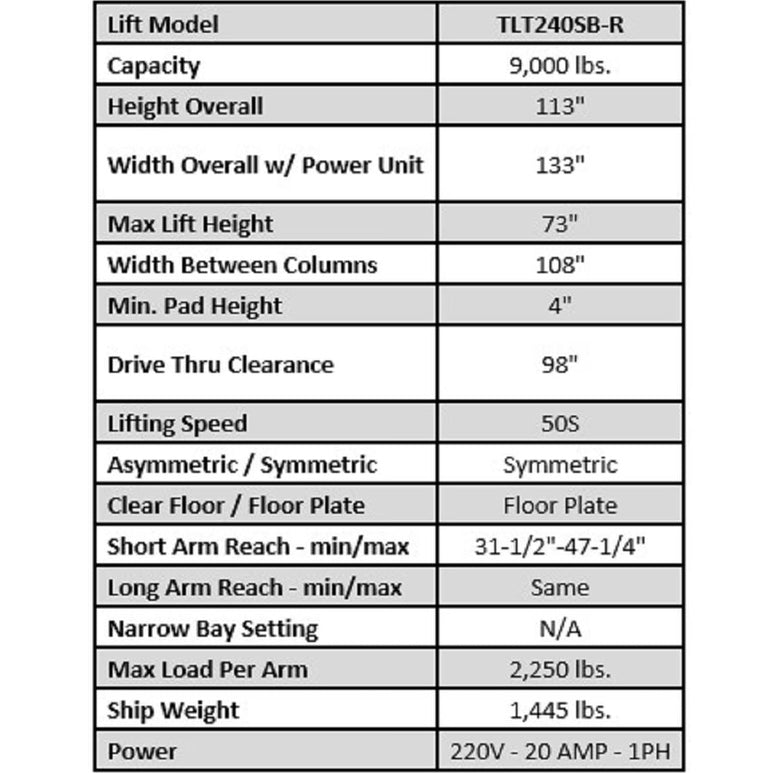

Specifications

Lift Model
TLT240SB-R

Capacity
9,000 lbs.

Height Overall
113″

Width Overall w/ Power Unit
133″

Max Lift Height
73″

Width Between Columns
108″

Min. Pad Height
4″

Drive Thru Clearance
98″

Lifting Speed
50S

Asymmetric / Symmetric
Symmetric

Clear Floor / Floor Plate
Floor Plate

Short Arm Reach min/max
31-1/2″-47-1/4″

Long Arm Reach min/max
Same

Narrow Bay Setting
N/A

Max Load Per Arm
2,250 lbs

Ship Weight
1,445 lbs

Power
220V-20 AMP-1PH

Manual
The Launch TLT240SB 9,000lb. Two Post lift Manual
