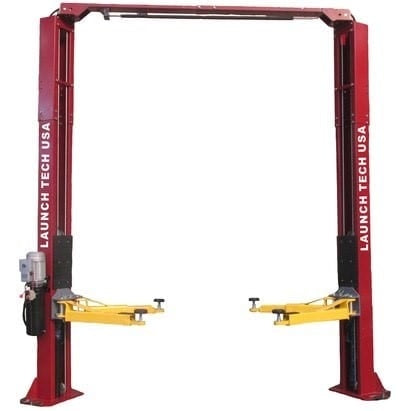

Launch Tech USA TLT240SC 9,000 lb Two Post Clear Floor – Asymmetric – RED

Description

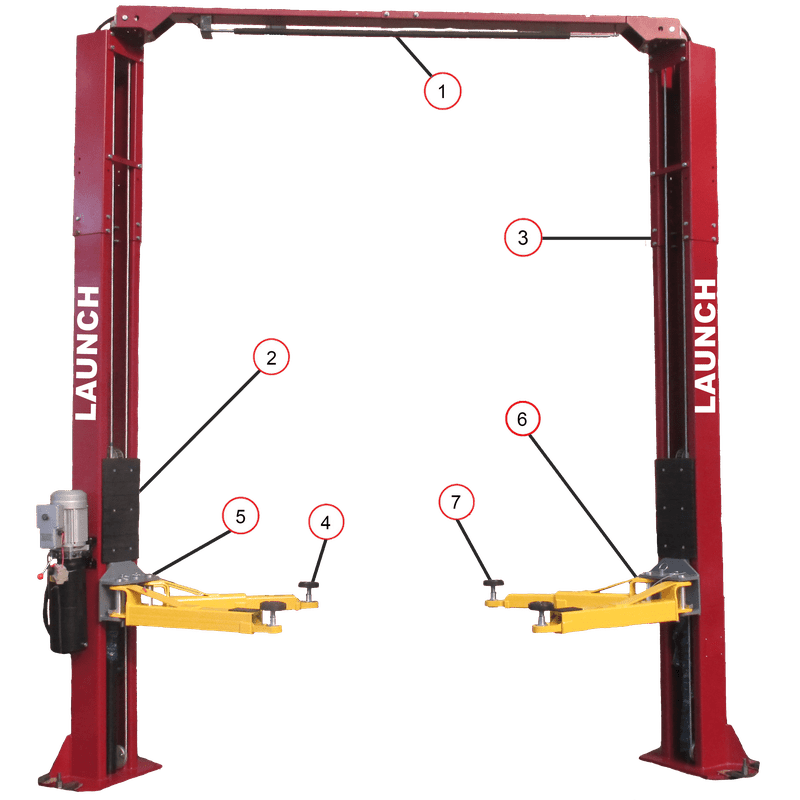

This lift is a commercial grade, asymmetrical clear floor lift with adjustable width and the ability to install rotated asymmetric (turned column) or standard asymmetric (straight column). The TLT240SC has three three-stage short arms, two-stage long arms, 4.3 min. pad height and versatile design allow easy lifting of passenger cars and light pickup trucks. Dual point lock release and durable chain-driven cylinders make the TLT240SC a great choice for the professional shop or the car enthusiast. At Launch, we provide unmatched support and availability for our complete product line of automotive lifts.
Adjustable Column WidthProvides extra 6 of width adjustment for narrow service bays to custom fit your shop (TLT240SC Only).

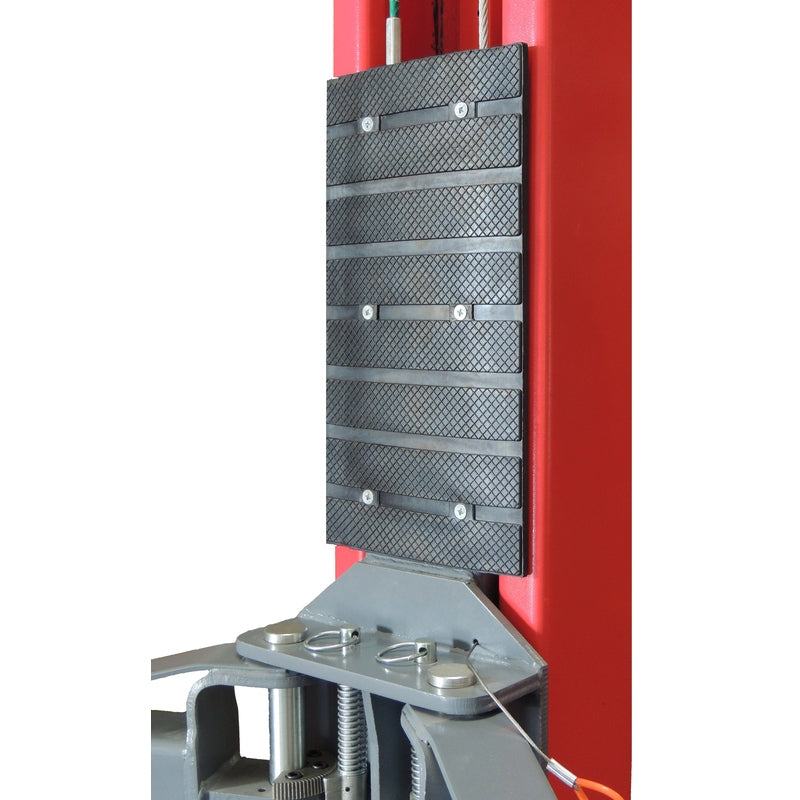

Rubber Door GuardsProvides added security against door damage.

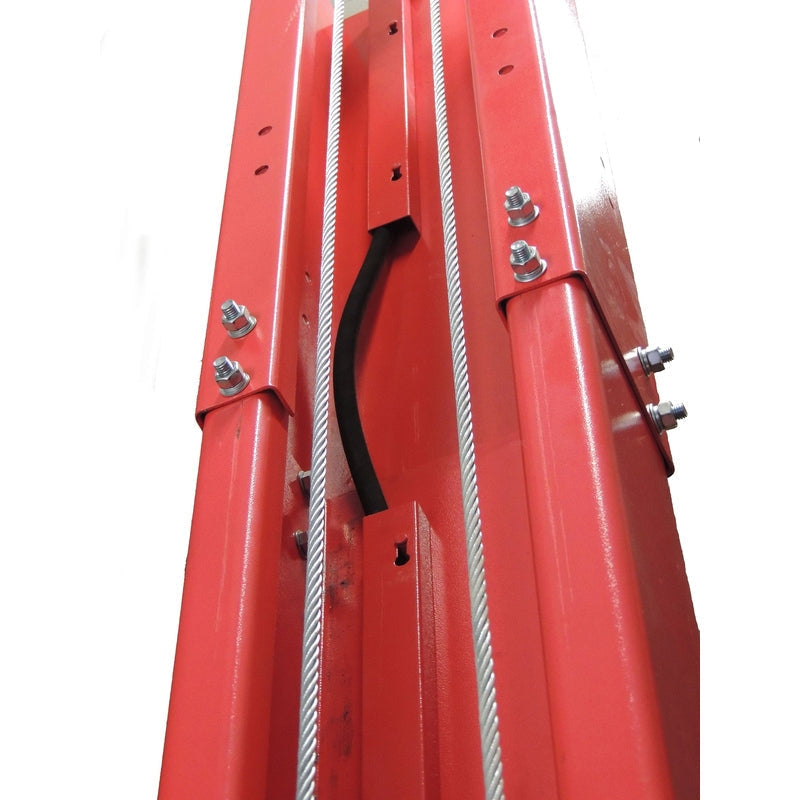

Hose GuardsProtects hydraulic hoses from damage.

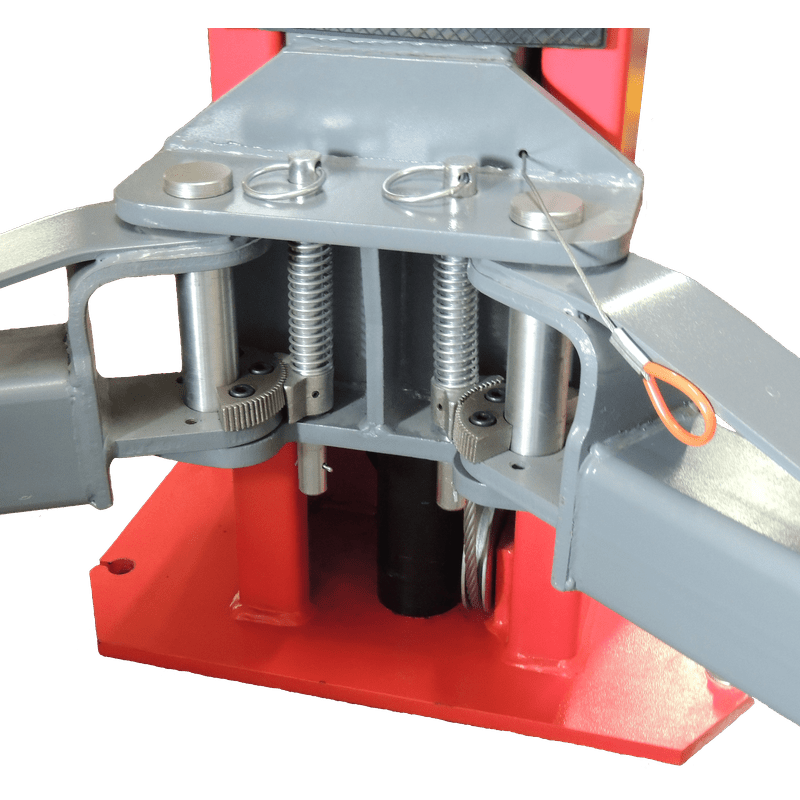

Dual Point Lock ReleaseAllows technicians to disengage both column locks independently.
Heavy-Duty Arm Restraint SystemOversize rugged steel gears, pins, and springs for trouble-free operation.

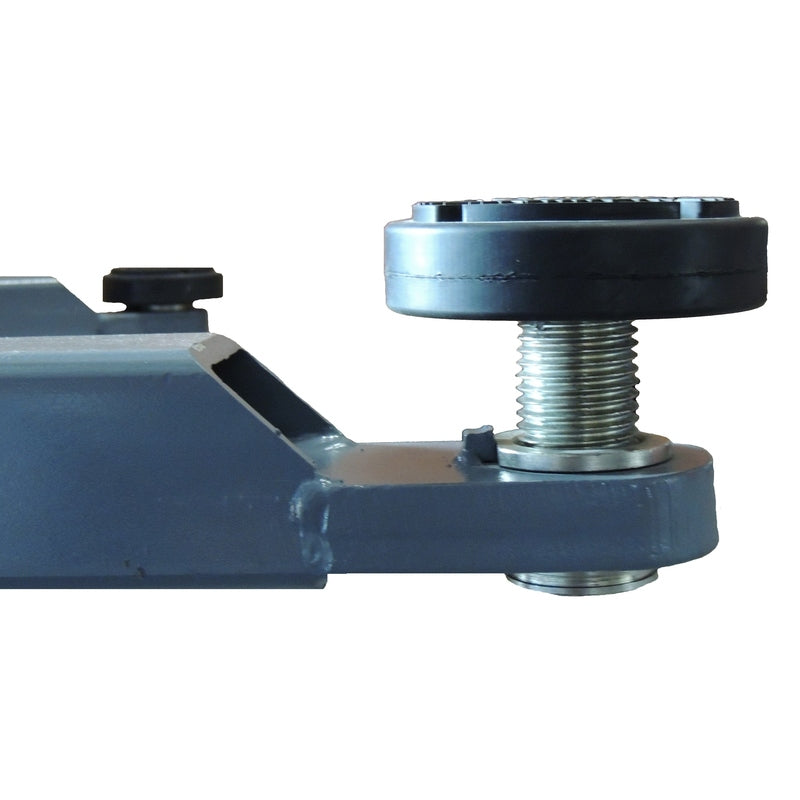

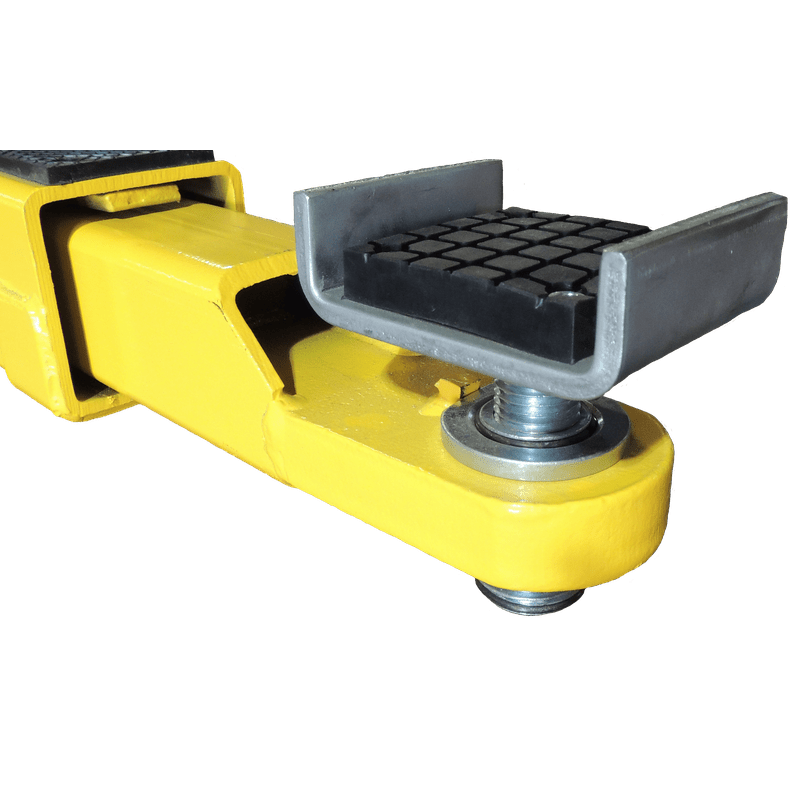

Double Telescoping Screw PadsUsed with rubber pads offering 2.5 adjustment for complete vehicle coverage.

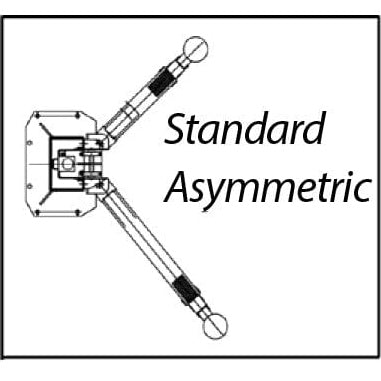

*Standard Asymmetric (TLT240SC Only)Lift installed with columns facing each other.

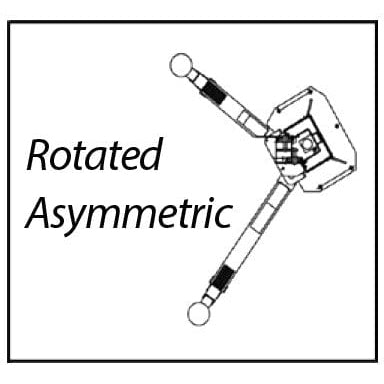

*Rotated Asymmetric (TLT240SC Only)Lift installed with columns offset – rotated.
Features

9,000 lbs. Capacity
Chain Drive
Rubber Door Guards
Hose Guards
Dual Point Lock Release
Heavy Duty Arm Restraint System
Double Telescoping Screw Pads

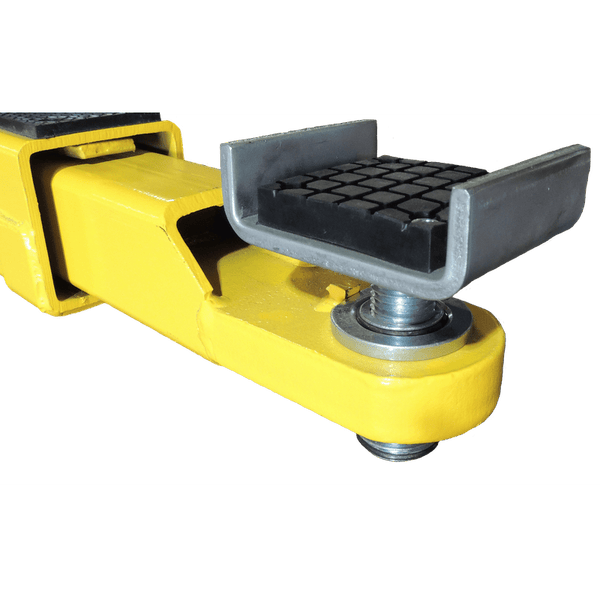

Stackable Pad Extensions

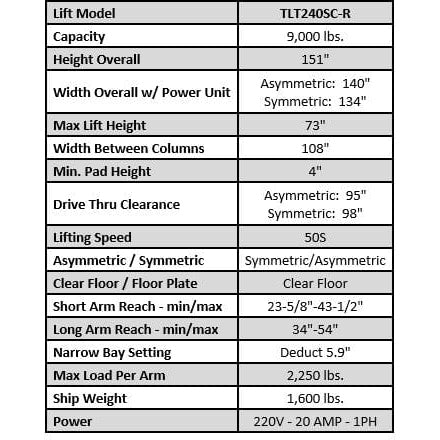

Specifications

Capacity: 9,000 lbs.
Height Overall: 151″
Width Overall w/ Power Unit: Asymmetric: 140″
Symmetric: 134″
Max Lift Height: 73″
Width Between Columns: 108″
Min. Pad Height: 4″
Drive Thru Clearance: Asymmetric: 95″
Symmetric: 98″
Lifting Speed: 50s
Asymmetric / Symmetric: Symmetric/Asymmetric
Clear Floor / Floor Plate: Clear Floor
Short Arm Reach min/max: 23-5/8″-43-1/2″
Long Arm Reach min/max: 34″-54″
Narrow Bay Setting: Deduct 5.9″
Max Load Per Arm: 2,250 lbs.
Power: 208-230V-60Hz.-1 PH
Shipping Weight: 1,600 lbs
Warranty: 5 Years Structure, 1 Year Parts, No Labor

Manual
The Launch TLT240SC 9,000lb Two Post lift Manual
