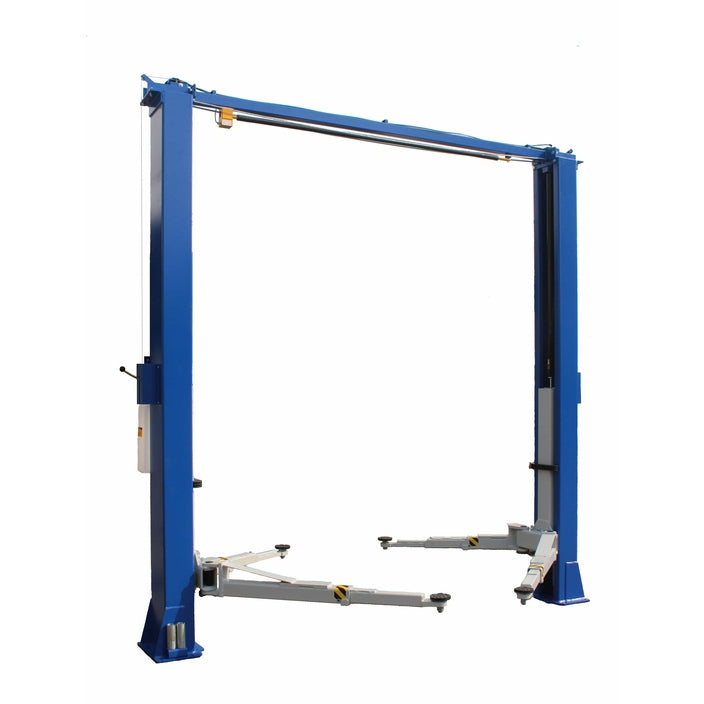

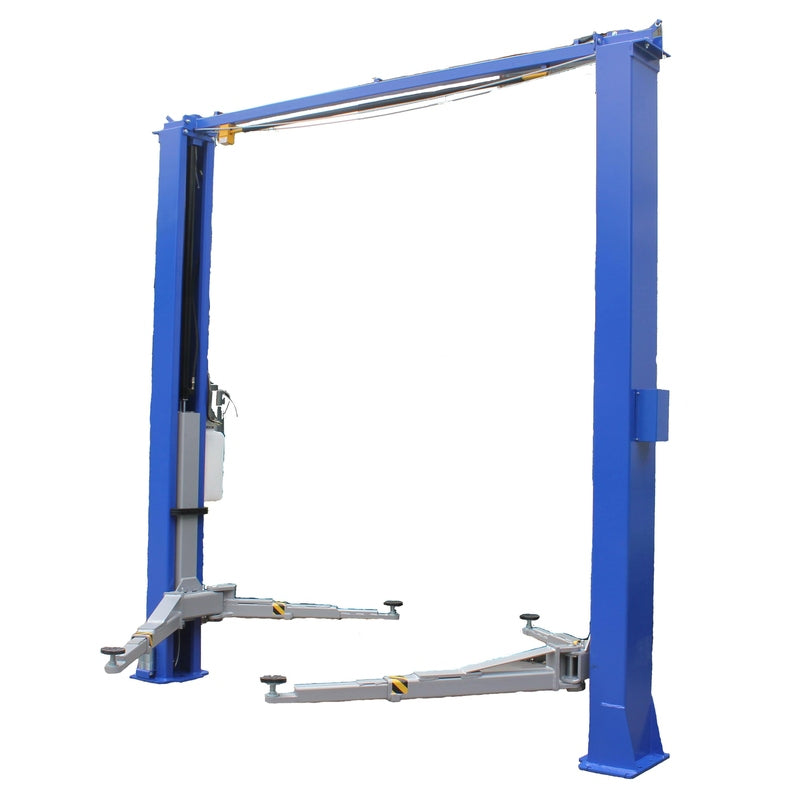

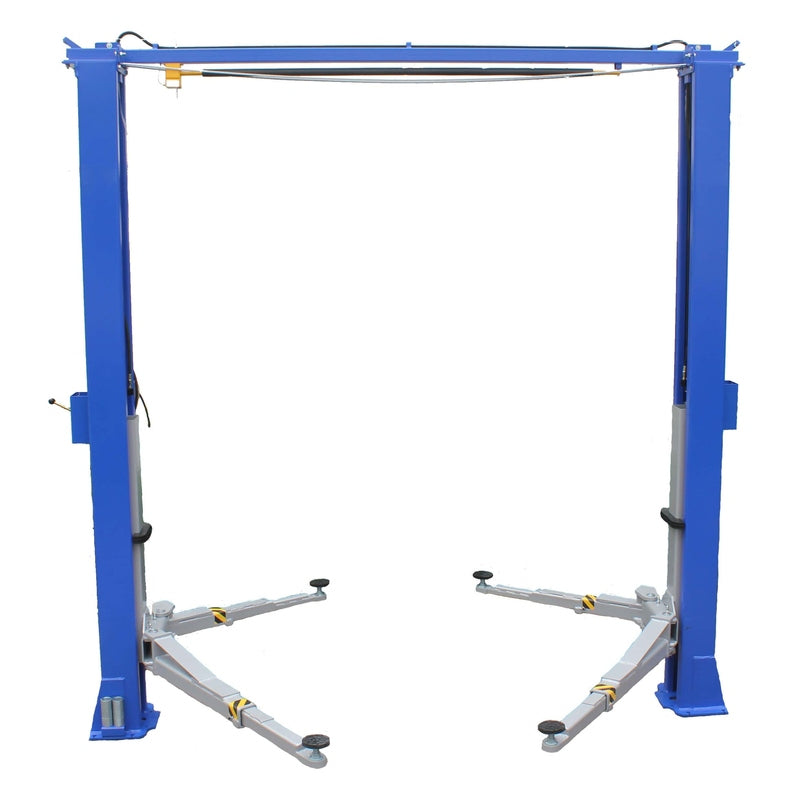

Tuxedo TP11KC-DX 11,000 lb Two Post Clear Floor –Direct Drive – Bi-Symmetric – 3 Stage – Single Point

Description
Engineered and built to offer great features at an economical price, the TP11KC-DX features and designs will make this the most used lift in your garage. With versatile user-friendly Bi-Symmetric configurable arms, 3 Stage Front Arms, Symmetric Columns, Single Point Lock Release, Low Profile Arms, Rubber Door Guards and Spin Up Pads with 2″ and 4″ Stackable Truck Adapters offers everything you’d expect and more!
Features

11,000 lbs Capacity

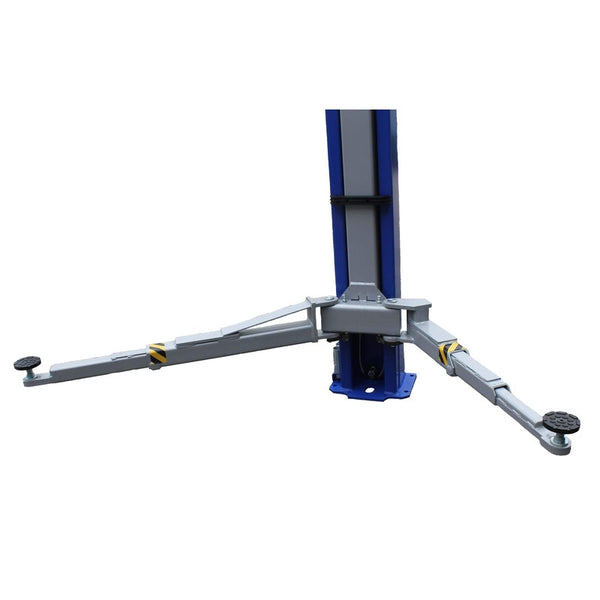

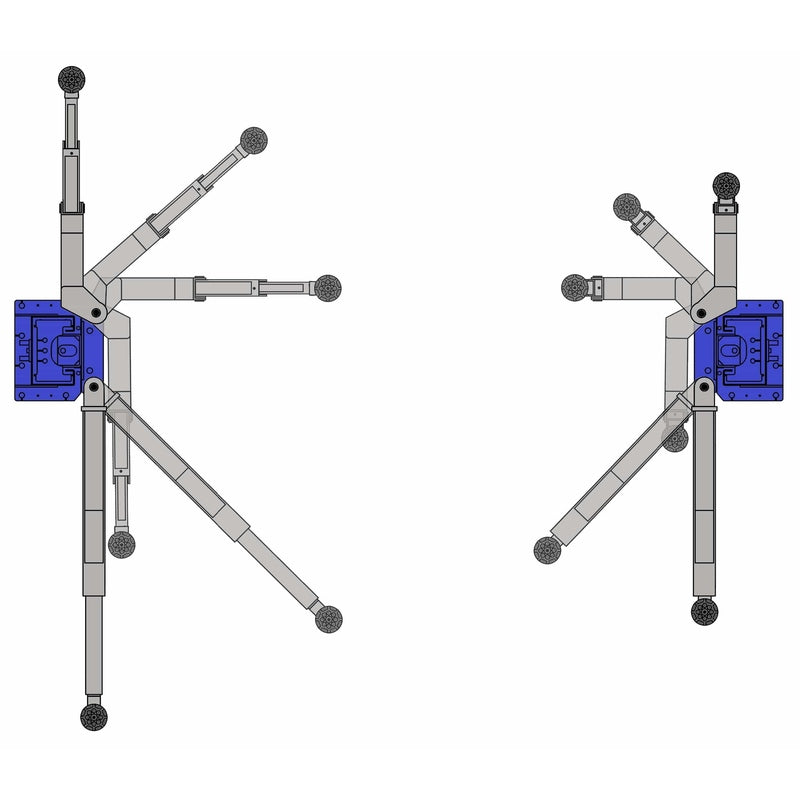

Bi-Symmetric arm design

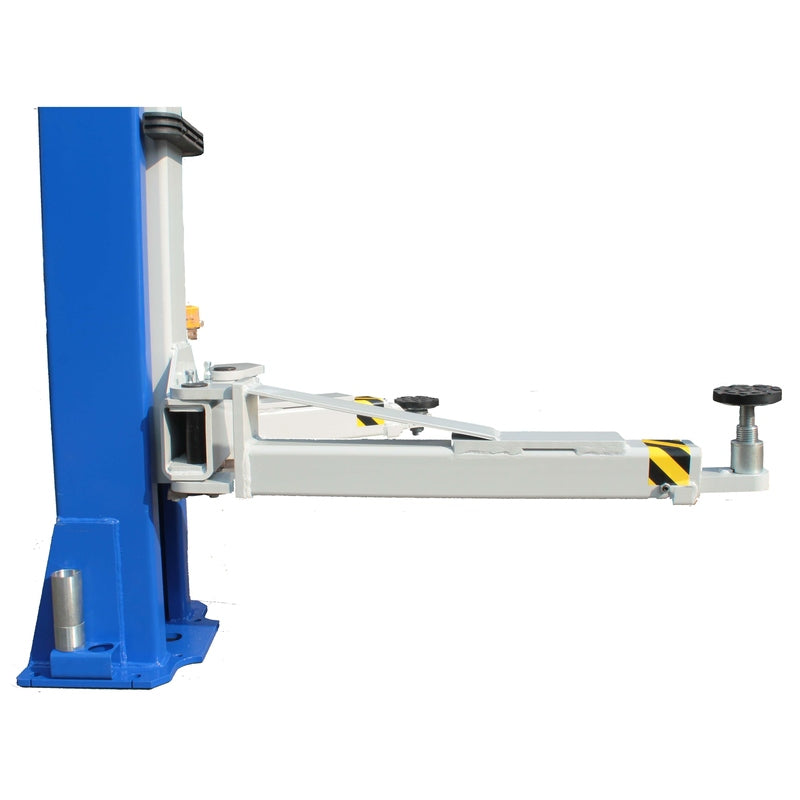

Rubber Door Guards

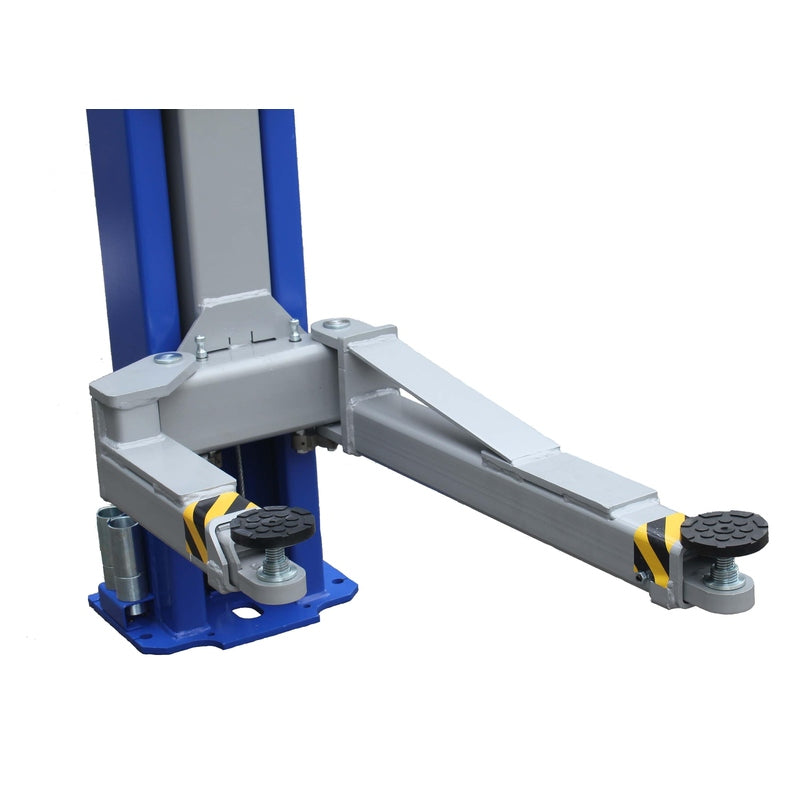

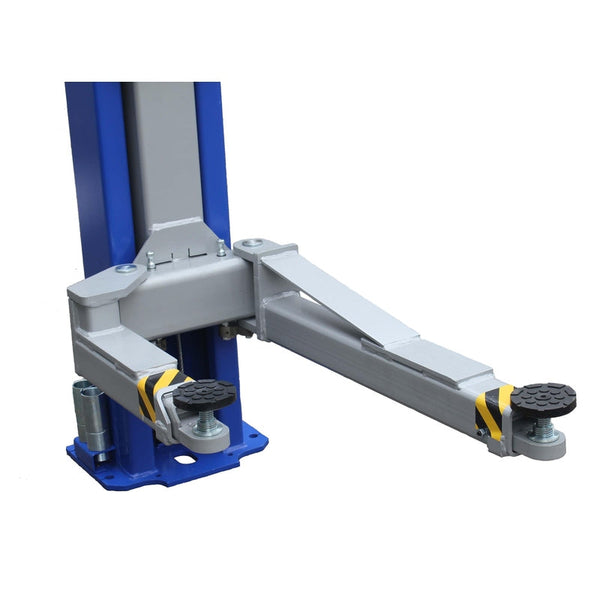

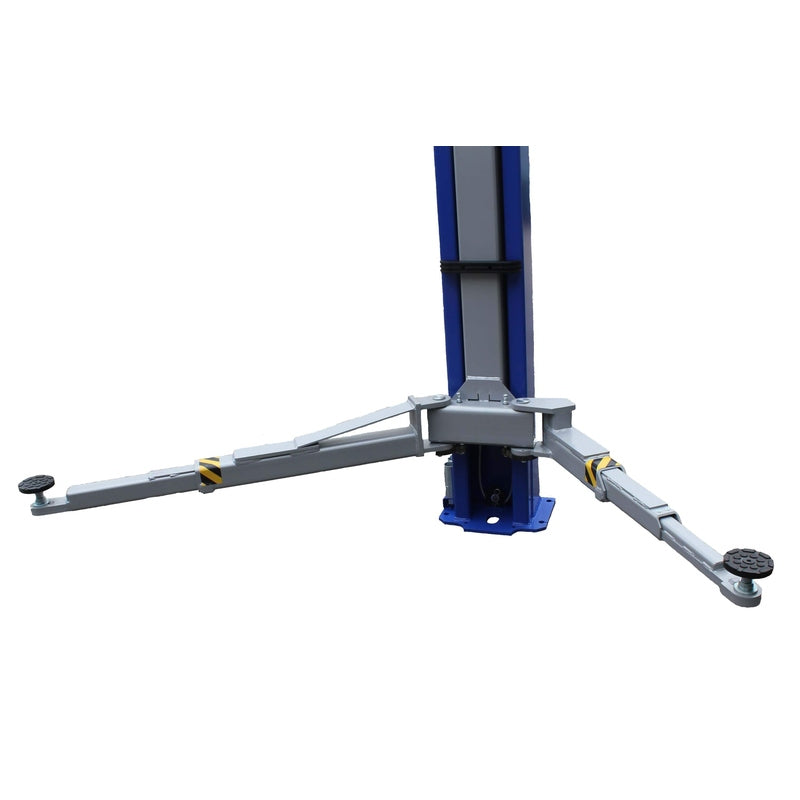

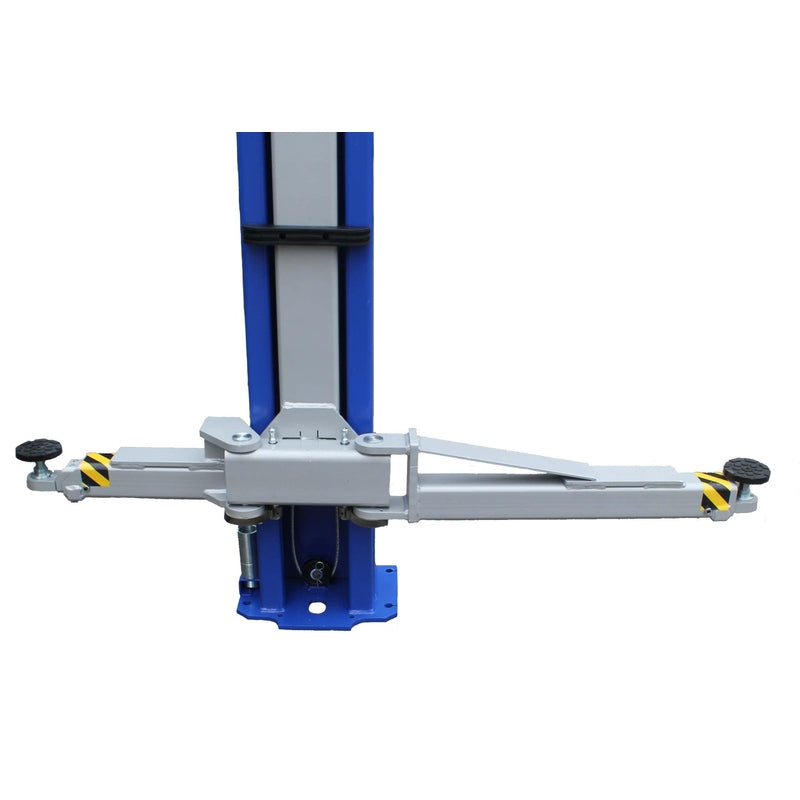

3 Stage Front Arms
Single Piece Column
Direct Drive pull Cylinders
Single Point Lock Release
Heavy Duty Arm Restraint System
Spin Up Low Profile Lift Pads
Stackable Adapters Included
External hose guards

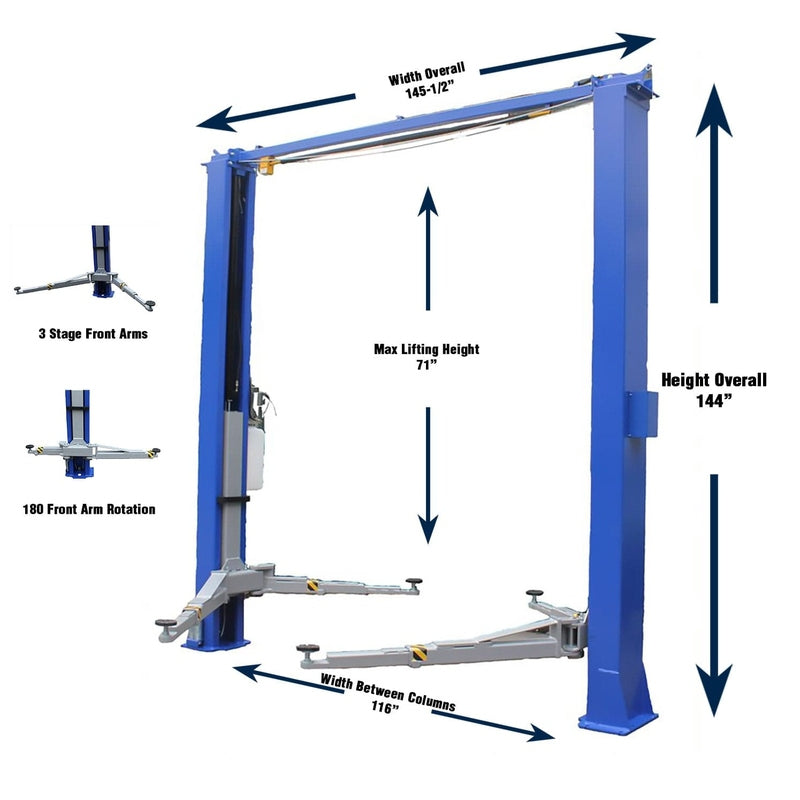

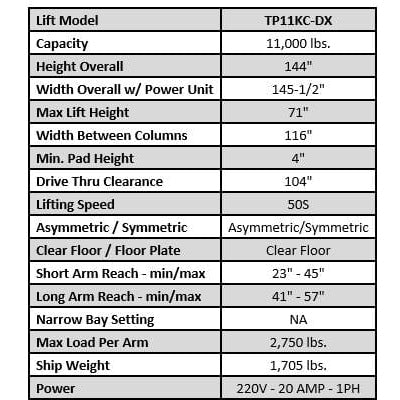

Specifications

Lift Model
TP11KC-DX

Capacity
11,000 lbs.

Height Overall
144″

Width Overall w/ Power Unit
145-1/2″

Max Lift Height
71″

Width Between Columns
116″

Min. Pad Height
4″

Drive Thru Clearance
104″

Lifting Speed
50S

Asymmetric / Symmetric
Asymmetric/Symmetric

Clear Floor / Floor Plate
Clear Floor

Short Arm Reach min/max
23″ 45″

Long Arm Reach min/max
41″ 57″

Narrow Bay Setting
NA

Max Load Per Arm
2,750 lbs.

Ship Weight
1,705 lbs

Power
220V 20 AMP 1 PH

Manual
Tuxedo TP11KC-DX 11,000 lb 2 Post Lift Manual
